Introduction

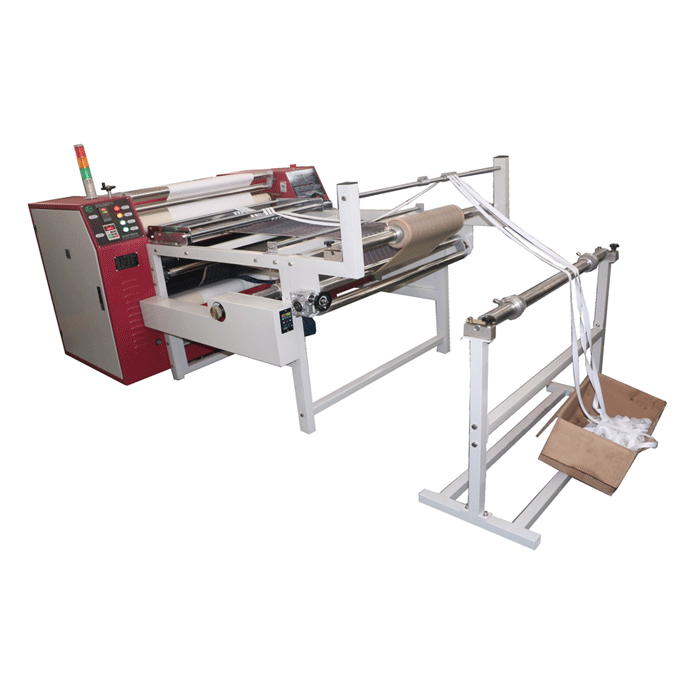

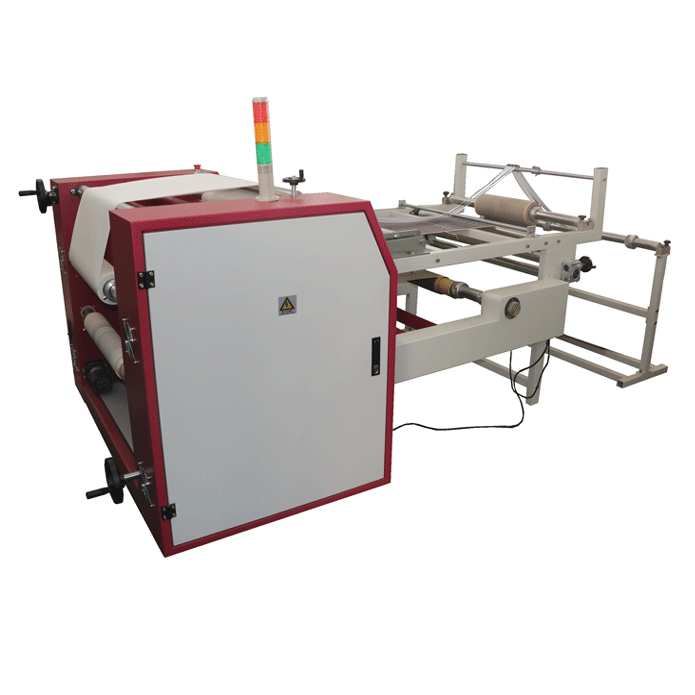

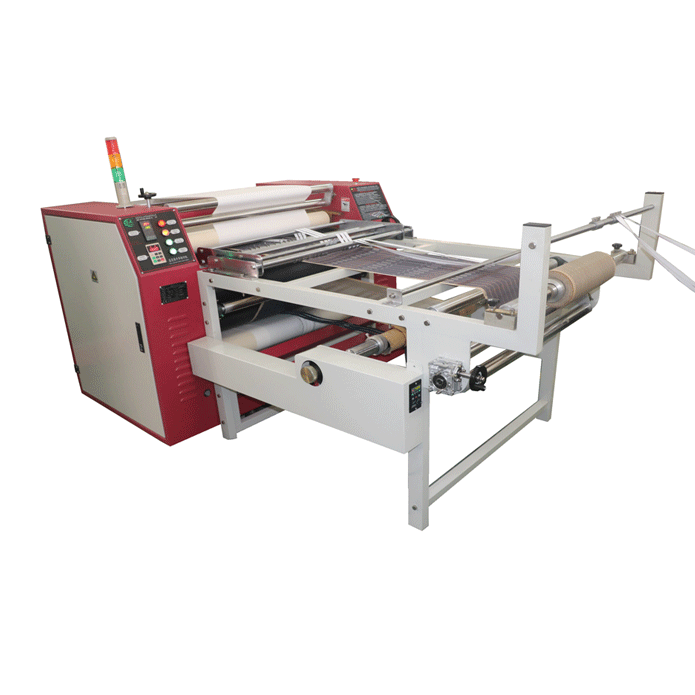

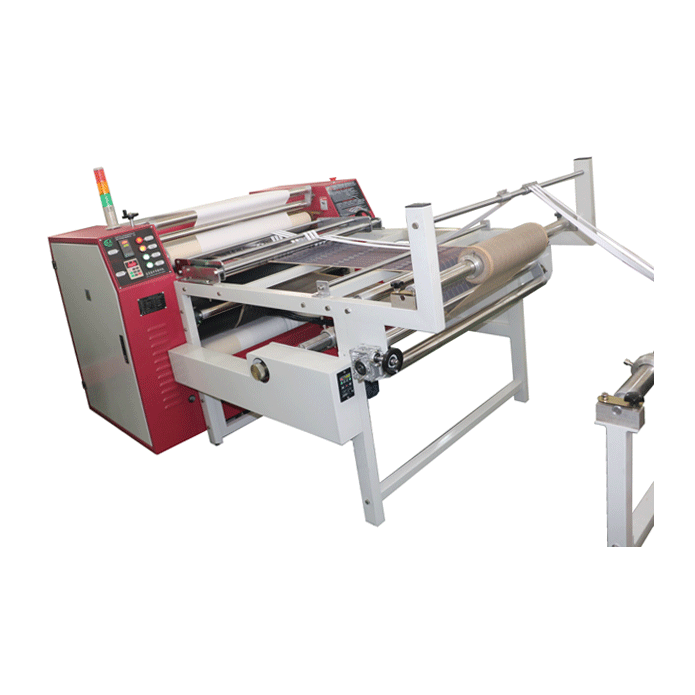

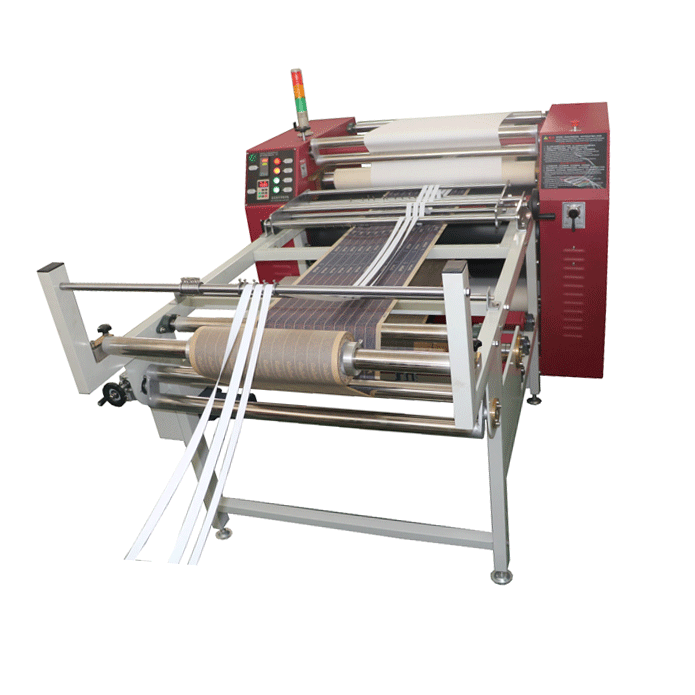

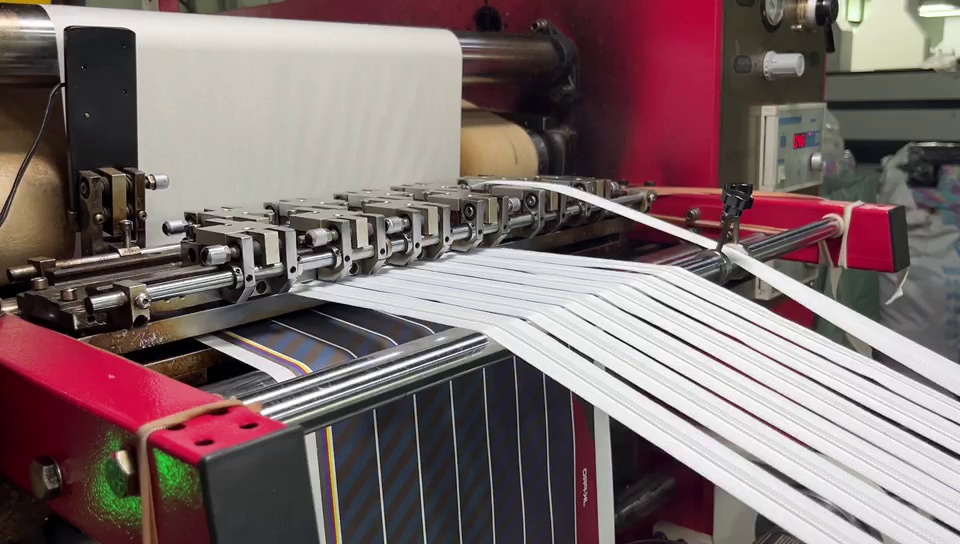

      The webbing sublimation transfer machine is a high-efficiency heat transfer equipment specially designed for continuous webbing materials such as polyester webbing, lanyards, luggage straps, and garment accessories. The machine adopts a seamless steel tube structure with a Teflon-coated surface, providing excellent non-stick performance and stable heat conduction. Under high temperature and pressure conditions, it accurately transfers patterns into the webbing fibers, resulting in vivid colors, clear layers, and excellent resistance to washing and abrasion.

The machine is equipped with a high-precision oil-heat conduction constant temperature system, ensuring uniform and stable heating for consistent transfer quality during long-term continuous production. In addition, it features a highly stable conveying system and can be optionally equipped with an automatic edge correction device, effectively preventing webbing deviation and enabling high-precision continuous operation. The tension control system dynamically adjusts webbing tension, ensuring smooth and stable running throughout the production process.

With a dedicated groove-guided positioning structure, the machine achieves precise axial alignment of the webbing, further improving registration accuracy and pattern consistency. The equipment offers high efficiency and strong stability, significantly reducing labor costs while increasing overall production capacity.

This machine is widely used in gift straps, advertising lanyards, garment label tapes, and industrial safety webbing. It is an ideal solution for webbing printing and customized production requirements.

Technical data

Samples

Printing solution

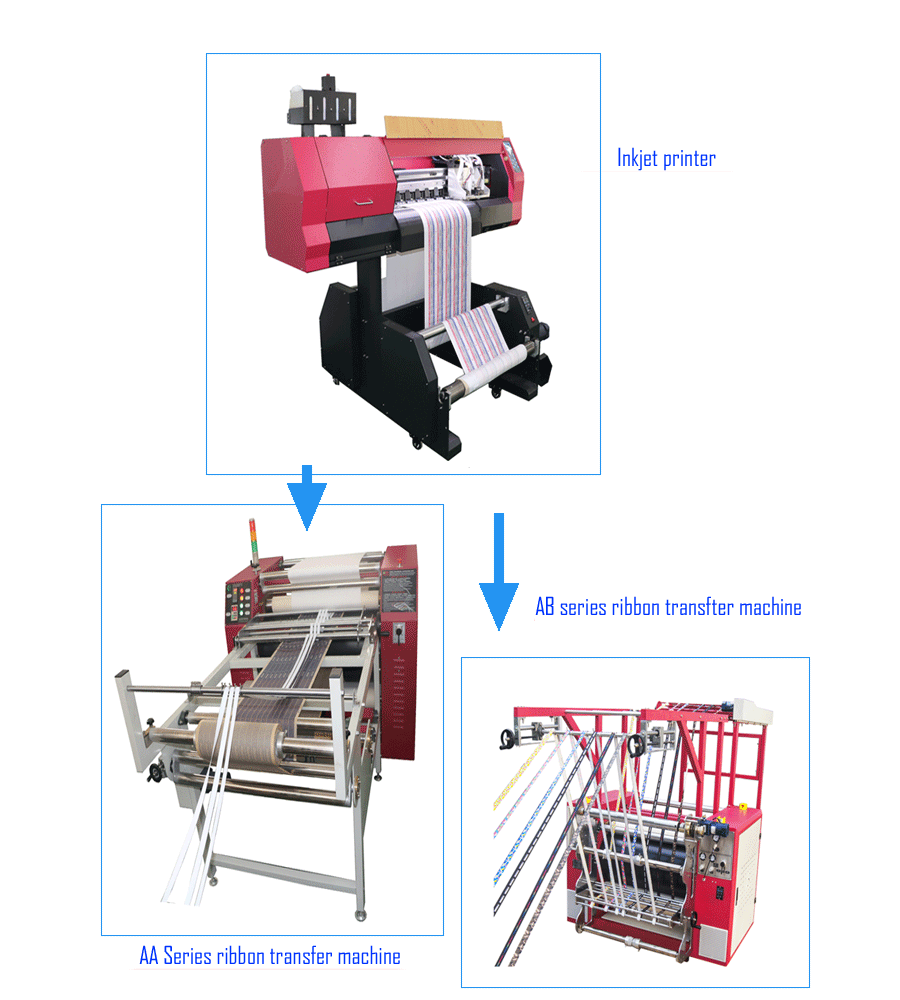

     The sublimation transfer printing process for ribbons involves transferring a design or text onto the surface of a ribbon through thermal sublimation. This process requires two specialized printing equipment:

1. An inkjet printer—the design is printed onto sublimation transfer paper using a dedicated inkjet printer.

2. A ribbon thermal transfer machine—the design from the sublimation transfer paper is transferred onto the ribbon.

Machine details-advantage

• High-quality carpet belt conveyors are selected to ensure smooth material passing and stable pressure during the transfer process.
• The machine adopts an advanced control system with imported components, featuring automatic limit protection for improved accuracy, safety, and long service life.
• Microcomputer PID temperature control system is used, ensuring high precision temperature regulation (±0.5°C). The fully digital time display provides accurate and reliable operation control.
• The heating plate is made of high-grade imported materials, combined with vacuum gas heating and oil heating dual systems, ensuring uniform heating, excellent thermal conductivity, and consistent transfer color performance. The oil-based thermal conduction structure further enhances color uniformity during continuous operation.
• The machine supports single-piece production and is equipped with large-diameter bearings. Wear parts in the heating system are designed for easy maintenance and replacement.
• The transmission rubber rollers are made from high-quality Japanese raw materials, ensuring long service life and stable performance.
• A backup power supply configuration is available upon request. The structure can be upgraded with alternative imported blanket systems, avoiding the maintenance issues commonly associated with manual blanket correction.
• The system uses U.S.-imported “DuPont” high-capacity heat transfer oil, providing stable temperature performance and enabling continuous transfer without color variation.
• 420mm diameter roller is installed, with inverter-controlled speed regulation and frequency conversion timing motor. Carbon brush conductive heating, automatic paper release, and fabric/paper collection systems are integrated for efficient operation.
