Ionizer Lamp Ion Cluster for Air Cleaning System
Description

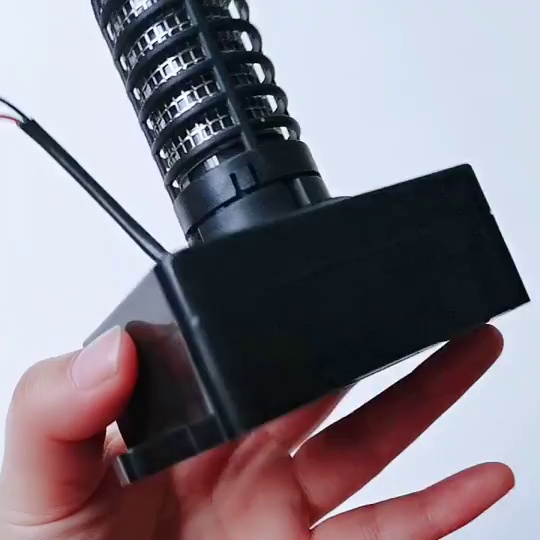

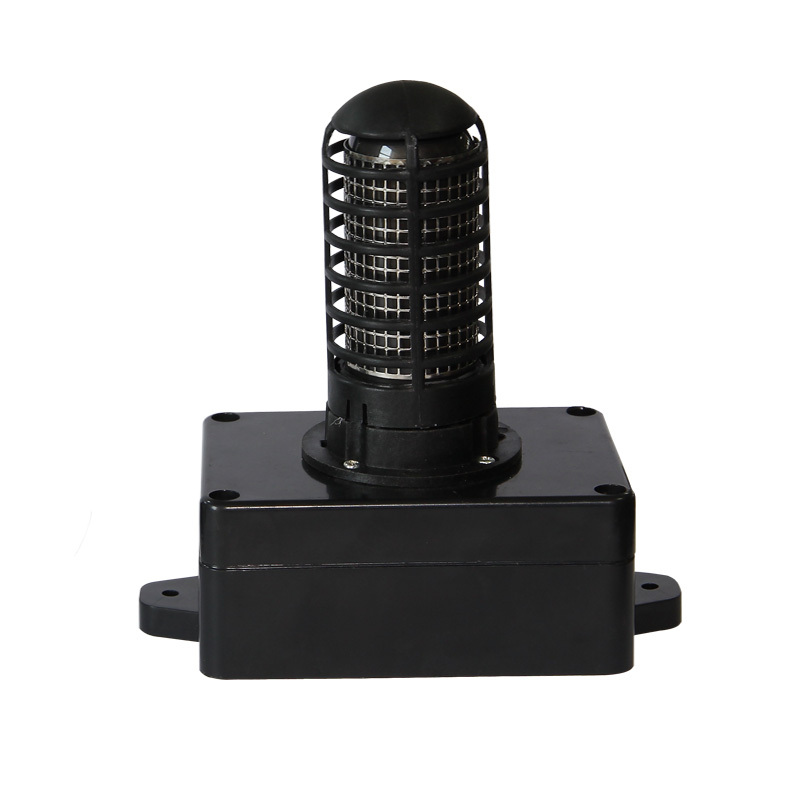

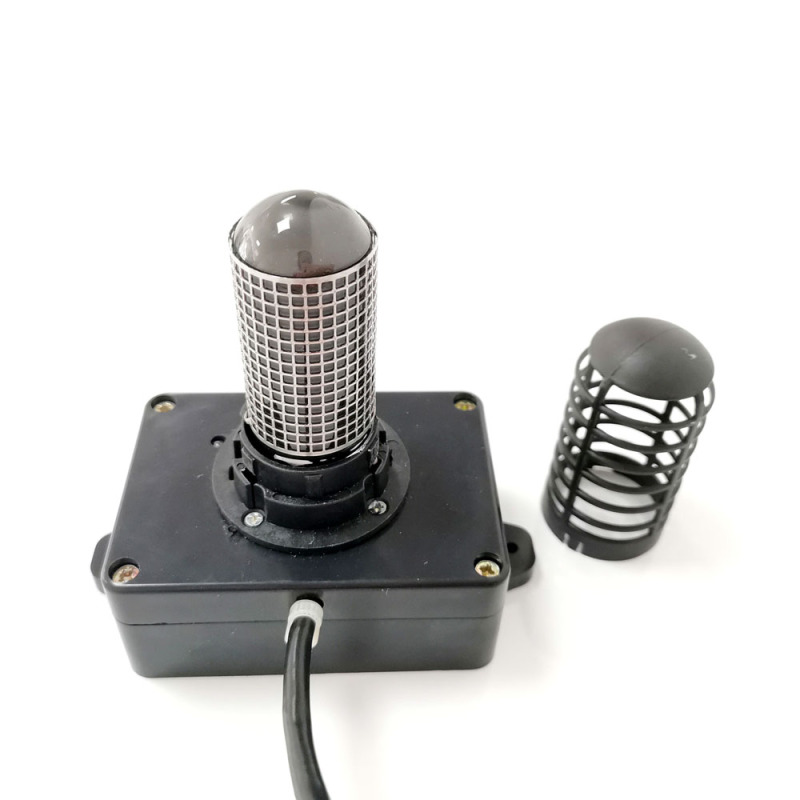

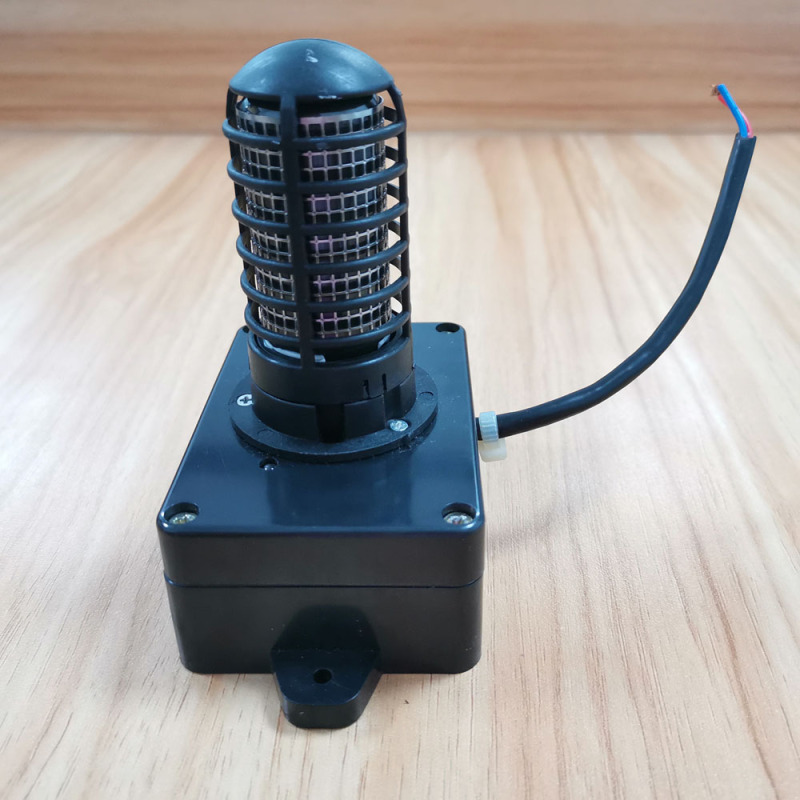

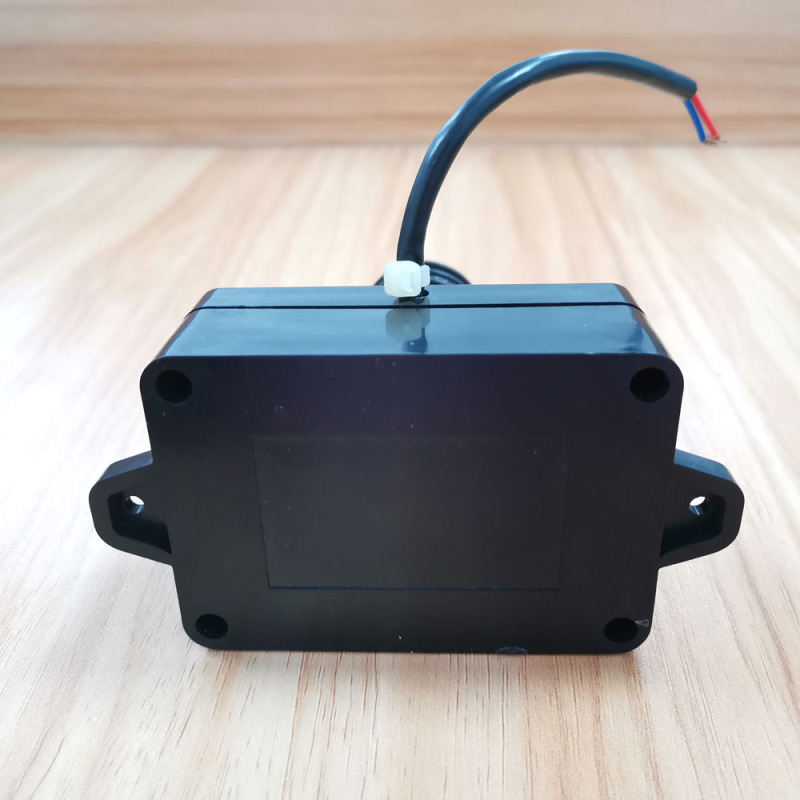

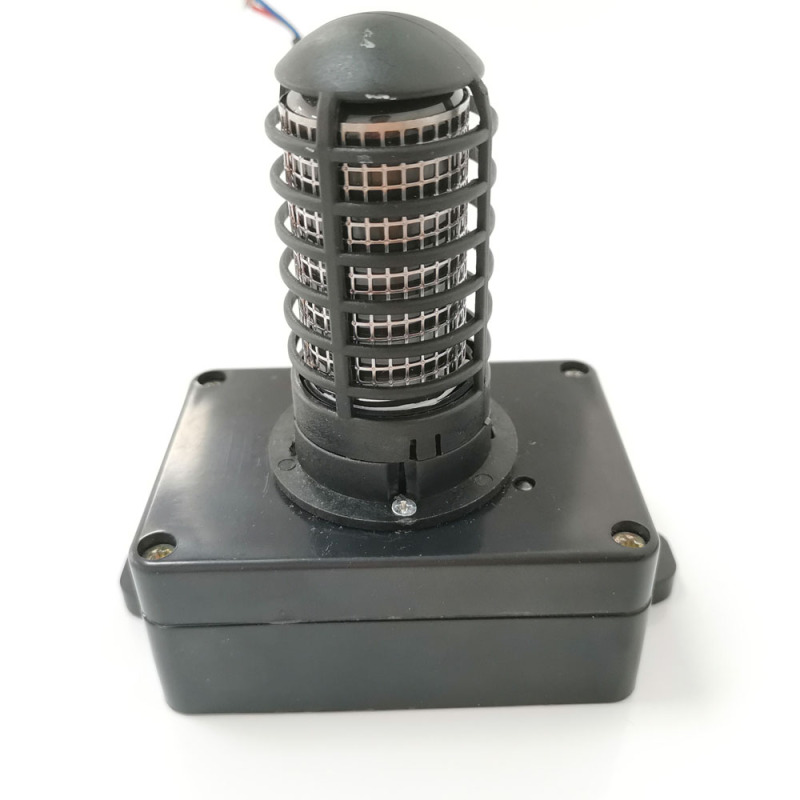

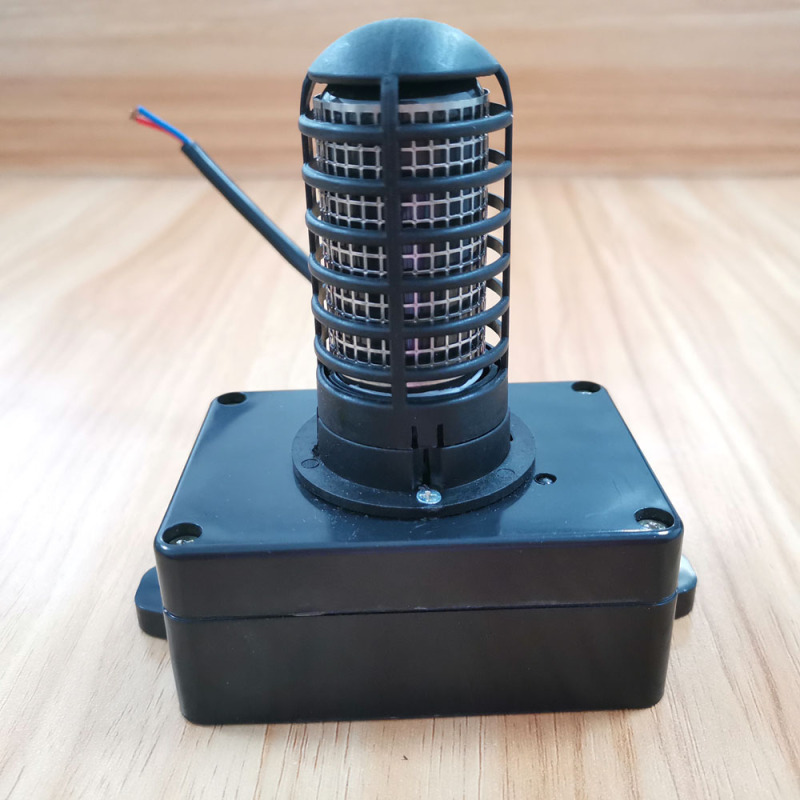

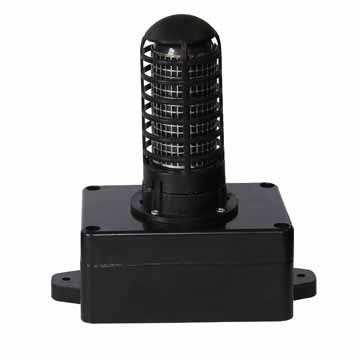

Plasma DBD Ionizer-DBD85-220V
DBD85-220V is a plasma discharge tube for air cleaning , which is designed to have all circuits inside the tube.
With high-energy and higher efficiency compared to other Ion Cluster modules, DBD85 series of products are the ideal cchoice for installation in HVAC systems , inside of diffusers , air conditioner for room cleaning or other Air Purification
products.
HVAC System or Diffusers
-There's a risk of virus infection because of the smell of user in the room that many people use .
- In the case of central air conditioning , DBD85 series is best choice to be used in the diffuser or HVAC Air Outlet,effectively remove the residual odor, viruses and bacterias.
- Easy to install and optimized for use in about 15 sqm.of room.
Bio-Clean Room
- In case of Bio-Clean room and Bio-Clean Booth,we will adopt UV light and Ion Cluster DBD85 to sterilizer the air.
- UV only sterilize and irradiated area, so it only sterilizes the air that is inhaled.
- Ion Cluster DBD85 can spread all over the room to sterilize.
Air Curtain
There're three types of DBD85 can be selected as follows:
-DBD85S-12V is the bulb with M5 screw connecting head, .
-DBD85-12V is the bulb with B15 connecting head.
-DBD85-220V is the bulb with AC to DC converter case and power supply is 85VAC~265VAC.
- Air Sterilization for indoor room.
- Air Sterilization for the outside.
Air Purifier/Air Sterilizer/Odor Eliminator spare parts
|
Testing Feedback for DBD Ionizer
|
|||||
|
Items
|
Flow speed
|
Distance
|
Negative Ions
|
Positive Ions
|
Ozone Output
|
|
|
M
|
CM
|
millions/cm3
|
millions/cm3
|
PPM
|
|
2pcs of DBD85
|
1
|
40
|
7
|
4
|
0.5
|
|
1pc of DBD85
|
1
|
40
|
1.5
|
1
|
0.4
|
