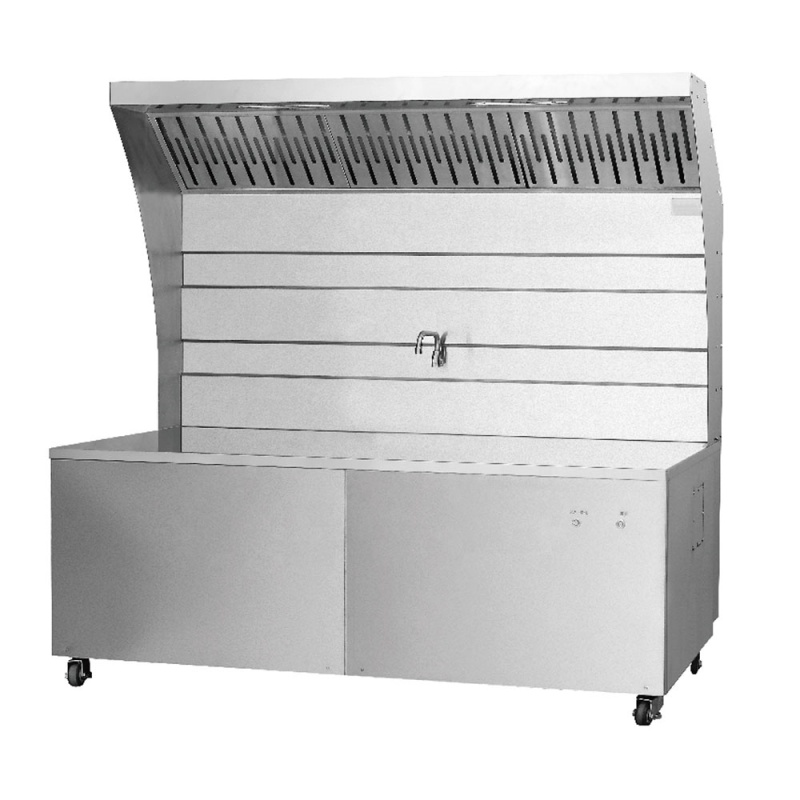

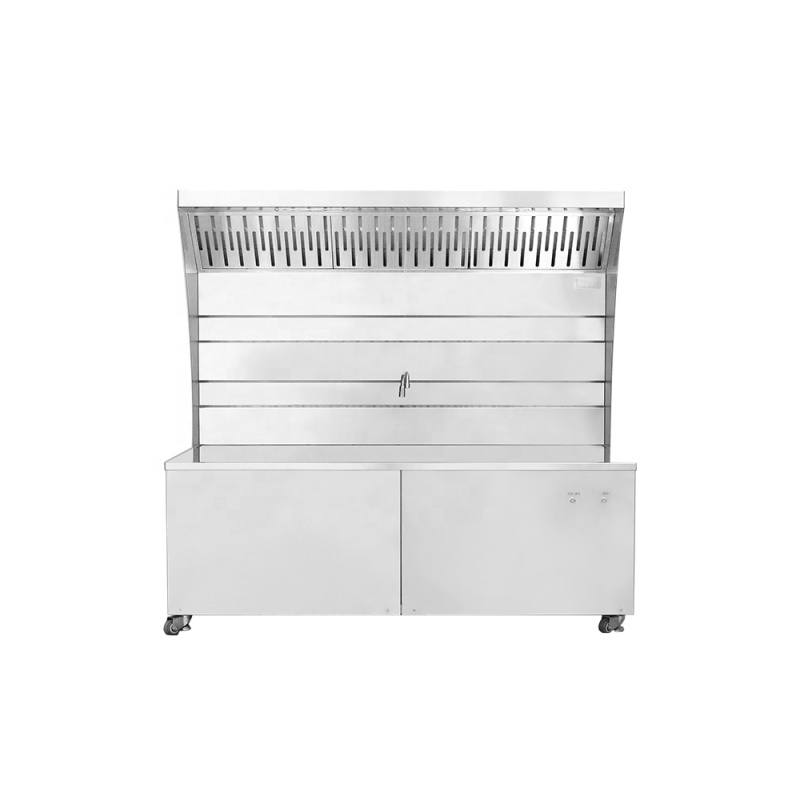

All-In-One Kitchen Exhaust Hood with cooking pot
Description
Mobile Fume Purification integrated Stove
All-in-one Cooker with ESP Purifier
(KHPH-18/KHMH-181/KHMH-182)
Focusing on the Problems of smoke & Oil, Security risks,Expensive for installation and maintenance, big Noise and Environmentally friendly emissions, Livewell has designed a new Fumes purifier “Mobile Range hood with Stove “ all-in one purifier Machine, The fumes will be purifier after absorbed into machine by the ESP Electrostatic purification module, Meet the environmental protection lampblack emission standard, Especially suitable for roadside restaurants, roadside vendors, food street vendors, food stalls.
Compared with traditional range hoods and stoves at night market roadside stalls, the Ecohero integrated cooking fume purification stove greatly simplifies the cumbersome process of normally range hoods, You needn’t to install the air tube of the hood again, it can directly exhaust into the atmosphere, And with the function of low energy consumption, small using area, convenient cleaning and convenient movement, You needn’t to worry about affecting the surrounding air quality, and you can do business with complete peace of mind.
Products' Specifications
|
Item NO. |
KHPH-18 |
KHMH-181 |
KHMH-182 |
|
Product name |

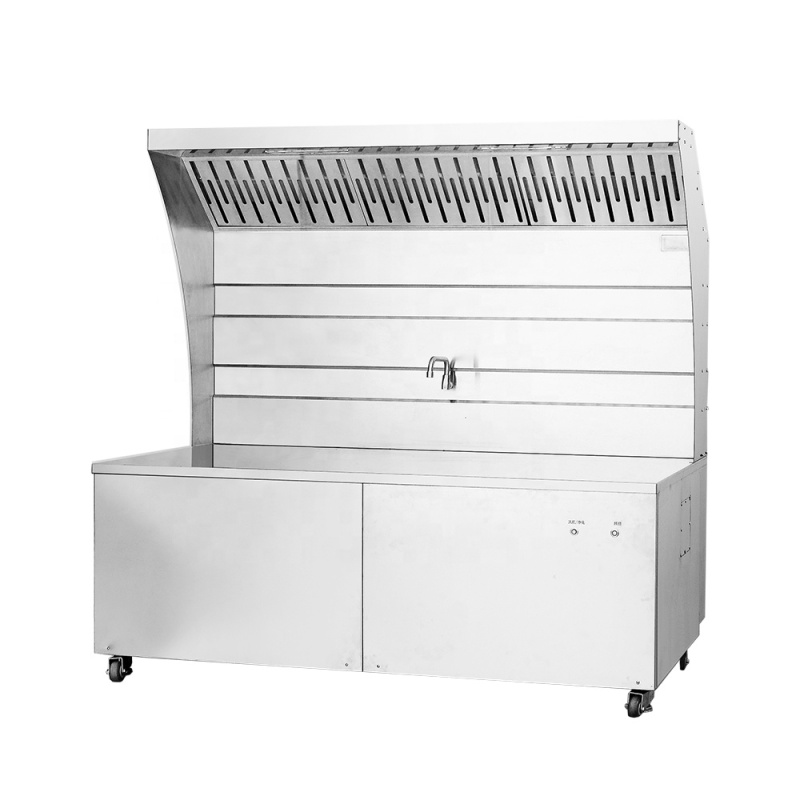

Platform without stove |

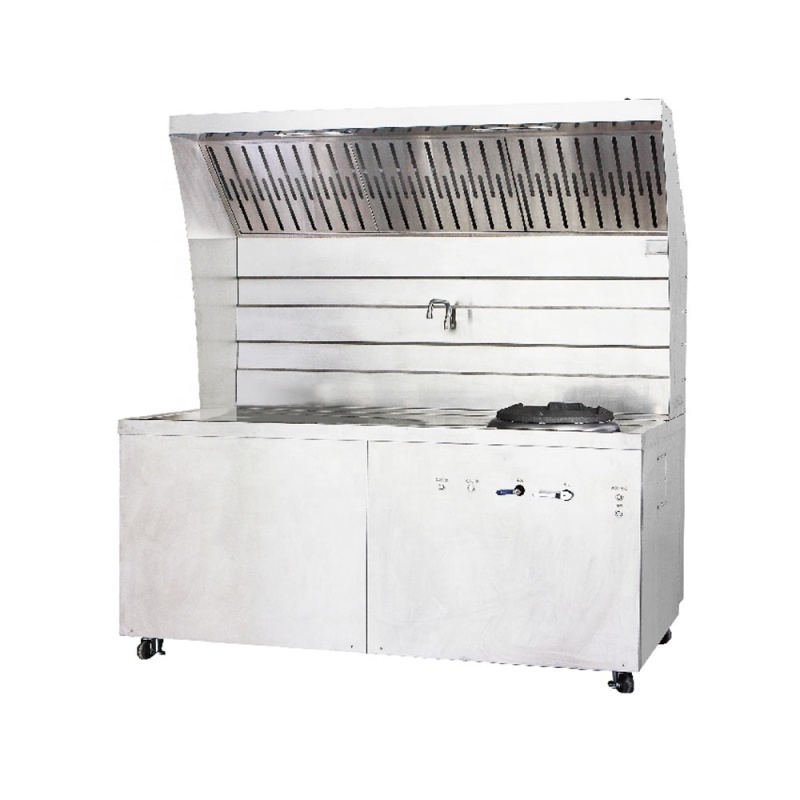

Single-fire stove |

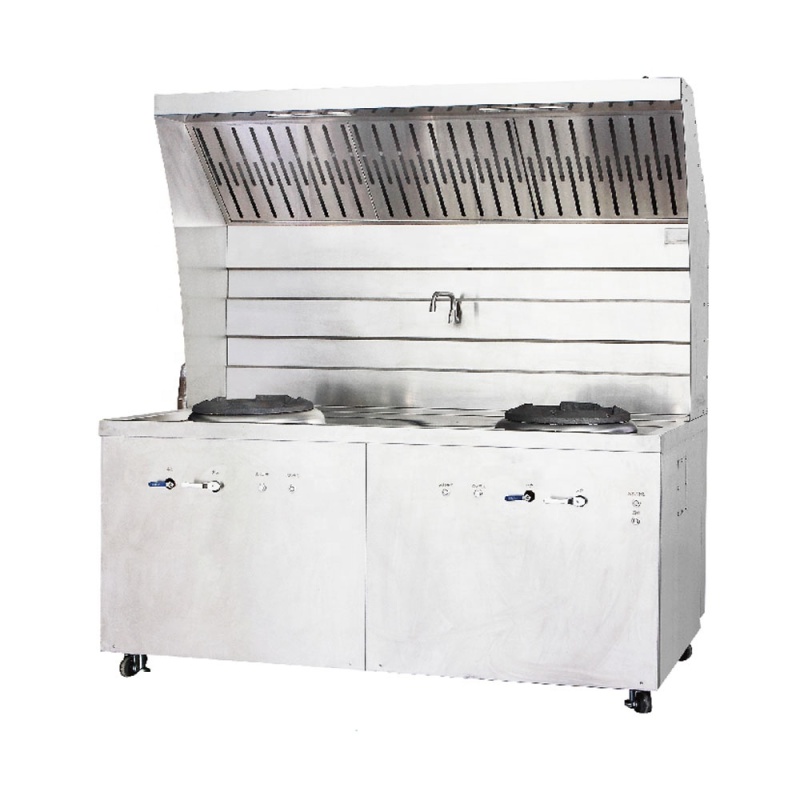

double-fire stove |
|
Power supply |
220VAC 50/60HZ, 1.5KW (motor power 1.1kW, Fan full pressure 550PA) |
||
|
Adsorption area |
32sqm |
||
|
Product size (mm) |
1800x830x1770(other size can be order),NW250kgs |
||
|
Operating platform size(mm) |
1800x750x530 |
||
|
Electric field size (mm) |
380×600×480X2PCS |
||
|
volume (m3/h) |
4100(7000CFM) |
||
|
Air speed (m/s) |
4.5 |
4.5 |
4.5 |
|
Purifier rate |
97% |
97% |
97% |
|
Resistance (Pa) |
≤180 |
≤180 |
≤180 |
|
Operating temperature (℃) |
<70 |
<70 |
<70 |
|
Electric field materia |
ESP*2pcs (Stainless steel ionizer + tungsten wire electrode, aviation aluminum dust collection unit, spacing 7mm) |
||
|
Filter |
pre-filter 1pcs, ctivated carbon filter*1pcs(Optional) |
||
|
Security configuration |
Open the door and power off, radiator |
||
|
Parts have |
Water inlet and drain interface, oil collecting tank, LED light switch, fan switch |
Natural gas, water inlet and drainage interface, oil collection tank, LED light switch, fan, ignition, firepower adjustment switch |
|
Working Principle for How does ESP filter remove cooking fume ?

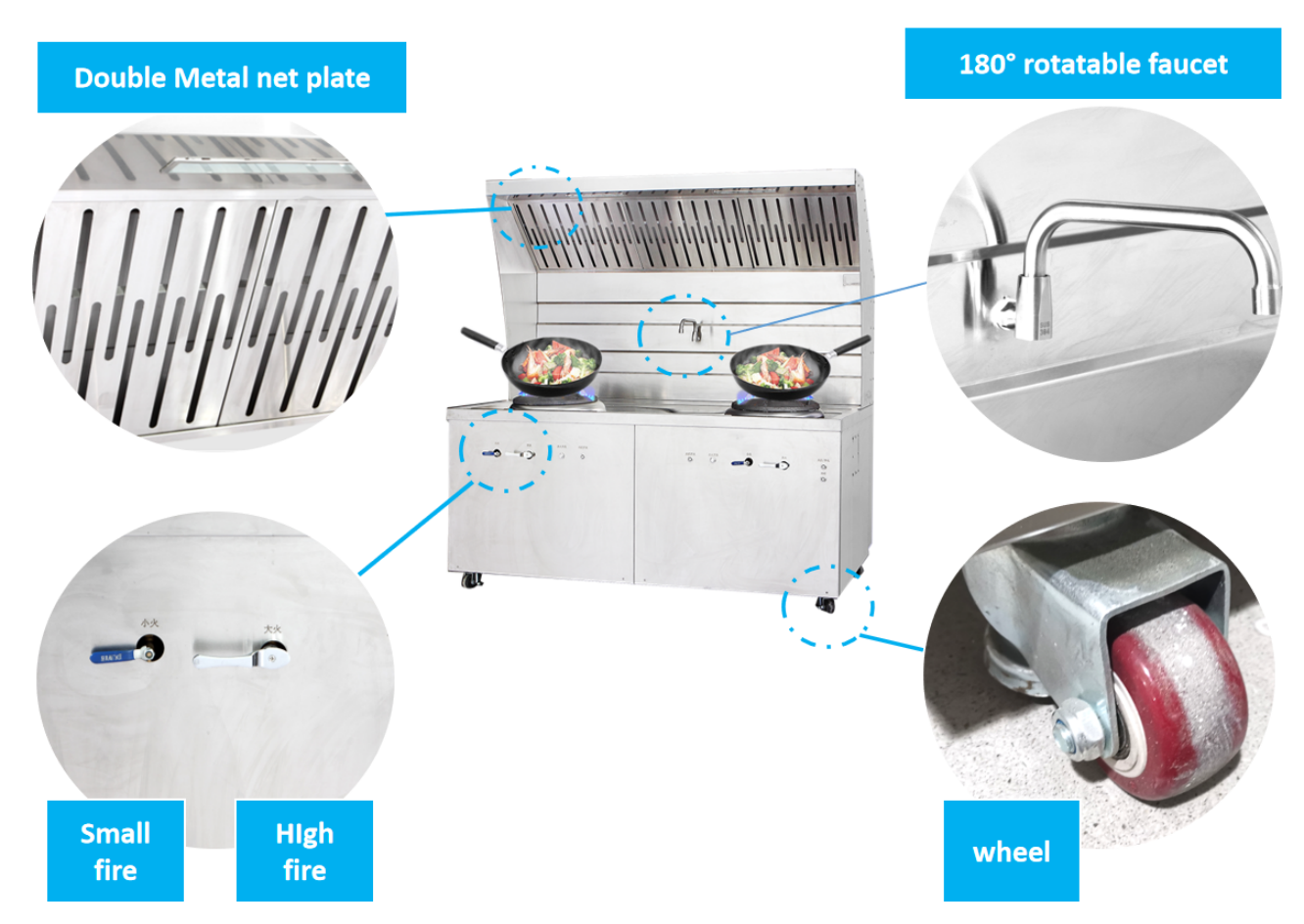

More details about the mobile Cooking Counter
Electrostatic Precipitator/Electrostatic Smoke Precipitator/Kitchen Exhaust
