All-in-one commercial smoke-free Cooker Stove,Commercial Cooking Counter With ESP Purifier for Restaurants, Barbecue or mobile street food shops

fume oil mist purifier all-in-one restaurant environmental protection cooking car commercial smoke-free raging fire mobile gas s

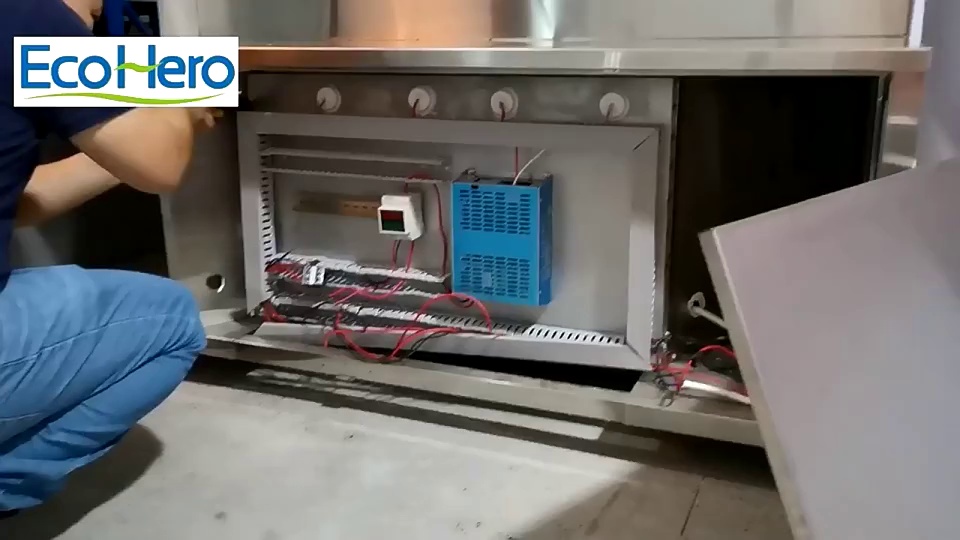

“Mobile Range hood with Stove “ all-in one Cooking Counter with ESP Purifier

Focus on the Problems of smoke & Oil, Security risks,Expensive for installation and maintenance, big Noise and Environmentally friendly emissions, Ecohero have designed a new Fumes purifier “Mobile Range hood with Stove “ all-in one purifier Machine, The fumes will be purifier after absorbed into machine by the ESP Electrostatic precipital module, Meet the environmental protection lampblack emission standard, Especially suitable for roadside restaurants, roadside vendors, food street vendors, food stalls.

Compared with traditional range hoods and stoves at night market roadside stalls, the Ecohero integrated cooking fume purification stove greatly simplifies the cumbersome process of normally range hoods, You needn’t to install the air tube of the hood again, it can directly exhaust into the atmosphere, And with the function of low energy consumption, small using area, convenient cleaning and convenient movement, You needn’t to worry about affecting the surrounding air quality, and you can do business with complete peace of mind.

Specifications:

Item NO.	KHPH-18	KHMH-181	KHMH-182
Product name	Platform without stove	Single-fire stove	double-fire stove
Power supply	220VAC 50/60HZ, 1.5KW (motor power 1.1kW, Fan full pressure 550PA)
Adsorption area	32sqm
Product size (mm)	1800x830x1770(other size can be order),NW250kgs
Operating platform size(mm)	1800x750x530
Electric field size (mm)	380×600×480X2PCS
volume (m3/h)	4100(7000CFM)
Air speed (m/s)	4.5	4.5	4.5
Purifier rate	97%	97%	97%
Resistance (Pa)	≤180	≤180	≤180
Operating temperature (℃)	<70	<70	<70
Electric field materia	ESP*2pcs (Stainless steel ionizer + tungsten wire electrode, aviation aluminum dust collection unit, spacing 7mm)
Filter	pre-filter 1pcs, ctivated carbon filter1pcs**(Optional)*
Security configuration	Open the door and power off, radiator
Parts have	Water inlet and drain interface, oil collecting tank, LED light switch, fan switch	Natural gas, water inlet and drainage interface, oil collection tank, LED light switch, fan, ignition, firepower adjustment switch
