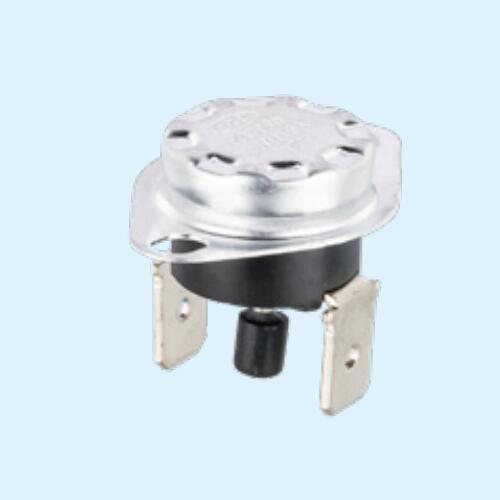

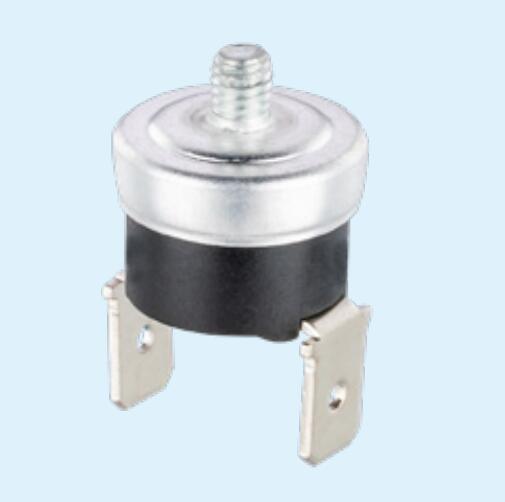

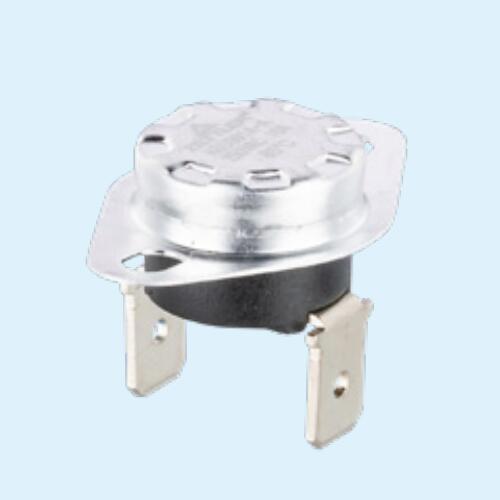

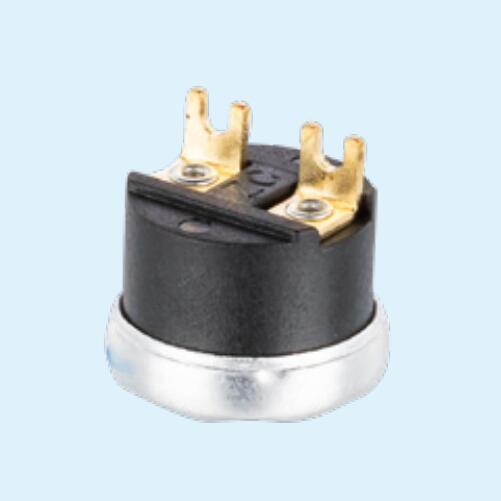

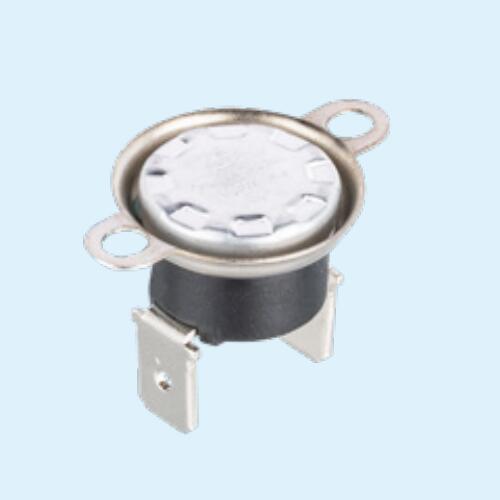

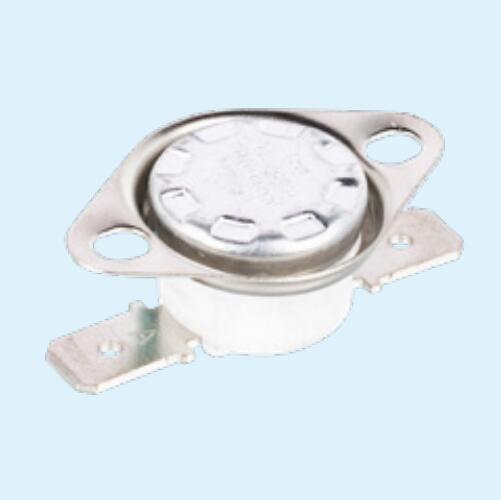

KSD301A series snap-action thermostat/ temp switch
Description
KSD301A series snap-action thermostat/ temp switch
1. Product features
KSD301A series is 1/2" bimetallic snap-action thermostat, have small size, quick tripped action, it's safe and reliable with long

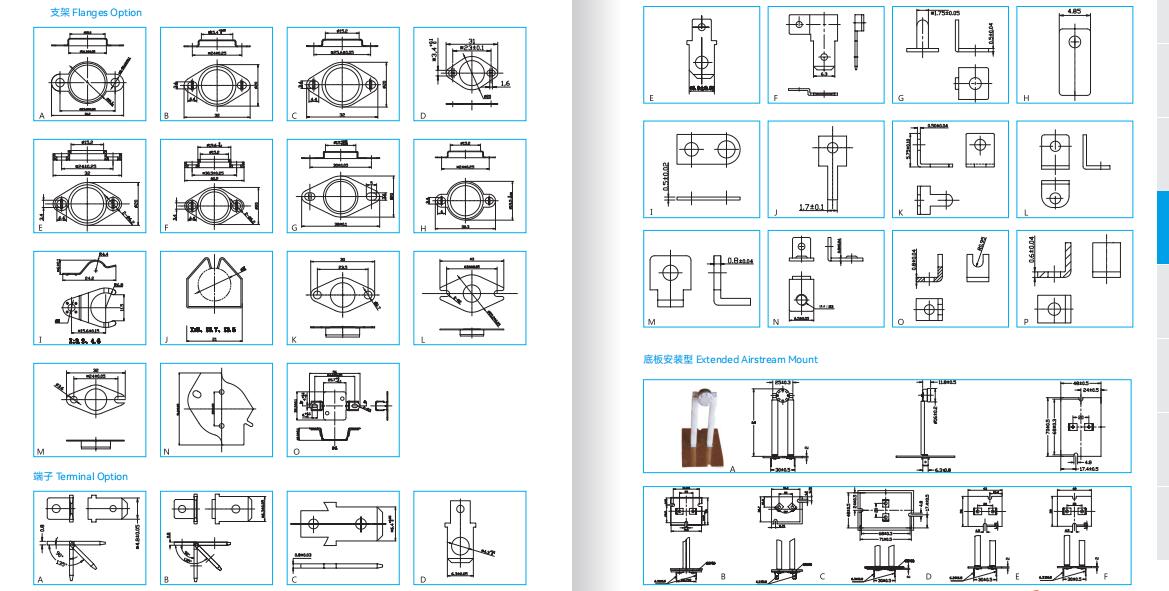

life cycles (100,000 cycles), there are varieties of mounting brackets and terminals.
2. Applications
Hot kettle, sandwich machine, dryer, oven, water dispenser, vacuum cleaner, electric stove, water heater, diahwasher, electric/gas
heater......
3. Production certification
UL, CUL, TUV, VDE, CE
4. Rated voltage: 120/240/250/277V
5. Rated current: MAX 16A
6. Temp range:
6.1 ceramic housing: -30℃-250℃
6.2 Bakelite housing: -30℃-150℃
7. Tolerance
7.1 Min: ±2℃
7.2 Standard: ±5℃
