X-750 High-Temperature Alloy ST10*1.5*1.5D Threaded Nested Sleeve Steel Fasteners Factory Direct Sales

Video

Product ID: 63684385

X-750 High-Temperature Alloy ST10*1.5*1.5D Threaded Nested Sleeve Steel Fasteners Factory Direct Sales

Contact Now

Description

Product Description

Product Name	Wire thread insert
Nominal diameter	1d-3d
Accuracy	6H
Thread type	UN/UNF/UNC

Details Images

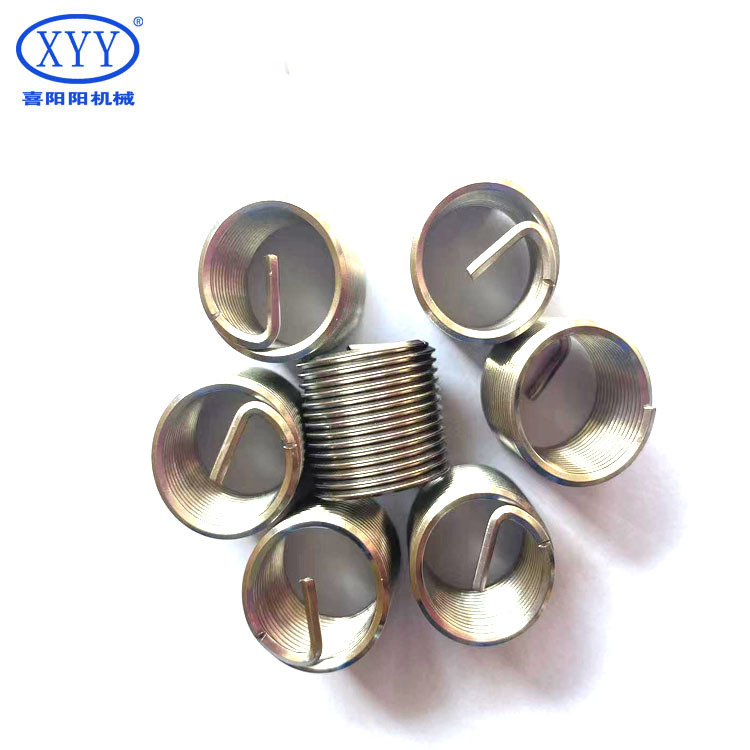

Introduction of screw sleeve

The Xiyangyang steel wire screw sleeve is produced and processed with excellent materials, which improves the quality from the source, is not easy to rust and corrosion resistant, has high hardness and guaranteed quality,
has smooth and solid surface, beautiful appearance and high practicability, the thread standard stress is uniform, the head is flat, the screw teeth are sharp, it is not easy to slip during rotation, and the fastening effect is good.

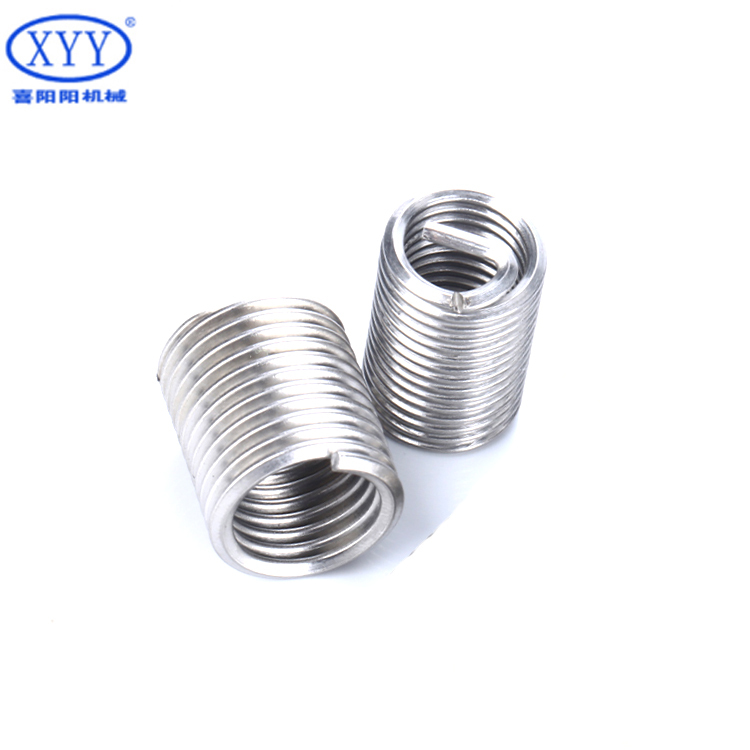

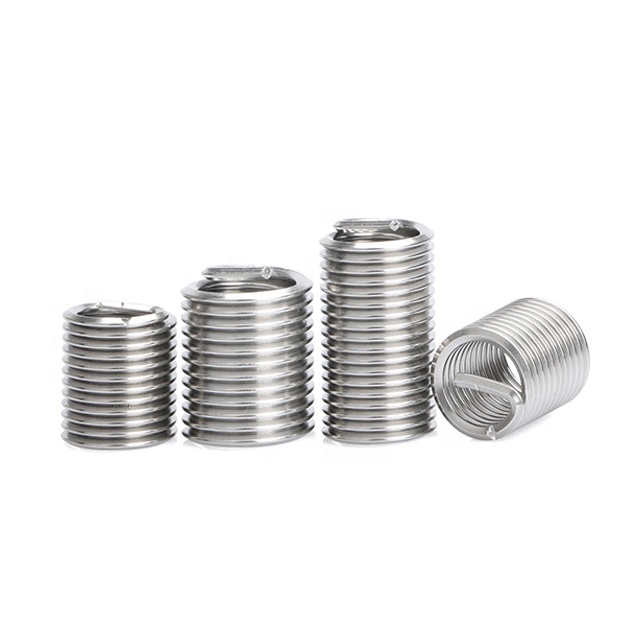

Steel wire insert is a new type of internal thread fastener. It is a spring-shaped concentric body of internal and external threads accurately processed from cold-rolled diamond shaped stainless steel wire with high strength, high precision and smooth surface. It is mainly used to strengthen and protect the internal thread of low-strength materials. Its principle is to form an elastic connection between the screw and the internal thread of the matrix, eliminate the thread manufacturing error and improve the connection strength.

Notch at the tail

Tail snap

Outer diameter dimension

Product installation method

The installation tools of steel wire thread sleeve include: drill bit, tap, plug gauge, special installation tools, and automatic punch.

Steel wire insert drill bit: when drilling the threaded hole, the drill bit of the steel wire insert should be larger than the diameter of the internal thread hole of the steel wire insert and smaller than the diameter of the external thread of the steel wire insert. Wire tap: a tool used for tapping thread holes. Screw taps are divided into straight groove screw taps and spiral groove screw taps. Spiral groove screw taps can automatically discharge debris when tapping teeth Steel wire thread plug gauge: steel wire thread plug gauge is a tool used to detect the screw thread accuracy after tapping the screw hole. The steel wire screw plug gauge is divided into go gauge and no go gauge. Use the plug gauge to detect the threaded hole. If the go gauge can pass and the no go gauge can stop, it means that the threaded hole is qualified Special installation tools: screw the steel wire threaded sleeve vertically into the installation hole, and the steel wire threaded sleeve is required to be lower than the workpiece surface. After installation, screw out the installation tool.

Automatic punch: put the corresponding type of automatic punch into the installed screw sleeve, press the upper end of the handle down, and then take it out.

Related Products

Packing&Shipping

Company Introduction

Xinxiang Xiyangyang Screening Machinery Manufacturing Co., Ltd. It is an innovative private enterprise integrating technology research and development, processing and manufacturing and trade services. The company mainly manufactures and sells fasteners such as steel wire sleeve, self-tapping screw sleeve, tailless screw sleeve and matching cutting edge measuring tools; the company has technological development strength, a variety of production equipment and high-precision testing equipment, and specializes in providing customers with the design and use of fastener products such as steel wire sleeve, self-tapping screw sleeve and the whole process of technology. Operative support.
Xinxiang Xiyangyang steel wire screw sleeve is widely used in new energy industry. In response to market needs, special plated isolation screw sleeve, silver plated screw sleeve, taper screw sleeve, high temperature resistant steel wire screw sleeve, tin bronze steel wire screw sleeve and GJB steel wire screw sleeve are introduced to meet the needs of different users.
Our company has a perfect quality assurance system and has passed the high standard quality inspection and approval of all partners. In order to open up the market and realize mutual benefit, we will serve our customers wholeheartedly with the win-win business philosophy of "price, quality" and "integrity, service". In line with the principle of "the lowest price, but the best quality", our company wholeheartedly provides high-quality products and honest service for domestic and foreign users.
Xiyangyangyang Steel Wire Sleeve escorts your threads so that tightening is everywhere!

FAQ

1. Who are we?
We are based in Henan, China, start from 2014,sell to Eastern Europe(10.00%),South America(10.00%),North America(10.00%),Africa(5.00%). There are total about 11-50 people in our office.
2.How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Wire thread insert,Self tapping insert,Tanglees,Keensert,Thread repair kit
4. Why should you buy from us not from other suppliers?
Our company is a professional manufacturer of thread inserts and tools. Xinxiang, a powerful industrial city in Central China,has been engaged in thread nesting industry for more than 20 years.
5. What services can we provide?
Accepted Delivery Terms: FOB,EXW,Express Delivery；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union;
Language Spoken:English,Chinese
