High-Precision 304 Stainless Steel Laboratory Screen New Condition Centrifuge Particle Fluid Filtration Core Component Motor
Contact Now
Description
Product Overview
Introduction to square swing screen
From the motion track of the shaking body of the screen machine, that is, the screen box, the square swing screen is also known as the reciprocating screen. The vibration force generated by its driving device is an inertial force that changes regularly around the fixed axis, and its essence is the reciprocating inertial force formed by the rotation of the eccentric wheel around the fixed axis. According to the structural characteristics and working principle of swing screen, its screen surface is generally arranged horizontally or slightly inclined (the inclination angle is 0 ° ~ 5 °).
All materials flow out from the outlet of each layer. Repeat the same screening process for each layer, or add a layer of blind plate in the middle as double feed screening. With the same or similar configuration, the square swing screen has higher processing capacity and screening efficiency than the general inertial vibrating screen. Its essence is that this model can artificially control the movement track and residence time of the material on the screen surface, that is, in a limited space, because the movement track of the material is a non-linear curve of speed and acceleration, there is more contact probability between the material and the screen surface, which of course increases the screening rate.
FEATURES AT A GLANCE
Performance characteristics of square swing screen
■ the screening efficiency is high, and the setting of the screening machine can be adjusted according to different products and output;
■ high screen utilization and long service life;
■ silicone / rubber gasket is easy to install, 100% dustproof and has good sealing effect;
■ all parts are easy to disassemble and clean;
■ long service life of all parts without material leakage;
■ low maintenance requirements for 24-hour continuous operation;
■ fast fixture, easy to change the net;
■ good self cleaning effect;
■ low noise and stable operation.
■ the whole machine leaves the factory, all parameters have been adjusted, and production can be carried out after power on;
■ the height of a single machine can reach 5 floors

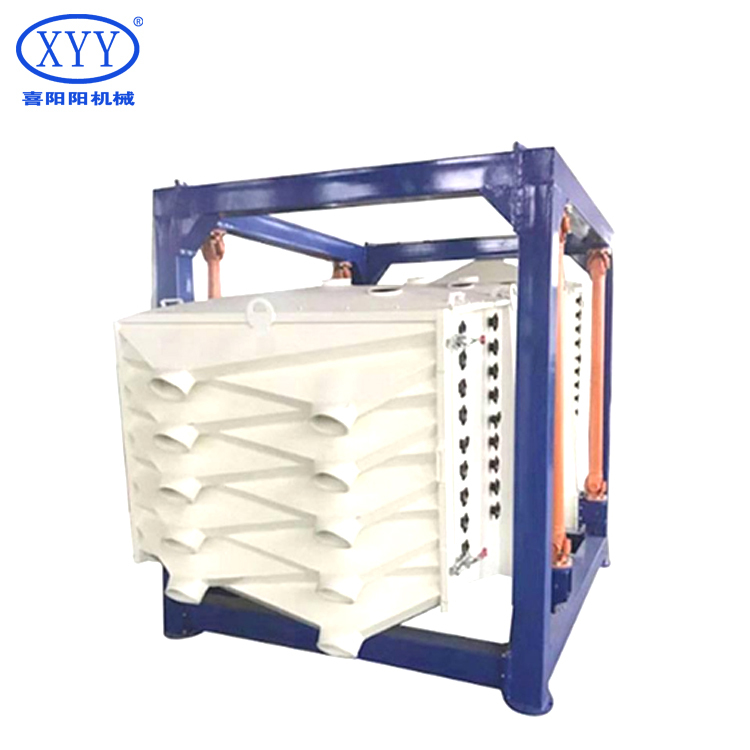

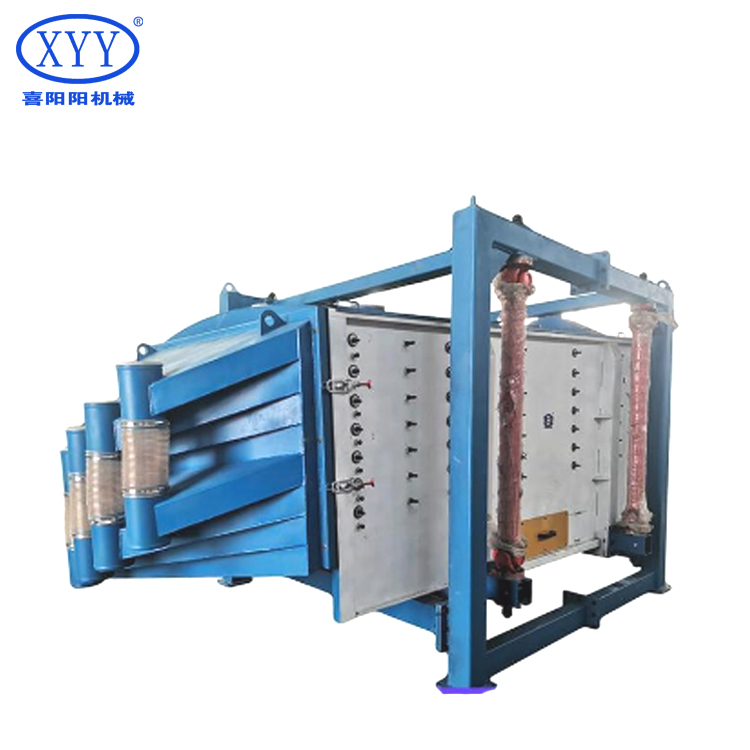

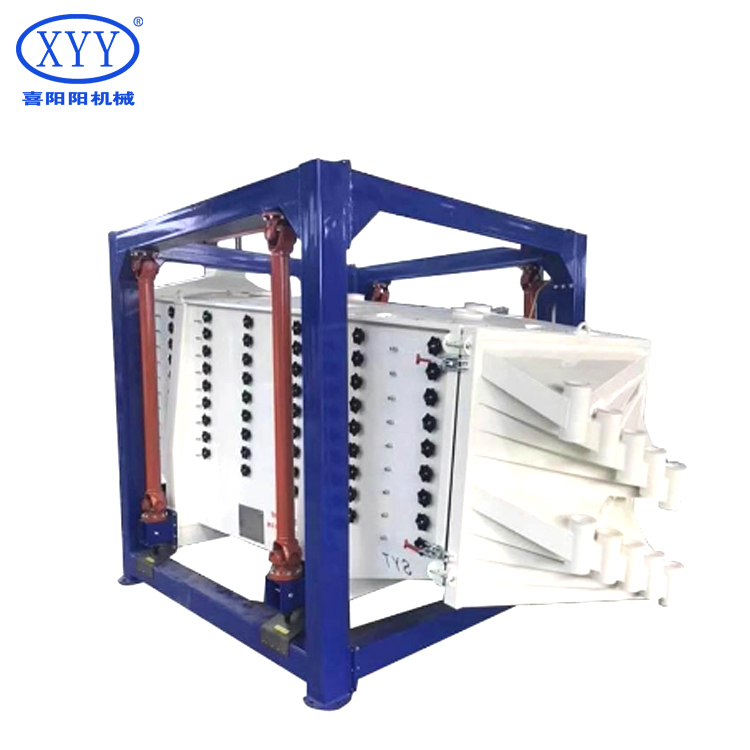

Side of square swing screen

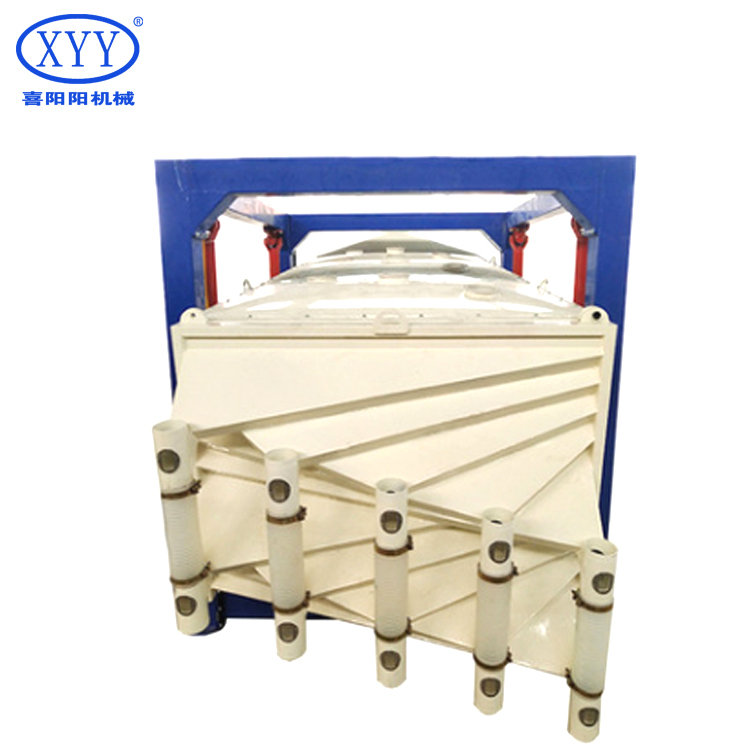

Swing screen front

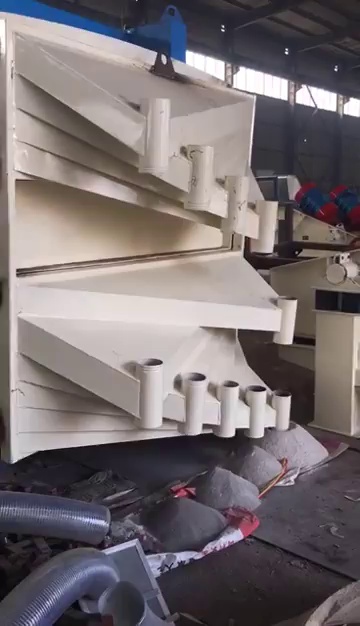

Inside swing screen
PRODUCT SPECIFICATIONS
1 | company | Xiyangyang machinery |
2 | name | Square swing screen |
3 | Number of sieve surface layers | Floors 1-8 |
4 | Material running track | Linear motion |
5 | product type | brand new |
6 | Motor power | 5.5KW |
7 | Screen material | Stainless steel wire woven mesh |
8 | Mesh size | Customized as required |
PRODUCT CONFIGURATION

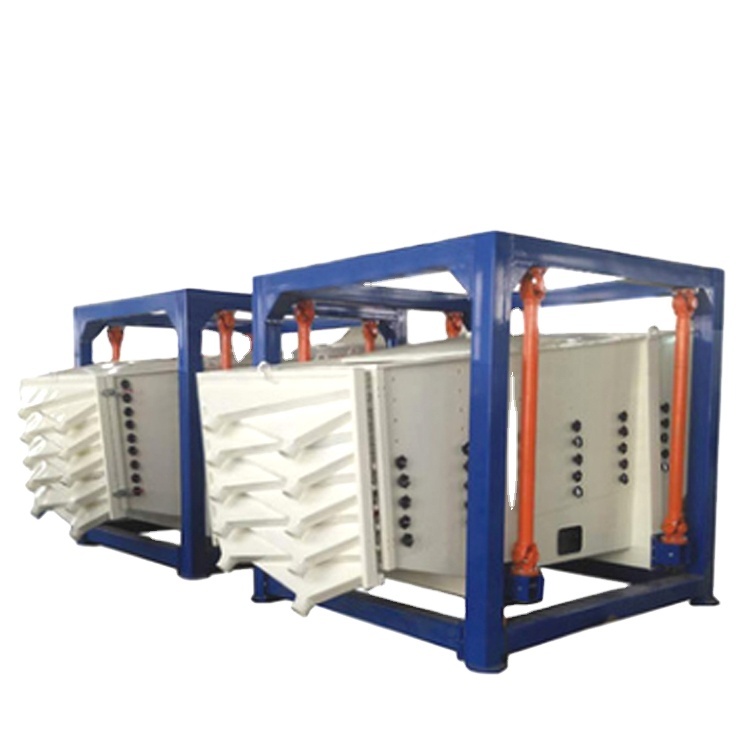

Finished equipment

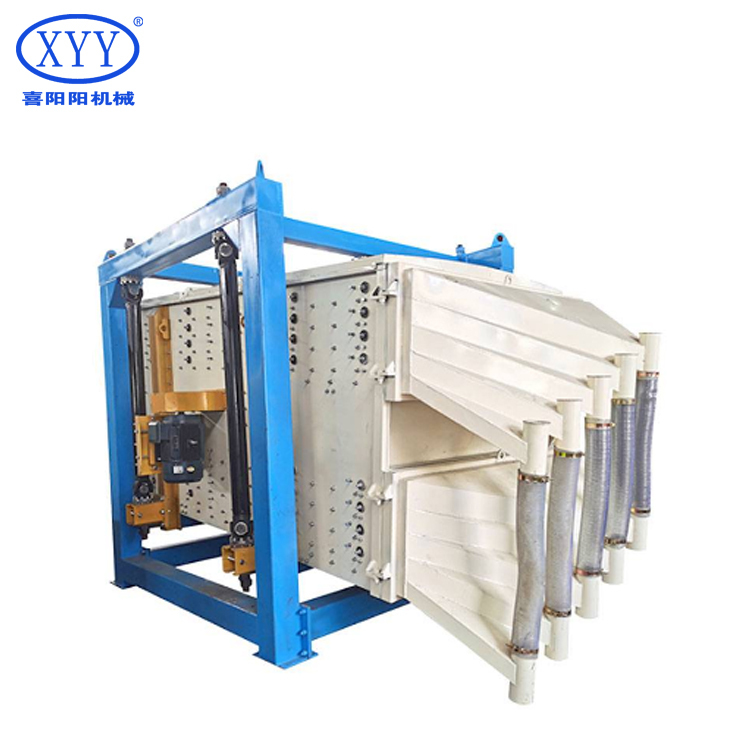

Square swing screen motor
Matching filter screen
SALES AND SERVICE NETWORK
SIMILAR PRODUCTS
FAQ
1.who are we?
We are based in Henan, China, start from 2014,sell to Eastern Europe(10.00%),South America(10.00%),NorthAmerica(10.00%),Africa(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What is our purpose?
Based on the business philosophy of "price and quality" and "integrity and service", we will wholeheartedly provide high-quality products and honest services for users at home and abroad.
