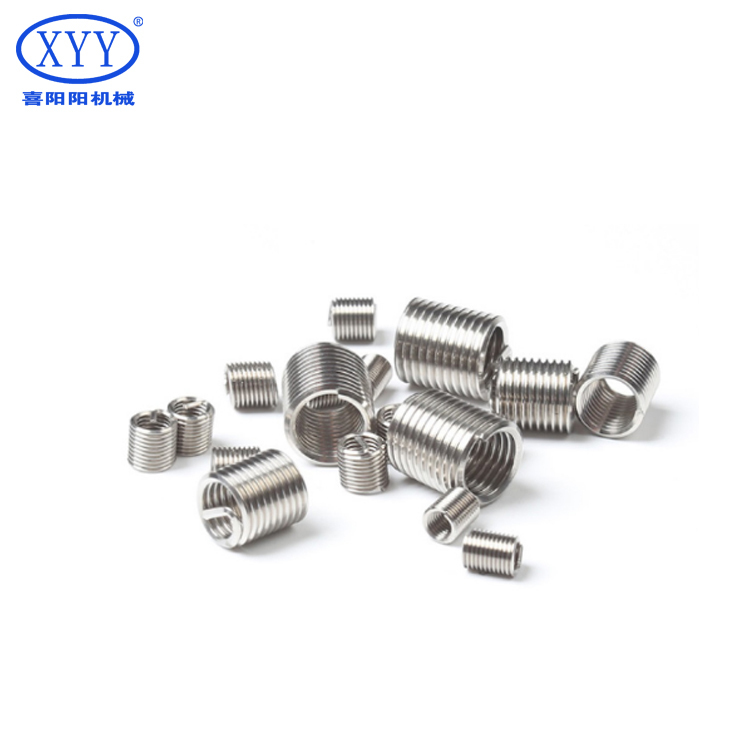

HB5515-1996 Standard ST2.5*0.45*2.5d Steel Wire Thread Insert High Specification Product
Contact Now
Description
Product Description
Stainless steel wire

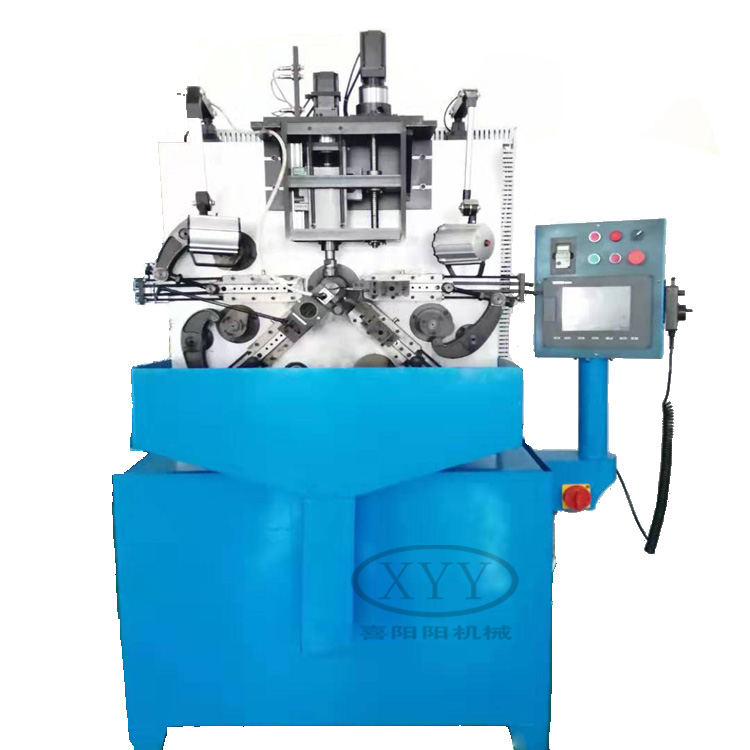

Full automatic wrapping machine

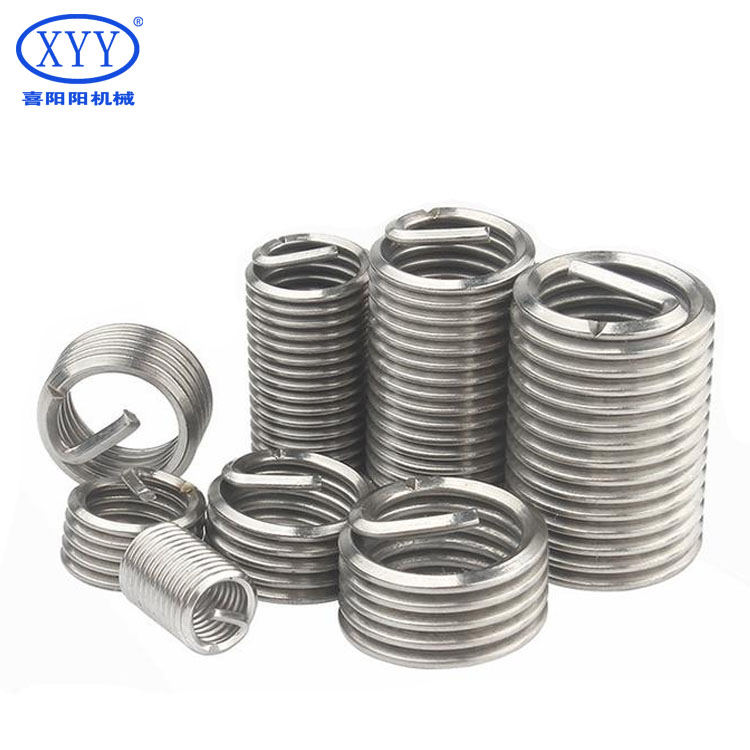

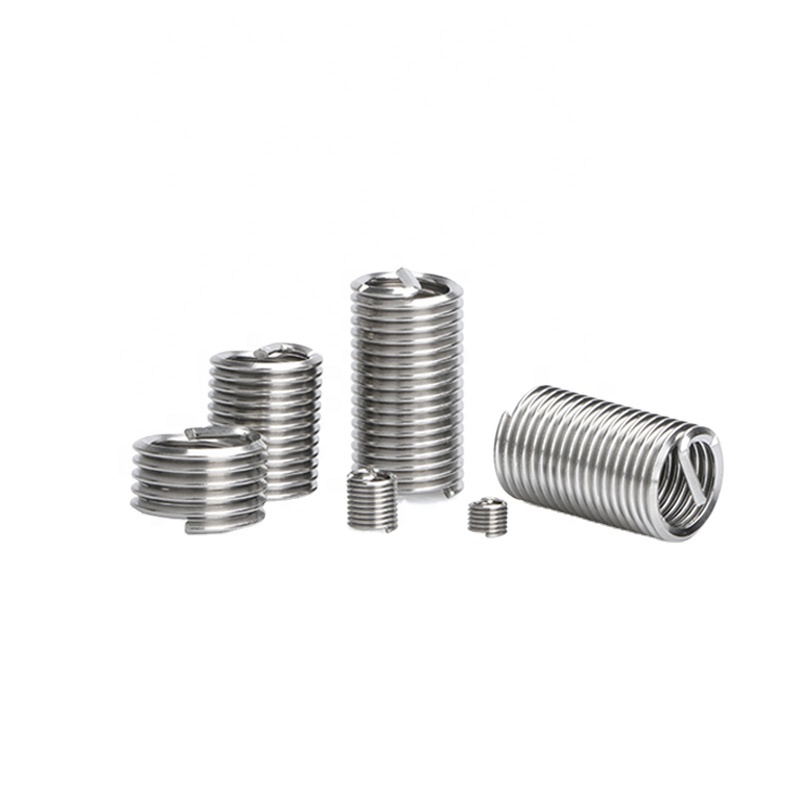

Steel wire insert
Steel wire thread insert (also known as thread insert, thread sheath, steel wire thread insert, thread thread thread insert, stainless steel thread insert, etc.) is a spiral coil accurately formed by a kind of cold-rolled Diamond Stainless steel wire with high strength, high precision and smooth surface. It is a concentric body of high-precision internal and external threads, which can form standard threads. After the thread thread insert is installed, it can form a high-precision internal thread that meets international standards, and its various properties are better than the threads formed by tapping.
The steel wire thread sleeve is divided into two types: ordinary type and locking type. It can be screwed into the threaded hole of metal or non-metal materials to form standard m and MJ internal threads with high strength, wear resistance, high temperature resistance, earthquake resistance, impact resistance and corrosion resistance. It can disperse stress and protect the matrix thread. It can comprehensively improve the service performance of the screw hole and prolong the service life of the parts.
Application of steel wire insert
It is mainly used on various low-strength metal and non-metal materials (such as aluminum, magnesium, cast iron and other low-strength light alloy materials and low-strength engineering materials such as plastic, rubber, density plate, bakelite, ceramics, glass fiber reinforced plastics, wood and so on), which can significantly improve the strength and wear resistance of threaded connections, prevent thread looseness and slippage, and repair damaged internal thread holes.
Supporting tools Maintenance
A special steel wire threaded tap (tapping), an installation tool and several steel wire threaded sleeves.
Use the special installation tool to push the screw sleeve down and screw it into the screw hole with light force until the distance between the thread tail of the screw sleeve and the plane of the workpiece does not exceed 1/4 to 1/2 turn.
For example, the diesel engine body, special textile parts, various aluminum parts, lathe tool bed, etc. will be scrapped due to a damaged screw hole. As long as it is re tapped and the screw sleeve is installed, the waste parts will be brought back to life.
Detailed Images
Detailed introduction
Grooving position
Insert head

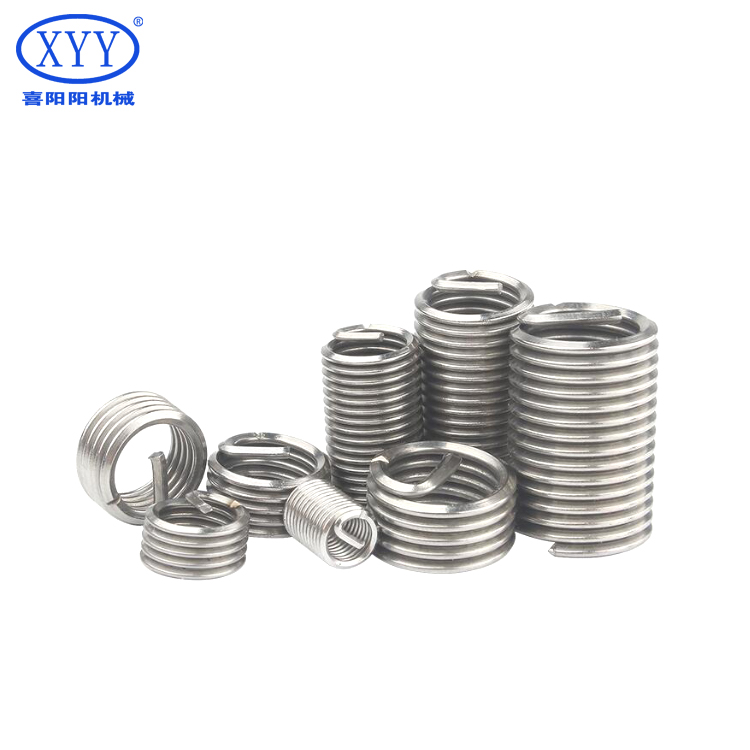

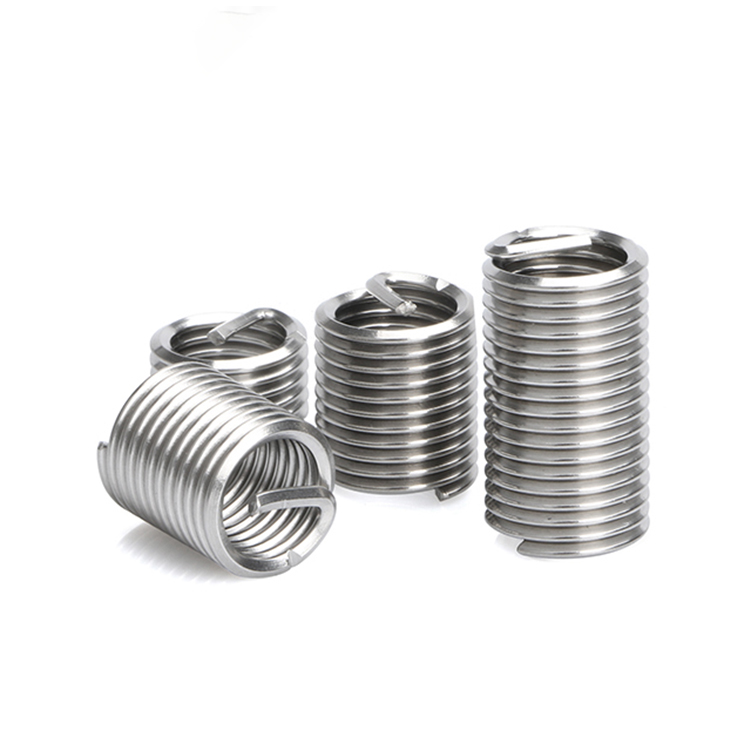

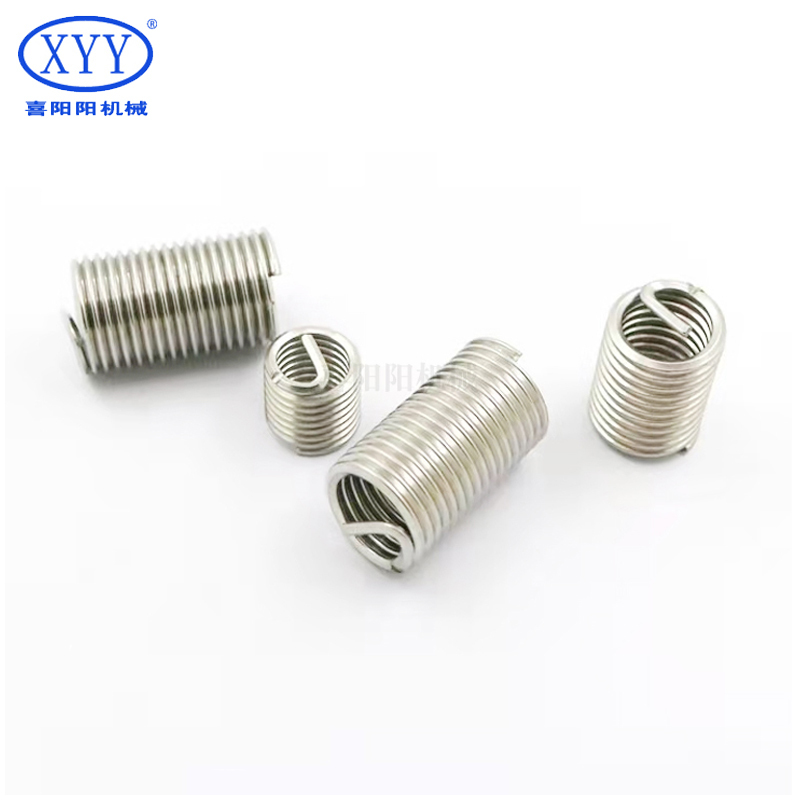

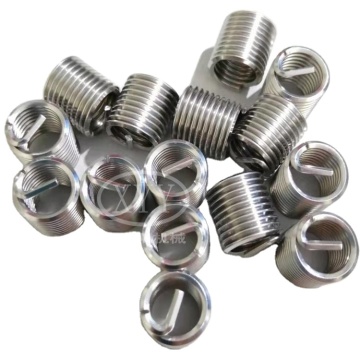

Finished screw sleeve
Overall introduction of screw sleeve
Introduction to material selection and processing
The Xiyangyang steel wire screw sleeve is produced and processed with excellent materials, which improves the quality from the source, is not easy to rust, has high corrosion resistance hardness, has high quality assurance, has smooth and practical surface, standard thread, uniform stress, flat head, sharp screw teeth, is not easy to slip during rotation, and has good fastening effect.
Installation method of screw sleeve
1. Drilling: cut off the damaged thread with a drill nozzle
2. Tapping: tapping in the drilled hole with a special tap
3. Installation: use a special installation tool to push and screw the sheath into the screw hole with light force until the distance between the thread end and the workpiece plane is not more than 1/4 to 1/2 turn
Parameter table

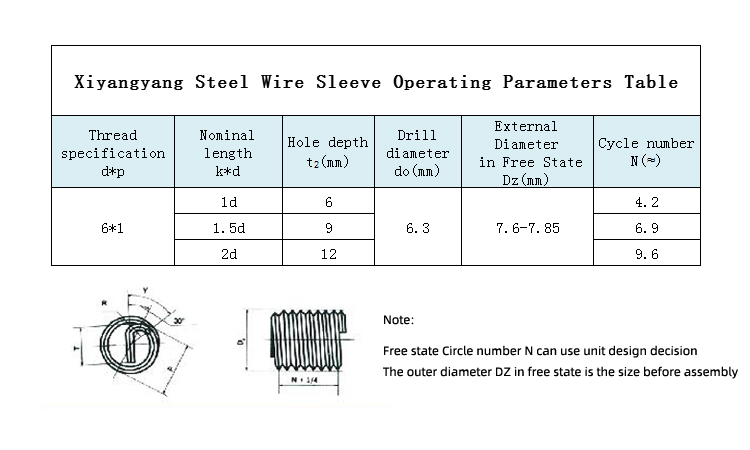

The detailed parameter table of steel wire screw sleeve m6*1, including the introduction of 1d-2d, pitch length, number of turns, outer diameter, drill bit diameter and drilling depth.
Products installed with steel wire inserts
Product name | Steel wire insert |
texture of material | stainless steel |
Nominal diameter | 1d-2d |
accuracy | 6H |
Thread type | UN/UNF/UNC |
authentication | ISO/SGS |
customized | Customizable |
Certificate
Xinxiang Xiyangyang Screening Machinery Manufacturing Co., Ltd. is an innovative private enterprise integrating technology research and development, processing and manufacturing and trade services.
Our company has a perfect quality assurance system, which has passed the high standard quality inspection and recognition of all partners. In order to open up the market and realize mutual benefit, we will wholeheartedly serve our customers with the business philosophy of "price and quality" and "integrity and service".
Related Products
Company Introduction
Xinxiang Xiyangyang Screening Machinery Manufacturing Co., Ltd. is an innovative private enterprise integrating technology research and development, processing and manufacturing and trade services. The company mainly manufactures and sells fasteners such as steel wire sleeve, self-tapping screw sleeve, tailless screw sleeve and matching cutting edge measuring tools; the company has technological development strength, a variety of production equipment and high-precision testing equipment, and specializes in providing customers with the design and use of fastener products such as steel wire sleeve, self-tapping screw sleeve and the whole process of technology. Operative support.
Xinxiang Xiyangyang steel wire screw sleeve is widely used in new energy industry. In response to market needs, special plated isolation screw sleeve, silver plated screw sleeve, taper screw sleeve, high temperature resistant steel wire screw sleeve, tin bronze steel wire screw sleeve and GJB steel wire screw sleeve are introduced to meet the needs of different users.
Our company has a perfect quality assurance system and has passed the high standard quality inspection and approval of all partners. In order to open up the market and realize mutual benefit, we will serve our customers wholeheartedly with the win-win business philosophy of "price, quality" and "integrity, service". In line with the principle of "the lowest price, but the best quality", our company wholeheartedly provides high-quality products and honest service for domestic and foreign users.
Xiyangyangyang Steel Wire Sleeve escorts your threads so that tightening is everywhere!
Xinxiang Xiyangyang steel wire screw sleeve is widely used in new energy industry. In response to market needs, special plated isolation screw sleeve, silver plated screw sleeve, taper screw sleeve, high temperature resistant steel wire screw sleeve, tin bronze steel wire screw sleeve and GJB steel wire screw sleeve are introduced to meet the needs of different users.
Our company has a perfect quality assurance system and has passed the high standard quality inspection and approval of all partners. In order to open up the market and realize mutual benefit, we will serve our customers wholeheartedly with the win-win business philosophy of "price, quality" and "integrity, service". In line with the principle of "the lowest price, but the best quality", our company wholeheartedly provides high-quality products and honest service for domestic and foreign users.
Xiyangyangyang Steel Wire Sleeve escorts your threads so that tightening is everywhere!
