304sus M24*1.5 thread insert for repair car tools screw sleeve
Description
304sus M25 thread insert

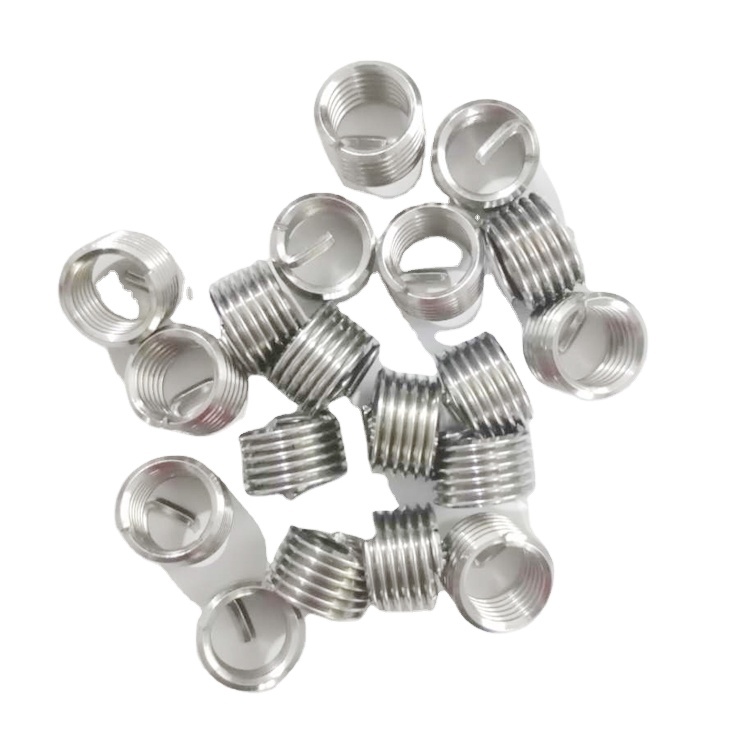

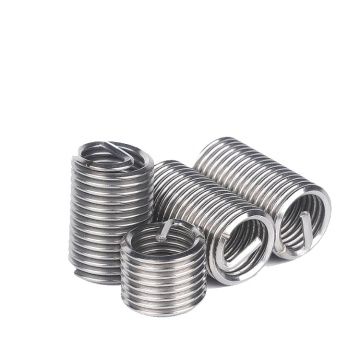

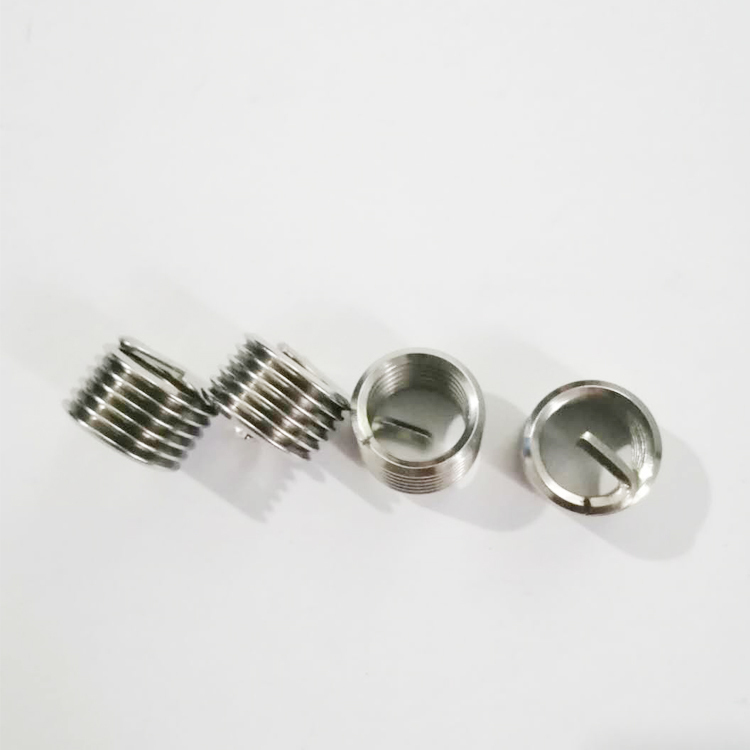

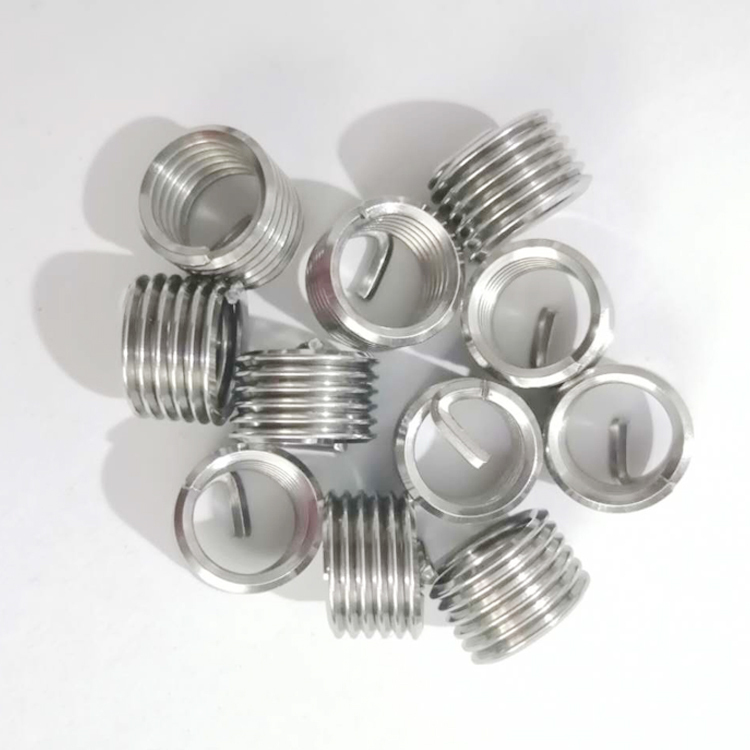

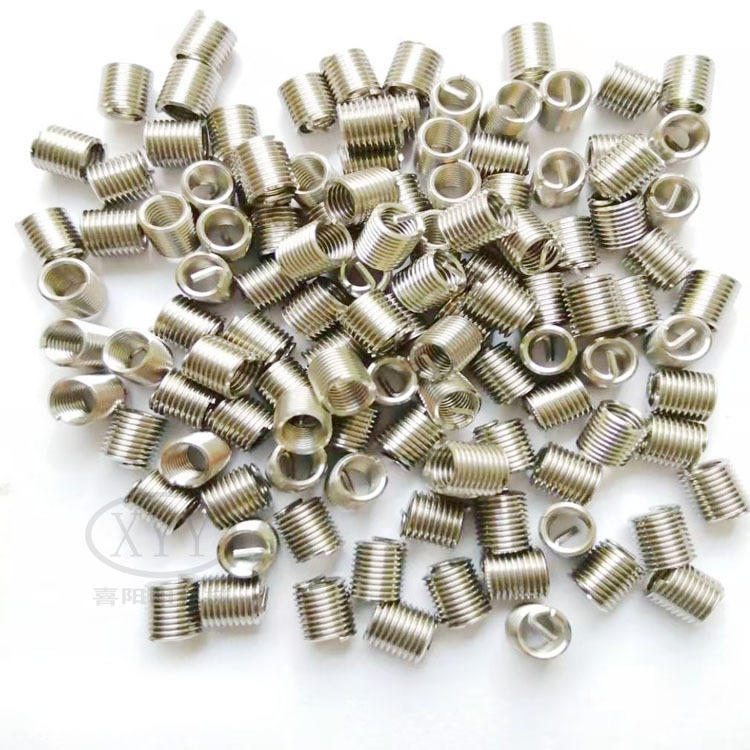

The steel wire insert is a new type of internal thread fastener. It is a kind of spring-shaped internal and external thread concentric body precisely processed by cold-rolled rhombic stainless steel wire with high strength, high precision and smooth surface. It is mainly used to strengthen and protect the internal thread of low strength materials.
| Product Name | wire thread inserts |
| Material | 304 Stainless steel |
| Standard | ISO |
| Quantity | 100piece |
| Place of Origin | Henan, China |
| Used | Machinery,Industry,Thread repair |
Professional steel wire screw sleeve manufacturer, welcome to consult.
Although the details page is not good, but our products are really good, you pay postage, we send samples free of charge!

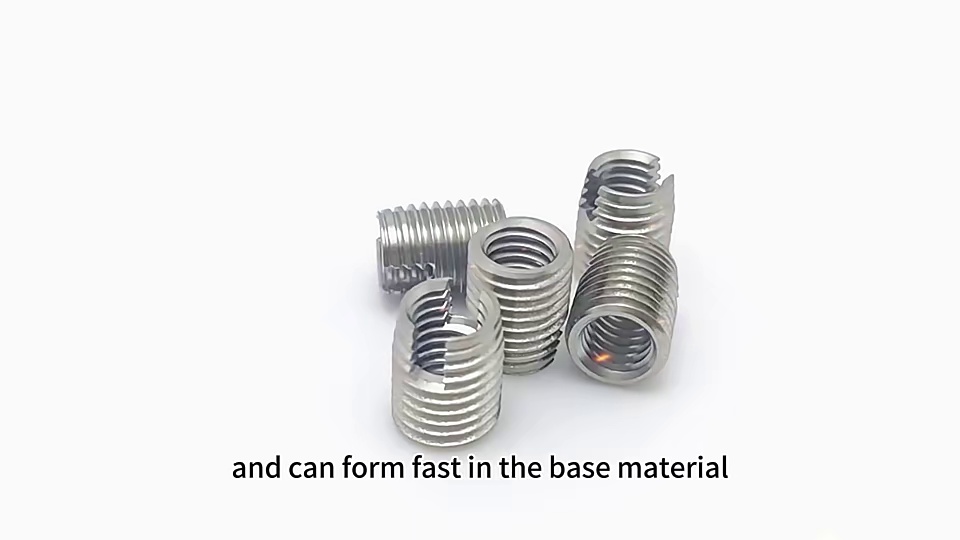

The steel thread insert is embedded in the threaded holes of low strength engineering materials such as aluminum, magnesium alloy, cast iron, glass fiber reinforced plastic, etc., which can form high-precision internal thread in accordance with international standards, with the functions of high connection strength, earthquake resistance, impact resistance and wear resistance, and can disperse stress to protect the base thread, greatly extending the service life of the base.
click me and Ellie Wang will bring you the latest quotation
| XYY Wire Thread Insert | |||||
| Use parameter table of metric wire thread insert | |||||
| Size | Nominal length |
Hole depth |
Drill diameter |
Outer diameter |
Number of turns |
| 2*0.4 | 1D | 2 | 2 | 2.62-2.76 | 2.9 |
| 1.5D | 3 | 4.7 | |||
| 2D | 4 | 6.5 | |||
| 2.5*0.45 | 1D | 2.5 | 2.6 | 3.3-3.5 | 3.5 |
| 1.5D | 3.75 | 5.9 | |||
| 2D | 5 | 8.1 | |||
| 3*0.5 | 1D | 3 | 3.1 | 3.8-4.0 | 4 |
| 1.5D | 4.5 | 6.3 | |||
| 2D | 6 | 8.7 | |||
| 4*0.7 | 1D | 4 | 4.1 | 5.05-5.25 | 3.7 |
| 1.5D | 6 | 6 | |||
| 2D | 8 | 8.4 | |||
| 5*0.8 | 1D | 5 | 5.2 | 6.35-6.6 | 4.3 |
| 1.5D | 7.5 | 6.9 | |||
| 2D | 10 | 9.7 | |||
| 6*1 | 1D | 6 | 6.2 | 7.6-7.85 | 4.2 |
| 1.5D | 9 | 7 | |||
| 2D | 12 | 9.6 | |||
| 8*1.25 | 1D | 8 | 8.3 | 9.85-10.1 | 4.7 |
| 1.5D | 12 | 7.4 | |||
| 2D | 16 | 10.6 | |||
| 10*1.5 | 1D | 10 | 10.3 | 12.1-12.5 | 5 |
| 1.5D | 15 | 8 | |||
| 2D | 20 | 11.2 | |||
| 12*1.75 | 1D | 12 | 12.4 | 14.4-14.8 | 5.2 |
| 1.5D | 18 | 8.4 | |||
| 2D | 24 | 11.7 | |||
| 14*1.5 | 1D | 14 | 14.4 | 16.8-17.2 | 7.4 |
| 1.5D | 21 | 11.2 | |||
| 2D | 28 | 15.3 | |||
| 16*2 | 1D | 16 | 16.5 | 19.0-19.4 | 6 |
| 1.5D | 24 | 9.7 | |||
| 2D | 32 | 13.3 | |||
Xiyangyang thread nesting is your solid backing. Wish you a pleasant shopping!
