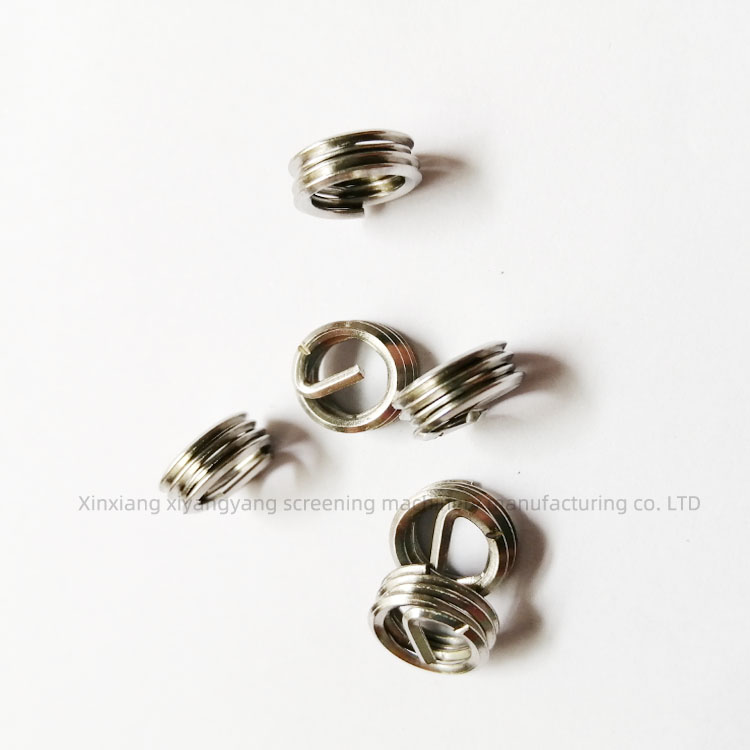

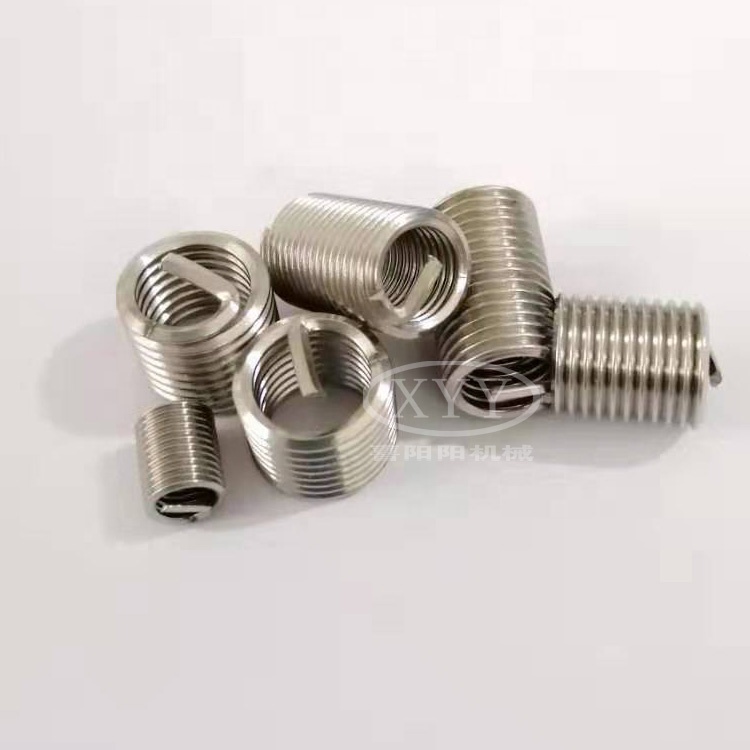

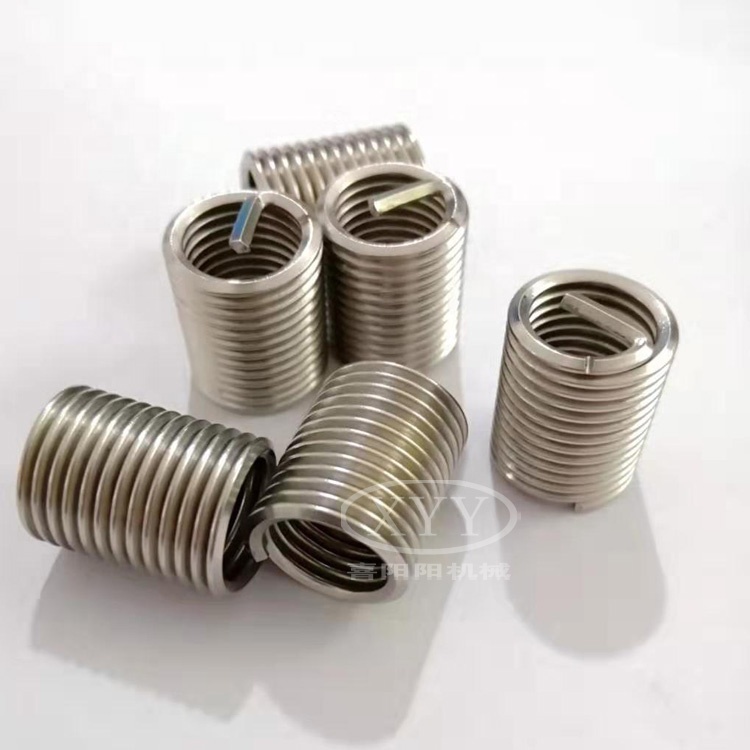

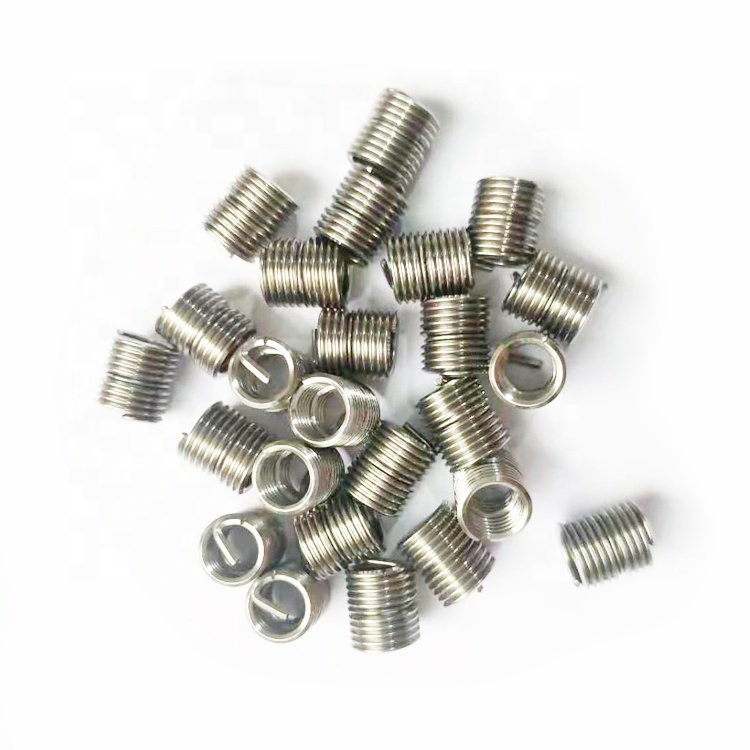

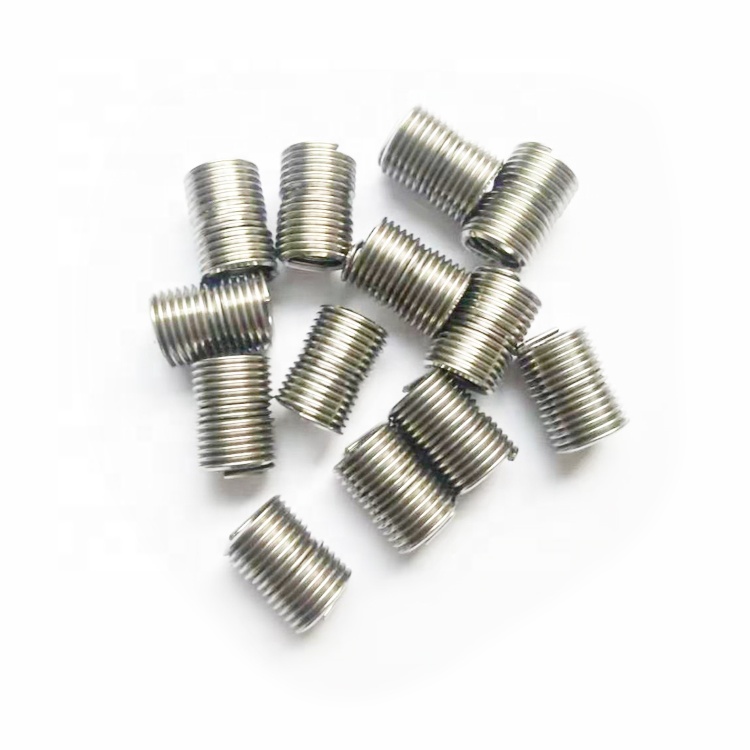

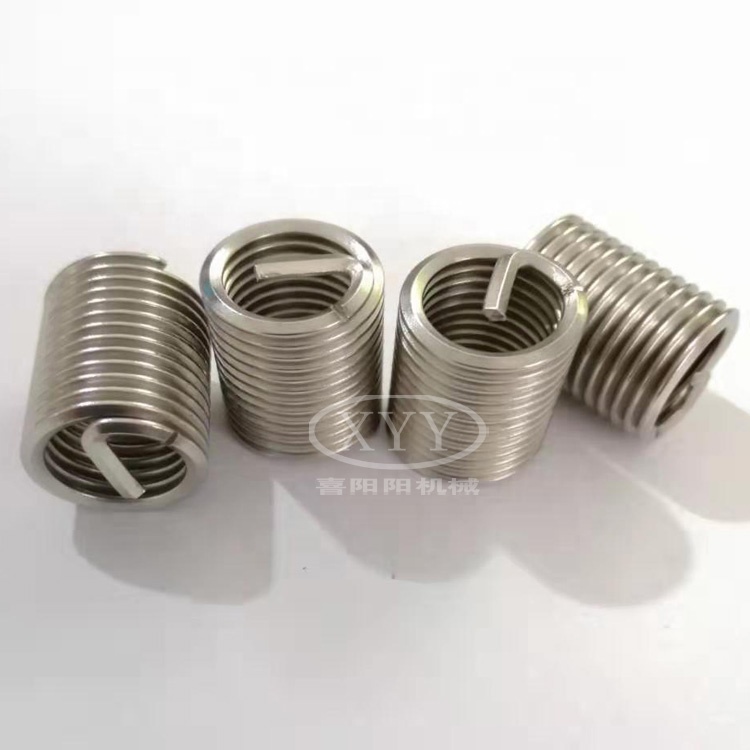

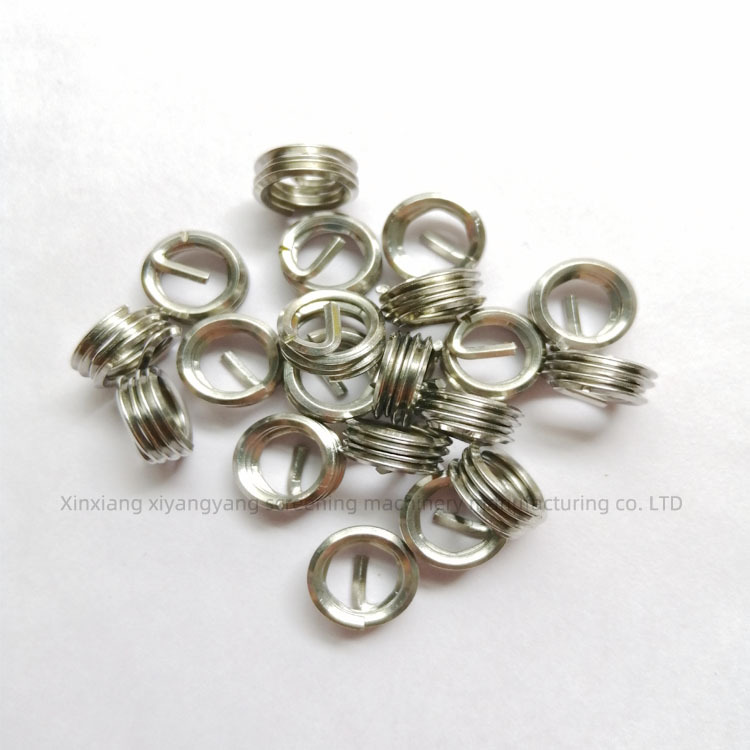

Self locking steel wire screw sleeve
Description
Self locking steel wire screw sleeve
| Product Name | Self locking steel wire screw sleeve |
| Material | 304 stainless steel |
| Standard | ISO |
| Standard | Metric/ UNC/UNF |
| Size | Customized |
| Quantity | 1000piece |
| Sample | Welcome |
| Production capacity | 10000000 pieces per week |
| Supply Ability: | 10000000 pieces per week |
| Place of Origin | Henan, China |
| Used | Machinery,Industry,Thread repair |
The locking type is to add one or several turns of the locking ring on the basis of the ordinary type, and the fastening screw is fastened and loosened.
| Xiyangyang Steel Wire Sleeve Operating Parameters Table | |||||
| Thread specification d*p |
Nominal length k*d |
Hole depth t2(mm) |
Drill diameter do(mm) |
External Diameter in Free State Dz(mm) |
Cycle number N(≈) |
| 6*1 | 1D | 6 | 6.3 | 7.6-7.85 | 4.2 |
| 1.5D | 9 | 6.9 | |||
| 2D | 12 | 9.6 | |||
| 8*1.25 | 1D | 8 | 8.3 | 9.85-10.1 | 4.7 |
| 1.5D | 12 | 7.4 | |||
| 2D | 16 | 10.6 |
| 10*1.5 | 1D | 10 | 10.3 | 12.1-12.5 | 5 |
| 1.5D | 15 | 8.1 | |||
| 2D | 20 | 11.2 |
| 12*1.75 | 1D | 12 | 12.4 | 14.4-14.8 | 5.2 |
| 1.5D | 18 | 8.4 | |||
| 2D | 24 | 11.7 |
| 16*2 | 1D | 16 | 16.5 | 19.0-19.4 | 6.5 |
| 1.5D | 24 | 10.1 | |||
| 2D | 32 | 13.8 |
Why choose us?
1. We are a factory, directly facing customers, and the price is advantageous
2. We have been engaged in thread nesting for 20 years and have rich production experience
3. Our company has complete qualifications, military quality and first-class product quality
4. We use high-quality source wire materials, with more than 8 nickel content, and a material report can be provided for each batch
5. Our products have high thread precision (5H), standard teeth, and beautiful appearance
6. Our products are complete in size and support customization
7. Supporting installation tools, one-stop shopping
8. Fast delivery
9. Professional after-sales support to help you solve the problems encountered in installation
10. We are online 24 hours a day, and you are always welcome to consult
Q:Are we a factory?
A: Yes, we are physical factories.
Q:Can you provide samples?
A: Yes, we can provide samples free of charge. You only need to be responsible for express delivery.
Q: can you make it to order?
A: Yes, it can be customized according to customer needs or drawings.
If you have another question, pls feel free to contact us as below
