Heavy Light Duty Steel Keensert Fasteners Key Locking Thread Insert M4 M2 M24 Threads 3mm Rivets Bolt Screw Type Metric Carton
Description
heavy and light duty key locking thread insert keensert
| Product Name | keensert |
| Material | 303/carbon steel |
| Standard | ISO |
| Standard | Metric |
| Size | Customized |
| Quantity | 100piece |
| Sample | Welcome |
| Production capacity | 10000000 pieces per week |
| Supply Ability | 10000000 pieces per week |
| Place of Origin | Henan, China |
| Used | Machinery,Industry,Thread repair |
| Plug Sleeve Parameter Table(thin-walled) | ||||
| Internal Thread | External Thread | Length | Drilling Bit Size | Bottom hole depth |
| M2*0.4 | M4*0.7 | 3 | 3.4 | 4.0 |
| M2.5*0.45 | M4.5*0.75 | 3.81 | 3.9 | 5.0 |
| M3*0.5 | M5*0.8 | 4.25 | 4.4 | 5.5 |
| M4*0.7 | M6*0.75 | 5.25 | 5.5 | 6.5 |
| M5*0.8 | M8*1.25 | 8 | 6.9 | 9.5 |
| M6*1 | M10*1.25 | 10 | 8.8 | 11.5 |
| M8*1.25 | M12*1.25 | 12 | 10.8 | 13.5 |
| M8*1.0 | M12*1.25 | 12 | 10.8 | 13.5 |
| M10*1.5 | M14*1.5 | 14 | 12.8 | 15.5 |
| M10*1.25 | M14*1.5 | 14 | 12.8 | 15.5 |
| M12*1.75 | M16.*1.5 | 16 | 14.75 | 17.5 |
| M12*1.25 | M16*1.5 | 16 | 14.75 | 17.5 |
Why choose us?
1. We are a factory, directly facing customers, and the price is advantageous
2. We have been engaged in thread nesting for 20 years and have rich production experience
3. Our company has complete qualifications, military quality and first-class product quality
4. We use high-quality source wire materials, with more than 8 nickel content, and a material report can be provided for each batch
5. Our products have high thread precision (5H), standard teeth, and beautiful appearance
6. Our products are complete in size and support customization
7. Supporting installation tools, one-stop shopping
8. Fast delivery
9. Professional after-sales support to help you solve the problems encountered in installation
10. We are online 24 hours a day, and you are always welcome to consult
Xiyangyang keensert installation instructions and specifications
(1) Application of bolt nut: Repair internal thread and strengthen internal thread
(2) Material of the bolt nut: carbon steel or stainless steel SUS303
(3) Classification of bolt sleeves: thin-wall type, reinforced type, heavy-duty, extra-heavy;

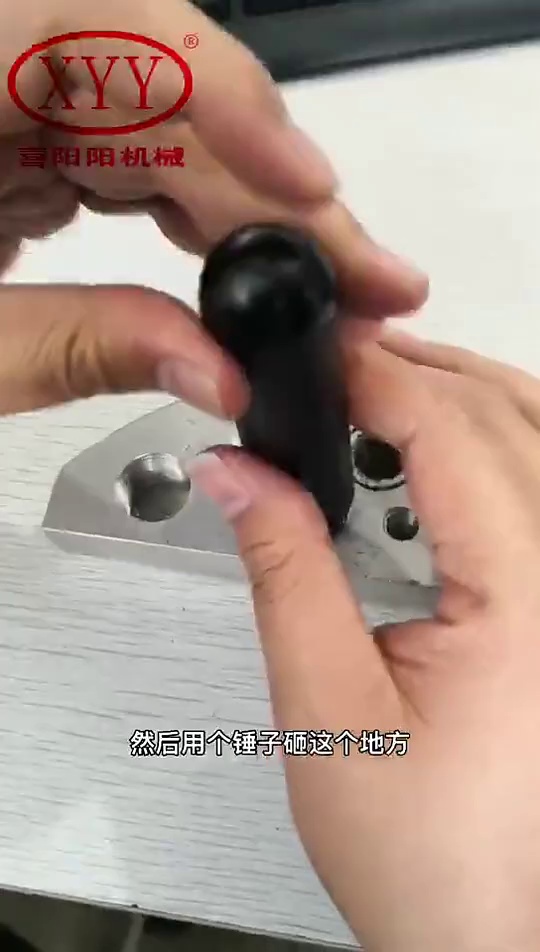

(4) Insert screw sleeve installation process: Drilling - tapping - screwing in (installation) - press the pin into it, drilling and tapping are completely the same as processing ordinary internal thread, special tools are used to improve work when screwing in the installation effectiveness.
