Metric system M2 bolt insert manufacturer
Contact Now
Description

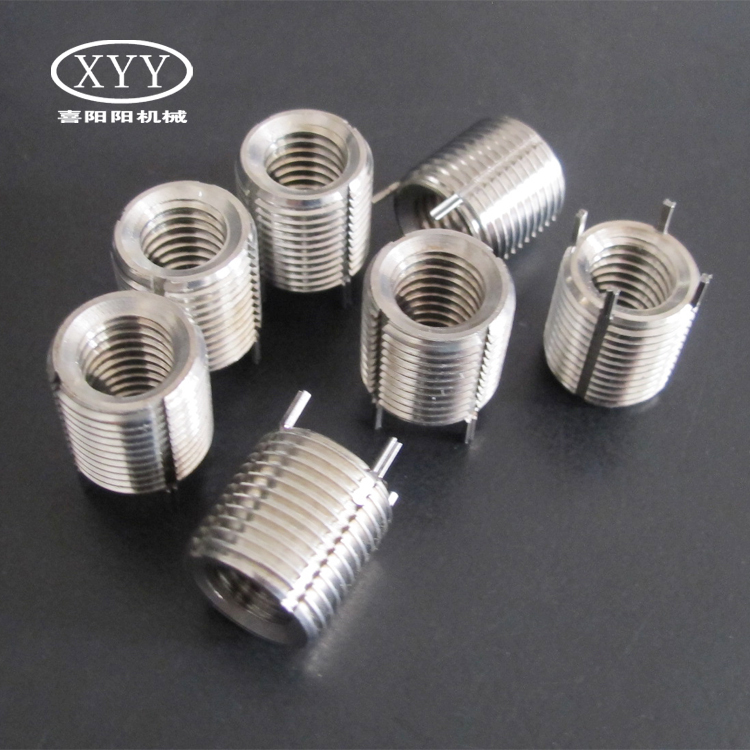

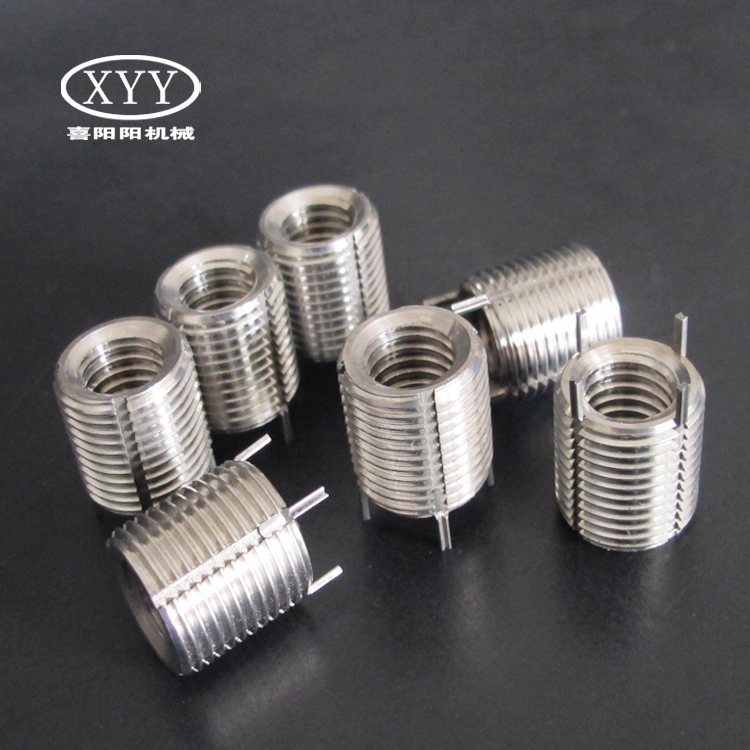

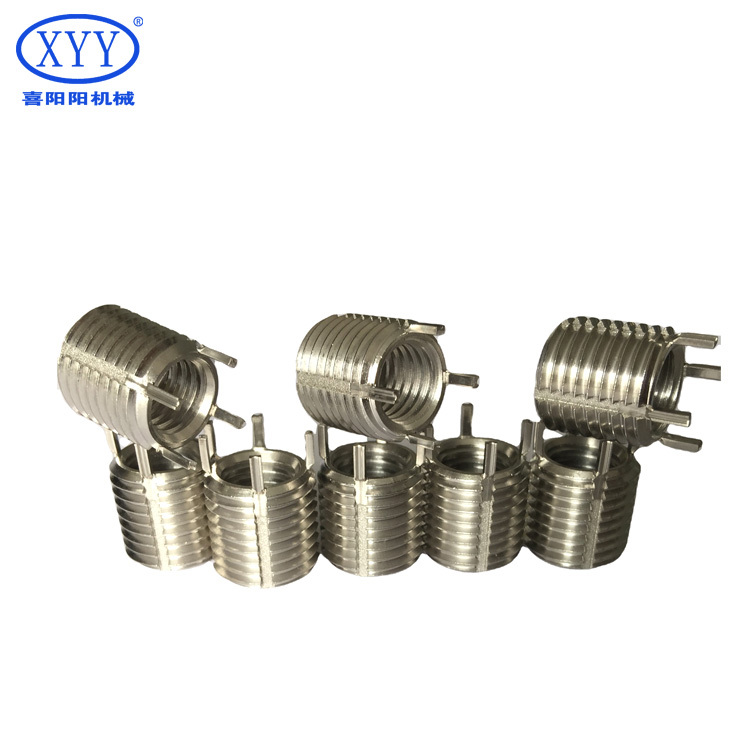

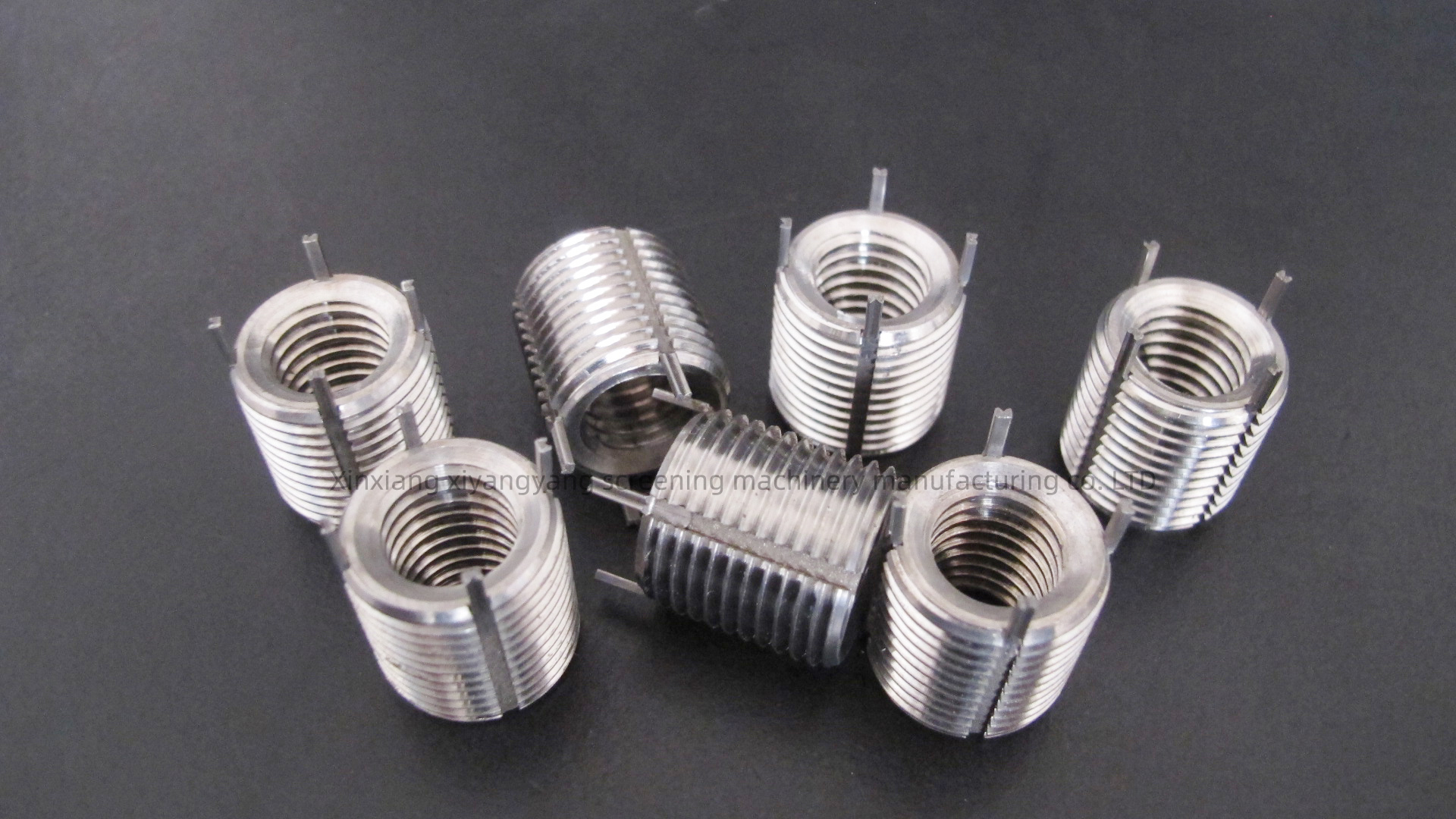

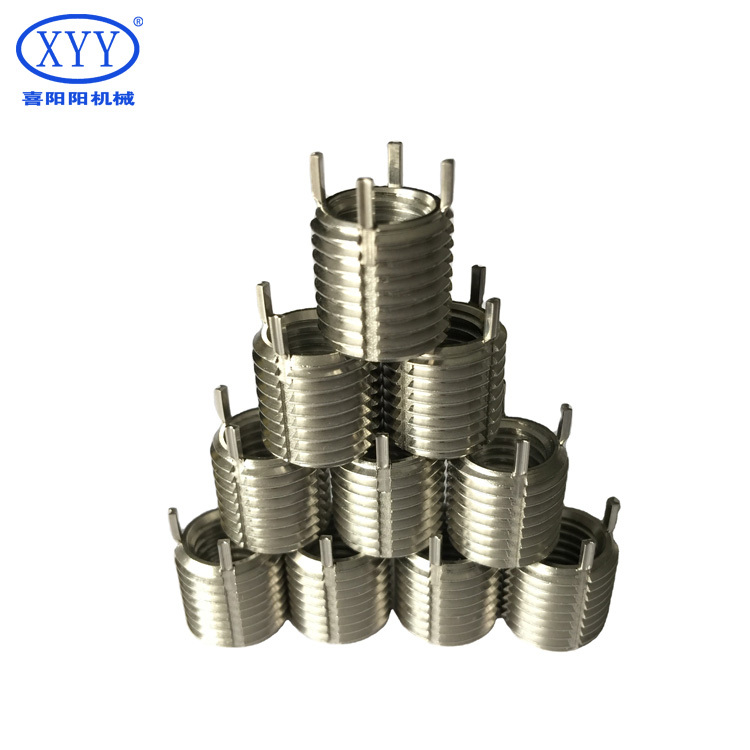

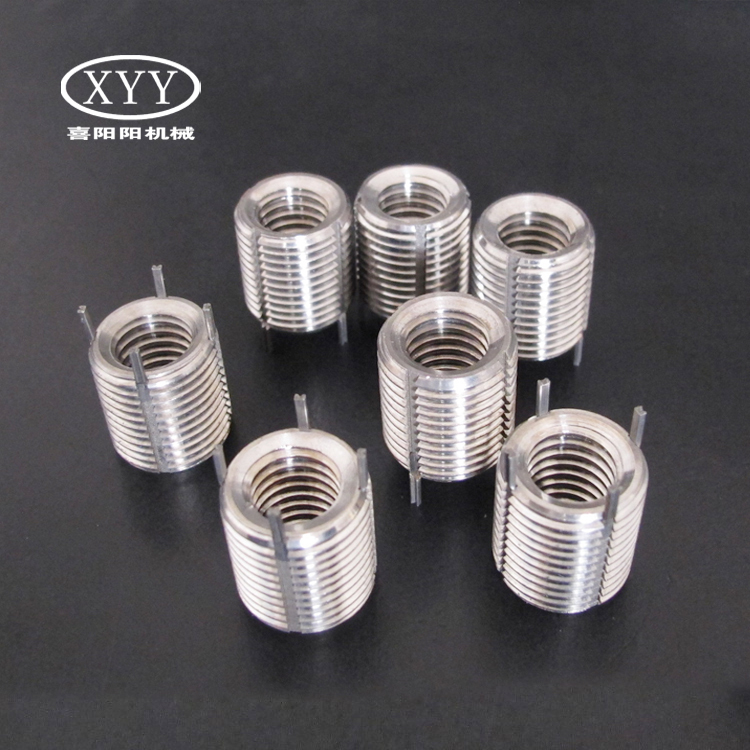

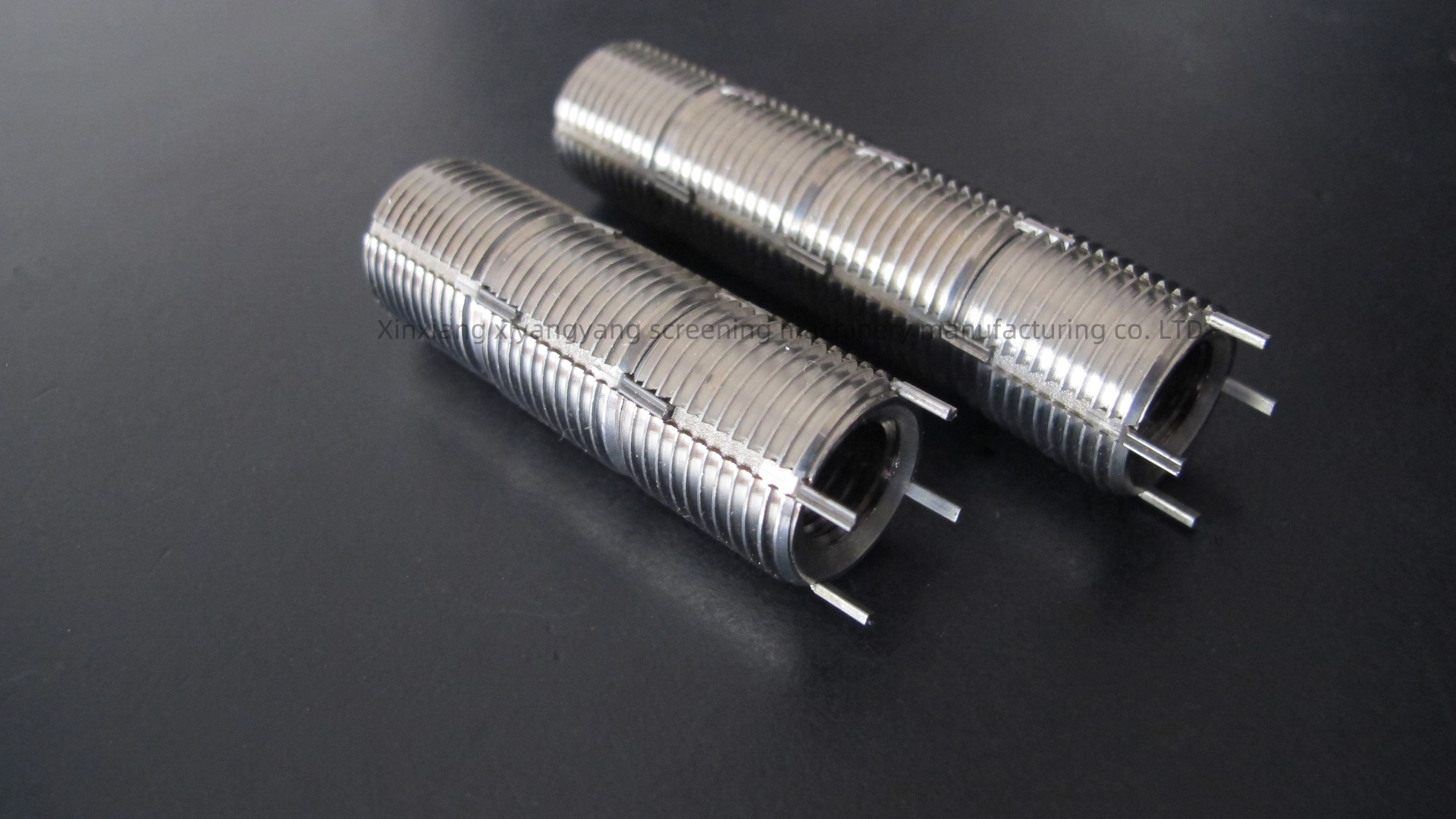

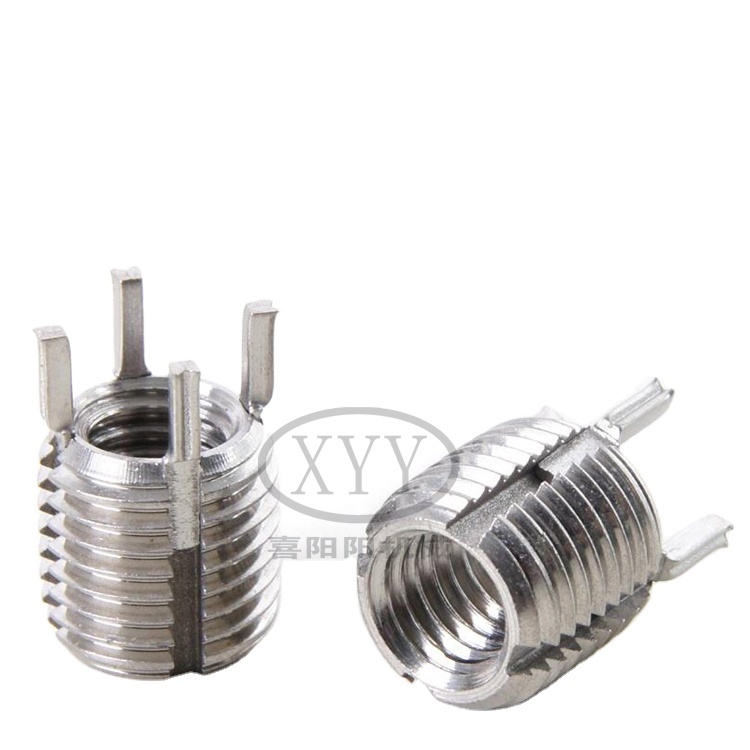

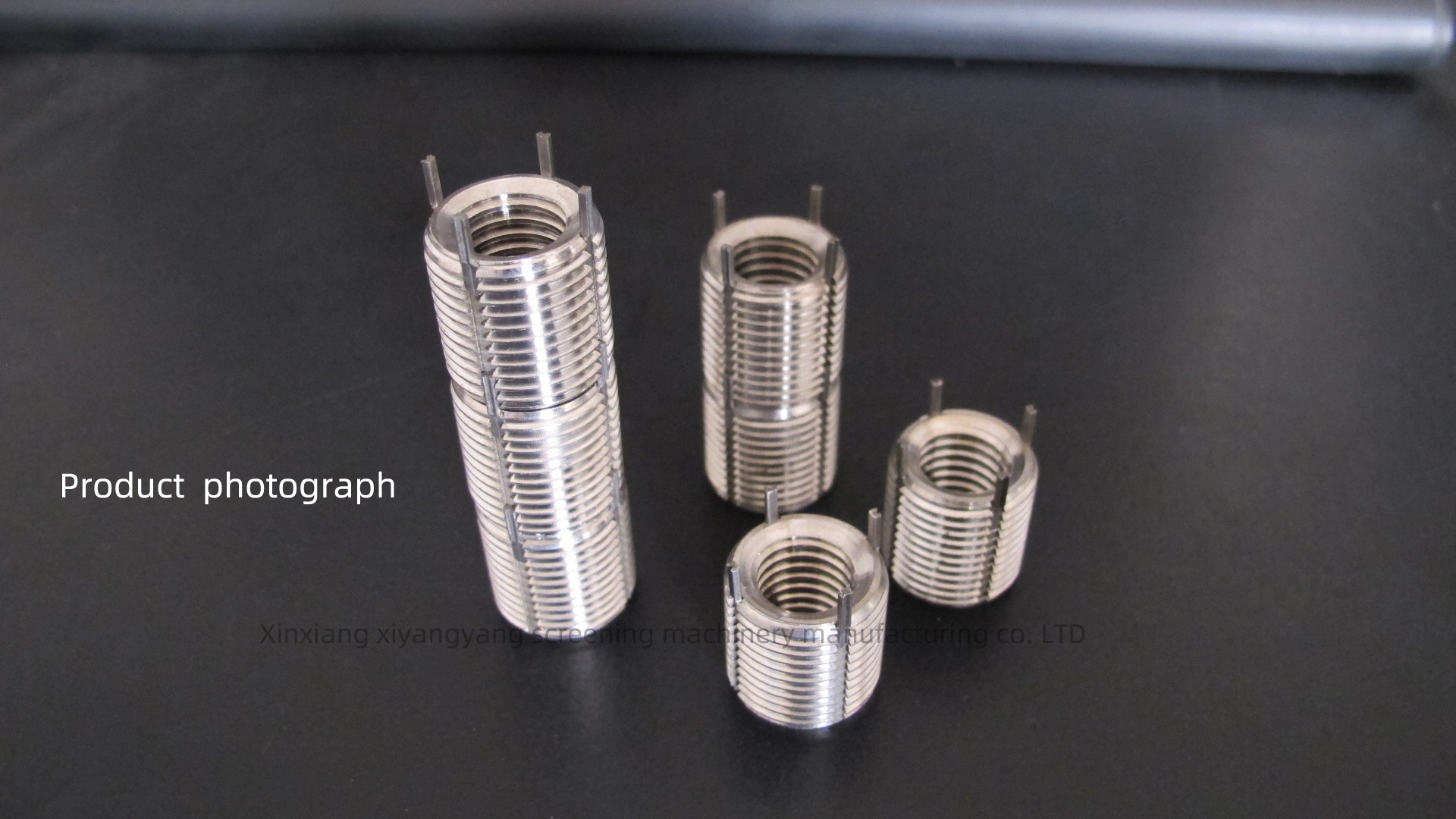

Metric system M2 bolt insert manufacturer
Product Description
| Product Name | wire thread insert/Screw sheath |
| Material | 304 stainless steel / carbon steel |
| Standard | ISO |
| Standard | Metric |
| Size | all size / Customized |
| Quantity | 1000piece |
| Sample | Welcome |
| Production capacity | 10000000 pieces per week |
| Supply Ability: | 10000000 pieces per week |
| Place of Origin | Henan, China |
| Used | Machinery,Industry,Thread repair |
| Plug Sleeve Parameter Table(thin-walled) | ||||
| Internal Thread | External Thread | Length | Drilling Bit Size | Bottom hole depth |
| M2*0.4 | M4*0.7 | 3 | 3.4 | 4.0 |
| M2.5*0.45 | M4.5*0.75 | 3.81 | 3.9 | 5.0 |
| M3*0.5 | M5*0.8 | 4.25 | 4.4 | 5.5 |
| M4*0.7 | M6*0.75 | 5.25 | 5.5 | 6.5 |
| M5*0.8 | M8*1.25 | 8 | 6.9 | 9.5 |
| M6*1 | M10*1.25 | 10 | 8.8 | 11.5 |
| M8*1.25 | M12*1.25 | 12 | 10.8 | 13.5 |
| M8*1.0 | M12*1.25 | 12 | 10.8 | 13.5 |
| M10*1.5 | M14*1.5 | 14 | 12.8 | 15.5 |
| M10*1.25 | M14*1.5 | 14 | 12.8 | 15.5 |
| M12*1.75 | M16.*1.5 | 16 | 14.75 | 17.5 |
| M12*1.25 | M16*1.5 | 16 | 14.75 | 17.5 |
Our Services
Xiyangyang screw sleeve installation instructions and specifications
(1) Application of bolt nut: Repair internal thread and strengthen internal thread
(2) Material of the bolt nut: carbon steel or stainless steel SUS303
(3) Classification of bolt sleeves: thin-wall type, reinforced type, heavy-duty, extra-heavy;
(4) Insert screw sleeve installation process: Drilling - tapping - screwing in (installation) - press the pin into it, drilling and tapping are completely the same as processing ordinary internal thread, special tools are used to improve work when screwing in the installation effectiveness.
Company Information
Xiyangyang thread nesting is your solid backing!
