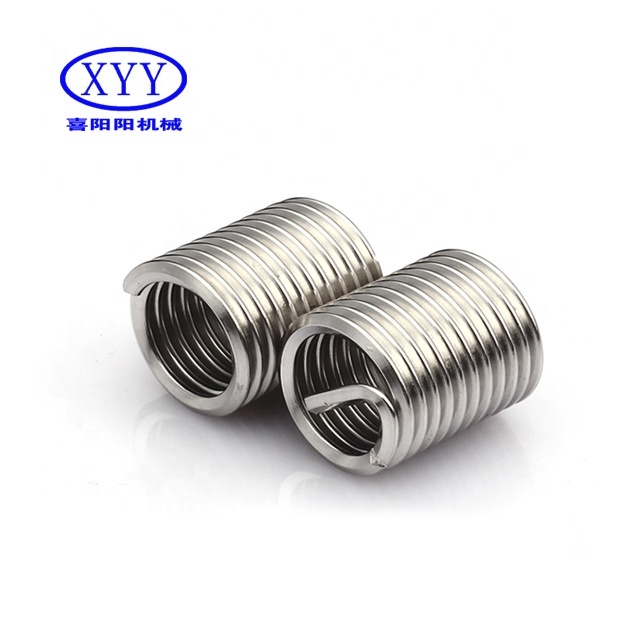

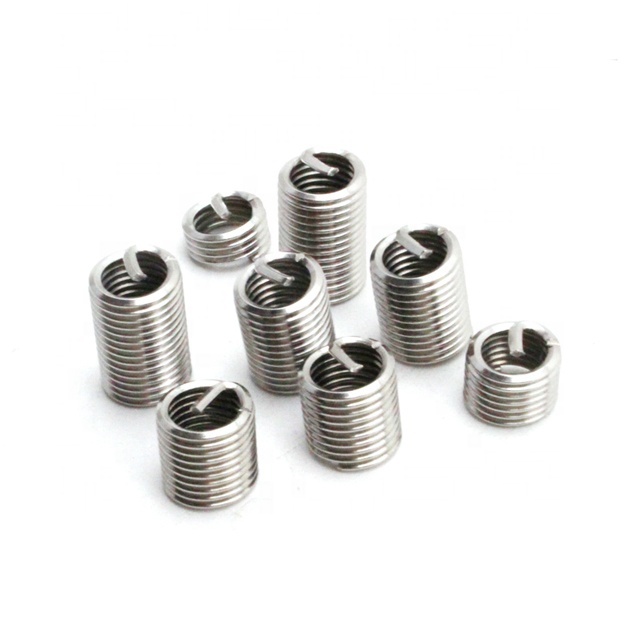

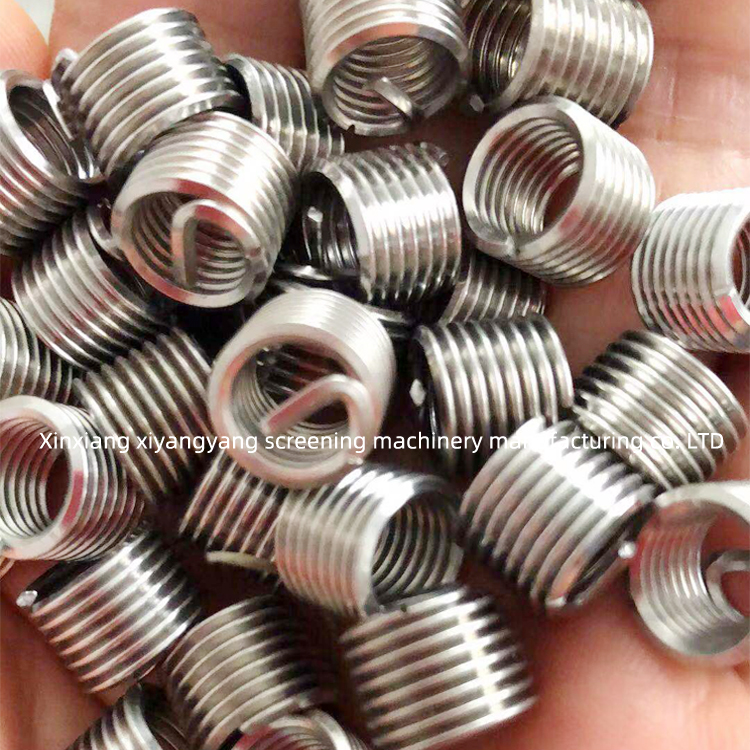

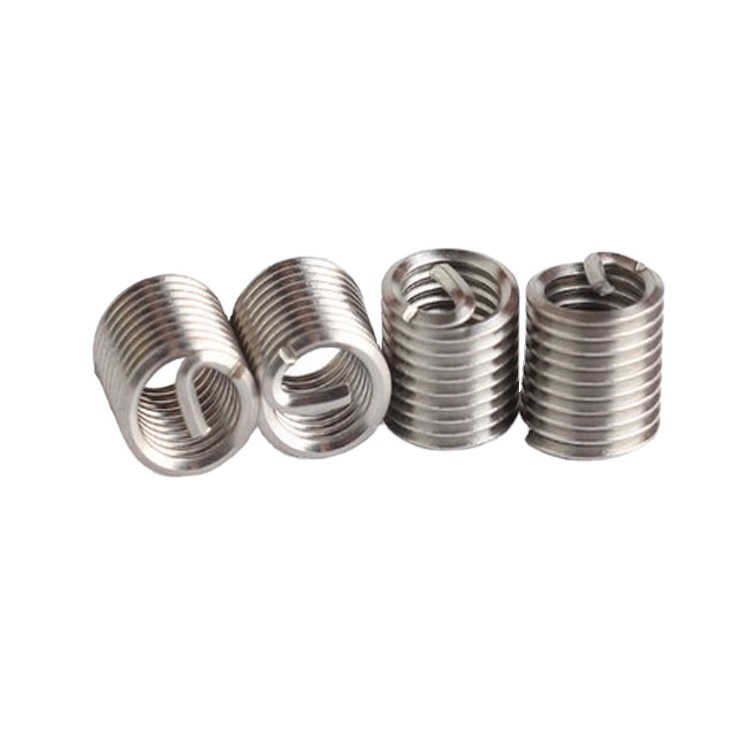

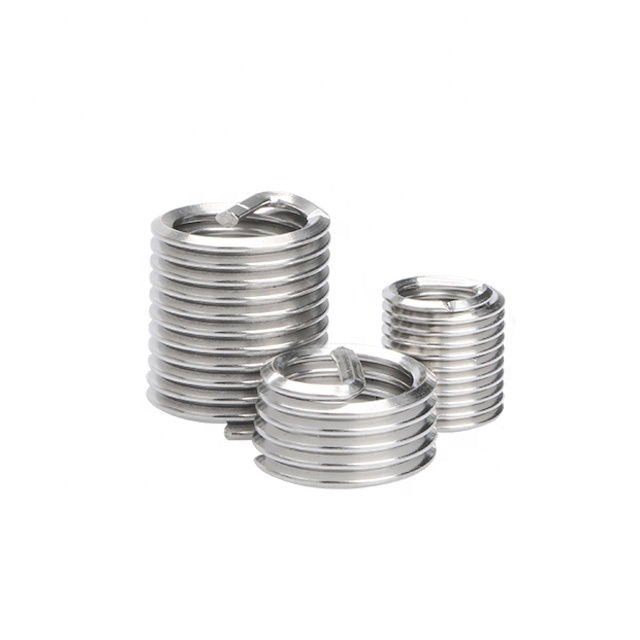

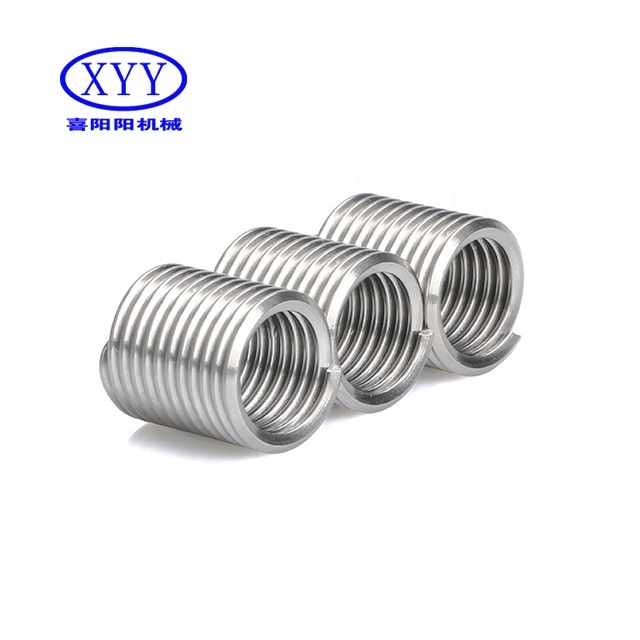

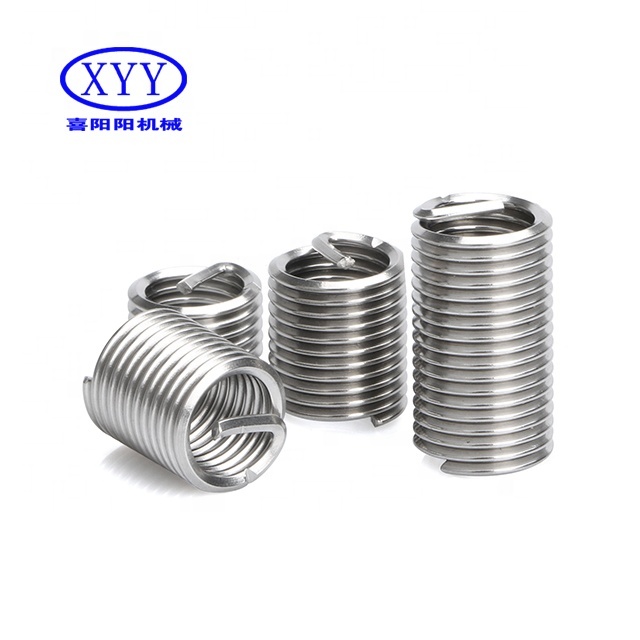

m8*1.25 304 stainless steel repaired insert wire thread insert
Description
m8 304 stainless steel repaired insert wire thread insert
| Xiyangyang Steel Wire Sleeve Operating Parameters Table | |||||
| Thread specification d*p |
Nominal length k*d |
Hole depth t2(mm) |
Drill diameter do(mm) |
External Diameter in Free State Dz(mm) |
Cycle number N(≈) |
| 8*1.25 | 1d | 8 | 8.3 | 9.85-10.1 | 4.7 |
| 1.5d | 12 | 7.4 | |||
| 2d | 16 | 10.6 | |||
1. Strengthen connection strength and improve connection conditions.
The low strength materials, such as aluminum and magnesium, can avoid the phenomenon of sliding wire and staggering teeth, and obtain excellent connection performance.
2. Wear resistance.
It can be used for the parts that are often disassembled, which can greatly improve the service life of the thread.
3. Increase the stress surface.
It is used for parts requiring strength connection force but not increasing screw hole diameter.
4. Prevent loosening.
Especially for spacecraft and other products requiring high safety factor.
5. Easy to repair.
Install the damaged screw hole into the steel wire screw sleeve, and continue to use after repair to avoid the possibility of workpiece damage.
Xiyangyang thread nesting is your solid backing. Wish you a pleasant shopping!
