It is used to install the steel wire insert into the base thread bottom hole. Generally, according to the power source when installing the steel wire insert, it can be divided into manual steel wire insert installation wrench, electric steel wire screw sleeve installation wrench and steam driven steel wire screw sleeve installation wrench. Manual is used when the installation quantity is not large or large but not urgent; electric is used when the installation amount is large; steam is used for large installation amount, which is usually used on the automatic installation line.
EN
Language
All categories
Product ID: 63685569
Various Types of Steel Wire Screw Wrench Customizable OEM DIY Grade Manufactured by Custom Support
Contact Now
Description
Product Overview

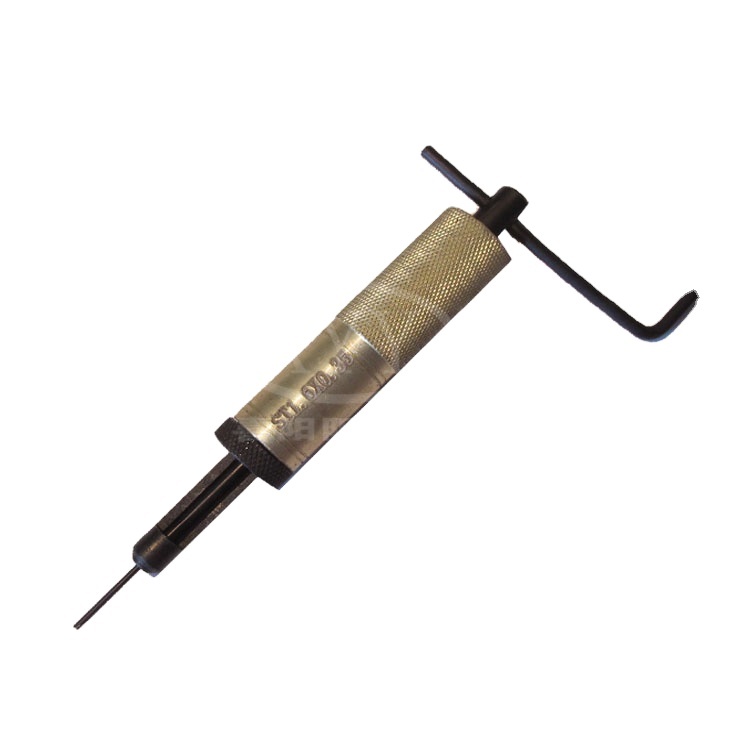

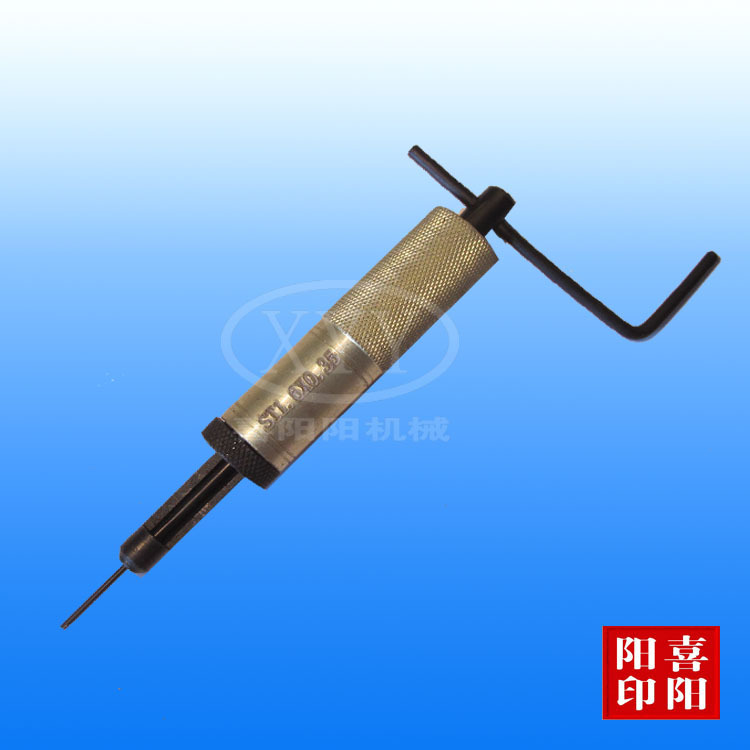

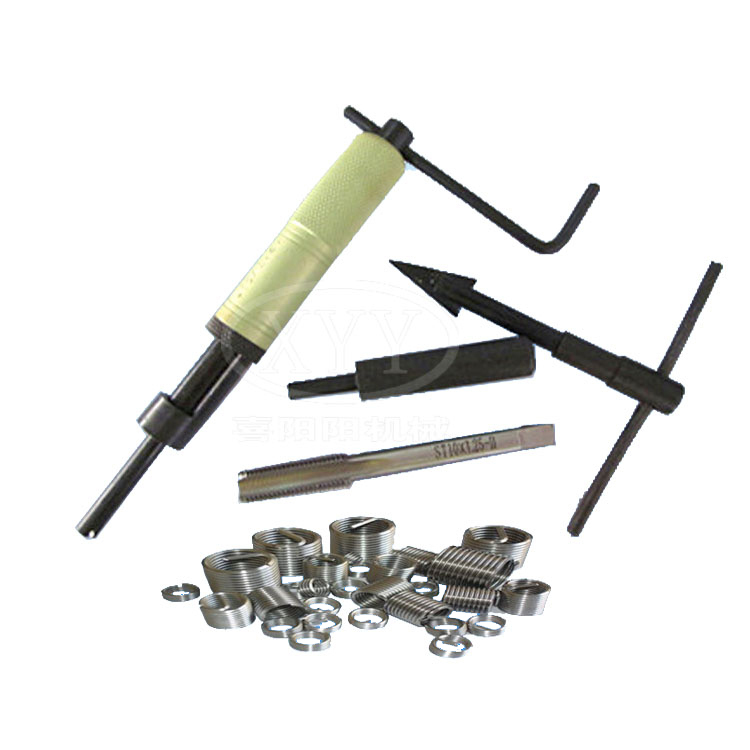

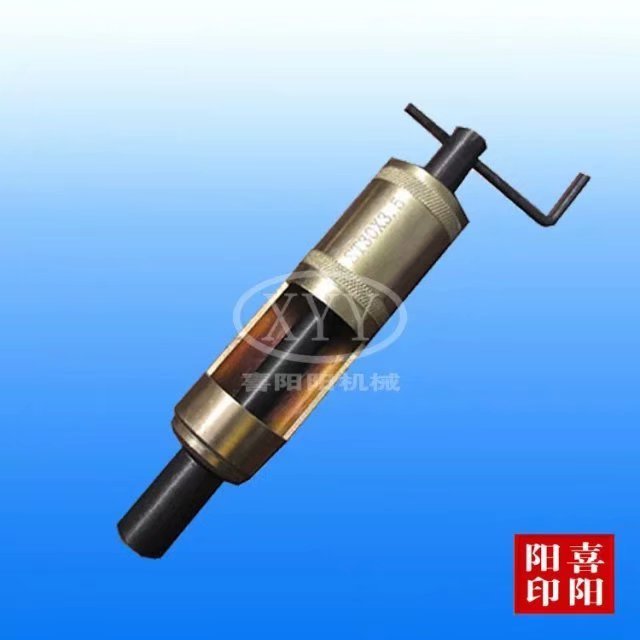

Installation wrench for steel wire insert:
FEATURES AT A GLANCE
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS

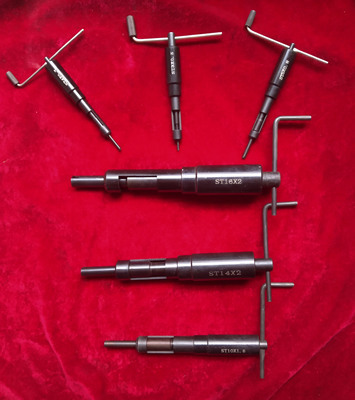

Wrench model | Matching steel wire insert | Material Science | ||
ST6*1 | M6*1 | steel | ||
ST8*1.25 | M8*1.25 | steel | ||
ST10*1.5 | M10*1.5 | steel | ||
ST12*1.75 | M12*1.75 | steel | ||
ST14*2 | M14*2 | steel | ||
ST16*2 | M16*2 | steel | ||
ST18*2.5 | M18*2.5 | steel | ||
ST24*3 | M24*3 | steel |
FAQ
Q1：How to use manual steel wire insert installation wrench?
A1：The first step is to withdraw the mandrel of the socket wrench, and put the steel wire screw sleeve into the sleeve from the socket notch (notch upward).
The second step is to prevent the steel wire insert from moving with fingers, insert the mandrel, and clamp the mounting handle of the steel wire insert with the groove at the end of the mandrel.
The third step is to turn the mandrel, screw the steel wire insert into the guide thread of the sleeve installation tool, and use the guide thread to shrink the end of the steel wire insert in advance until it is flush with the end face of the guide thread (do not let the steel wire insert screw out of the guide thread).
The fourth step is to align the mounting spanner with the thread hole of the base, and rotate the mandrel along the thread direction until the steel wire insert is screwed into the thread hole of the base. In the process of mandrel rotation, the torque of the steel wire insert may be too large. At this time, it is only necessary to turn the sleeve in the opposite direction of thread (the wrench mandrel does not move) to relieve it.
Step 5 when the steel wire insert reaches the required assembly depth, pull out the mandrel.
