Stainless Steel Bolt Insert 3/8-16 Inner Bushing with 1/2-13 Outer Key Sheath Durable Thread Bushing
Contact Now
Description
Product Description

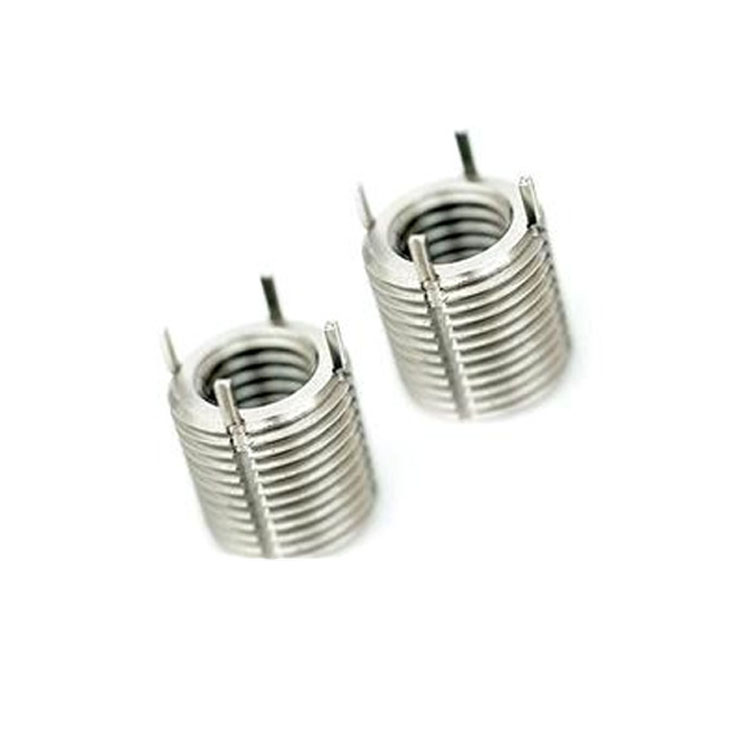

Heavy Locking Thread Insert

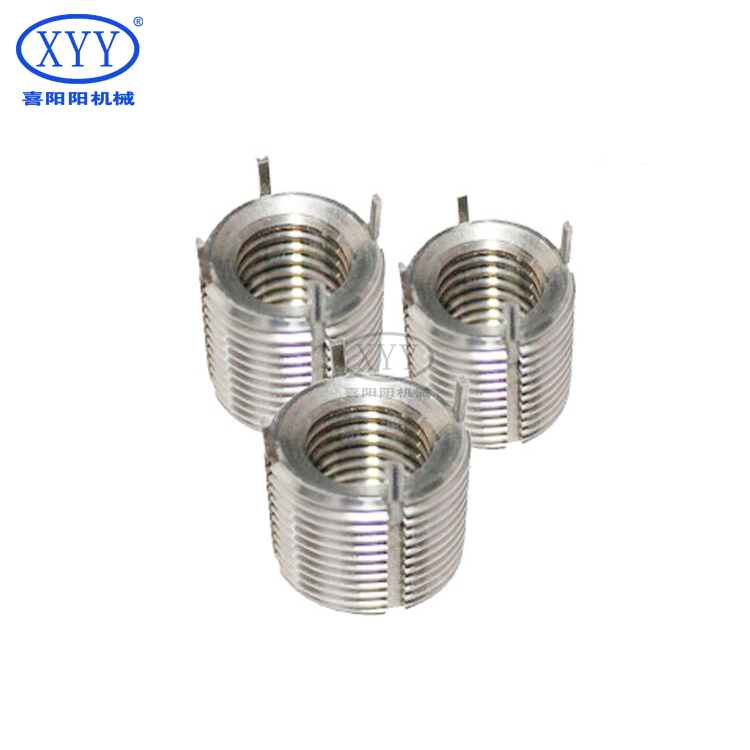

Light Locking Thread Insert

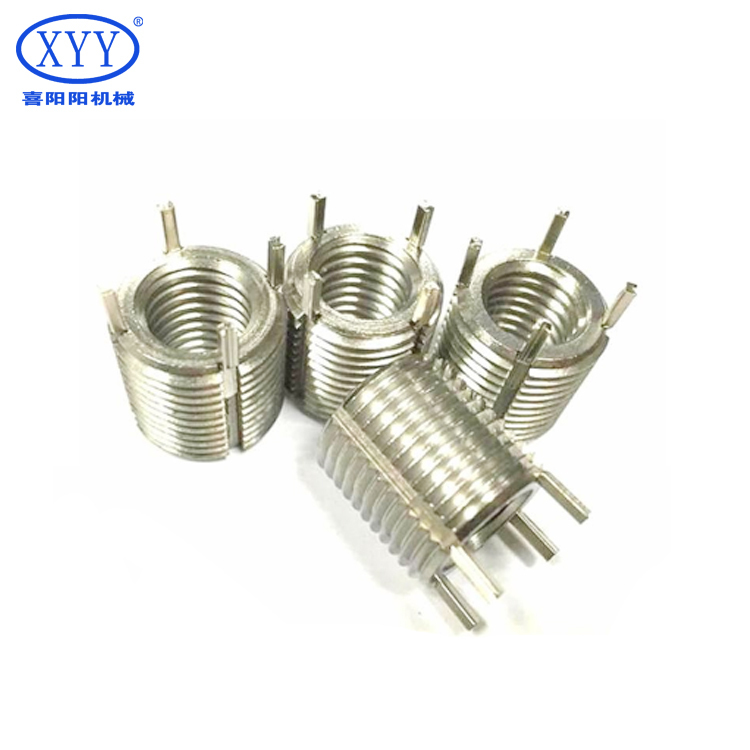

Detailed Images
Detailed introduction to locking thread inserts

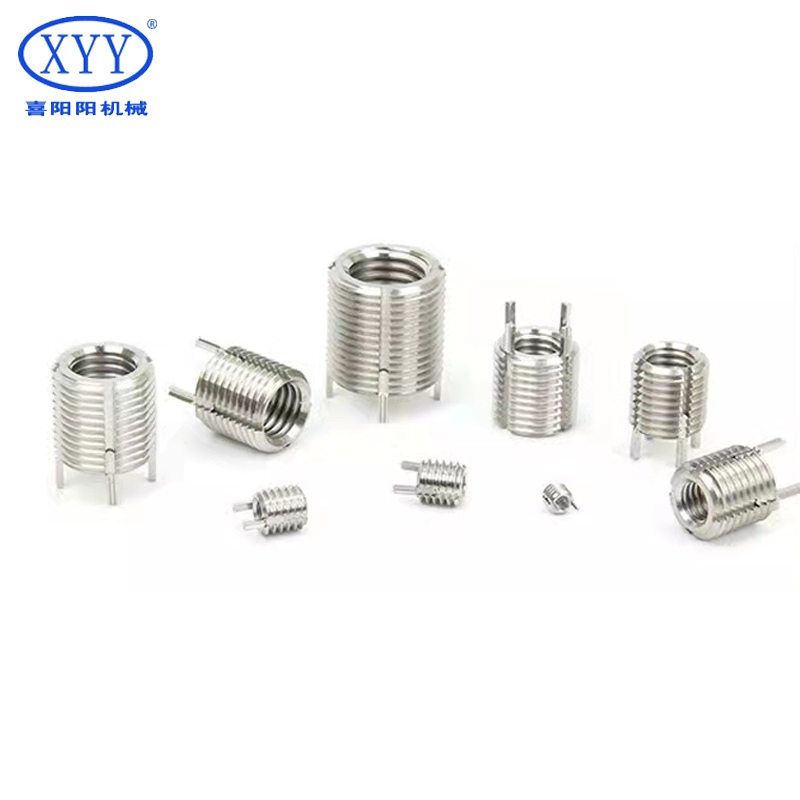

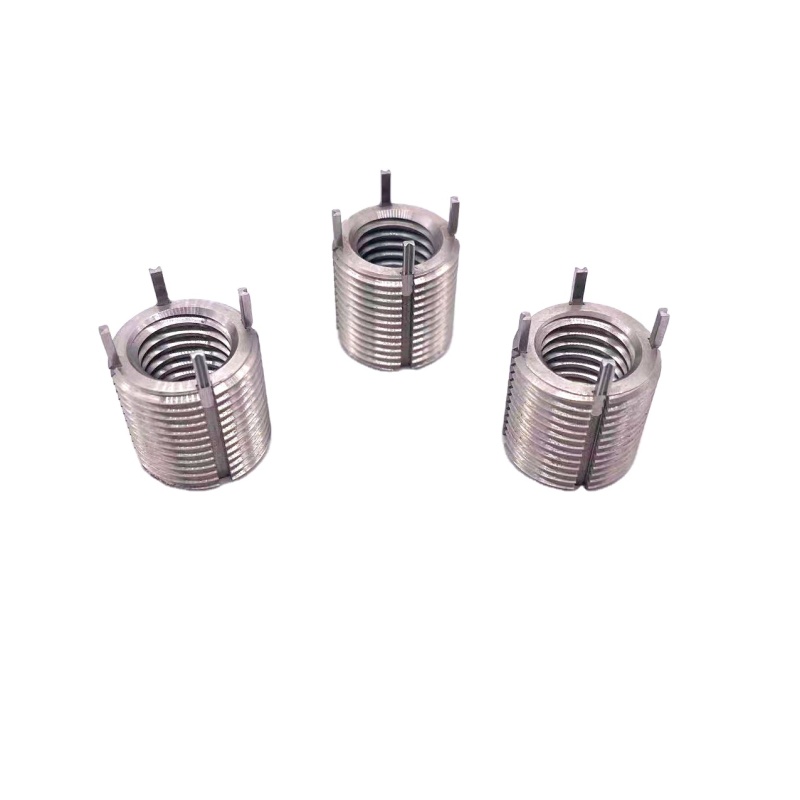

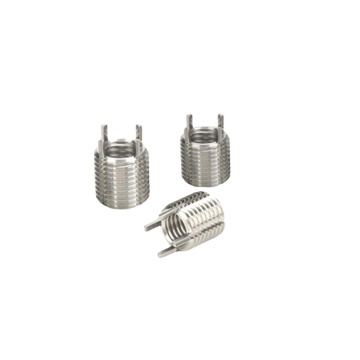

Bolt insert is a special fastener with internal and external threads and four or two bolt keys on the external thread. The bolt insert is installed into the bottom hole after tapping, and then the four bolts are pressed in to play a strong fastening role. The products are mainly used in military, aerospace, railway locomotives, vibrating machinery and other products that require high thread strength.
Bolt inserts can be used in almost any material, including aluminum, cast iron, steel and plastic Positive mechanical lock prevents rotation, high strength and flexibility provide maximum pull-out strength It is easy to install and disassemble, and can be installed with standard electric drill and tap.
However, keensert installation kit can also be provided if necessary
No prewinder required. The tool cannot cross threads during installation. There is no need to disconnect

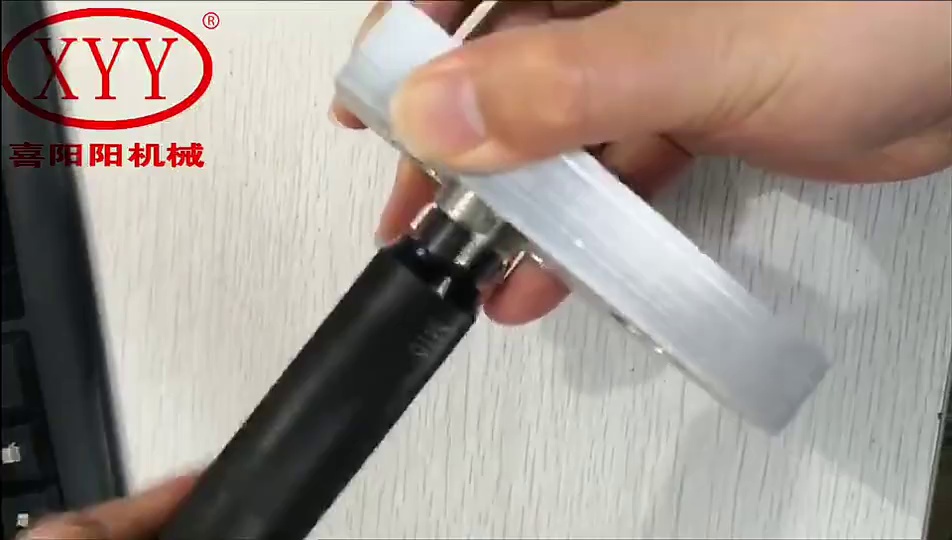

Installation method of locking thread insert
1. To install the bolt insert, first drill with a special drill;
2. After drilling the hole, tap with the corresponding model of special tap;

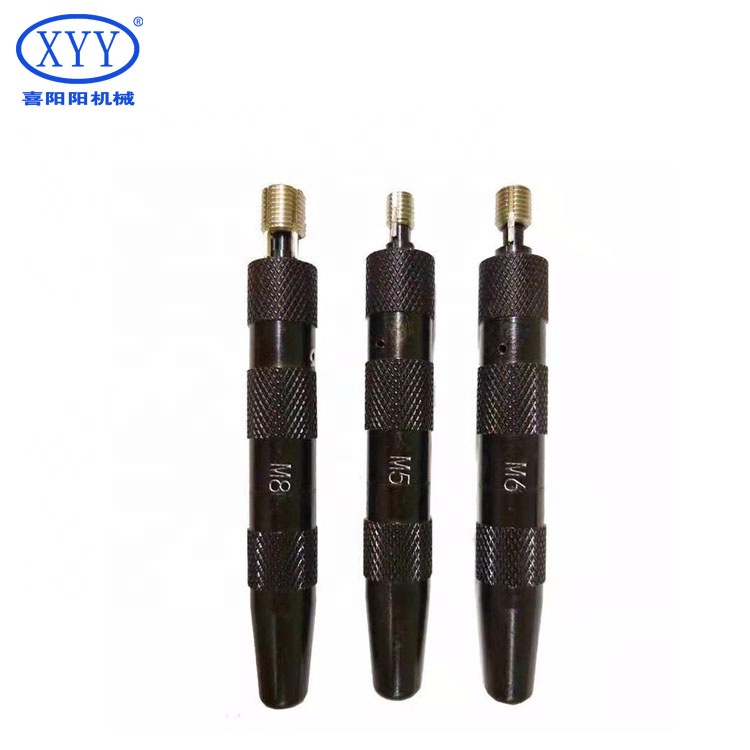

3. After tapping, screw in (install) with the special installation tool for bolt and screw sleeve;
4. Use a special installation tool to screw the bolt sleeve tightly, smash the bolt into the rear end of the installation handle with a hammer, and then take out the installation handle.
Product Presentation
Product Name | locking thread insert |
Thread tolerance | 6H |
Order No | M2-M12 |
Scope of application | Aerospace and railway locomotives |
Thread Representation | Internal thread * external thread * length |
Is it the manufacturer | Direct deal |

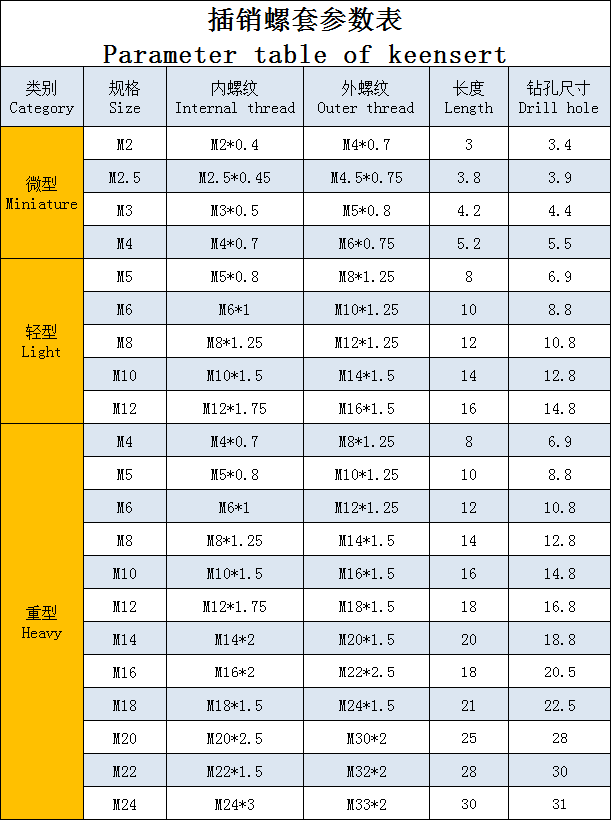

Parameter table of locking thread insert
Certificate
Related Products

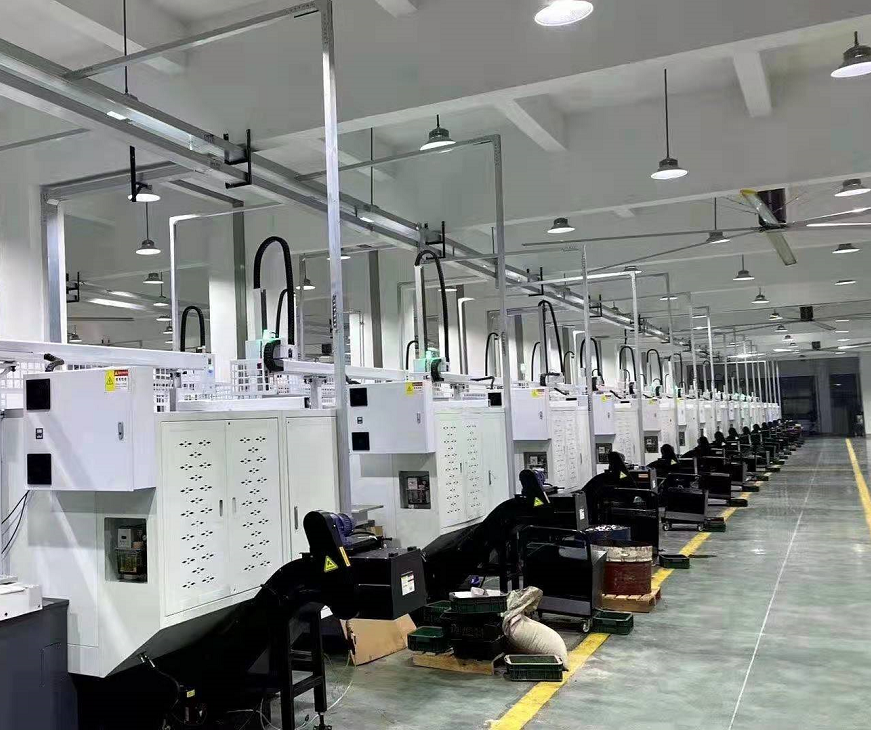

Company Introduction
Xinxiang Xiyangyang Screening Machinery Manufacturing Co., Ltd. It is an innovative
private enterprise integrating technology research and development, processing and manufacturing and trade services. The company mainly manufactures and sells fasteners such as steel wire sleeve, self-tapping screw sleeve, tailless screw sleeve and matching cutting edge measuring tools; the company has technological development strength, a variety of production equipment and high-precision testing equipment, and specializes in providing customers with the design and use of fastener products such as
steel wire sleeve, self-tapping screw sleeve and the whole process of technology. Operative support.
Xinxiang Xiyangyang steel wire screw sleeve is widely used in new energy industry. In response to market needs, special plated isolation screw sleeve, silver plated screw sleeve, taper screw sleeve, high temperature resistant steel wire screw sleeve, tin bronze steel wire screw sleeve and GJB steel wire screw sleeve are introduced to meet the needs of different users.
Our company has a perfect quality assurance system and has passed the high standard quality inspection and approval of all partners. In order to open up the market and realize mutual benefit, we will serve our customers wholeheartedly with the win-win business philosophy of "price, quality" and "integrity, service". In line with the principle of "the lowest price, but the best quality", our company wholeheartedly provides high-quality products and honest service for domestic and foreign users.
Xiyangyangyang Steel Wire Sleeve escorts your threads so that tightening is everywhere!
private enterprise integrating technology research and development, processing and manufacturing and trade services. The company mainly manufactures and sells fasteners such as steel wire sleeve, self-tapping screw sleeve, tailless screw sleeve and matching cutting edge measuring tools; the company has technological development strength, a variety of production equipment and high-precision testing equipment, and specializes in providing customers with the design and use of fastener products such as
steel wire sleeve, self-tapping screw sleeve and the whole process of technology. Operative support.
Xinxiang Xiyangyang steel wire screw sleeve is widely used in new energy industry. In response to market needs, special plated isolation screw sleeve, silver plated screw sleeve, taper screw sleeve, high temperature resistant steel wire screw sleeve, tin bronze steel wire screw sleeve and GJB steel wire screw sleeve are introduced to meet the needs of different users.
Our company has a perfect quality assurance system and has passed the high standard quality inspection and approval of all partners. In order to open up the market and realize mutual benefit, we will serve our customers wholeheartedly with the win-win business philosophy of "price, quality" and "integrity, service". In line with the principle of "the lowest price, but the best quality", our company wholeheartedly provides high-quality products and honest service for domestic and foreign users.
Xiyangyangyang Steel Wire Sleeve escorts your threads so that tightening is everywhere!
Packing&Shipping
FAQ
1. Who are we?
We are based in Henan, China, start from 2014,sell to Eastern Europe(10.00%),South America(10.00%),North America(10.00%),Africa(5.00%). There are total about 11-50 people in our office.
2.How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Wire thread insert,Self tapping insert,Tanglees,Keensert,Thread repair kit
4. Why should you buy from us not from other suppliers?
Our company is a professional manufacturer of thread inserts and tools. Xinxiang, a powerful industrial city in Central China, has been engaged in thread nesting industry for more than 20 years.
5. What services can we provide?
Accepted Delivery Terms: FOB,EXW,Express Delivery；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union;
Language Spoken:English,Chinese
