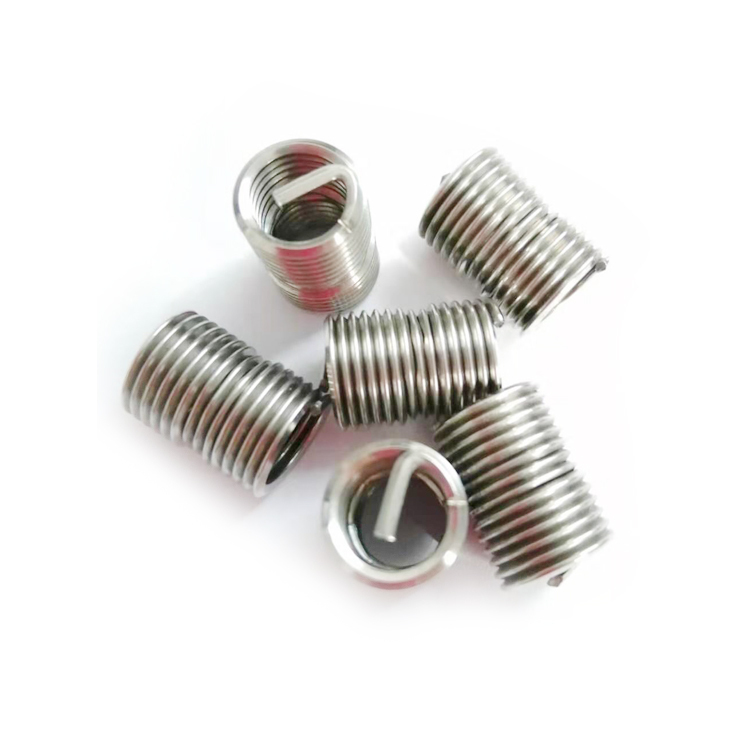

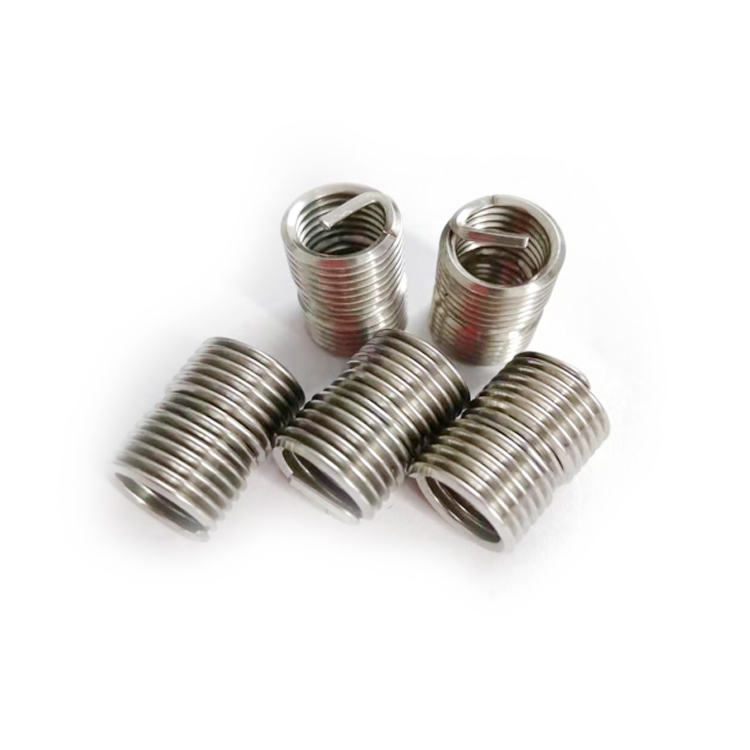

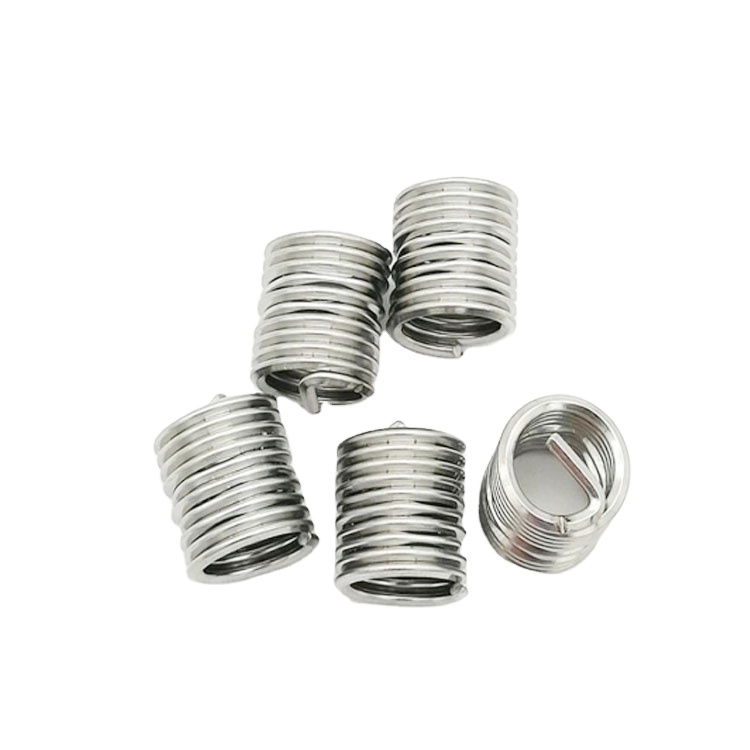

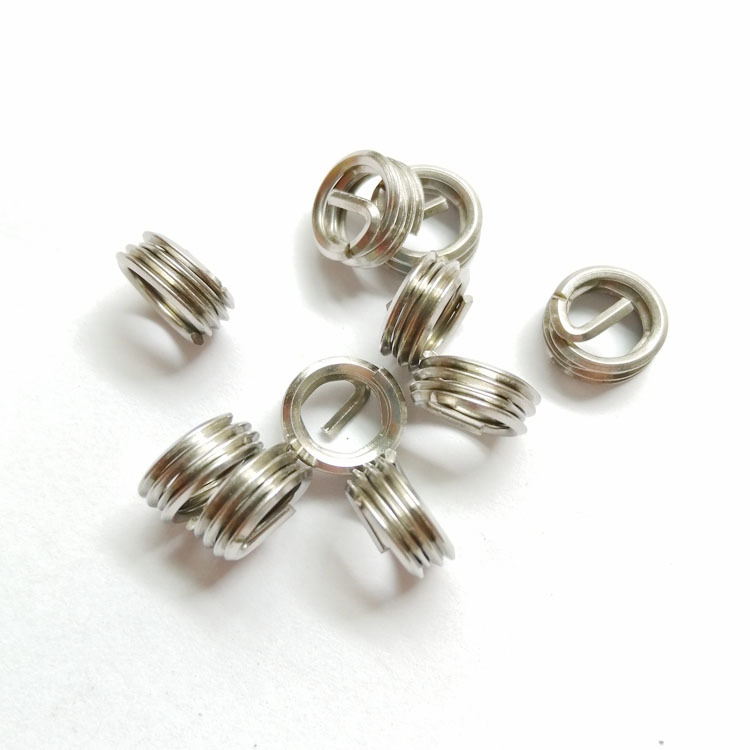

Wholesale M8*1.0 Self-Locking Steel Wire Thread Insert Custom Size
Contact Now
Description
Product Overview
Product introduction of self-locking screw sleeve
Self locking screw sleeve is also known as thread thread sleeve, which is called thread sleeve for short.
It is an insert developed to protect non-ferrous metal threaded holes and is suitable for threaded connections. Screw in and tighten it in the threaded hole of one of the connected parts to form a standard internal thread, and then screw the bolt (or screw) into it.
The spiral inner and outer concentric thread coil is made of cold-rolled stainless steel wire. The cross section is diamond shaped, and the shape is similar to that of spiral spring. It has high hardness and good surface roughness.
Special taps and installation tools are used for tapping and installation of the self-locking screw sleeves. The screws are sleeved in the screw holes or nuts, which can reduce the uneven stress on the thread teeth and resist impact vibration, improve the fatigue strength of the threads, and reduce the wear and corrosion resistance of the threads. Extend the life of screw hole.
FEATURES AT A GLANCE
Principle of locking type steel wire threaded sleeve
The locking type steel wire thread insert is a new type developed on the basis of the common type steel wire thread insert. There are 1~2 turns of pentagons or hexagons in the middle of the locking type steel wire screw sleeve. When the bolt is screwed into half of the threaded hole, the bolt head touches the locking ring. At this time, the steel wire screw sleeve with force applied by tools has better locking performance and higher strength than other common locking devices. At the same time, it can be disassembled repeatedly.
New energy locking screw sleeve
thread inserts
Screw sleeve with locking ring
PRODUCT SPECIFICATIONS
1 | Product name | Locking steel wire insert |
2 | Nominal diameter | 1d-3d |
3 | Thread accuracy | 6H |
4 | Specifications | M8*1 |
5 | application | Electronic power, machinery, aviation industry |
6 | Processing customization | Customized upon request |

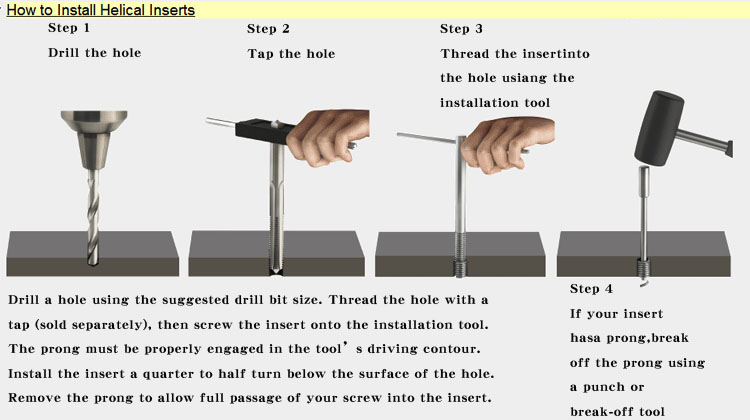

Installation principle

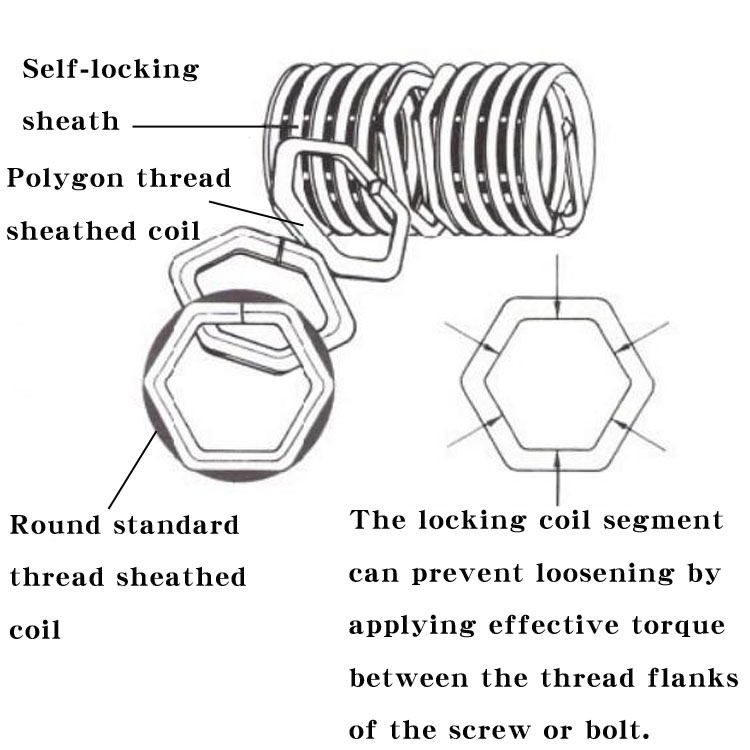

Principle of locking type steel wire threaded sleeve
When the screw is screwed into the screw hole of the locking steel wire screw sleeve, it is loose before it enters the polygon locking ring. When the screw enters the polygon locking ring, it is necessary to open the polygon to deform the locking edge. At this time, the screw shall overcome the friction force given to the screw by the locking edge. After the screw is tightened, this friction force can prevent the screw from loosening itself, thus replacing other locking methods.
SALES AND SERVICE NETWORK
SIMILAR PRODUCTS

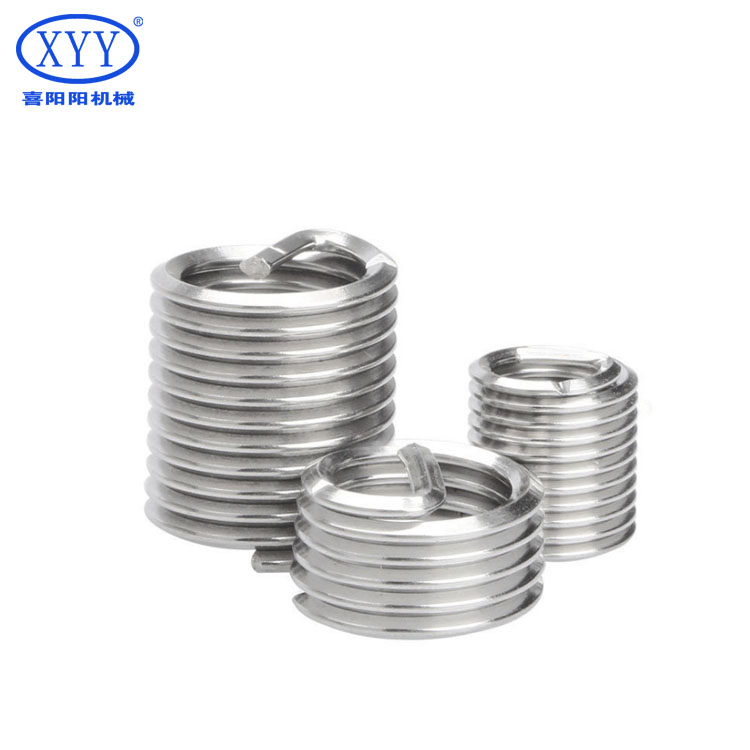

Conventional steel wire insert
Self tapping steel wire insert

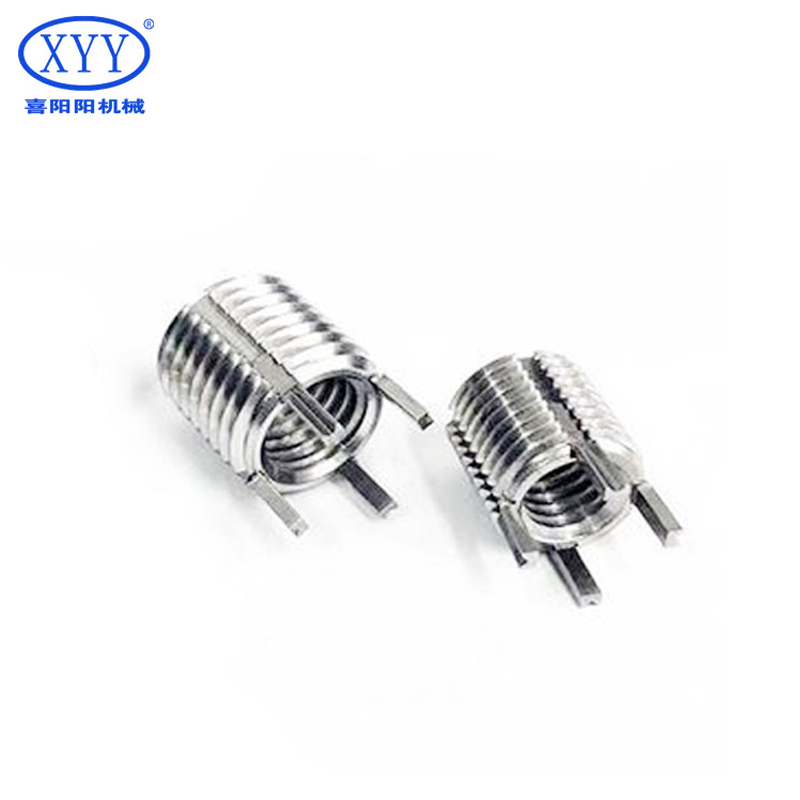

Bolt steel wire insert
Xinxiang Xiyangyang Screening Machinery Manufacturing Co., Ltd
Xinxiang Xiyangyang Screening Machinery Manufacturing Co., Ltd. It is an innovative private enterprise integrating technology research and development, processing and manufacturing and trade services. The company mainly manufactures and sells fasteners such as steel wire sleeve, self-tapping screw sleeve, tailless screw sleeve and matching cutting edge measuring tools; the company has technological development strength, a variety of production equipment and high-precision testing equipment, and specializes in providing customers with the design and use of fastener products such as steel wire sleeve, self-tapping screw sleeve and the whole process of technology. Operative support.
Xinxiang Xiyangyang steel wire screw sleeve is widely used in new energy industry. In response to market needs, special plated isolation screw sleeve, silver plated screw sleeve, taper screw sleeve, high temperature resistant steel wire screw sleeve, tin bronze steel wire screw sleeve and GJB steel wire screw sleeve are introduced to meet the needs of different users.
Our company has a perfect quality assurance system and has passed the high standard quality inspection and approval of all partners. In order to open up the market and realize mutual benefit, we will serve our customers wholeheartedly with the win-win business philosophy of "price, quality" and "integrity, service". In line with the principle of "the lowest price, but the best quality", our company wholeheartedly provides high-quality products and honest service for domestic and foreign users.
Xiyangyangyang Steel Wire Sleeve escorts your threads so that tightening is everywhere!
Xinxiang Xiyangyang steel wire screw sleeve is widely used in new energy industry. In response to market needs, special plated isolation screw sleeve, silver plated screw sleeve, taper screw sleeve, high temperature resistant steel wire screw sleeve, tin bronze steel wire screw sleeve and GJB steel wire screw sleeve are introduced to meet the needs of different users.
Our company has a perfect quality assurance system and has passed the high standard quality inspection and approval of all partners. In order to open up the market and realize mutual benefit, we will serve our customers wholeheartedly with the win-win business philosophy of "price, quality" and "integrity, service". In line with the principle of "the lowest price, but the best quality", our company wholeheartedly provides high-quality products and honest service for domestic and foreign users.
Xiyangyangyang Steel Wire Sleeve escorts your threads so that tightening is everywhere!
FAQ
1. who are we?
We are based in Henan, China, start from 2014,sell to Eastern Europe(10.00%),South America(10.00%),North America(10.00%),Africa(5.00%). There are total about 11-50 people in our office.
2.how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Wire thread insert,Self tapping insert,Tanglees,Keensert,Thread repair kit
4. why should you buy from us not from other suppliers?
Our company is a professional manufacturer of thread inserts and tools. Xinxiang, a powerful industrial city in Central China,has been engaged in thread nesting industry for more than 20 years.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,Express Delivery；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union;
Language Spoken:English,Chinese
We are based in Henan, China, start from 2014,sell to Eastern Europe(10.00%),South America(10.00%),North America(10.00%),Africa(5.00%). There are total about 11-50 people in our office.
2.how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Wire thread insert,Self tapping insert,Tanglees,Keensert,Thread repair kit
4. why should you buy from us not from other suppliers?
Our company is a professional manufacturer of thread inserts and tools. Xinxiang, a powerful industrial city in Central China,has been engaged in thread nesting industry for more than 20 years.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,Express Delivery；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union;
Language Spoken:English,Chinese
