Custom Size New Energy 0.4 1.5D Stainless Steel Thread
Contact Now
Description
Product Description

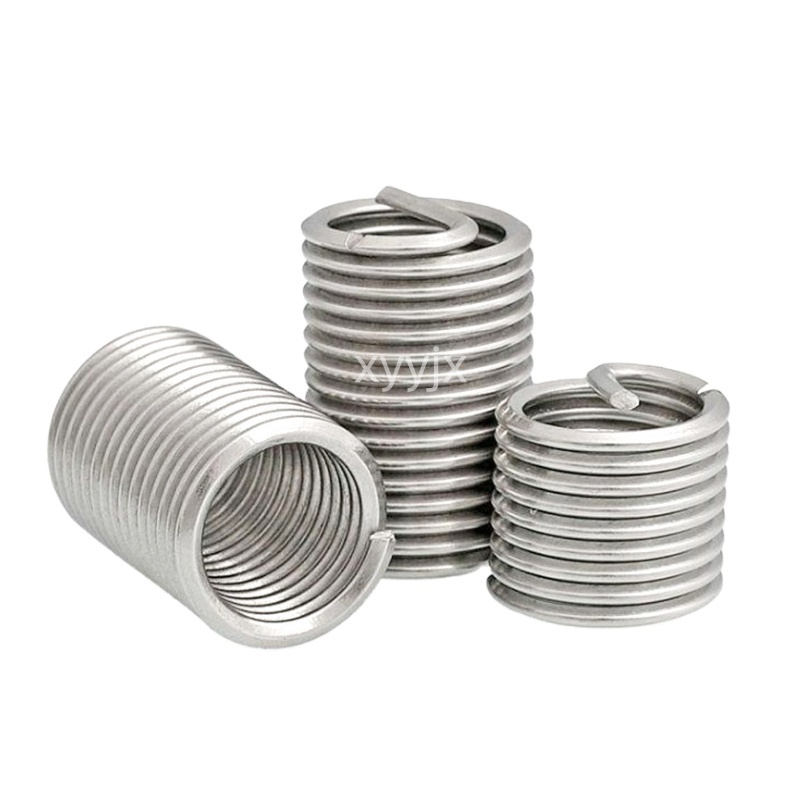

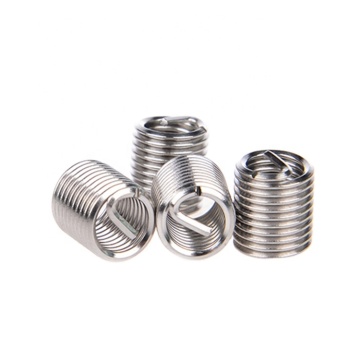

Introduction of new energy dyeing screw sleeve

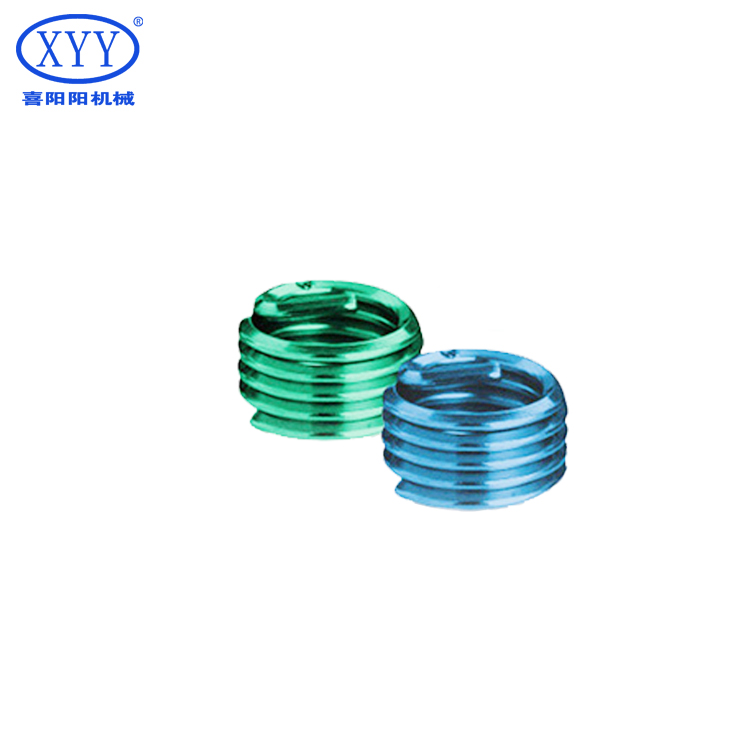

Green steel wire insert

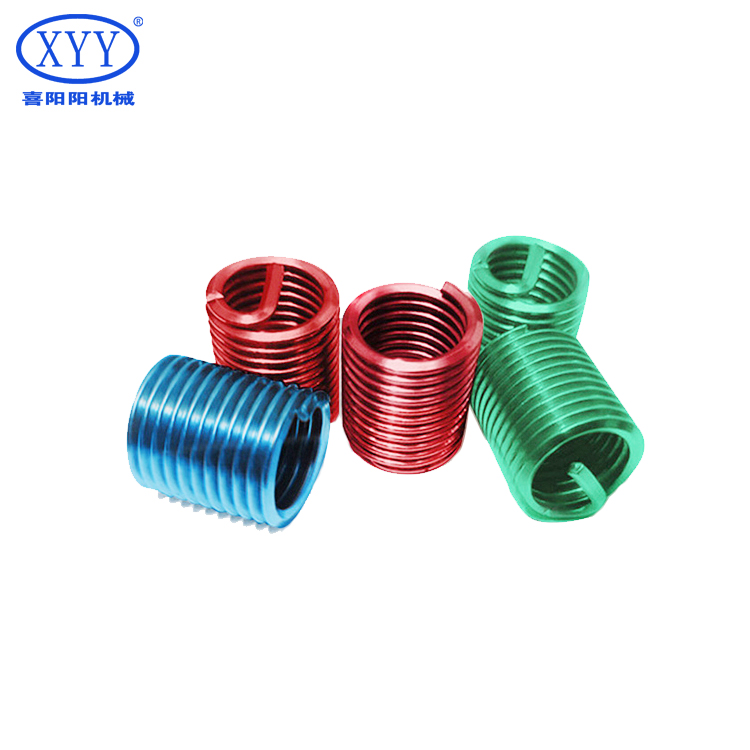

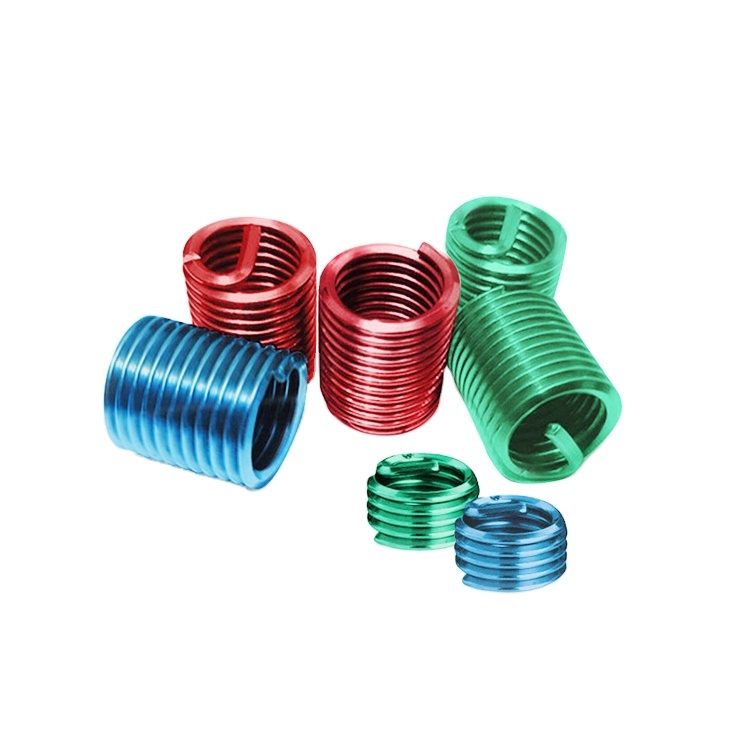

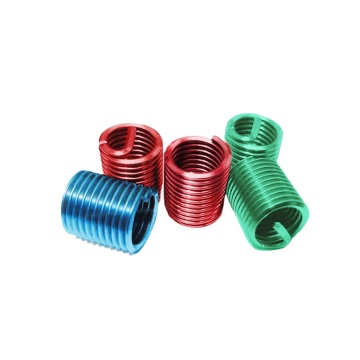

Various dyed steel wire inserts
Detailed Images

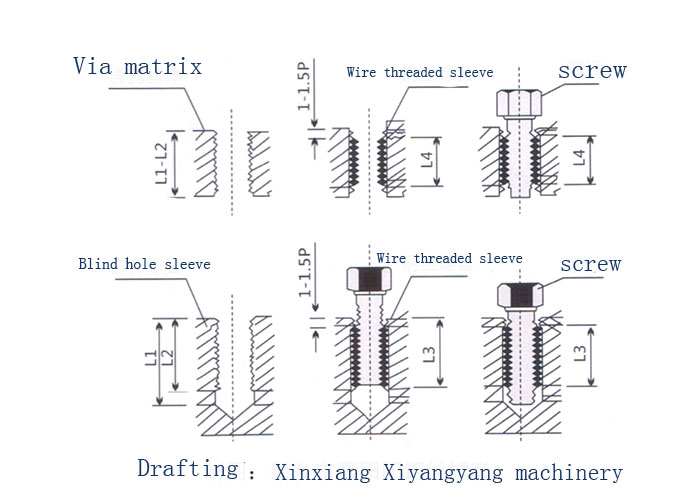

Application method of dyed steel wire thread sleeve
Nowadays, in our daily life, more and more steel wire thread inserts are used. Steel wire insert is a new type of threaded fastener, which is divided into ordinary type and locking type. It is a spring-shaped internal and external thread concentric body accurately processed from high-precision diamond shaped stainless steel wire. Locking type is to add one or several circles of locking ring on the basis of ordinary type.
The drilling depth is greater than or equal to the installation length of the screw sleeve; Be careful not to drill the hole into a cone, do not choose a drill with serious wear, and do not drop chips into places that may cause damage. After drilling, spot facer with deburring property is allowed, and the spot facer should not exceed 0.4p (pitch) depth, because too large spot facer is not conducive to the screw in of steel wire insert and causes unsuitable assembly.
Use electric or pneumatic semi-automatic installation wrench when assembly line is assembled or steel wire screw sleeve is required to be installed quickly, but it must be operated skillfully to avoid damage of screw sleeve and bottom hole. After the steel wire insert is installed, use the plug gauge of the corresponding level to check the accuracy grade of the formed standard internal thread hole. Sometimes the through end of the plug gauge may be difficult to screw into the insert, but this is conducive to the positioning of the insert after the screw is screwed in and tightened.
Product Presentation
Parameter table of new energy dyed steel wire threaded sleeve
Product Name | Dyed steel wire insert |
Thread accuracy | 6H |
Nominal diameter | 1D-3D |
Thread type | Standard |
Application | Aerospace, electronics, new energy |
Processing customization | Customizable |
Similar products
Certificate
Related Products
Company Introduction
Xinxiang Xiyangyang Screening Machinery Manufacturing Co., Ltd. It is an innovative
private enterprise integrating technology research and development, processing and manufacturing and trade services. The company mainly manufactures and sells fasteners such as steel wire sleeve, self-tapping screw sleeve, tailless screw sleeve and matching cutting edge measuring tools; the company has technological development strength, a variety of production equipment and high-precision testing equipment, and specializes in providing customers with the design and use of fastener products such as
steel wire sleeve, self-tapping screw sleeve and the whole process of technology. Operative support.
Xinxiang Xiyangyang steel wire screw sleeve is widely used in new energy industry. In response to market needs, special plated isolation screw sleeve, silver plated screw sleeve, taper screw sleeve, high temperature resistant steel wire screw sleeve, tin bronze steel wire screw sleeve and GJB steel wire screw sleeve are introduced to meet the needs of different users.
Our company has a perfect quality assurance system and has passed the high standard quality inspection and approval of all partners. In order to open up the market and realize mutual benefit, we will serve our customers wholeheartedly with the win-win business philosophy of "price, quality" and "integrity, service". In line with the principle of "the lowest price, but the best quality", our company wholeheartedly provides high-quality products and honest service for domestic and foreign users.
Xiyangyangyang Steel Wire Sleeve escorts your threads so that tightening is everywhere!
private enterprise integrating technology research and development, processing and manufacturing and trade services. The company mainly manufactures and sells fasteners such as steel wire sleeve, self-tapping screw sleeve, tailless screw sleeve and matching cutting edge measuring tools; the company has technological development strength, a variety of production equipment and high-precision testing equipment, and specializes in providing customers with the design and use of fastener products such as
steel wire sleeve, self-tapping screw sleeve and the whole process of technology. Operative support.
Xinxiang Xiyangyang steel wire screw sleeve is widely used in new energy industry. In response to market needs, special plated isolation screw sleeve, silver plated screw sleeve, taper screw sleeve, high temperature resistant steel wire screw sleeve, tin bronze steel wire screw sleeve and GJB steel wire screw sleeve are introduced to meet the needs of different users.
Our company has a perfect quality assurance system and has passed the high standard quality inspection and approval of all partners. In order to open up the market and realize mutual benefit, we will serve our customers wholeheartedly with the win-win business philosophy of "price, quality" and "integrity, service". In line with the principle of "the lowest price, but the best quality", our company wholeheartedly provides high-quality products and honest service for domestic and foreign users.
Xiyangyangyang Steel Wire Sleeve escorts your threads so that tightening is everywhere!
