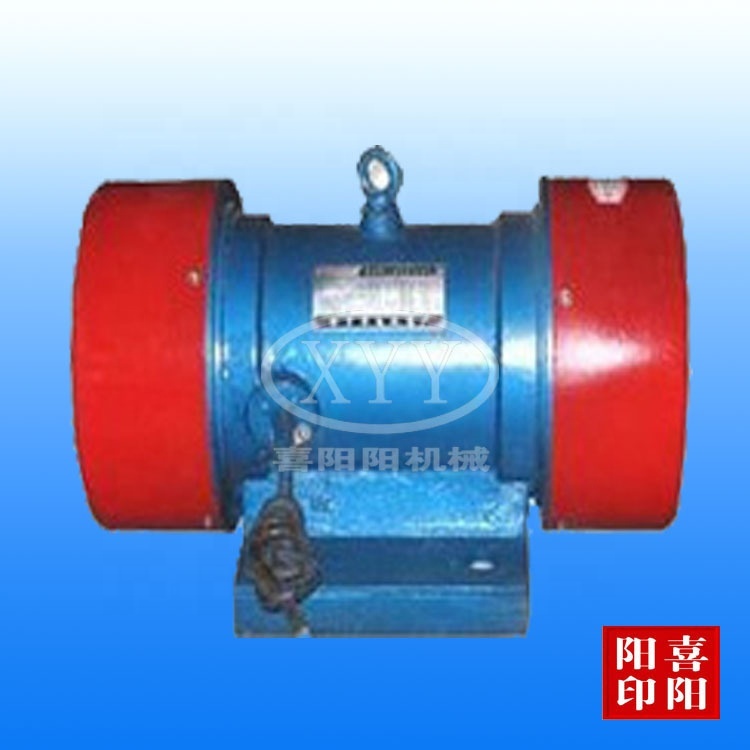

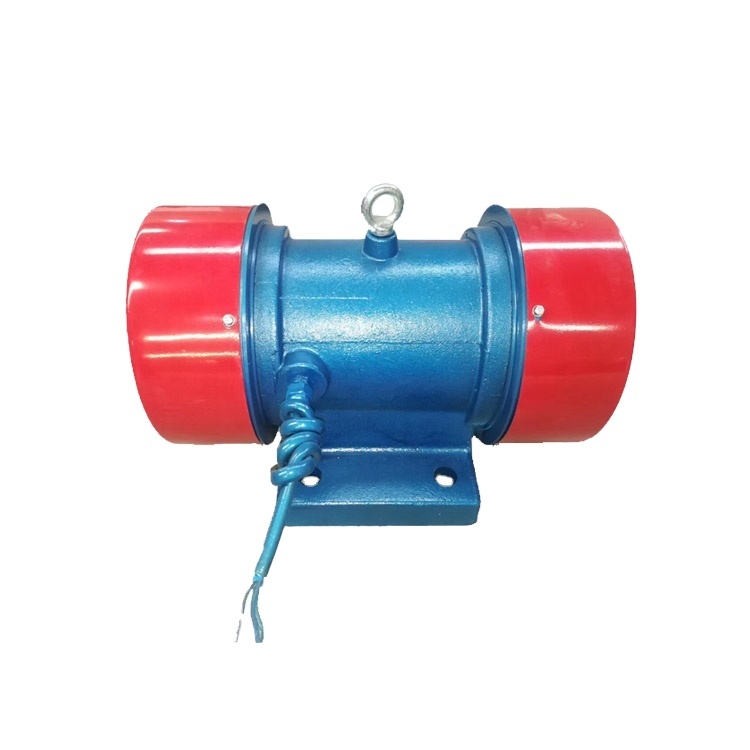

1.1kw yzs horizontal industrial vibration motor made in china

YZS vibration motor is a new type of vibration motor newly developed by Xiyangyang Company. The whole machine is cast in one shell and frame, which enhances the sealing performance of the whole machine. It can be widely used in non-explosion-proof working environment of multi-dust and Multi-granular materials. YZS vibration motor is characterized by beautiful appearance, high cost performance and excellent performance.

model number	Exciting force (N)	Rated power (KW)	Rated current (A)	Synchronous speed (rmp)	install size(mm)				Outline size(mm)
model number	Exciting force (N)	Rated power (KW)	Rated current (A)	Synchronous speed (rmp)	A	B	H	K	AB	BB	HD	G	L
YZS-1.5-2	1500	0.12	0.36	3000	130	80	80	12	170	118	200	19	245
YZS-2.5-2	2500	0.22	0.6		130	80	80	12	170	118	200	19	245
YZS-3-2	3000	0.25	0.6		150	90	90	14	185	124	220	21	270
YZS-5-2	5000	0.37	0.9		150	90	90	14	185	124	220	21	270
YZS-10-2	10000	0.75	1.75		180	110	112	18	225	155	238	27	335
YZS-15-2	15000	1.1	2.3		220	140	125	22	272	190	265	32	385
YZS-20-2	15000	1.5	3.1		260	150	170	26	344	234	320	42	452
YZS-30-2	30000	2.2	4.8		310	170	170	33	400	270	365	57	505
