Description

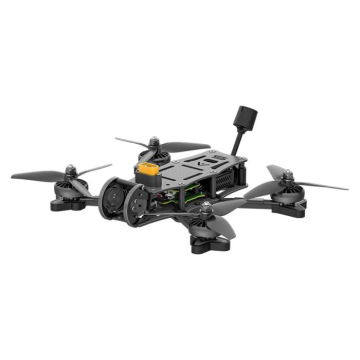

Frame made of High-Quality Lumenier components

Adjustable Aluminum XT60 and Accessory Mount

Backward-compatible mounting patterns

Aluminum FPV Camera Protection

Balanced Durability and Weight

Injection-Molded GoPro Mount

DeadCat Arm Configuration

O3 Compatible Mounting

Arm Braces for Rigidity

X-Lock Arm Retention

BALANCED DURABILITY AND WEIGHT

The QAV-S 2 JohnnyFPV Edition builds on the durability of its predecessor with upgraded 6mm thick arms in addition to the aluminum X-lock and FPV camera protection. At 133g (frame only - without accessories) this combination provides an industry-leading balance of weight and durability for even the most demanding applications.

X-LOCK ARM RETENTION

The QAV-S 2 introduces a new lateral X-Lock arm system. This all-aluminum arm locking system improves the QAV-S design in both rigidity and ease of use, providing two-axis clamping that is mechanically isolated from the main plates and flight controller stack. The new lock system also allows the arms to fold with only one screw per side for easy transportation.

ALUMINUM FPV CAMERA PROTECTION

The new FPV camera mounting solution offers excellent camera protection and support for various cameras through customizable carbon plates. The frame includes plates with damped mounts tested and optimized for the O3 camera and plates with mounts for a range of other camera options. If you want to create your own, the M2 mount points on the aluminum guards easily allow for custom mounts. Your imagination is the limit!

INJECTION MOLDED GOPRO MOUNT

The QAV-S 2 uses the same GoPro mount pattern used by other Lumenier frames, allowing a durable injection molded GoPro mount to attach with a single screw.

BACKWARD-COMPATIBLE MOUNTING PATTERNS

For those who still want to use printed GoPro and antenna mounts, the QAV-S 2 brings the JohnnyFPV frame into line with the mount patterns from the other QAV-S series frames. The new edition now uses the same mounting pattern and standoff placement as the other frames in the series. All previous QAV-S* mounts and Bardwell Special Edition frames will fit the JohnnyFPV Edition without modification.

*Original QAV-S JohnnyFPV Special Edition mounts are no longer compatible

O3 COMPATIBLE MOUNTING

The rear plate adds 25.5 M1.6 mount holes to mount the O3 air unit to the frame directly. The frame kit also includes a 5mm full aluminum mounting kit to allow for perfect wire routing for both the O3 air unit and a rear XT60 connector.

ADJUSTABLE ALUMINUM XT60 AND ACCESSORY MOUNT

A custom rear mounting solution allows for a hard mounted XT60 connection as well as a range of accessory mounting options for antennas, GPS, and rear-facing action cameras. Adjustable angles allows for the perfect position regardless of the accessory being used. The frame kit includes plates for the injection molded GoPro mount and GPS mounts with both single and dual antenna options, as well as a single antenna only option.

FOLDING ARMS

The new lock system on the QAV-S 2 JohnnyFPV SE allows the arms to fold with only one screw per side. Simply remove the side screws and wedges, and you are now able to fold the arms.

Specifications

Rear Stack Dimensions: 20x20 (potentially 30x30 with adapter)

Custom Parts: 6061 Aluminum (Bronze Gold)

Standoffs: 7075 Aluminum (Bronze Gold)

Screws: Black Zinc Steel 12.9 grade

Weight: 182g (without accessories)

Middle Stack Dimensions: 30x30

Arm: 6mm 3K Carbon Fiber

Frame Size: 220mm
