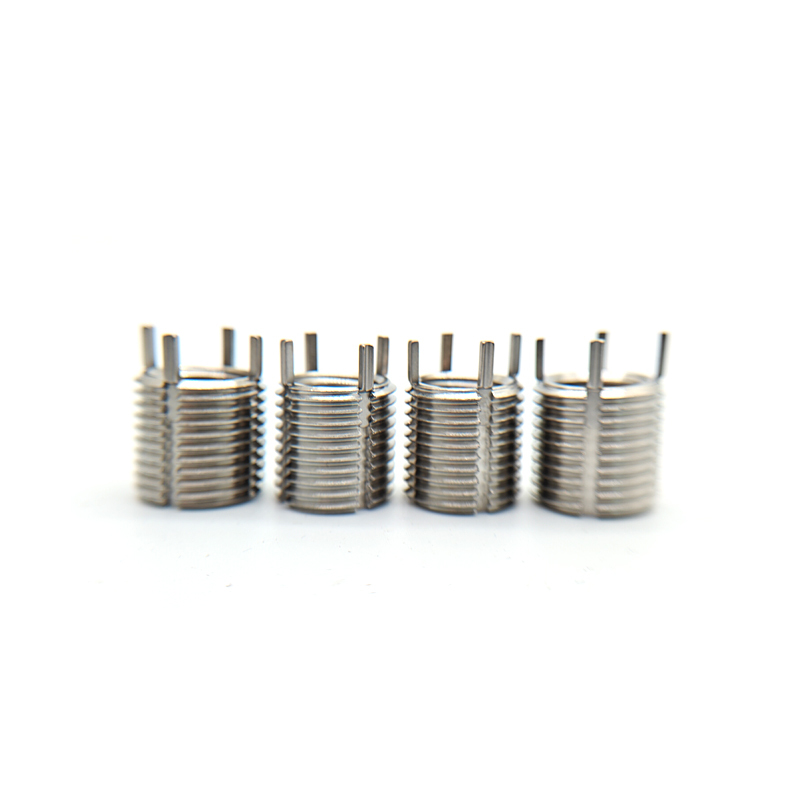

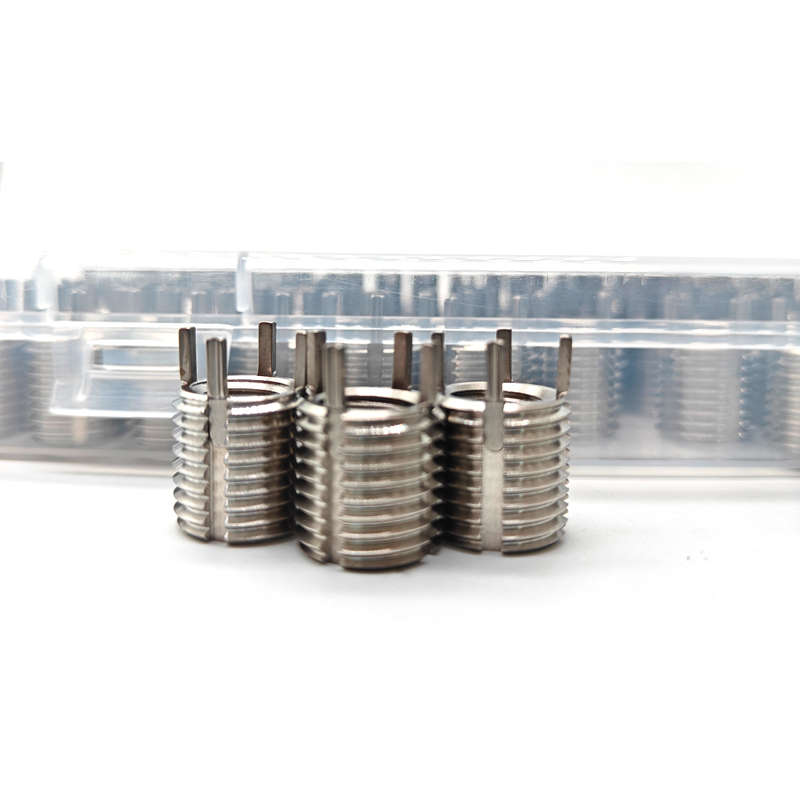

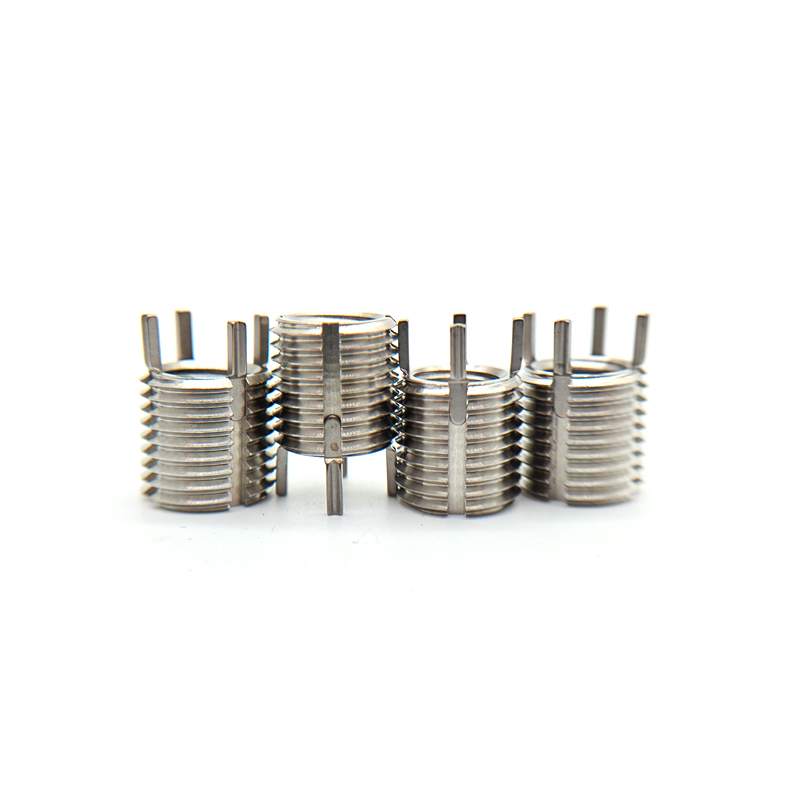

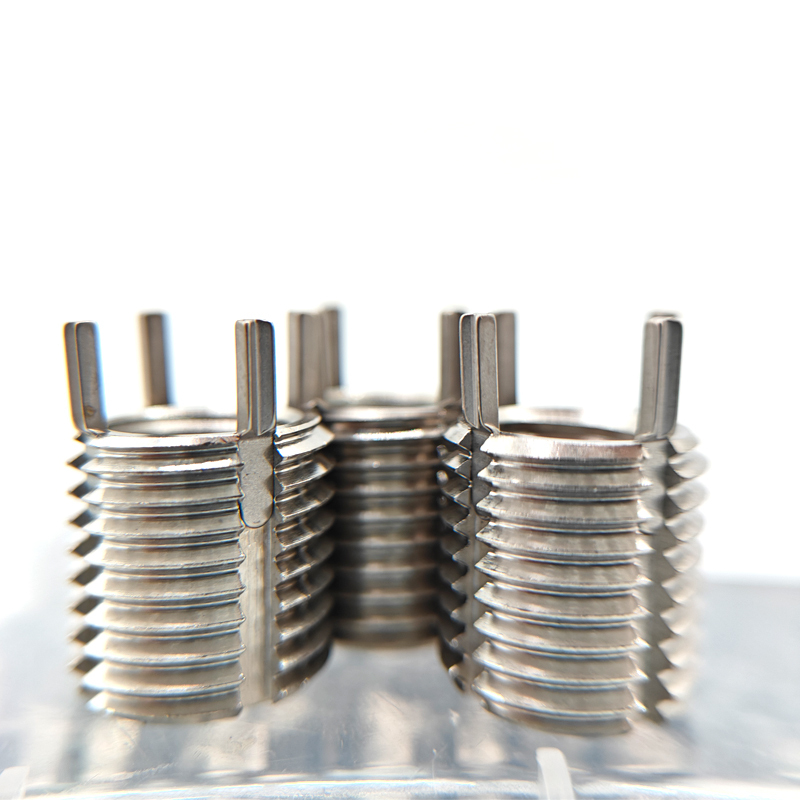

      High Quality Zinc Steel Locking Wire Inserts Fasteners for Thread Repair

      Contact Now

      Description

      Product Paramenters

      Bolt bolt sleeve(thin wall type) specifications
      Internal threadMale threadLength L (mm)Drill bit sizeBottom hole depth
      M 2x0.4M 4x0.733.44
      M 2.5x0.45M 4.5x0.753.813.95
      M 3x0.5M 5x0.84.254.45.5
      M 4x0.7M 6x0.755.255.56.5
      M 5x 0.8M 8x1.2586.99.5
      M 6x 1.0M10x1.25108.811.5
      M 8x1.25M12x1.251210.813.5
      M 8x 1.0M12x1.251210.813.5
      M10x 1.5M14x 1.51412.815.5
      M10x1.25M14x 1.51412.815.5
      M12x1.75M16x 1.51614.7517.5
      M12x1.25M16x 1.51614.7517.5
      Bolt bolt sleeve (heavy duty) specificatione
      Internal threadMale threadLength L (mm)Drill bit sizeBottom hole depth
      M 4x 0.7M 8x1.2586.99.5
      M 5x 0.8M10x1.25108.812.5
      M 6x 1.0M12x1.251210.814.5
      M 8x1.25M14x 1.51412.816.5
      M 8x 1.0M14x 1.51412.816.5
      M10x 1.5M16x 1.51614.7518.5
      M10x1.25M16x 1.51614.7518.5
      M12x1.75M18x 1.51816.7520.5
      M12x1.25M18x1.51816.7520.5
      M14x 2.0M20x 1.52018.7522.5
      M14x 1.5M20x 1.52018.7522.5
      M16x 2.0M22x 1.52220.524.5
      M16x 1.5M22x 1.52220.524.5
      M18x 1.5M24x 1.52422.526.5
      M20x 2.5M30x 2.0302834.5
      M20x 1.5M30x 2.0302834.5
      M22x 1.5M32x 2.0323036.5
      M24x 3.0M33x 2.0333137.5
      M24x 2.0M33x 2.0333137.5
      Details Images Customized process Exhibition

      1-How do you make sure all the screws pass?

      A:We produce mainly 5H precision screw jackets, which are higher than the 6H precision required for inspection, and the production standard is higher than the inspection standard.

      2-What is the lead time for the screw bushing?

      A:We are a manufacturer, the spot can be delivered on the same day, the slowest is tomorrow's shipment, self-tapping screw set is generally 7 days, self-tapping and pin non-standard products starting quantity is 2000pcs.

      3-Why is stainless steel material magnetic?

      A:Stainless steel processing deformation process, it will produce weak magnetism is not the material itself has a problem.

      4-How do I remove the screw-in sleeve after installation?

      A:After the installation of the screw sleeve is not suitable for the specifications can be used to use a special triangular sleeve remover, knocking the tail, then reverse rotation to remove the screw sleeve. Logistics
