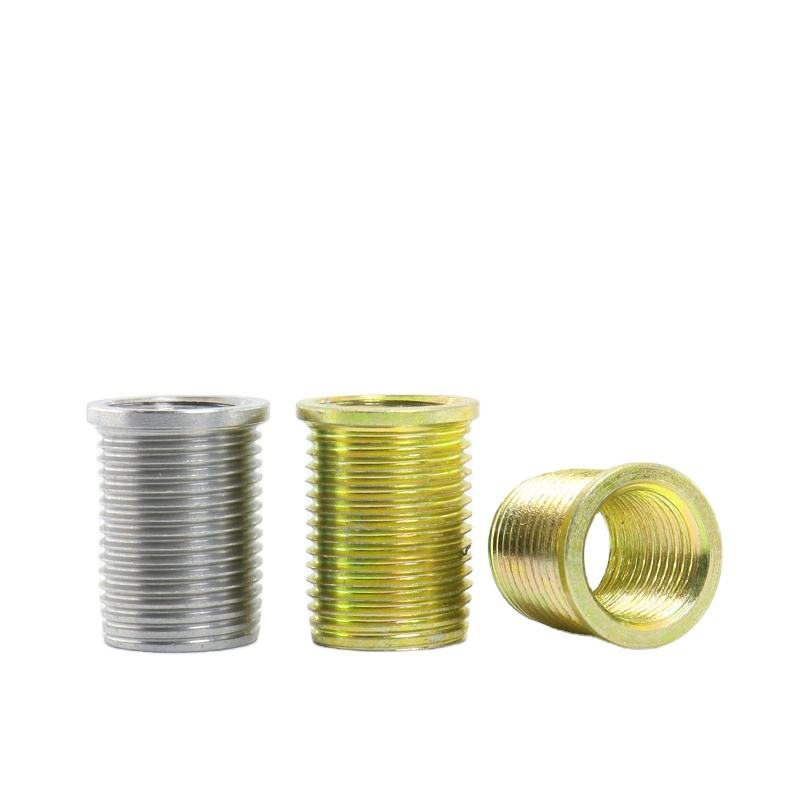

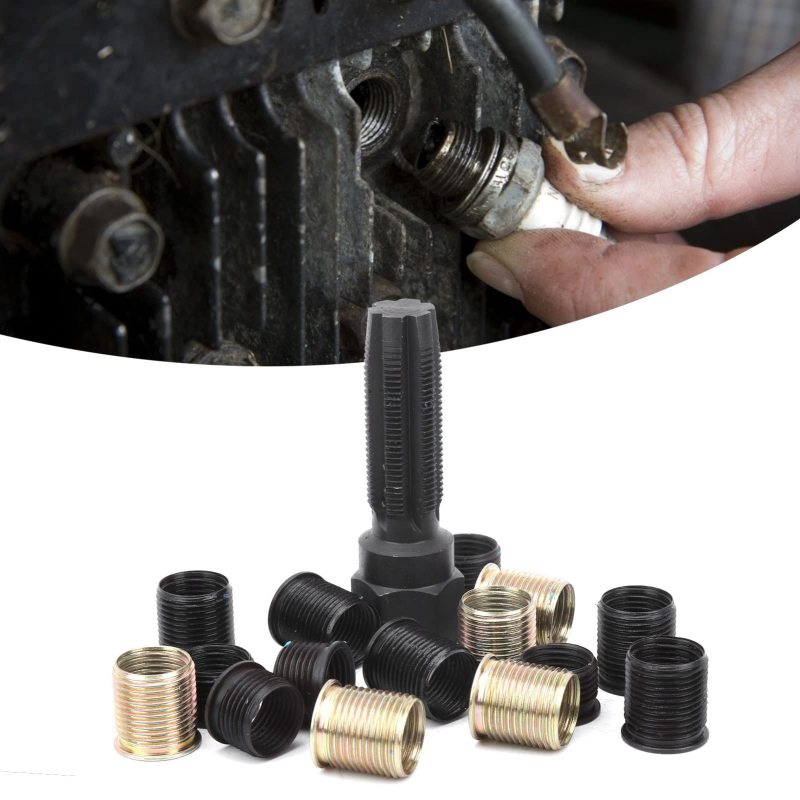

Carbon Steel Spark Plug Thread Repair Tool - Fix Damaged Spark Plug Threads
Contact Now
Description
Product Paramenters
Bolt bolt sleeve(thin wall type) specifications | |||||||||||||
specification | inside diameter | internal thread pitch | length | external diameter | external thread pitch | head diameter | bottom hole | Head height | drilling depth | ||||
M6*1*M8*1*L9.4 | M6 | 1 | 9.4 | M8 | 1 | 8.6 | 7.1 | 0.6 | 12 | ||||
M8*1.25*M10*1.25*L11.7 | M8 | 1.25 | 11.7 | M10 | 1.25 | 10.6 | 8.9 | 0.6 | 14 | ||||
M10*1*M12*1*L12.7 | M10 | 1 | 12.7 | M12 | 1 | 12.6 | 11.2 | 0.8 | 15 | ||||
M10*1.25*M12*1.25*L17 | M10 | 1.25 | 17 | M12 | 1.25 | 12.6 | 10.9 | 0.8 | 20 | ||||
M12*1.25*M14*1.25*L17 | M12 | 1.25 | 17 | M14 | 1.25 | 14.8 | 12.9 | 0.8 | 20 | ||||
M12*1.5*M14*1.5*L16.2 | M12 | 1.5 | 16.2 | M14 | 1.5 | 14.8 | 12.7 | 0.8 | 19 | ||||
M14*1.25*M16*1.25*L17 | M14 | 1.25 | 17 | M16 | 1.25 | 16.8 | 14.9 | 0.8 | 20 | ||||
M14*1.5*M16*1.5*L9.4 | M14 | 1.5 | 9.4 | M16 | 1.5 | 16.8 | 14.7 | 0.8 | 12 | ||||
M10x 1.5 | M14x 1.5 | 14 | 12.8 | 15.5 | |||||||||
M10x1.25 | M14x 1.5 | 14 | 12.8 | 15.5 | |||||||||
M12x1.75 | M16x 1.5 | 16 | 14.75 | 17.5 | |||||||||
M12x1.25 | M16x 1.5 | 16 | 14.75 | 17.5 | |||||||||
Bolt bolt sleeve (heavy duty) specificatione | ||||||||
Internal thread | Male thread | Length L (mm) | Drill bit size | Bottom hole depth | ||||
M 4x 0.7 | M 8x1.25 | 8 | 6.9 | 9.5 | ||||
M 5x 0.8 | M10x1.25 | 10 | 8.8 | 12.5 | ||||
M 6x 1.0 | M12x1.25 | 12 | 10.8 | 14.5 | ||||
M 8x1.25 | M14x 1.5 | 14 | 12.8 | 16.5 | ||||
M 8x 1.0 | M14x 1.5 | 14 | 12.8 | 16.5 | ||||
M10x 1.5 | M16x 1.5 | 16 | 14.75 | 18.5 | ||||
M10x1.25 | M16x 1.5 | 16 | 14.75 | 18.5 | ||||
M12x1.75 | M18x 1.5 | 18 | 16.75 | 20.5 | ||||
M12x1.25 | M18x1.5 | 18 | 16.75 | 20.5 | ||||
M14x 2.0 | M20x 1.5 | 20 | 18.75 | 22.5 | ||||
M14x 1.5 | M20x 1.5 | 20 | 18.75 | 22.5 | ||||
M16x 2.0 | M22x 1.5 | 22 | 20.5 | 24.5 | ||||
M16x 1.5 | M22x 1.5 | 22 | 20.5 | 24.5 | ||||
M18x 1.5 | M24x 1.5 | 24 | 22.5 | 26.5 | ||||
M20x 2.5 | M30x 2.0 | 30 | 28 | 34.5 | ||||
M20x 1.5 | M30x 2.0 | 30 | 28 | 34.5 | ||||
M22x 1.5 | M32x 2.0 | 32 | 30 | 36.5 | ||||
M24x 3.0 | M33x 2.0 | 33 | 31 | 37.5 | ||||
M24x 2.0 | M33x 2.0 | 33 | 31 | 37.5 | ||||

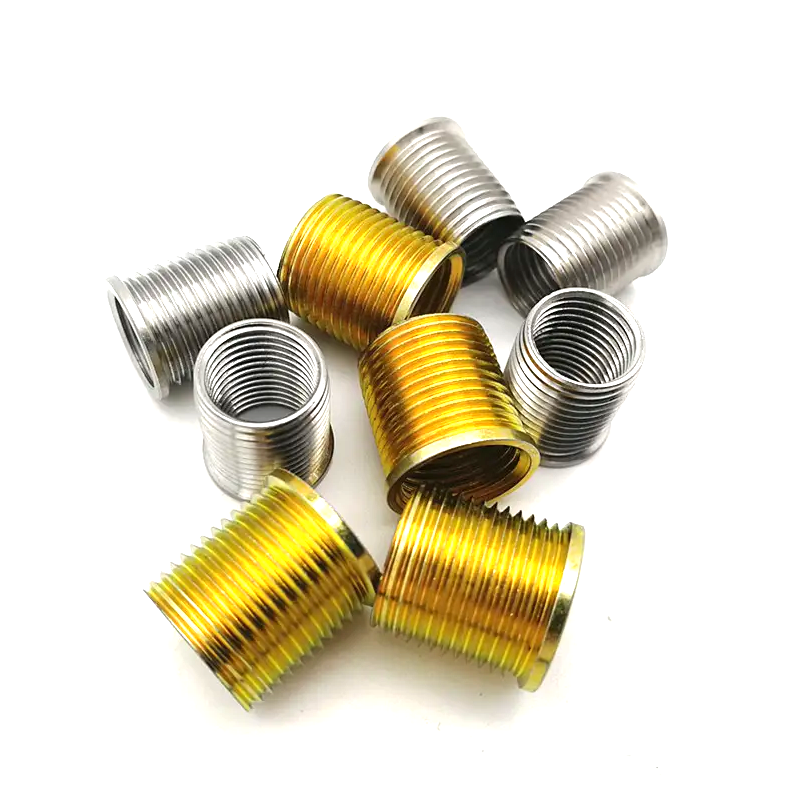

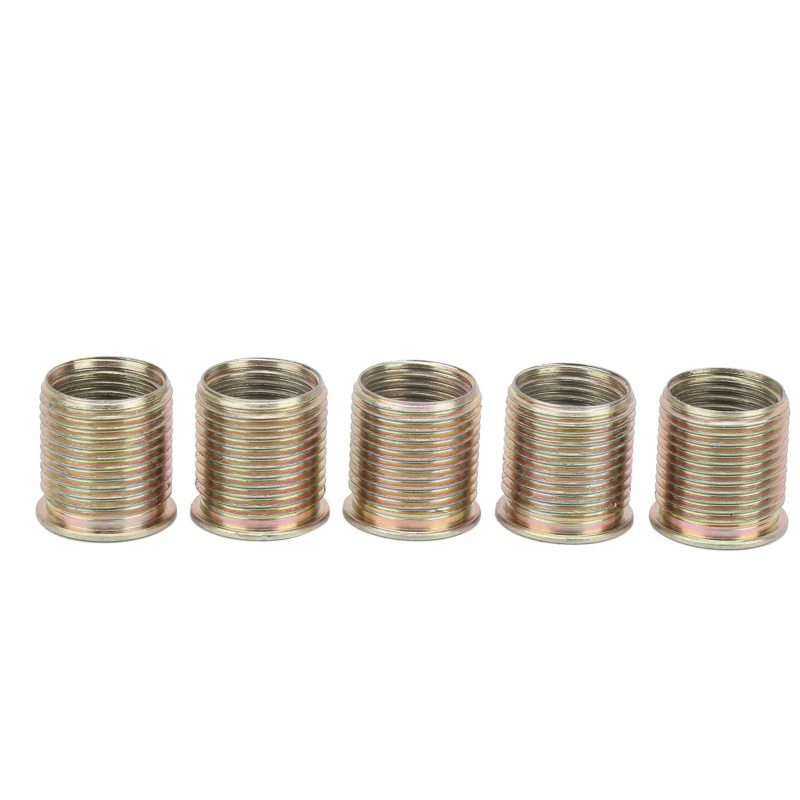

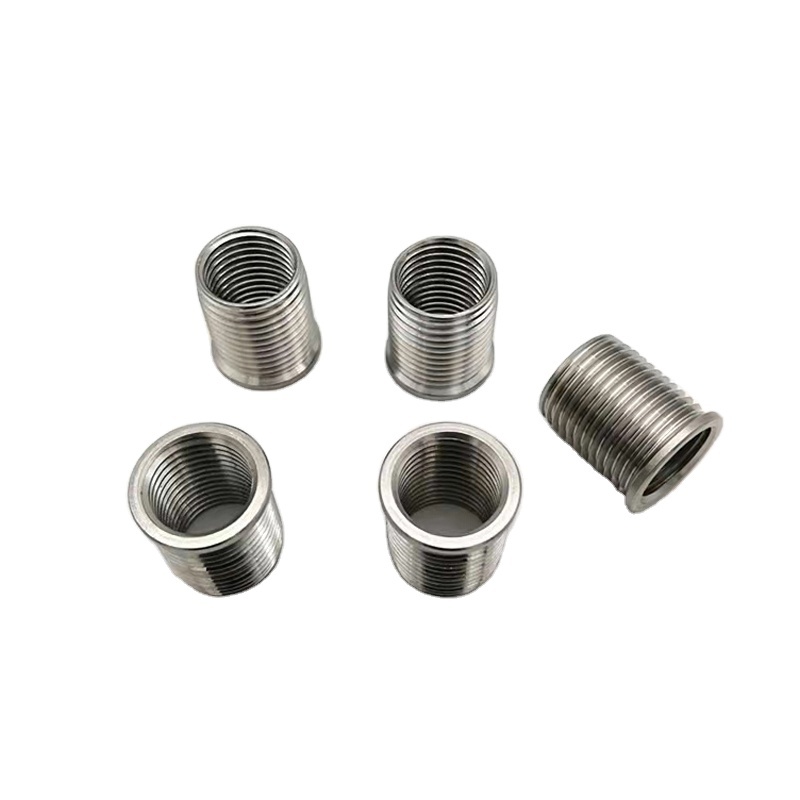

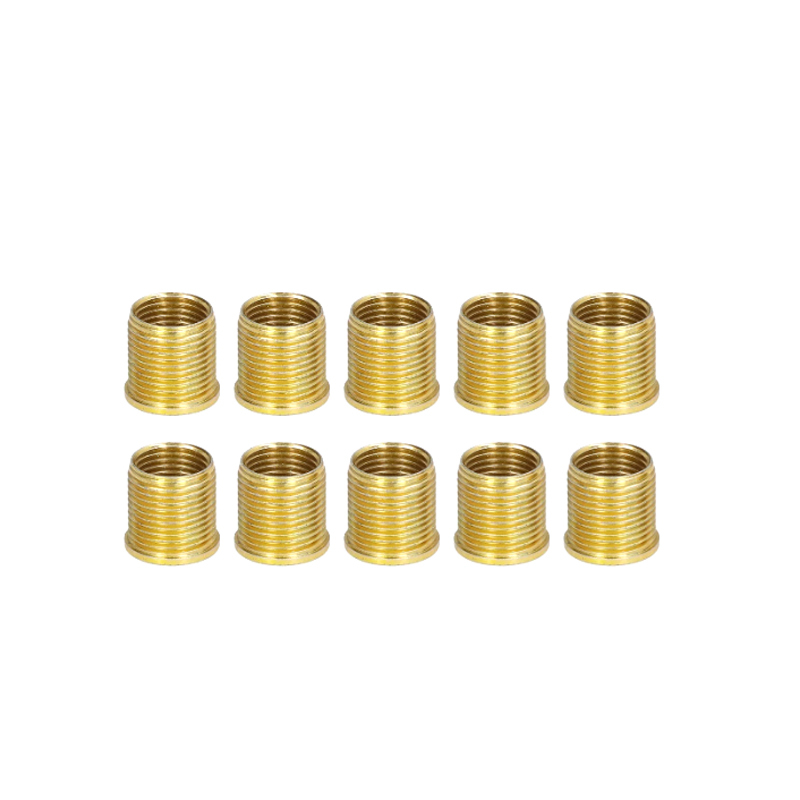

Details Images
Customized process
specification | inside diameter | external diameter | pitch | length | head diameter | bottom hole | Head height | drilling depth |
M6*1*M8*1*L9.4mm | M6 | M8 | 1 | 9.4 | 8.6 | 7.1 | 0.6 | 12 |
M8*1.25*M10*1.25*L11.7mm | M8 | M10 | 1.25 | 11.7 | 10.6 | 8.9 | 0.6 | 14 |
M10*1*M12*1*L12.7mm | M10 | M12 | 1 | 12.7 | 12.6 | 11.2 | 0.8 | 15 |
M10*1.25*M12*1.25*L17mm | M10 | M12 | 1.25 | 17 | 12.6 | 10.9 | 0.8 | 20 |
M12*1.25*M14*1.25*L17mm | M12 | M14 | 1.25 | 17 | 14.8 | 12.9 | 0.8 | 20 |
M12*1.5*M14*1.5*L16.2mm | M12 | M14 | 1.5 | 16.2 | 14.8 | 12.7 | 0.8 | 19 |
M14*1.25*M16*1.25*L17mm | M14 | M16 | 1.25 | 17 | 16.8 | 14.9 | 0.8 | 20 |
M14*1.5*M16*1.5*L9.4mm | M14 | M16 | 1.5 | 9.4 | 16.8 | 14.7 | 0.8 | 12 |
Exhibition
1-How do you make sure all the screws pass?
A:We produce mainly 5H precision screw jackets, which are higher than the 6H precision required for inspection, and the production standard is higher than the inspection standard.
2-What is the lead time for the screw bushing?
A:We are a manufacturer, the spot can be delivered on the same day, the slowest is tomorrow's shipment, self-tapping screw set is generally 7 days, self-tapping and pin non-standard products starting quantity is 2000pcs.
3-Why is stainless steel material magnetic?
A:Stainless steel processing deformation process, it will produce weak magnetism is not the material itself has a problem.
4-How do I remove the screw-in sleeve after installation?
A:After the installation of the screw sleeve is not suitable for the specifications can be used to use a special triangular sleeve remover, knocking the tail, then reverse rotation to remove the screw sleeve.
