Product description
Model NO.: P10
Pixel Density: 10000 dot / m²
Scanning Mode: 1/4 Scan
Display Type: LED Video Display
Application: Advertising
Certification: CE, RoHS, CCC
LED Module Size: 320mm X 160mm
LED Cabinet Size: 960mm X 960mmx 150mm
Guaranty: 2 Years
Packing Materail: Wooden Case / Flight Case
Trademark: NVD
Specification: 160mm X 160mm
Origin: Made-in-China
HS Code: 85312000

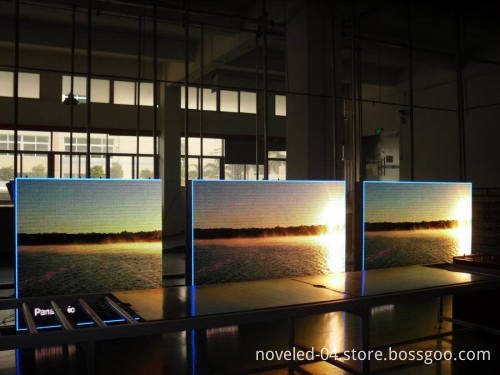

LED Fullcolor Display(P10 fullcolor outdoor LED display)Noveled Group Ltd is the leading OEM manufacture of LED Display Screens in China. We provide Indoor, Outdoor and Semi-Outdoor LED Display screens in Single, Bi-color and full-color for different markets, such as advertising billboard, stadium LED signs, sports LED signage, rental video display, mobile digital LED display, stage & bar electronic sign, DOT matrix LED display etc.
1. Function and Technology Character
(1) Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.
(2) 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.
(3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.
(4) Line-Double technology is adopted for the picture adjustment.
(5) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.
(6) Can be used outdoor in all kinds of weather, and excellent capability of antisepsis, waterproof.
| Display and control feature | Structure feature | ||
| Specification | Parameter | Specification | Parameter |
| Pixel Pitch | 10 mm | Module size | 160 mm*160 mm |
| Pixel composing | 1R1G1B | Display resolution/module | 16 dots*16 dots |
| Wavelength (R) | 625± 5 | Standard cabinet size | 1280 mm*960 mm |
| Wavelength (G) | 522± 3 | Weight per sqm | 65 Kg/sqm |
| Wavelength (B) | 567± 3 | Protection classification | IP65 |
| Wave Angle (H) | 120° (H)/ 60° | Install mode | Wallmount, hung and stand structure |
| LED package | DIP 346 | Cabinet Material | Iron/Aluminum |
| Density per sqm | 10, 000 pixel | Working power | |
| Display color | 256*256*256 | Specification | Parameter |
| Whiteness brightness | ≥ 5500 | Working voltage | AC 220v/380v± 10% 47~64Hz |
| Brightness level | 128 grade | Max power/sqm | 750W/sqm |
| Changing frame frequency | 60 Hz | Average power/sqm | 400W/sqm |
| Refresh | 400 Hz | Short circuit protection | Yes |
| Driving method | 1/4 Constant Driving | Led Lamp type | Nichia/Cotco/Cree/Axt/Silan/Taiwan |
| Control mode | synchronous | Working environment | |
| Display port | DVI | Specification | Parameter |
| Display mode | 1024*768 /1024*1024 | Environment | Outdoor |
| Out of control | 1/10, 000 ( scattered) | Working temperature | --20~50c |
| lifetime | 100, 000 hours | Working Humidity | 10~90% |
