SINOTRUK HOWO Dump Truck Spare Parts: AC16 Drive Axle Rear Brake Shoe Rivets & Pads
Contact Now
Description
产品描述
|
AC16 rear axle hubs and brakes
|
|
|
|
|||
|
Number
|
Material code
|
Name
|
Quantity
|
|||
|
1
|
AZ7129340310
|
Rear wheel hub assembly
|
2
|
|||
|
1.1
|
WG7129340309
|
Rear wheel hubs
|
1
|
|||
|
1.2
|
WG7121340130
|
Wheel bolts
|
10
|
|||
|
2
|
WG9231340002
|
Cylinder head hexagonal plug assembly
|
2
|
|||
|
3
|
WG9981330024
|
Magnetic hexagonal taper plug assembly M24x1.5 DIN158
|
2
|
|||
|
4
|
WG7129340001
|
End cap assembly
|
2
|
|||
|
5
|
WG9981340065
|
End cap paper pads
|
2
|
|||
|
6
|
MQ6-02099-0204
|
Allen socket screw M12X1.5X30-8.8-A3C
|
6
|
|||
|
7
|
WG9981340066
|
Hexagonal flange bearing face with toothed bolts
|
20
|
|||
|
8
|
ZQ150B0816
|
Hexagon head bolt M8
|
12
|
|||
|
9
|
WG7129340185
|
Locking gaskets
|
2
|
|||
|
10
|
Q2541025
|
Cross groove countersunk screws
|
4
|
|||
|
11
|
WG9100340056
|
Clearance Adjuster Assembly (Left)
|
1
|
|||
|
12
|
WG9100340057
|
Clearance Adjustment Arm Assembly (Right)
|
1
|
|||
|
13
|
WG9761450176
|
Limit alarm device
|
2
|
|||
|
14
|
WG9981451015
|
Return spring
|
4
|
|||
|
15
|
Q5280430
|
Elastic cylindrical pins
|
4
|
|||
|
17
|
AZ9003960010
|
Locking screws
|
4
|
|||
|
18
|
WG7121340035
|
Brake dust cover (left)
|
2
|
|||
|
19
|
WG7121340036
|
Brake dust cover (right)
|
2
|
|||
|
20
|
AZ7129341170
|
Wheel reducer housing assembly
|
2
|
|||
|
21
|
Q50110
|
Locking pins
|
4
|
|||
|
22
|
WG9012340011
|
End cap top pin
|
2
|
|||
|
23
|
WG7129340171
|
Sun Gear (Z = 19)
|
2
|
|||
|
24
|
WG9003990052
|
The shaft is fixed with a steel wire ring
|
2
|
|||
|
25
|
AZ9981340423
|
Half shaft (left)
|
1
|
|||
|
26
|
AZ9981340424
|
Half shaft (right)
|
1
|
|||
|
27
|
AZ7129340172
|
Thrust pads
|
2
|
|||
|
28
|
WG7129340051
|
Internal ring gear (Z = 56)
|
2
|
|||
|
29
|
WG9231340016
|
Locking gasket
|
2
|
|||
|
30
|
WG7129340020
|
Ring gear bracket assembly
|
2
|
|||
|
31
|
710W90810-0074
|
Wire fixing rings
|
2
|
|||
|
32
|
WG9012340029
|
Seals
|
4
|
|||
|
33
|
710W96002-0230
|
Blocking DM8mm
|
2
|
|||
|
34
|
WG9981032222
|
Tapered roller bearing 32222
|
4
|
|||
|
35
|
AZ7121340019
|
Gasket assembly
|
2
|
|||
|
36
|
WG9981340213
|
Shaft seals
|
2
|
|||
|
37
|
WG9012340020
|
Gaskets
|
2
|
|||
|
38
|
WG7121340921
|
Oil cover
|
2
|
|||
|
39
|
Q40308
|
Spring washers
|
20
|
|||
|
40
|
ZQ150B0816
|
Hexagonal head bolt M8
|
20
|
|||
|
41
|
WG9231342006
|
Rear Brake Drum (High Carbon)
|
2
|
|||
|
42
|
WG880440010
|
Additional gaskets
|
4
|
|||
|
43
|
WG880340023
|
O-ring sealing
|
2
|
|||
|
44
|
WG7121340007
|
Bushings
|
4
|
|||
|
45
|
190003933300
|
External snap ring
|
2
|
|||
|
46
|
WG9231340318
|
Oil blocking pan
|
2
|
|||
|
47
|
WG9981340226
|
Brake camshaft (left)
|
1
|
|||
|
48
|
WG9981340227
|
Brake camshaft (right)
|
1
|
|||
|
49
|
WG880440032
|
Return spring pin
|
4
|
|||
|
50
|
AZ9231342073
|
Brake shoe lining assembly
|
4
|
|||
|
50.1
|
WG9231342074
|
Brake shoes
|
1
|
|||
|
50.2
|
WG9231342066
|
Lift the brake pads (cam side)
|
1
|
|||
|
50.3
|
WG9231340068
|

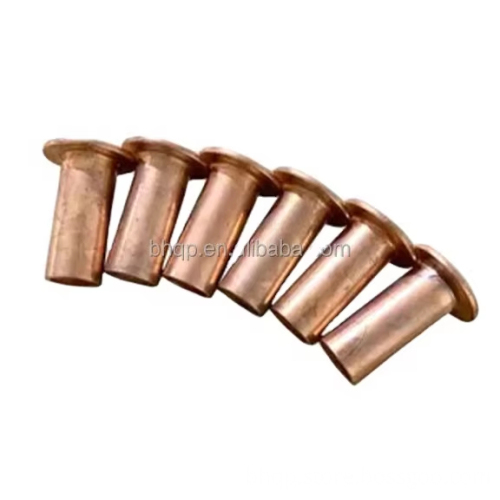

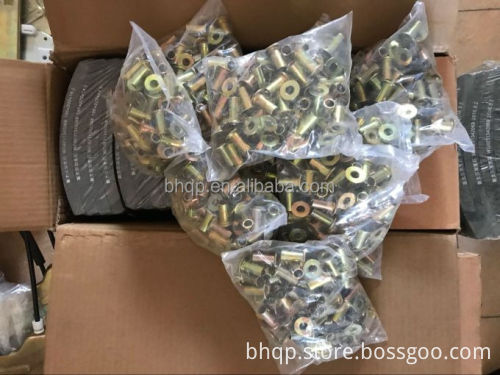

rivet
|
26
|
|||
|
50.4
|
WG9231342069
|
Reinforced brake pads
|
1
|
|||
|
51
|
199000340064
|
Support sales
|
4
|
|||
|
52
|
Q5280624
|
Resilient pillar sales
|
4
|
|||
|
53
|
WG9231340556
|
ABS sensor bracket
|
2
|
|||
|
54
|
WG9112340049
|
Return spring
|
4
|
|||
|
55
|
WG9000340027
|
Drum
|
4
|
|||
|
56
|
ZQ151B1635TF2
|
Hex head bolt M16*1.5*35
|
16
|
|||
|
57
|
ZQ151B1645TF2
|
Hex head bolt M16*1.5
|
4
|
|||
|
58
|
WG9981340060
|
Brake floor (left)
|
1
|
|||
|
59
|
WG9981340061
|
Brake floor (right)
|
1
|
|||
|
60
|
199014340041
|
Camshaft bracket
|
2
|
|||
|
61
|
710W96002-0267
|
Rubber stoppers
|
4
|
|||
|
62
|
AZ9003963030
|
Grease Nozzle Assembly (AM8*1 D71412)
|
4
|
|||
|
62.1
|
190003963112
|
Metric taper threaded grease nozzles
|
1
|
|||
|
62.2
|
AZ9003963010
|
Grease nozzle caps
|
1
|
|||
|
63
|
ZQ151B1490
|
Hex head bolt M14*1.5
|
2
|
|||
|
64
|
ZQ151B1445
|
Hexagonal head bolt M14 * 1.5
|
2
|
|||
|
65
|
WG880340022
|
gasket
|
2
|
|||
|
66
|
WG80 320028
|
Adjust the spacer
|
1
|
|||
|
67
|
WG80 320029
|
Adjust the gasket
|
1
|
|||
|
68
|
WG80 320030
|
Adjust the gasket
|
1
|
|||
|
69
|
WG80 320046
|
Adjust the gasket
|
1
|
|||
|
70
|
190003933116
|
Shaft spring retaining rings
|
2
|
|||
|
71
|
WG9112340010
|
ABS sensor output protective cover
|
2
|
|||
|
72
|
Q40308
|
Spring washer
|
12
|
|||
|
73
|
WG3809470031
|
Adjust the gasket
|
1
|
|||
|
74
|
WG3809470032
|
Adjust the gasket
|
1
|
|||
|
75
|
WG3809470033
|
Adjust the gasket
|
1
|
|||
|
76
|
WG880340031
|
Adjustment Gasket (Thickness 0.1)
|
1
|
|||
|
77
|
WG880340032
|
Adjustment Gasket (Thickness 0.15)
|
1
|
|||
