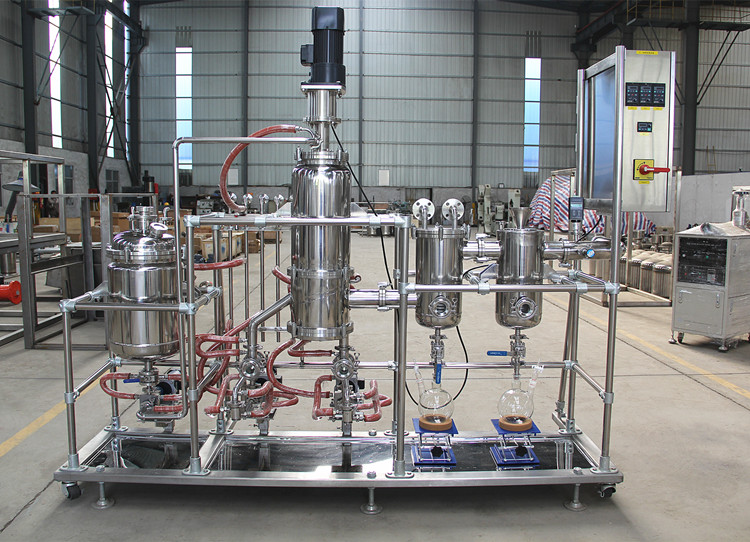

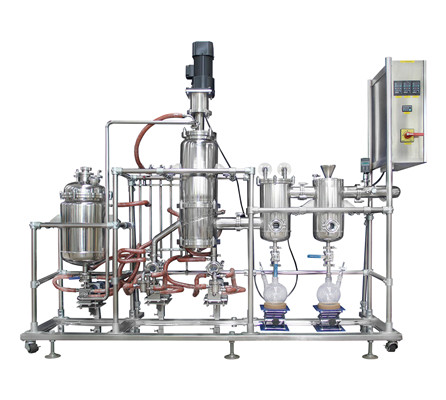

Topacelab stainless steel wiped film evaporators are available in various sizes from 0.1m2 to 0.5m2.
EN
Language
All categories
Product ID: 65999301

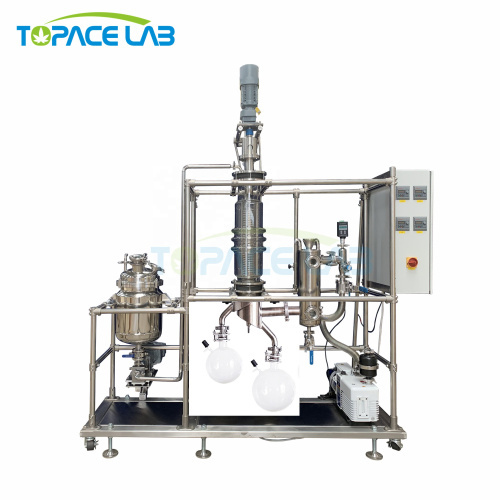

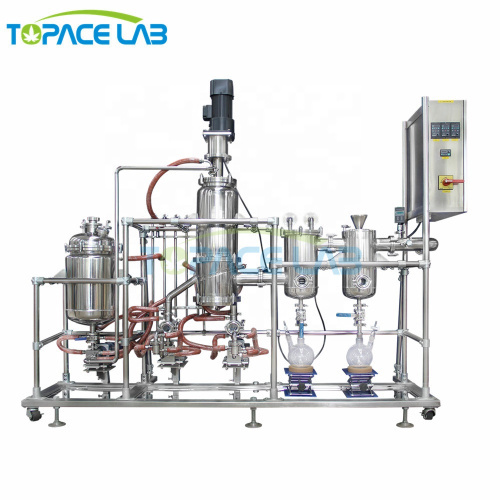

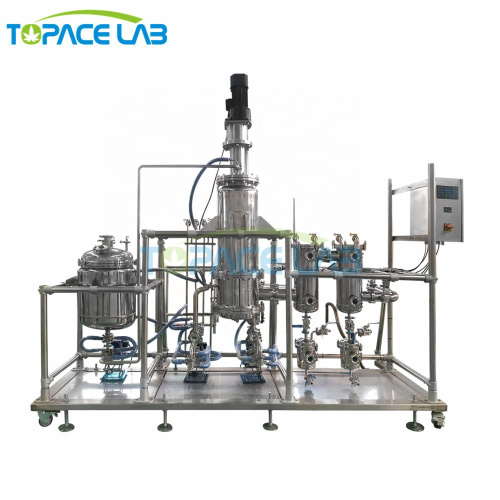

Topacelab Stainless Steel Molecular Distillation Equipment - Wiped Film Evaporator 0.1m² 0.3m² $25500.00 ≥1 piece $23500.00 ≥
Contact Now
Description
产品描述
PRODUCT OVERVIEW
Principle of molecular distillation process
The separation process is as shown in the figure. The material is added from the top of the evaporator and distributed continuously and uniformly on the heating surface through the material-liquid distributor. The film scraper scrapes the product into a very thin, turbulent liquid film. In this process, the light molecules escaping from the heating surface reach the condenser and condense into liquid, and flow down the condenser tube, and discharge through the discharge tube at the bottom of the evaporator; Residues, or heavy molecules, are collected in a circular channel under the heating zone and then discharged through a side discharge tube.
FEATURES AT A GLANCE
Continuous feeding
Continuous discharging
Duel cold trap
Process visibility
PRODUCT SPECIFICATIONS
|
Model
|
SS-10A
|
SS-20A
|
SS-30A
|
SS-50A
|
|||
|
Raw material tank B01
|
15L jacketed tank
|
15L jacketed tank
|
30L jacketed tank
|
50L jacketed tank
|
|||
|
|
Top 2 mirrors, bottom with insulation ball valve
|
|
|
|
|||
|
Feed P01
|
Gear pump
|
|
|
|
|||
|
|
Flow 2L～5L/H
|
Flow 5L～15L/H
|
Flow 5L～15L/H
|
Flow 5L～20L/H
|
|||
|
|
200W fine grinding motor, electronic speed regulation
|
|
|
200W frequency conversion speed regulation
|
|||
|
Evaporator E01
|
Evaporation area 0.1㎡
|
Evaporation area 0.2㎡
|
Evaporation area 0.3㎡
|
Evaporation area 0.5㎡
|
|||
|
|
Film forming method: scraper
|
|
|
|
|||
|
|
Material: 316L
|
|
|
|
|||
|
|
Sealing form: Magnetic
|
|
|
|
|||
|
|
Film forming motor: 370W, variable frequency speed regulation
|
|
Film forming motor: 750W, variable frequency speed regulation
|
Film forming motor: 1500W, variable frequency speed regulation
|
|||
|
Cold trap C01
|
Coil, chiller cooling
|
|
|
|
|||
|
Cold trap C02
|
Liquid nitrogen or dry ice cooling
|
|
|
|
|||
|
Residue outlet P02
|
Gear pump
|
|
|
|
|||
|
|
Flow 2L～5L/H
|
Flow 5L～15L/H
|
Flow 5L～15L
|
Flow 5L～20L/H
|
|||
|
|
200W fine grinding motor, electronic speed regulation
|
|
|
200W frequency conversion speed regulation
|
|||
|
Distillate outlet P03
|
Gear pump
|
|
|
|
|||
|
|
Flow 2L～5L/H
|
Flow 5L～15L/H
|
Flow 5L～15L/H
|
Flow 5L～20L/H
|
|||
|
|
200W fine grinding motor, electronic speed regulation
|
|
|
200W frequency conversion speed regulation
|
|||
|
材料管道
|
层间保温
|
|
|
|
|||
|
支架和组件
|
304 不锈钢
|
|
|
|
|||
|
机器尺寸
|
2350×900×1900毫米
|
2580×900×2050毫米
|
2750×900×2200毫米
|
3350×1100×3000毫米
|
|||
|
机器重量
|
400 公斤
|
480 公斤
|
510 公斤
|
955 公斤
|
|||
|
包装尺寸
|
2465×1010×2165毫米
|
2650×1020×2400毫米
|
2870×1020×2200毫米
|
3400×1200×2600毫米
|
|||
交钥匙解决方案
