Product ID: 66081040

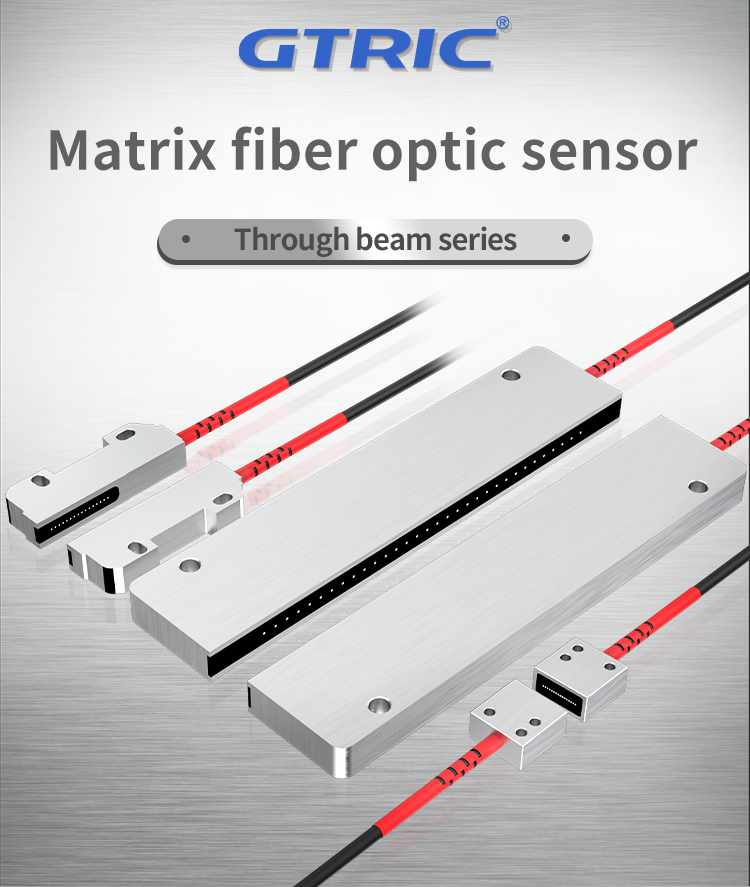

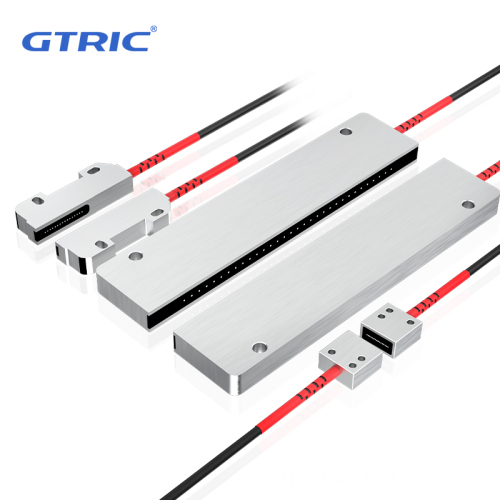

Advanced Fiber Optic Sensor Technology: Exploring the GTRIC Matrix, Digital Fiber Optic Sensor Heads, and Their Applications in
Contact Now
Description
产品描述
|
Specifications
|
|
|
|
|
||||
|

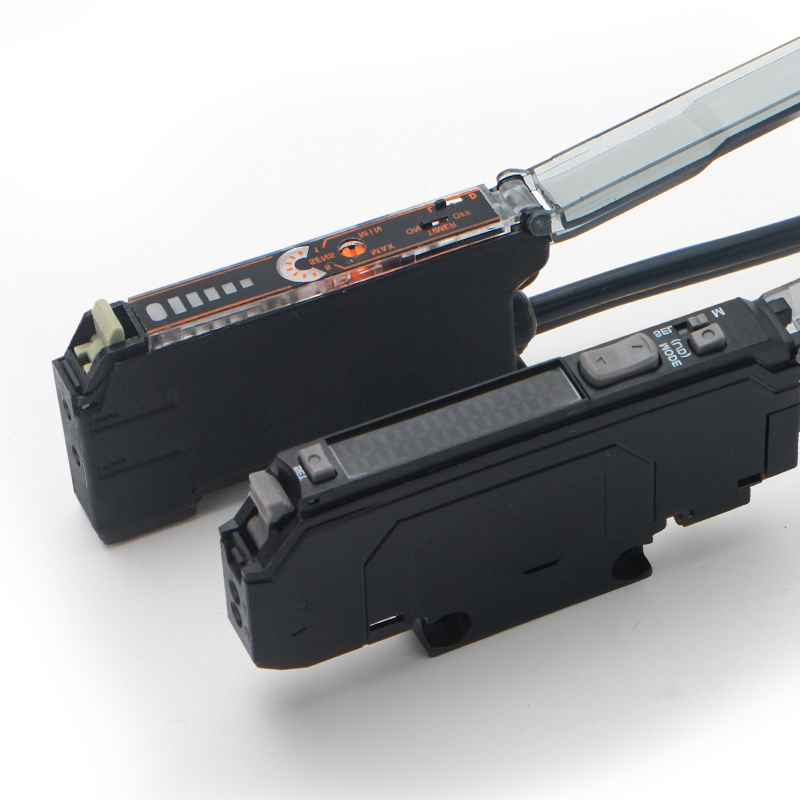

Model
|
DN10
|
DP10
|
NA11
|
NA41
|
||||
|
Output type
|
NPN
|
PNP
|
NPN
|
PNP
|
||||
|
Operating voltage
|
12~24V DC
|
|
|
|
||||
|
Light source
|
Red LED
|
|
|
|
||||
|
Distance regulation
|
Automatic adjustment
|
|
Manually adjust
|
|
||||
|
Response time
|
25/50/100/200μs
|
|
250 μs
|
|
||||
|
ON/OFF Time delay function
|
1MS-999MS adjustment
|
|
40MS
|
|
||||
|
Max sensing distance
Diffuse reflection
|
4700MM
|
|
2200MM
|
|
||||
|
Max sensing distance
Through-beam
|
11000MM
|
|
6000MM
|
|
||||
|
Switch type
|
Selectable L.on/D.on
|
|
|
|
||||
|
Operating temperature
|
﹣25℃~55℃
|
|
|
|
||||
|
Operating humidity
|
35-85% RH
|
|
|
|
||||
|
Ambient luminance
|
Incandescent lamp:≤3000 lux, Sunlight:≤1000 lux
|
|
|
|
||||
|
Anti-vibration
|
10-55 Hz, double amplitude 1.5 mm,XYZ three directions,1 hours each
|
|
|
|
||||
|
Impact resistance
|
(50G)500m/S² X,Y,Z three directions
|
|
|
|
||||
|
Connection
|
2m 3-Wire cable
|
|
|
|
||||
