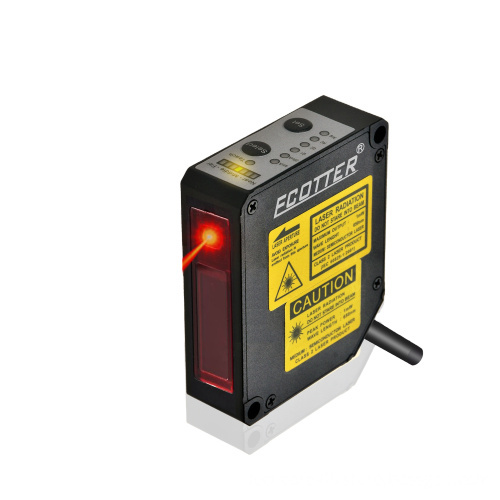

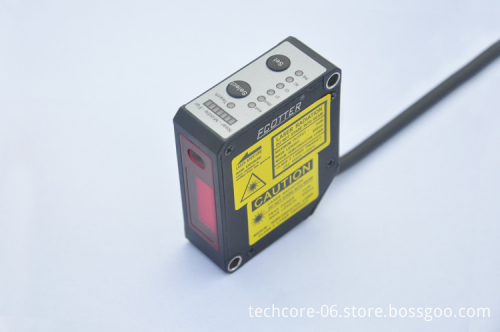

ECOTTER LSD-30: High Precision 485 Laser Distance Sensor 30mm Range

Contact Now

Description

产品描述

Technical Parameters
型	LSD-30
Measuring center distance	30mm
Resolution / repeatability	0.5um
Measuring range	30±5mm
Absolute error/linearity	±0.05%
Spot size	0.3mm
Optical mode	Diffusion reflection
Service humidity	35-85% RH, storage: 35-85% RH
Service temperature	0℃~45℃(No dew or frost ) storage :-15℃~60℃
supply voltage	12~24V DC±10%
Current consumption	Maximum 100mA
Service light intensity	Incandescent lamp with illumination below 3000Lux
Analog output	analog voltage:0~5V Analog current:4~20mA
Switch Output	Open-circuit output of NPNPNP collector (normally on or normally off )
Serial port	Rs422
Function	Threshold setting, output mode setting, switching normally on normally off setting
Display method	LED array
Housing material	PC with 30% glass fiber
Ip protection level	Ip67
Connection method	Wire lead type
Function button	Learning and setting button
