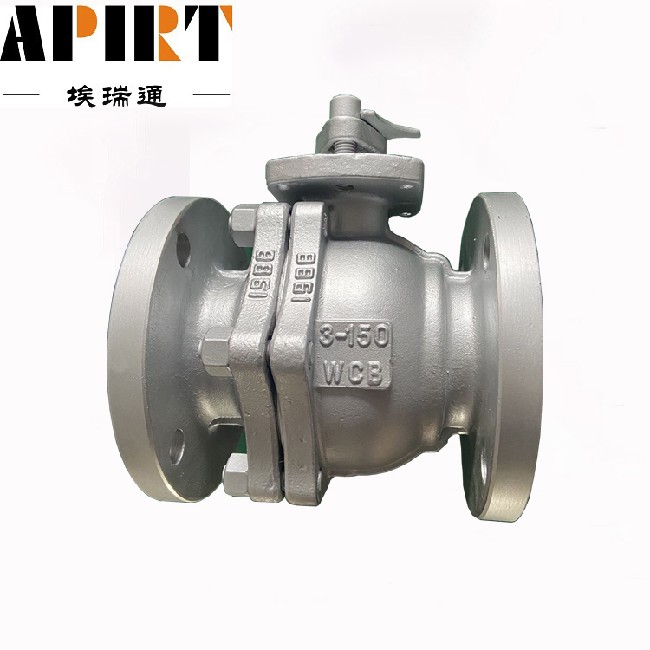

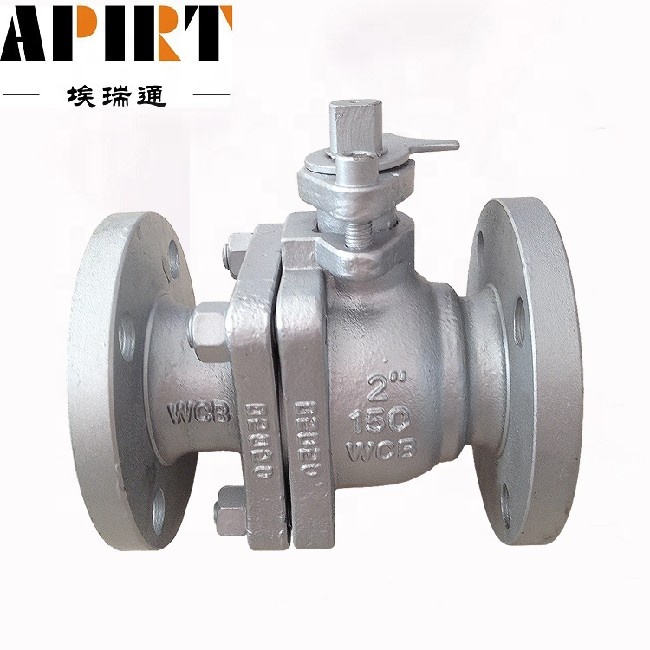

150LB APIRT Carbon Steel Handwheel Operation WCB Flange Ball Valve 150LB RF

Product ID: 66236375

150LB APIRT Carbon Steel Handwheel Operation WCB Flange Ball Valve 150LB RF

Contact Now

Description

Product description

Title goes here.

2PC API Carbon Steel Flange Ball Valve Manufacture
Size: 1/2"-24"
Model: Q41F/Q341F
Pressure: class150-class1500
Applicable Medium: steam, water, oil,etc
Body Material: Carbon Steel A216 WCB/A105 (GS-C25/ GP240GH/ 1.0619/ P285NH),, WCC, low Carbon Steel LCB, LCC, Alloy St A217 WC6,
WC9, C5, C12, Stainless steel A351 CF8, CF8M, CF3, CF3M, CF8C, Duplex steel A890 GR.4A GR.5A,Etc.
Ball Material: Carbon steel A105, A105+ENP, Stainless steel SS201,SS304,SS316, SS316L
Operation: Lockable Handle Lever, worm, electric, pneumatic

Title goes here.

Full port ( FP) or Regular Bore (RB), Two piece Split body or Three piece bolted body, Floating ball type or Trunnion Mounted
type, Blow-out Proof Stem, Anti-staic, optional Locking Device or stem Extension, optional Direct Mounting to ISO 5211
Standard:
Design and Manufacture: API 6D, ASME B16.34
Face To Face Dimension: ASME B16.10,API 6D
Flange Connection Dimension: ASME B 16.5
BW Connection Dimension: ASME B16.25
Test And Inspection: API 598, API 6D
Fire-safe Design: API 607/6FA
