JATE BVM40 Stainless Steel Manual Globe Valve, DN 50, 8kg: Affordable Industrial Butterfly Valve with OEM Air General Internal T
Contact Now
Description
Product description
JATE BVM40 Manual Butterfly Valve Actuator For Industry
PRODUCT SPECIFICATIONS
|
Model
|
BVM40
|
|
Caliber
|
DN 50
|
|
valve body material
|
QT-450
|
|
handle material
|
zinc alloy
|
|
medium
|
air
|
|
connection form
|
internal thread
|
|
pressure
|
8KG
|
Product introduction.

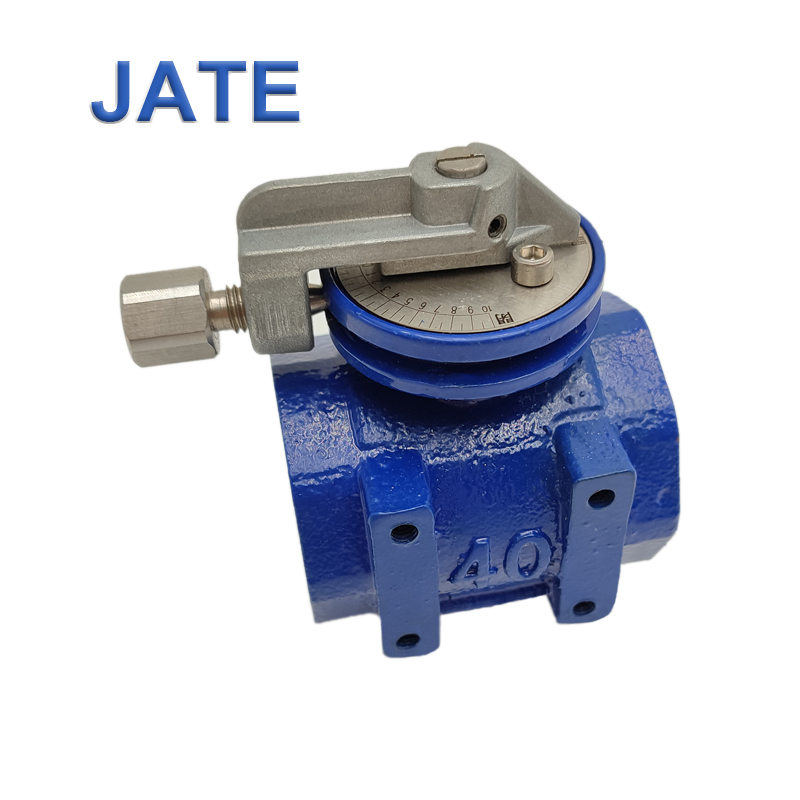

BVM series manual setting butterfly valves are mainly set manually. The locking device on the handle is equipped with an open scale mark to indicate that the inner diameter is easy to be the same as the inner diameter of the distribution pipe. The tapered female thread of the undivided distribution pipe is mainly used for setting the upper limit of the flow rate of the gas air to cut off.flow is regulated with a manual butterfly valve attached with an opening indication after setting the opening degree you can use the steering wheel the handle is made of zinc alloy . and manual butterfly valve pressure loss is less
JATE BVM40 Manual Butterfly Valve Actuator For Industry
BVM40
