New Advanced SFSP Series Hammer Mill Spare Parts: Hammer Screens and Sieve Screens
Description
Product description
Looking For Agent To Get Big Win-Win And Share Markets Together, U Can Get:
1. China 20years top professional manufacturer technology and VIP service support.
2. Top quality, with longer quality warranty.
3. Very competitive price, near cost price, can earn more money and hold the market.
4. Fast delivery time, will deal with your orders first time.
5. Customers resources support, we share our customers with u, and one area only one agent.
6. China travelling and visiting. We provide government offical invitation letter to help u to get Chinese Visa, and we bear the travelling fee in China.
7. Other more benefit or right, we discuss.
Top Quality Hammer Mill Blades/Hammer Blades/Hammer Mill Knives/Hammer Beaters/Hammer Mill Spare Parts
New Advanced SFSP series hammer mill spare parts hammer screen /hammer mill sieve screens
Accept custom-made!
Introduction:
1.Sieve Plate has strict series hole size, and classifies the pellets. The function conforms to industry, organization and standard.
2.Sieve Plate has important influence to grinder. The aperture and quality of screen have direct impact to screening efficiency as well as the working life of screen.
3.Some notes for choosing suitable screen:
4.Screen materials and types: There are many kinds of screens, and screening efficiency is related to effective area.
5.Sieve Plate hole size is according to pellet size.
6.Sieve Plate hole shape.
7.Length-width ratio of screen.
8.Cause of different material and area etc., different moving conditions can make different screen achieve best results.
9.Inclination angle for installation.
特征：
1.Durability and superior quality.
2.Efficient grinding and gap adjustment.
3.Wear resistant, long service life, saving cost.
4.High porosity, high output and high benefits.
5.No leakage of materials and labor&time saved.
6.Good appearance,smooth screen sheet, low breakage.
7.Easy screen changes and easy maintenance.
8.Customized the screen size.
9.Competitive price, complete after-sales service.
Type Of Screens:
Screen sheet used in hammermill with the simple structure and convenient producing, cylindrical screen is most widely used in the industry.
It can be processed into various kinds of apertures, such as 0.6mm,0.8mm,1.0mm,1.2mm,1.5mm,2.0mm,2.5mm,3.0mm,4.0mm.
| Thickness | Hole Dia. | Hole Area Ratio | Hole Diameter | Hole Centre Distance Tolerance |
| (mm) | (mm) | Tolerance | ||
| 1 | 1.0 | 20% | ±0.05 | ±0.12 |
| 1.2 | 30% | ±0.05 | ±0.15 | |
| 1.2-1.5 | 1.2 | 30% | ±0.05 | ±0.15 |
| 1.5 | 33% | ±0.05 | ±0.15 | |
| 1.5-2.0 | 1.5 | 35% | ±0.06 | ±0.15 |
| 2 | 38% | ±0.06 | ±0.15 | |
| 1.8-2.5 | 1.8 | 40% | ±0.06 | ±0.15 |
| 2.5 | 48% | ±0.06 | ±0.15 | |
| 2.0-4.0 | 2 | 42% | ±0.06 | ±0.15 |
| 2.2 | 45% | ±0.07 | ±0.17 | |
| 2.5 | 48% | ±0.07 | ±0.17 | |
| 3 | 52% | ±0.07 | ±0.17 | |
| 3.2 | 55% | ±0.07 | ±0.17 | |
| 3.5 | 58% | ±0.07 | ±0.17 | |
| 4 | 60% | ±0.07 | ±0.17 |
We can manufacture various kind of hammer screen for different model of hammer mill, please see below technical parameter:
PLS NOTE: MOSTLY THE HOLE DIAMETER SHOULD BIGGER THAN SCREENS' THICKNESS, AND HOLE DIAMTER LESS THAN 1.0MM, PRICE WILL BE MORE EXPENSIVE.
| Model |
Power (KW) |
Output (T/H) |
Model |
Power (KW) |
Output (T/H) |
| Wide-type hammer mill | Water-drop type hammer mill | ||||
| SFSP56x36 | 15~30 | 2~4 | SFSP112x30c | 55~75 | 5~10 |
| SFSP56x40 | 30~37 | 3~5 | SFSP112x38c | 90~110 | 10~15 |
| SFSP65x38 | 30~45 | 1~2 | SFSP112x50c | 132~160 | 15~25 |
| SFSP65x45 | 45~55 | 2~4 | SFSP112x75c | 200~250 | 25~35 |
| SFSP65x60 | 55~90 | 2~5 | SFSP112x100c | 250~315 | 35~50 |
| SFSP65x75 | 75~90 | 3~6 | |||
| SFSP65x80 | 110~132 | 5~8 | SFSP138x30c | 75~90 | 10~15 |
| SFSP65x100 | 132~160 | 6~10 | SFSP138x38c | 110~132 | 15~20 |
| SFSP66x40 | 37~45 | 1~5 | SFSP138x50c | 160~200 | 20~30 |
| SFSP66x60 | 55~75 | 3~7 | SFSP138x75c | 220~250 | 30~40 |
| SFSP66x80 | 90~110 | 6~10 | SFSP138x100c | 300~350 | 40~55 |
| SFSP66x100 | 132~160 | 10~15 | |||
| SFSP66x120 | 200~250 | 15~25 | |||

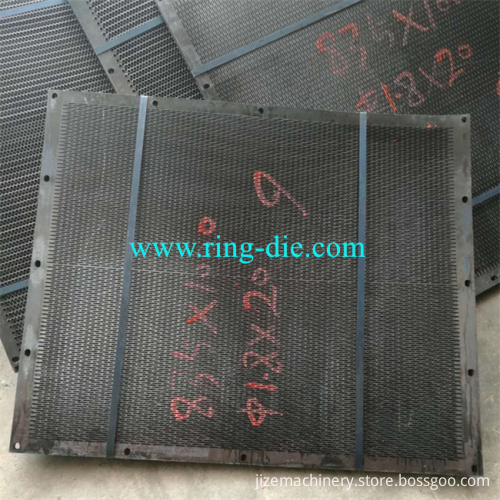

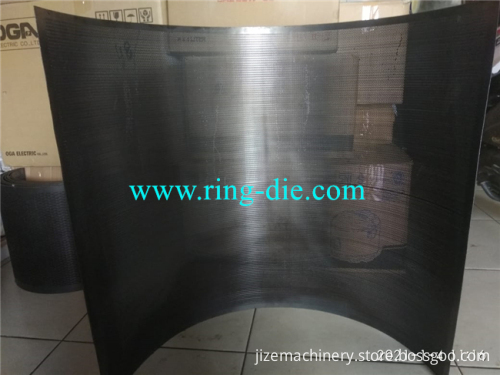

Photos:

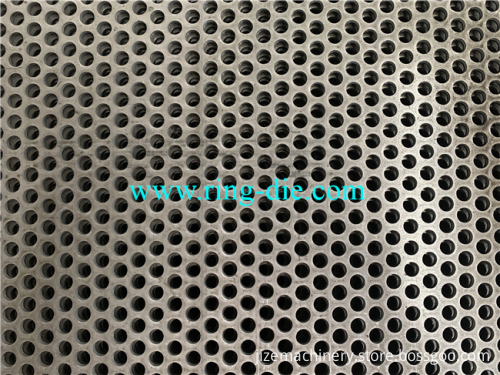

Hole Dia.:
