Greenhouse Film Electric Roll Up Unit/Winch Motor
Description
产品描述

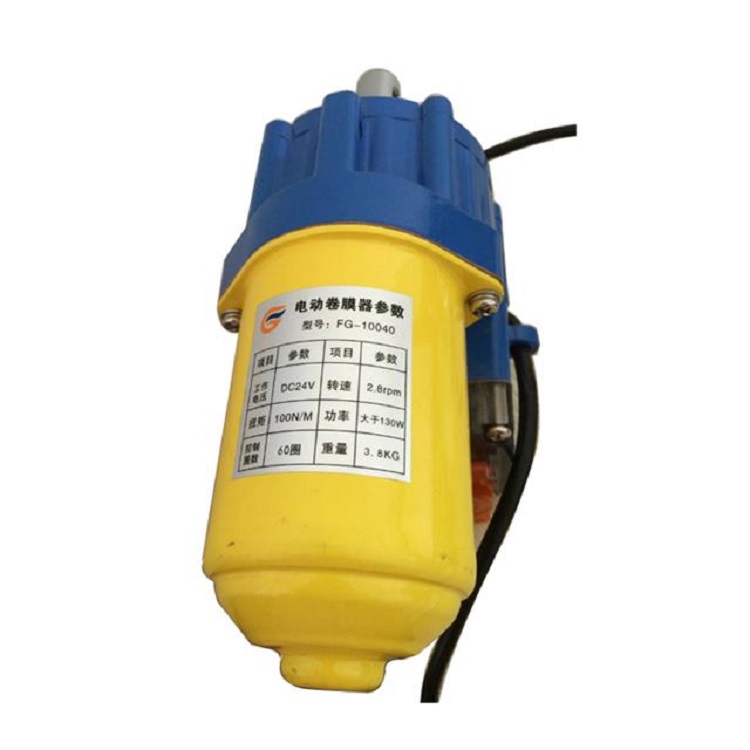

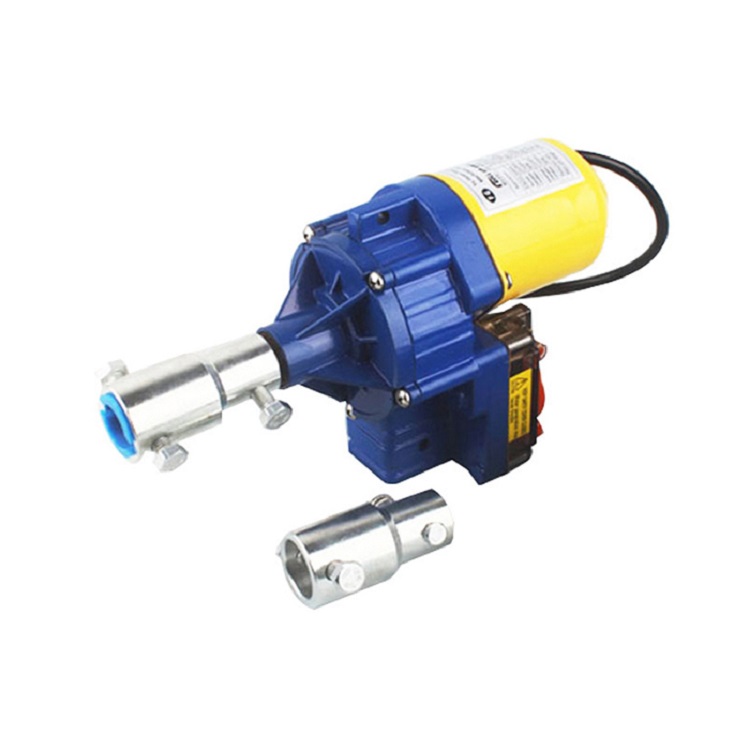

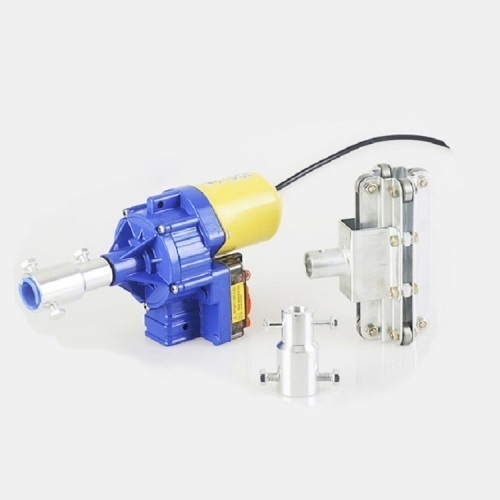

Greenhouse Film Electric Roll Up Unit/Winch Motor
Greenhouse Electric Winch Roll Up Unit for Ventilation replacing traditional manual roll-up unit to reach high speed automation in revolving & releasing films and greenhouse environment, it is the new generation of greenhouse ventilation and temperature regulation facilities. Portability, output torque, output lock, wide range and precise adjustment, waterproof, dew-proof and power-saving are the key characteristics for Electric Roll-Up Unit, which is the best choice for modern daylight greenhouse applied in different climates.
|
Parameter of the Motor-driven Film Rolling Machine |
|||||
|
FG-6040 |
FG-8040 |
||||
|
Working Voltage |
DC24V |
Working Voltage |
DC24V |
||
|
Standard Operation |
Power |
60W(2.5A) |
Standard Operation |
Power |
60W(2.5A) |
|
Torque |
40NM |
Torque |
40NM |
||
|
Speed |
3.7rpm |
Speed |
3.7rpm |
||
|
Maximum Operation |
Powder |
84W(3.5A) |
Maximum Operation |
Powder |
84W(3.5A) |
|
Torque |
60NM |
Torque |
60NM |
||
|
Speed |
3.4rpm |
Speed |
3.4rpm |
||
|
Weight |
2.4kg |
Weight |
2.4kg |
||
