4 row hand rice transplanter
Description
产品描述

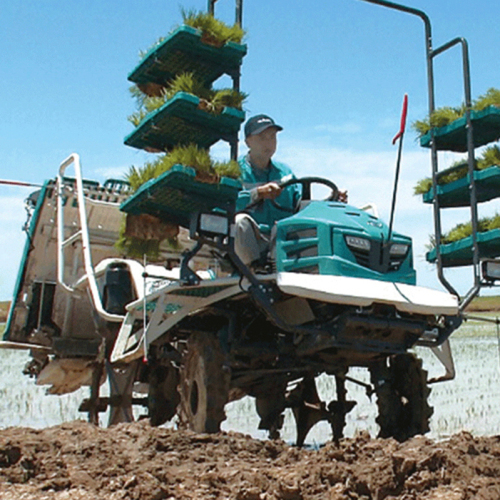

Rice transplanter is essential for efficient rice seedling raising.
yingtian has various types of rice transplanters developed with Yanmar's proprietary technology, from advanced models with HMT gearboxes similar to car pedal operation to simple hand-push rice transplanters.

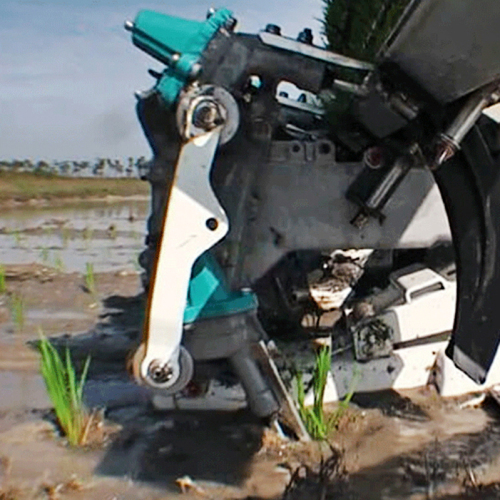

Rice Transplanter is an agricultural machine used for transplanting rice seedlings. When Efficient Manual Rice Transplanter transplants rice seedlings, first, mechanical claws take out several rice seedlings from the seedbed and insert them into the soil in the field. In order to keep the angle between the seedbed and the ground at right angles, the front end of the mechanical claw must move in an elliptical motion curve. The action is accomplished by a planetary mechanism that rotates or deforms gears, and the forward motor can simultaneously drive these action mechanisms. Walking Type Rice Transplanter must have non-skid wheels and float design when driving on soil. If the transplanted seedlings are lumped, the seedlings are taken out from a specific seedling box and planted mechanically.
Company name: Sakurada Agricultural Machinery Technology (Taizhou) Co., Ltd. Product model: 2ZG-6FP
No. Item Unit parameter

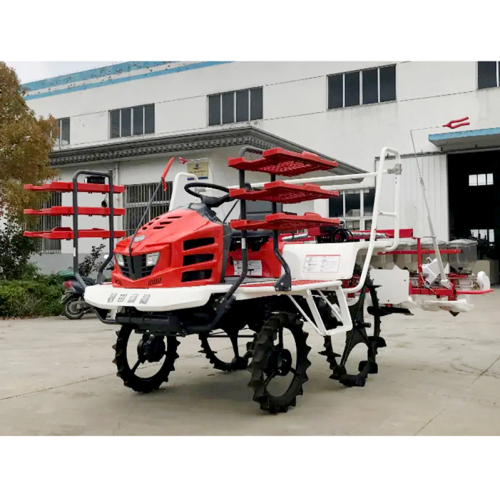

1 2ZG-6FP Driving Type High Speed Rice Transplanter Model Name / 2ZG-6FP Driving Type High Speed Rice Transplanter
structure / self-propelled four-wheel
Engine supporting manufacturer/Sichuan Zongshen Power (gasoline)
Supporting engine model specification/GB680
Supporting engine rated power (or rated power) kW 14.5
Match engine rated speed (or calibrated speed) r/min 3900
Overall dimensions of the whole machine (length×width×height) mm 3090×2220×2600
Working speed m/s 0-1.65
Man-hour productivity g 0.2-0.42
Unit operating fuel consumption kg/h㎡ 2.2-5.6
Number of working lines Line 6
Row spacing mm 300
Acupoint distance adjustment mechanism / handle adjustment
Acupoint distance adjustment gear 7 gears
Hole pitch mm 100, 120, 140, 160, 180, 210, 240
Transplanting depth mm 10-55 (level 7)
Moving distance mm 300
Seedling depth mm 8-18
Transplanting frequency (single row) holes/min ≥150
Transmission mode/hydraulic transmission (HST)
Road wheel structure type (front and rear) / rubber wheel
Walking wheel diameter (front and rear) mm Front wheel φ650×95 Rear wheel φ950×50
Balance Mechanism Type/Mechanical
Rice transplanting arm type/rotary forced rice transplanting
Fertilizer power transmission mode //
Fertilizer Type / /
Fertilization spacing mm /
Fertilizer tank volume L /
