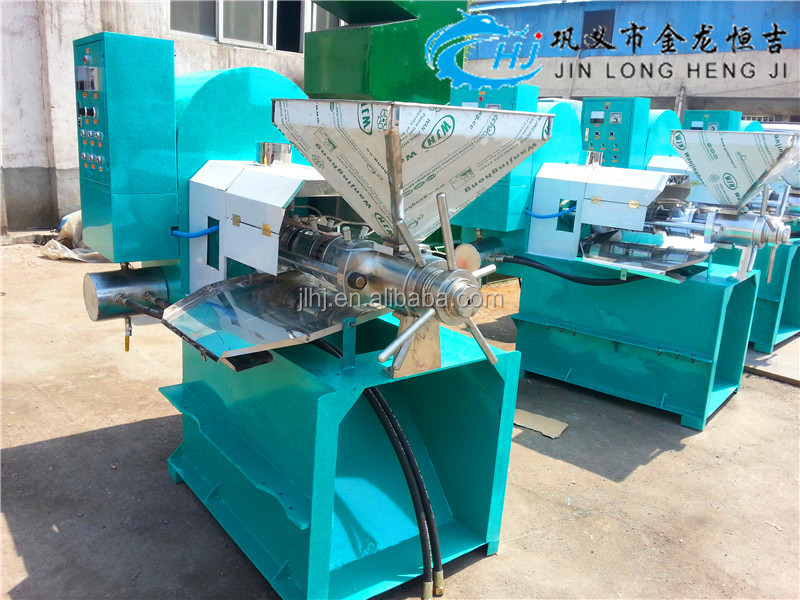

Automatic Screw Oil Press Machine for Cold and Hot Oil Extrusion (Peanut, Soybean, Sesame, Sunflower)
Description
产品描述
Cold and Hot Oil Extrusion Machine Automatic Screw Peanut Soybean Sesame Sunflower Oil Press Machine
Introduction of oil extraction machine
This kind of oil extraction machine has compact and simple structure which is very easy to operate and maintain. New Condition nut seeds oil press it can be used for cold or hot processing.
Oil extraction rate reach 93% and dry cake residual oil rate around 8%.
Simple structure, easy operating, most important is the oil quality is much higher.
Application of oil extraction machine
Oil extraction machine is widely used to press seeds such as farming seeds,pumpkin seeds,
peanut,beans,sesame,soybean,cotton seed,sunflower seed,groundnut,vegetable seeds,olive, walnut
Cold pressing:The user can also directly press the well cleaned raw material.

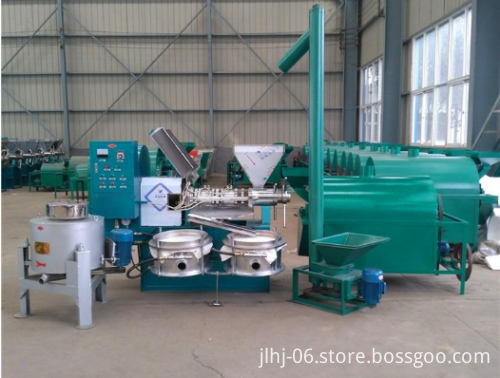

Hot pressing: In order to realize hot pressing, the screw oil press can cooperate with stack cooker,
seeds roaster, bulking machine.
Raw materials of oil extraction machine
Operating principle of oil extraction machine
1.When oil press is on work, material enters the extruding chamber from the hopper and then moves
forwards by the rotating pressing screw and is pressed.
2.Under hightemperature condition in the chamber, there is quite strong friction among press screw,
chamber and the oil materials.
3.On the other hand, root diameter of the pressing screw carries larger from one end to the other.
4.Hence when rotating, the thread not only pushes particles moving forwards but also turns them
outwards as well.
5.Meanwhile, particles adjacent the screw will rotate along with screw’s rotating, causing every particle
inside the chamber to possess different speed.
6.Therefore, relative movement among particles creates neat which is necessary during manufacturing
because of helping protein change property, damage colloid, increase plasticity, decrease oil’s elasticity, resulting in high oil.
raped by the oiled paper or kraft paper, to prevent from rusting.
Technical parameters of oil extraction machine
|
Model |
D-1685 |
D-1688 |
D-125 |
D-150 |
|
|
Power(kw) |
Main Machine |
Y112M-6 5.5 |
Y132M-6 7.5 |
Y160M-4 11 |
Y160S-4 15 |
|
Heater |
3 |
3.5 |
4 |
Y801-41.1 |
|
|
Vacuum Pump |
0.55 |
0.75 |
0.75 |
4 |
|
|
Weight(kg) |
830 |
1100 |
1500 |
1950 |
|
|
Size(mm) |
1650*1440 *1700 |
1960*1630 *1900 |
2100*1680 *1900 |
2380*1850 *2000 |
|
|
Screw Speed(r/min) |
63 |
43 |
36 |
33-42 |
|
|
Capacity(kg/h) |
80-150 |
150-250 |
250-350 |
300-450 |
|
|
Screw Diameter(mm) |
80 |
100 |
125 |
150 |
|
