Jacketed Centrifuge Solvent Extraction Pilot Equipment for Herbal and Essential Oil Production
Description
产品描述
Jacketed Centrifuge Solvent Extraction Pilot Equipment Herbal Extraction Plant Essential Oil Extraction Device
The SZ Series is a centrifugal ethanol extractor designed for the optimal extraction of plant herb oil at low(19L) to industry(200L) scale volumes. The system is as fast as it is versatile, allowing different user specifications for rapid tank switching, rotation speed, and retention time creating the optimal combination of control and ease of use.

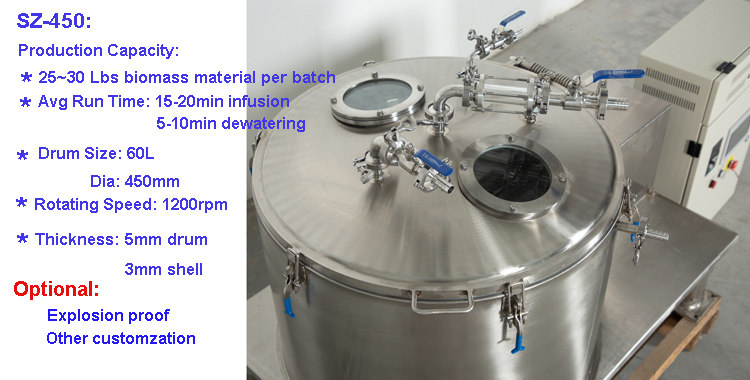

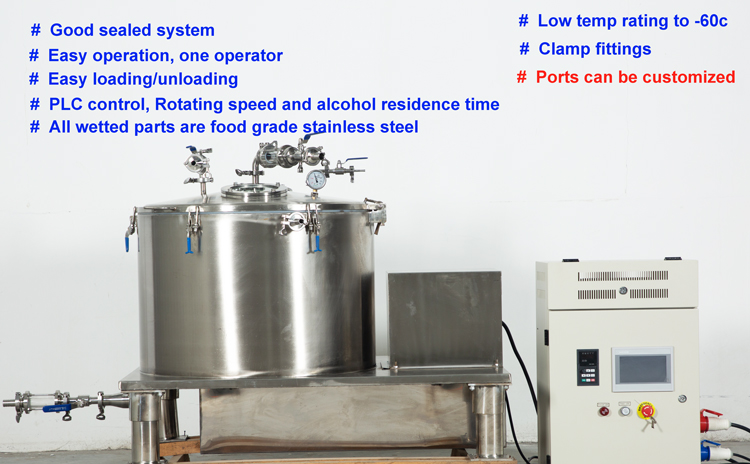

SZ-450 60L Jacketed Centrifuge Plant Essential Oil Extraction Device:

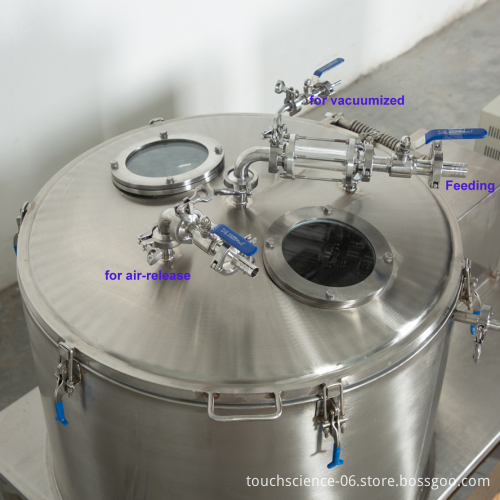

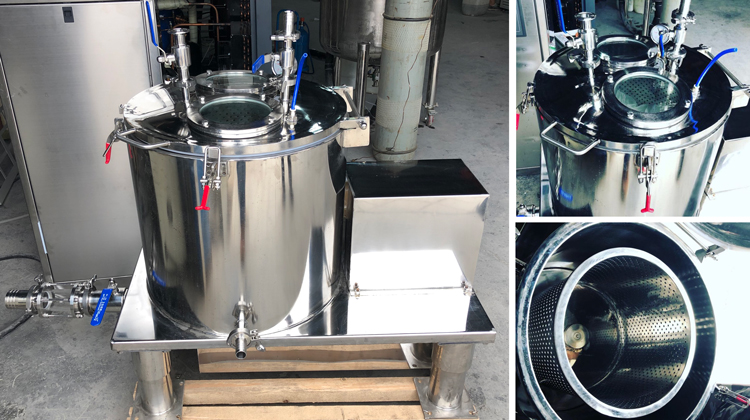

Our centrifuge features multi-function jacketed housing supporting either liquid coolant or vacuum insulation. Simplified material loading and unloading makes the SZ Series a very user-friendly, single operator solution.
Easy to Operation

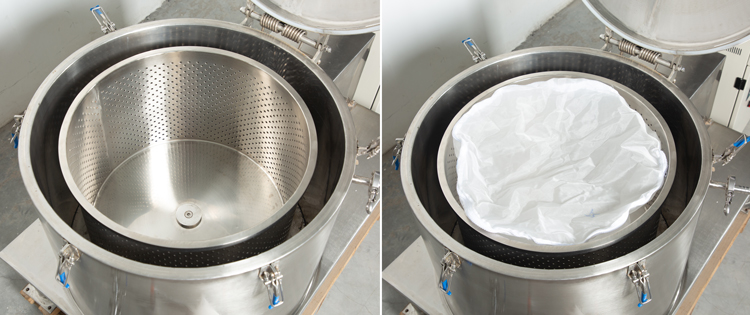

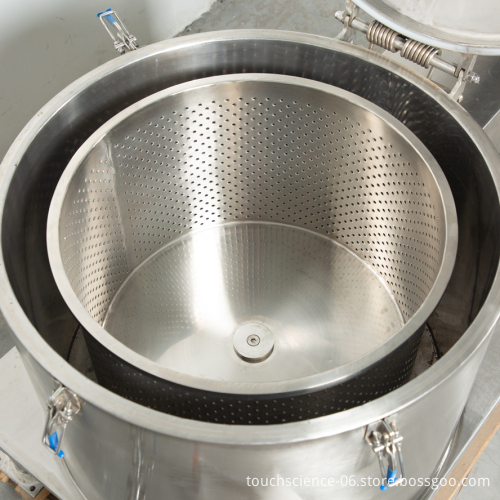

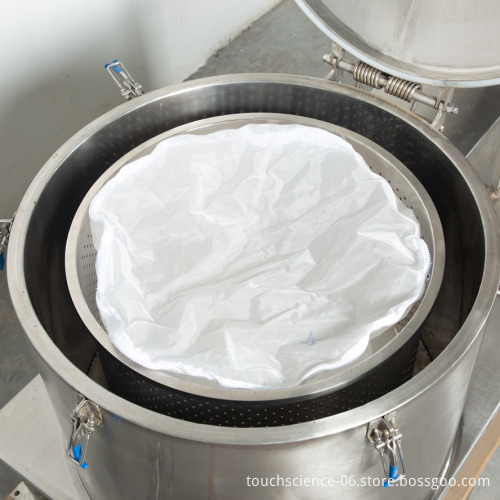

Ever run a washing machine to do laundry. you are almost becoming an operator of this centrifuge Utility platform, put your biomass in the bag filter (with different mesh #100, #80, #70, #40, #30 etc.), lock the lid, and start running.

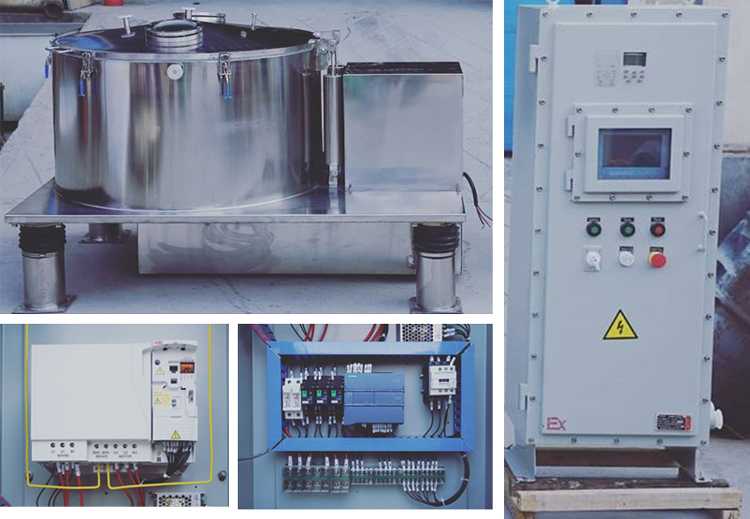

Explosion Proof is Optional
If your solvent is dangerous, like pentane, we can replace all the gasket with ptfe, and the control cabinet can be placed in another room, we also can make it with explosion proof type, or both. safety first.
Parameters of Jacketed Centrifuge Plant Essential Oil Extraction Device:
| Model | SZ-300 | SZ-350 | SZ-450 | SZ-600 | SZ-800 | SZ-1000 |
| Power Supply | 220V/50HZ | |||||
| Rotating speed | 1200r/min | 900r/min | 780r/min | 700r/min | ||
| Separation factor | 240w² r/g | 280w² r/g | 250w² r/g | 270w² r/g | ||
| Motor Power | 1.5KW | 1.5KW | 2.2KW | 3KW | 4KW | 5.5KW |
| Drum thickness | 5MM | 6MM | ||||
| Shell thickness | 3MM | 4MM | ||||
| Capacity(L) | 19 | 30 | 60 | 110 | 200 | 310 |
Our SZ series package can comes as a complete system including tanks and pumps, making it a turn-key purchase and installation. All wetted parts on the machines are manufactured out of sanitary stainless steel.

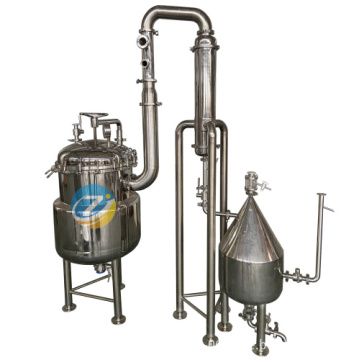

To Know About More Machines about Extraction:

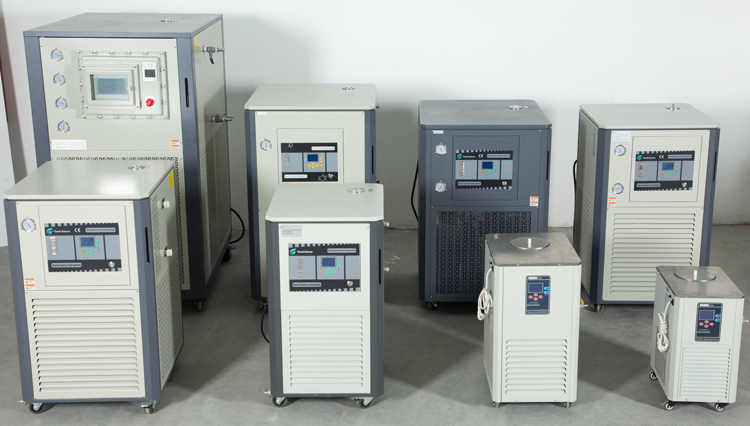

Various Solvent Chillers:
solvent extraction can be done under either warm, cold or room temperature depending on your desired end-product, but cold extraction is better suited for producing concentrate distillates and isolates because it does not extract some water soluble compounds like chlorophyll as easily.
