Specifications

GOLD DAFENG Agricultural Machinery Rice Combine Harvester
1. More excellent performance
2. More reliable quality
3. Easier to operate

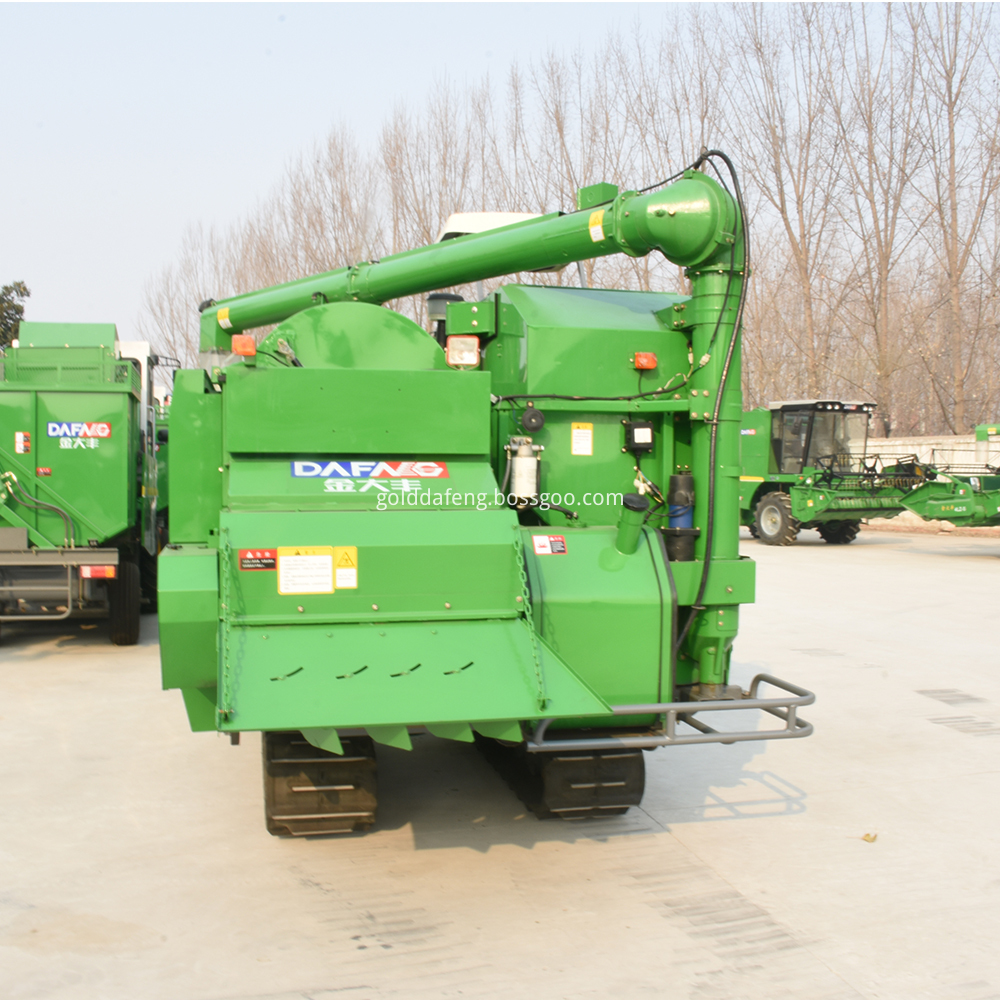

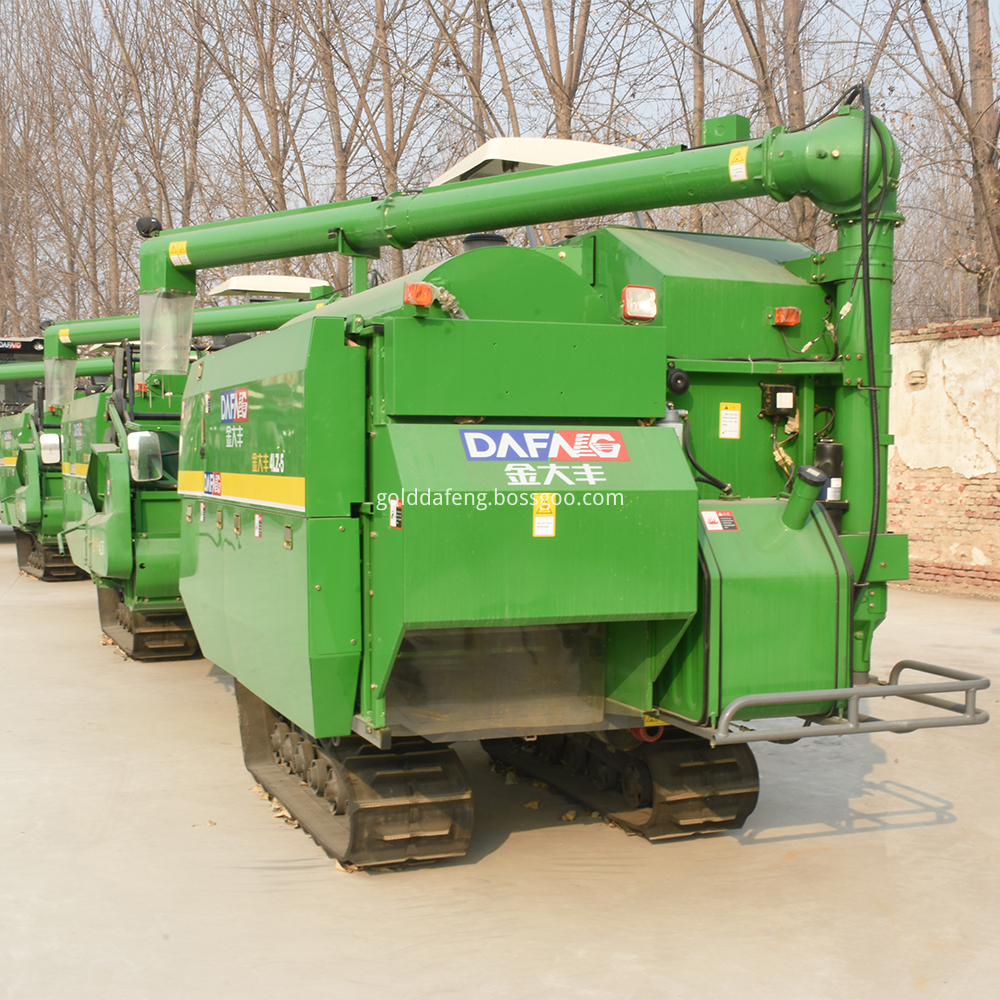

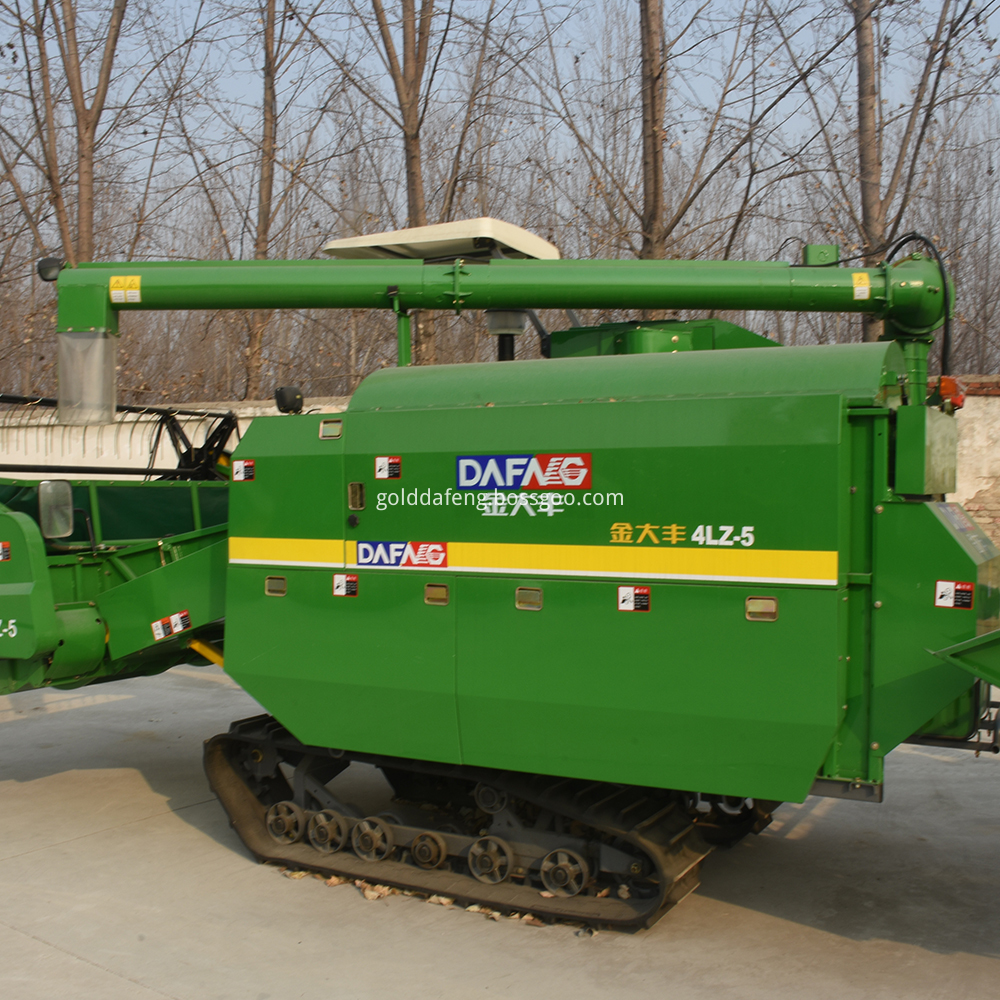

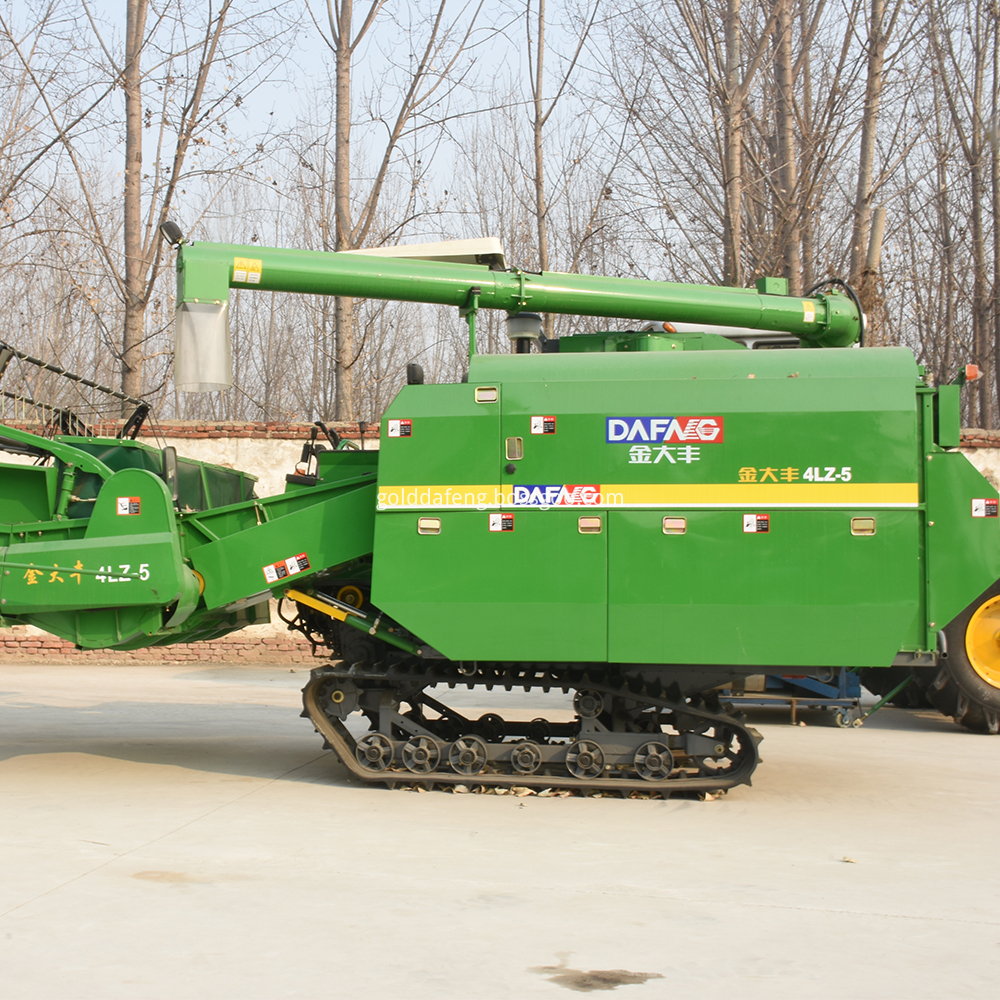

GOLD DAFENG Agricultural Machinery Harvester 4LZ-5

1. More excellent performance
2. More reliable quality
3. Easier to operate

Technical features of self-propelled combine harvester 4LZ-5

1.Axial-flow cylinder, re-threshing;

2.Adjustable gap between axial-flow cylinder and concave;

3.Single Longitudinal axis flow roller, grain elevator, impurities and residuals elevator,fan speed alarming device, with simultaneous monitoring over the operation status;

4.Forced cyclone dust collector;

5.Series 1000 front axle;

6.Optional flexible cutting platform, corn cutting platform, to realize harvesting of wheat, soybeans, corn, rice and other crops, with wide operation range.

Parameter Items	Parameter Value
Engine power(ps)	98
Cutting width(mm)	3800,4500,5000,4570(lexible cutting platform)
Feeding in volume(kg/s)	6
Total loss rate(%)	Wheat≤1.2 Rice≤3.0 Soybean≤7.0
Broken rate (%)	Wheat≤1.0 Rice≤1.5 Soybean≤7.0
Impurity rate (%)	Wheat≤2.0 Rice≤2.0 Soybean≤3.0
Threshing cleaning structure type	Corrugated axial flow +fan +dual-layer grading sieve
Gravure plate adjustable structure	Mechanic adjustable with different levels
Axis-flow roller(outer diameter×length)(mm)	Φ650×2800
Grain tank capacity (m3 )	3.5
Grain Unloading type	Grain Unloading roller
Running speed range	1.05~19.7
Operating weight (kg)	8400
Overall Dimensions (l×w×h)mm	7590×4200×3675(with 3.8m cutting platform)
