Product ID: 66492760

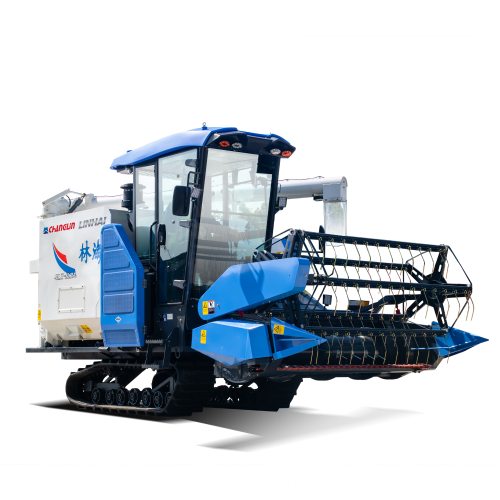

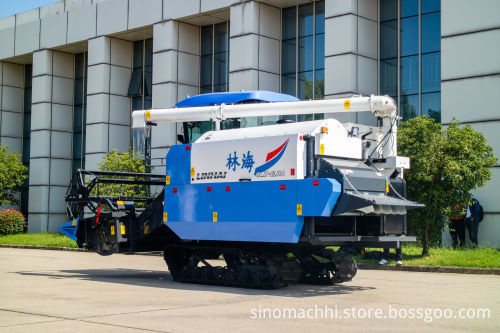

Changlin 3780KG 4 Rows Crawler Harvester - Cheapest Price
Contact Now
Description
产品描述
产品描述
|
型
|
4LZ-6.0A
|
4LZ-6.0B
|
|
dimension (mm)
|
5900*2500*3050
|
5900x2500x2900
|
|
weight
|
3780kg
|
3980kg
|
|
engine type
|
4G33V16-147G412E
|
4G33V16-147G412E
|
|
engine model
|
In-line water-cooled four-stroke direct injection,supercharged and mid-cooling
|
In-line water-cooled four-stroke direct injection,supercharged and mid-cooling
|
|
engine producer
|
Changchai Co,Ltd.
|
Changchai Co,Ltd.
|
|
cylinder quantity
|
4
|
4
|
|
rate rpm
|
2400r/min
|
2400r/min
|
|
rate power
|
99.5KW
|
99.5KW
|
|
cutter type
|
II type
|
II type
|
|
feed quantity
|
6 Kg/s
|
6 Kg/s
|
|
swath
|
2.2M
|
2.2M
|
|
min. ground clearance
|
320MM
|
320MM
|
|
threshing method
|
longitudinal axis Flow-rod tooth type
|
longitudinal axis Flow-rod tooth type
|
|
traesher dimension
|
Φ620x2210
|
Φ620x2210
|
|
trach type(pitch*number*width)
|
90mmx56x500mm
|
90mmx56x500mm
|
|
gauge
|
1250mm
|
1250mm
|
|
task hour productivity
|
0.2-0.85 (hm2/h)
|
0.2-0.85 (hm2/h)
|
|
structure style
|
crawler-type self-propelled full feed
|
crawler-type self-propelled full feed
|
|
working gear
|
low,medium
|
low,medium
|
|
working speed
|
0.9-6.5 km/h
|
0.9-6.5 km/h
|
|
fuel consumption
|
20-35kg/hm2
|
20-35kg/hm2
|
|
Cutting table auger type
|
Spiral toothed type
|
Spiral toothed type
|
|
Crawler grounding pressure
|
22.8kpa
|
22.8kpa
|
|
Winder reel type
|
Eccentric tooth extraction
|
Eccentric tooth extraction
|
