Advanced BF14100 Wood Chips Linear Screener for MDF Production Line: An Efficient Vibrating Sieve Solution
Description
产品描述
寻找代理人以获得大双赢并共同分享市场，您可以获得：
1。中国 20 年顶级专业制造商技术和 VIP 服务支持。
2. 顶级品质，质量保修更长。
3. 极具竞争力的价格，接近成本价，可以赚更多的钱并持有市场。
4. 交货时间快，第一时间处理您的订单。
5. 客户资源支持，我们与您共享客户，一个区域只有一个代理。
6. 中国旅游和访问。我们提供政府官方邀请函，帮助您获得中国签证，并承担在中国的旅行费用。
7. 其他更多的好处或权利，我们讨论。
BF three layers wood chips swing screener wood chips sifting siever machine
CE new advanced BF14100 wood chips linear screener wood chips vibration siever swinging sifter for MDF production line
1.Introduction:
BF series three layers of swing screener is a special equipment for wood chip preparing section, mainly used for sorting different size wood in production process, and the sorting specification can be realized through changing different mesh size of the screen mesh.
2.Technical Parameters:
| Main technical Specifications | |||||||||
| 型 | Vibratory frequency | Vibratory margin | Qty of level | Hole Dia. (mm) |
Sifting area | Capacity | Motor power |
Overall dimensions |
|
| (rpm) | (mm) | (pcs) | Up | Down | (m2) | (m3/h) | (kw) | (L×W×H)(mm) | |
| BF1450 | 200 | 32 | 3 | 50 | 7 | 5.12 | 60-70 | 5.5 | 4316×2322×1820 |
| BF14100 | 200 | 20~30 | 3 | 60 | 6 | 10 | 150—200 | 11 | 5990×3342×2380 |
| BF14100B | 200 | 20~30 | 3 | 60 | 6 | 10 | 150—200 | 11 | 5990×3342×2380 |
| BF14120 | 200 | 20~30 | 3 | 55 | 4 | 12.5 | 250~300 | 15 | 6750×3260×2634 |
| BF14150 | 200 | 20~35 | 3 | 55 | 7 | 15 | 320~380 | 18.5 | 6573×4124×2881 |
3.Photos:

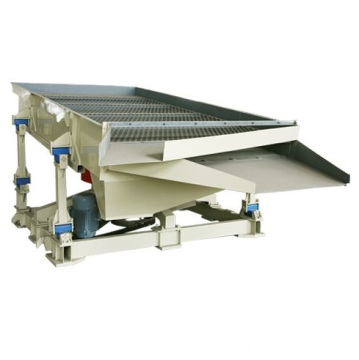

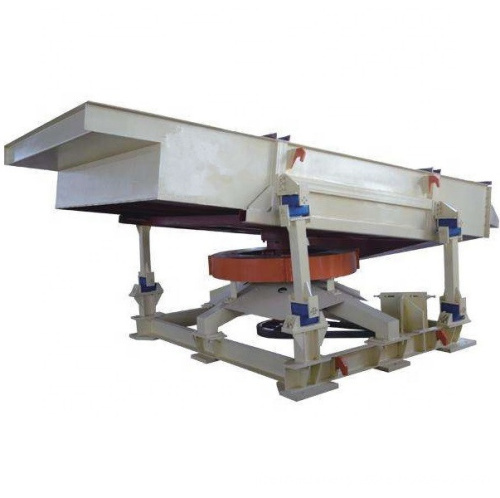

BF14100 three layers swinging screen:

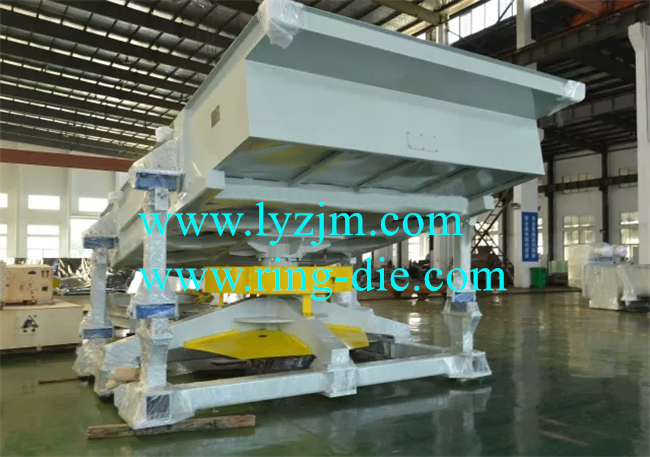

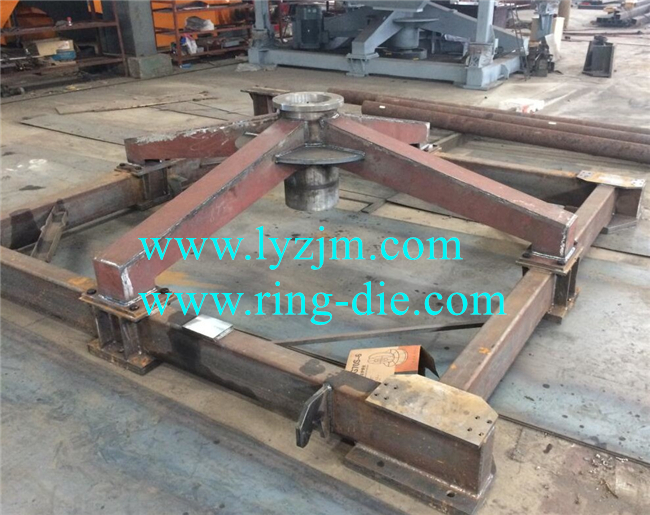

Details & Making:
