ZJM High-Quality Wood Chipper/Shredder: Efficient Machine for Producing Wood Chips in 10-180m3/h Capacity

Product ID: 66496531

ZJM High-Quality Wood Chipper/Shredder: Efficient Machine for Producing Wood Chips in 10-180m3/h Capacity

Contact Now

Description

产品描述

Looking For Agent To Get Big Win-Win And Share Markets Together, U Can Get:
1. China 20years top professional manufacturer technology and VIP service support.
2. Top quality, with longer quality warranty.
3. Very competitive price, near cost price, can earn more money and hold the market.
4. Fast delivery time, will deal with your orders first time.
5. Customers resources support, we share our customers with u, and one area only one agent.
6. China travelling and visiting. We provide government offical invitation letter to help u to get Chinese Visa, and we bear the travelling fee in China.
7. Other more benefit or right, we discuss.

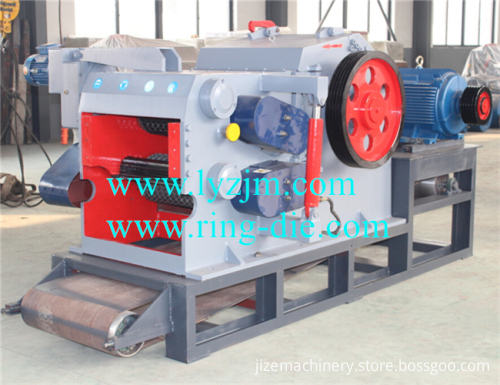

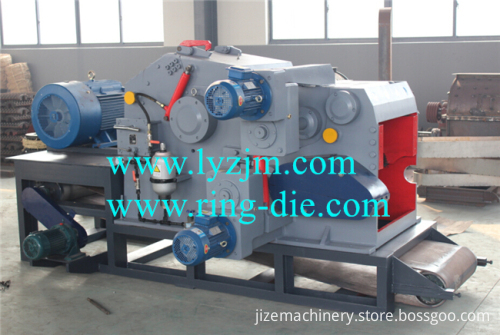

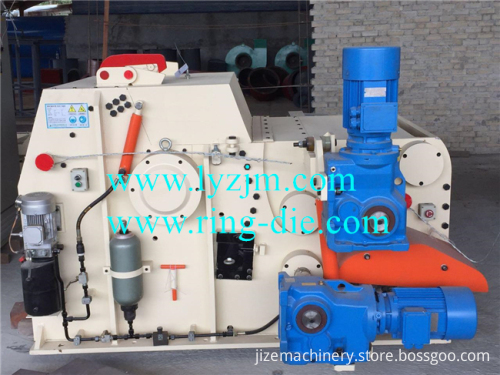

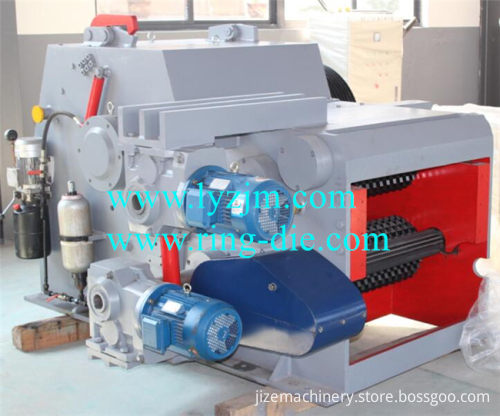

BX wood chipper wood log shredder wood veneer chipping machine wood crusher wood chips making machine

1.Advantage:

1.1.The engine of wood chipper, welded by high strength sheet metal, is the support foundation for the whole machine.

1.2.Dead-knife seat support welded with the engine base is used to put the knife seats.

1.3.The pressed block fasten the dead knife in the knife seats by specialized in manufacturing of high strength bolts.

1.4.The knife base is fixed in the engine base by clamp which can pass through the hole of side wall of base free.

1.5.The chips can fall down through the screen and discharge the bottom of engine base.

1.6.Oversized wood chips can be broken by grinding rod installed in the engine base.

2.Technical Parameters:

New Advanced Wood Chipper
Technical parameter	BX216	BX218	BX218D	BX218-11	BX2110A	BX2110B
Diameter of cutters' roller(MM)	650	800	800	800	1000	1000
Feeding size(HXW) (MM)	180X500	225X680	240X750	240X1050	330X750	330X850
Quantity of fly-cutters(PCS)	2	2	2	3X2	2	2X2
Speed of cutters' roller(RPM)	590	650	650	650	550	550
Feeding speed(M/MIN)	37	38	38	39	37	37
Max diameter of logs(MM)	120	160	160	for board	170	185
Capacity(M³/H)	10	22	38	30	55	62
Chips size(MM)	30	30	30	20	33	33
Main motor power(KW)	55	110	132	160	160	185
Feeding roller power(KW)	3X2	4X2	4X2	5.5X2	7.5X2	7.5X2
Pump power(KW)	Manual pump	0.55	0.55	0.55	2.2	2.2

Technical parameter	BX2110	BX2113A	BX2113B	BX2113-11	BX2113-13	BX2116
Diameter of cutters' roller(MM)	1000	1300	1300	1300	1300	1600
Feeding size(HXW)(MM)	330X1050	400X700	400X850	400X1050	400X1250	600X1250
Quantity of fly-cutters(PCS)	2X2	3	3X2	3X2	4X2	4X2
Speed of cutters' roller(RPM)	550	420	420	442	340	350
Feeding speed(M/MIN)	37	38	38	43	42	42
Max diameter of logs(MM)	200	230	240	250	250	310
Capacity(M³/H)	77	64	78	108	126	180
Chips size(MM)	33	30	30	32	32	30
Main motor power(KW)	220-250	200-250	250	315	450	710（10KV）
Feeding roller power(KW)	7.5X2	7.5X2	7.5X2	11X2	15X2	18.5X2
Pump power(KW)	2.2	3	2.2	2.2	3	4
