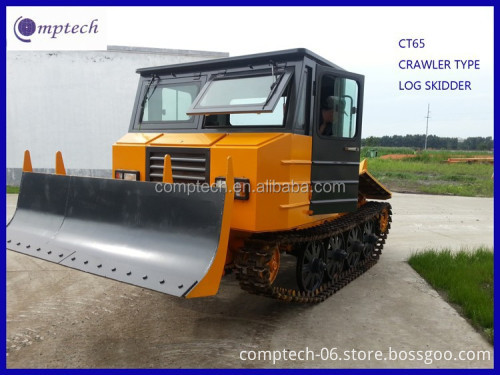

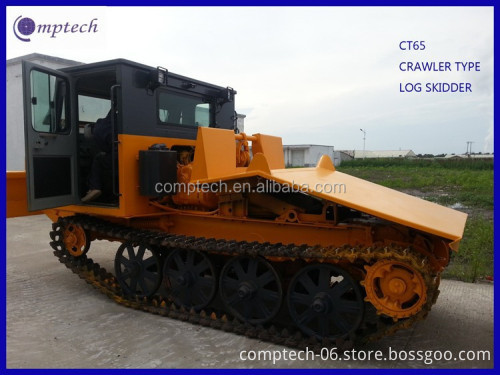

CT65 Forest Crawler Log Tractor
Description
产品描述
1, Whole tractor specification
---Tractor model: CT-65
---Tractor type: Crawler type
---Max. Qty of wood skidding: Big end of wood forward---6m3
Small end of wood forward---8m3
---Outline dimension: (L*W*H) 5500*2250*2600mm
---Rail-distance: 1480mm
---Wheel base: 2040mm
---Ground clearance: 510mm
---Structural mass: 7500+/-5% kg
---Everage ground pressure: 58KPa
---Winch traction force: 55.8KN
---Structure affordable vertical force: 29.4KN
---Suitable working slope: Lengthways direction---Max. 25 degree
Transverse direction---Max. 18 degree
---The calculated running speed and tractive force
|
齿轮 |
I |
II |
III |
IV |
V |
Rear |
|
Running speed(km/h) |
2.8 |
3.77 |
4.93 |
7.6 |
12.45 |
2.6 |
|
Tractive force (N) |
45822 |
32463 |
23379 |
12947 |
5495 |
|
2, Skidding equipment specification
---Winch rotation speed: Winding---35.5rpm
Releasing---33rpm
---Dia of the steel cable of winch: 17mm
---Length of steel cable: 40m
---Width of the carrying plate: 1708mm
---Track-clearer: Light push shovel type, hydraulic
3, Engine specification
---Engine model: LR4B5-19
---Rated power: 47.8kw at 1900rpm
---Max. torque: 290Nm at 1250-1450rpm
---Max. fuel consumption: 242g/kw.h
---Idling: 700rpm
The sole manufacturer of forestry log skidder in China.
