Zero Turn Riding Lawn Mower
Description
产品描述

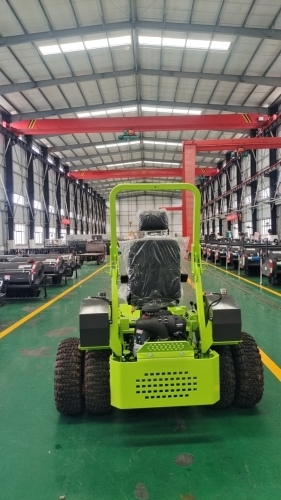

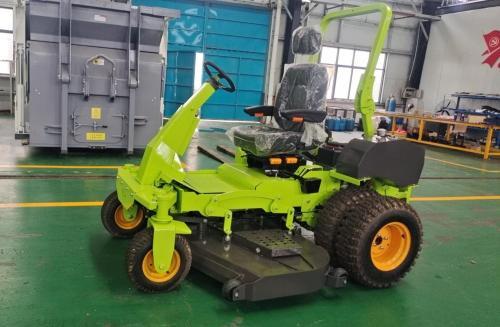

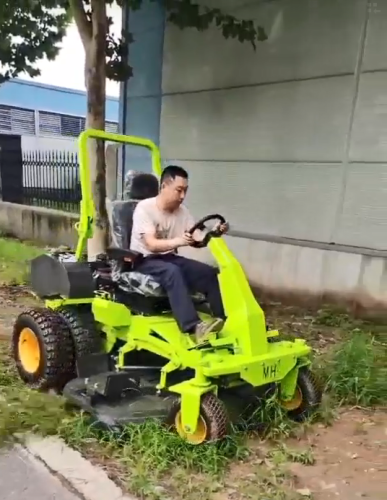

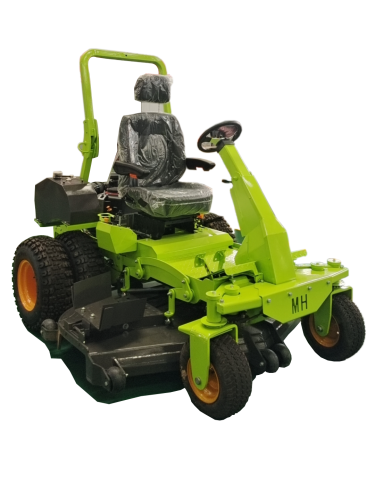

The MH-GCC1800 lawnmower is mainly used for weeding operations in large public area. The product is equipped with anti-roll safety support, off-seat stop and blade winding stop functions. The lawnmower is equipped with dual rear wheels, weighted front wheels and four-wheel steering functions to safely trim slopes up to 25 degrees.
Range of application
It is suitable for weeding operation in golf park, family park, factory park, school park, public greening park and other large public area.
The main structure and performance characteristics
Lawnmower zero turn function
Through the coordination of the steering wheel, transmission mechanism and brake mechanism, when rotating an angle in one direction, one driving wheel behind will stop rotating, and the other will drive rotation, at this time, the whole vehicle will make a 0 degree turn around the wheel that stops rotating.
Drive and transmission mechanism
Can be divided into 2 groups of transmission, one group is the power to drive forward, driven by the engine output shaft pulley, the pulley and 2 transmission on the pulley through a toothed belt connection, forming a triangular layout of the transmission form, each transmission and a group of rear wheels connected, when the forward rod, the transmission drives the rear wheel to rotate forward, loosen the forward rod the rear wheel to stop rotating, The vehicle stops rotating, the same reason after stepping on the backward bar, the rear wheel rotates backward, the vehicle steps back, and the strength of the step is proportional to the speed. The other group is the engine output shaft through the electronic clutch to drive another pulley, this pulley through the triangle belt and 3 fixed on the blade pulley connection, through the switch to switch the clutch, the pulley drives the blade to start rotating operation.
Cuttings removal structure for mowing
The three blades of the mowing tray rotate at high speed to generate air flow. Driven by the air flow, the cut grass is discharged from one side.
The Gasoline Lawn Mower, specifically designed for commercial use, is a powerful piece of equipment that includes the All-Wheel Ride Zero Turn Lawn Mower for maneuvering with precision. It is ideal for maintaining the pristine grass of golf courses and parks, as well as gardens, thanks to its Park Garden Powerful Mower capabilities, making it a top choice among Commercial Lawn Mowers for professional groundskeepers.
