Single Wire Profiling Dressing Squaring Machine for Stationary Diamond Wire Saw Cutting of Stone, Granite, and Marble Blocks

Product ID: 66640611

Single Wire Profiling Dressing Squaring Machine for Stationary Diamond Wire Saw Cutting of Stone, Granite, and Marble Blocks

Contact Now

Description

产品描述

Stationary Diamond Wire Saw Cutting Stone Granite Marble Block Single Wire Profiling Dressing Squaring Machine

产品描述

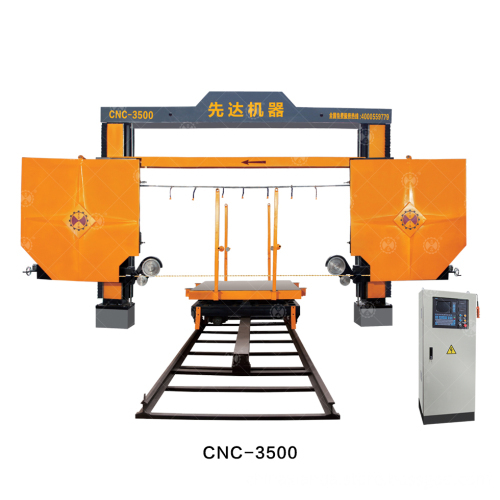

ITEM NO.

CNC-3500

Max processing size

3500*3500*2100mm

Dimension of worktable

2500×1300mm

Main Motor

11/15kw

Outline dimension

6800*8900*4700mm

Gross weight

8000kg

CNC-2000-2500-3000 adopts CNC control, Four-Axis linkage, which can process the circular stone slab, roman column, numeral, letter, Chinese characters and other designed shapes.

1. It has heavy load bearing structure, four orbits on each upright column, adjusted the balance by the rollers, with less friction and higher precision.

2. The left and right frame achieve synchronized lifting by steering equipment on the upper frame. The lifting accuracy increased by the conbine of lead screw and double nuts.

3. Cantilever part, firstly the lead screw and pole adjust the distance of guide wheel,guide wheel is controlled by CNC. Secondly in order to make the diamond wire rope cutting direction coincidence, reducer control the guide wheel rotating angle.

4. Worktable is running by lead screw and railway.

5. There has automatic alarm and memory function if wire broken, on top of it.

6. Aluminum wheel diameter is 1600mm.One fly wheel slide through sheave, oil pump control rope tension.

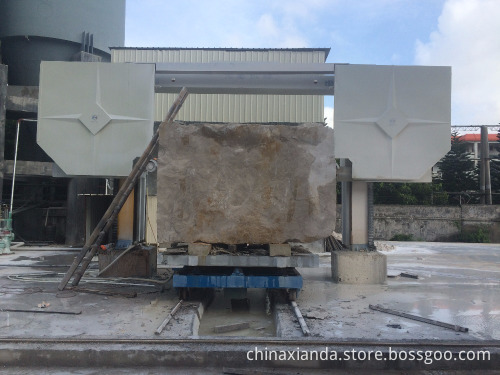

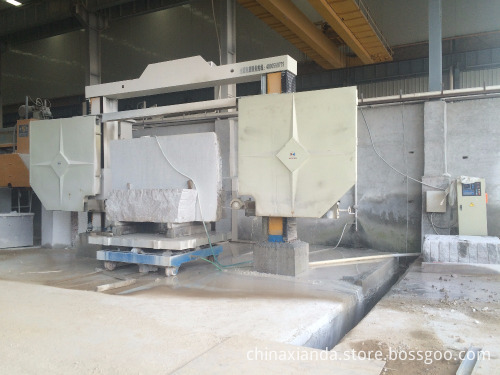

Working site
