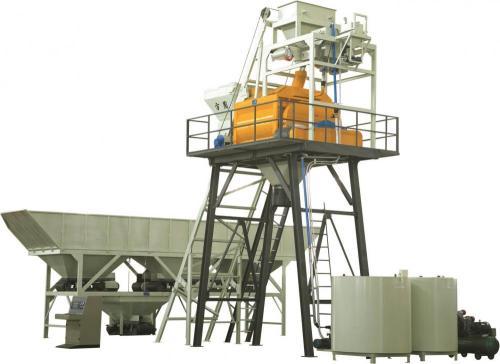

60m³/h Skip Type Ready Mixed Concrete Batching plant
Description
产品描述

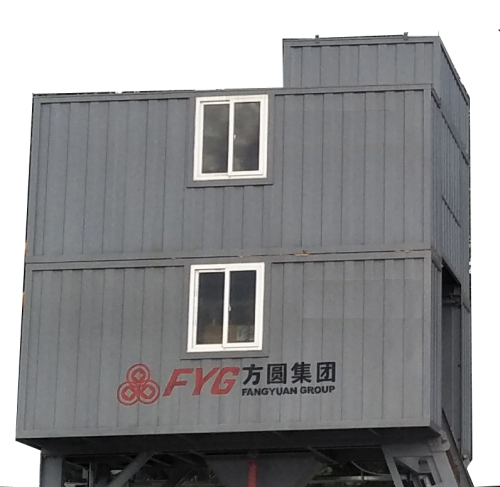

Designed for minimum space requirement and large quantities of concrete production performance, durable container modules enable economical transportation,minimum time and operations of erection and disassembling,robust structure reduces the requirement of foundation,leading to economical plant relocations,plant fully enclosed and protected from harsh environment,also low noise and dust emission.

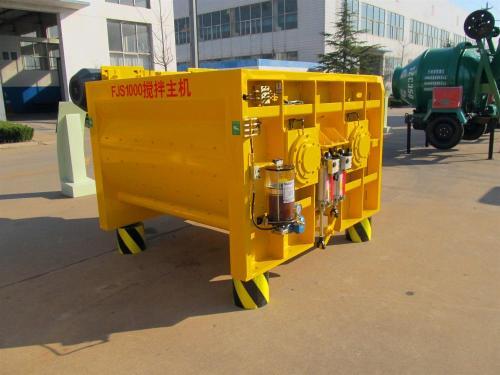

1.Reliable shaft end seal technology+high wear-resisting lining plate and blade.
2.Mixer prevent aggregate stick on shaft,reduce cleaning workload.
3.Special lifting mechanism,start and stop smoothly.long life of steel wire rope.
4.Lifting system have loose rope,exceed limit position,fall protection measures.
5.Feeding and mixing complete sealing,powder material silo adopt pulse negativepressure dust catcher,no pollution.
|
Item |
Unit |
HZS60D |
HZS90D |
HZS120D |
HZS180D |
|
|
Nominal output/h |
m³/h |
60 |
90 |
120 |
180 |
|
|
Mixer charging |
m³ |
1 |
1.5 |
2 |
3 |
|
|

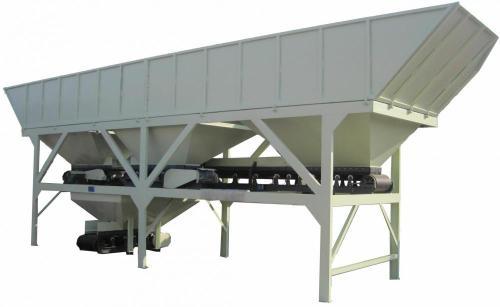

Batching machine |
|
PLD1600-III |
PLD2400Q-IV |
PLD3200QD-IV |
PLD4800QD-IV |
|
|
Aggregate storage bins charging |
m³ |
7 |
15 |
20 |
20 |
|
|
Aggregate storage bins qty |
pc |
3 |
4 |
4 |
4 |
|
|
Aggregate weighing capacity |
kg |
2000 |
3000 |
4*2000 |
4*3000 |
|
|
Cement weighing capacity |
kg |
600 |
1000 |
1200 |
1600 |
|
|
Fly-ash weighing capacity |
kg |
/ |
300 |
400 |
600 |
|
|
Water weighing capacity |
kg |
250 |
400 |
500 |
800 |
|
|
Additive weighing capacity |
kg |
40 |
40 |
50 |
80 |
|
|
Mixer power |
kw |
37 |
2*30 |
2*37 |
2*55 |
|
|
Belt conveyor power |
kw |
15 |
18.5 |
30 |
45 |
|
|
Total power |
kw |
80 |
120 |
150 |
190 |
|
|
Mixer discharge height |
m |
3.8 |
3.8 |
3.8 |
3.8 |
|
|
总重量 |
t |
24 |
42 |
51 |
62 |
|
|
Outline dimension(L*W*H) |
m |
17.7*10.4*19.4 |
30.8*15*19.4 |
34*13.2*19.4 |
40*19*18.5 |
|
|
Loading |
|
skip hoist |
||||
|
Weighing accuracy |
Aggregate |
% |
±2 |
±2 |
±2 |
±2 |
|
Powder |
% |
±1 |
±1 |
±1 |
±1 |
|
|
Water |
% |
±1 |
±1 |
±1 |
±1 |
|
|
Additive |
% |
±1 |
±1 |
±1 |
±1 |
|
