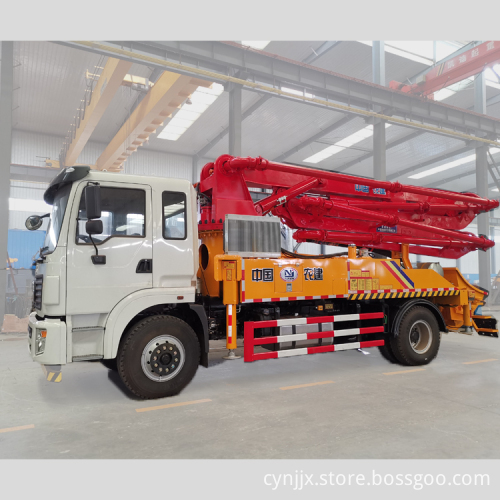

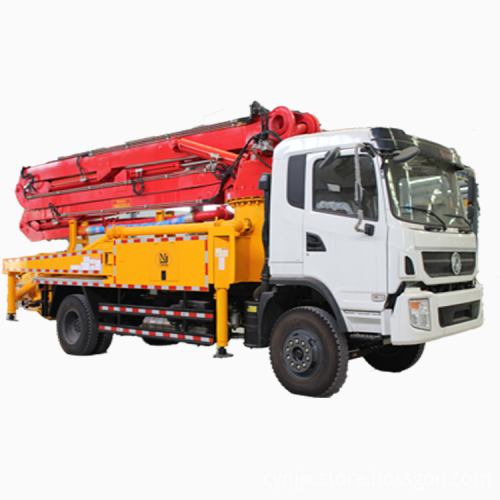

Good Prices on Boom Truck, Self-Mix Truck, and Hydraulic Construction Concrete Pump Truck
Contact Now
Description
产品描述
产品描述
|
Description
|
Unit
|
Parameter value
|
|
Outline dimension
|
mm
|
10955*2500*3800
|
|
Overall weight
|
kg
|
26500
|
|
型
|
|
ZZ5307N4647C
|
|
Manufacturer
|
|
Sinotruck Group Jinan truck
|
|
Max. Speed
|
km/h
|
90
|
|
Max. Grade-ability
|
%
|
40
|
|
Wheel base
|
mm
|
4600+1350
|
|
Tire
|
|
11.00R22.5
|
|
型
|
|
WD615.96
|
|
Max. Power
|
kw
|
279
|
|
Max. Torque
|
N*m/(r/min)
|
1590/1100-1600
|
|
Displacement
|
L
|
9.276
|
|
Emission standard
|
|
Eruo III
|
|
Theoretical output
|
m³/h
|
23
|
|
Concrete pumping pressure
|
Mpa
|
8
|
|
Theoretical pumping times
|
Time/min
|
24-27
|
|
Delivery cylinder diameter * stroke
|
mm
|
φ230×2000
|
|
Max. diameter of pumping concrete
|
mm
|
40
|
|
Filling height
|
mm
|
1580
|
|
Concrete slump range
|
cm
|
8-23
|
|
Reach height
|
m
|
39.1
|
|
Reach depth
|
m
|
26.8
|
|
Slewing radius
|
m
|
35.1
|
|
Slewing angle
|
°
|
±270
|
工地

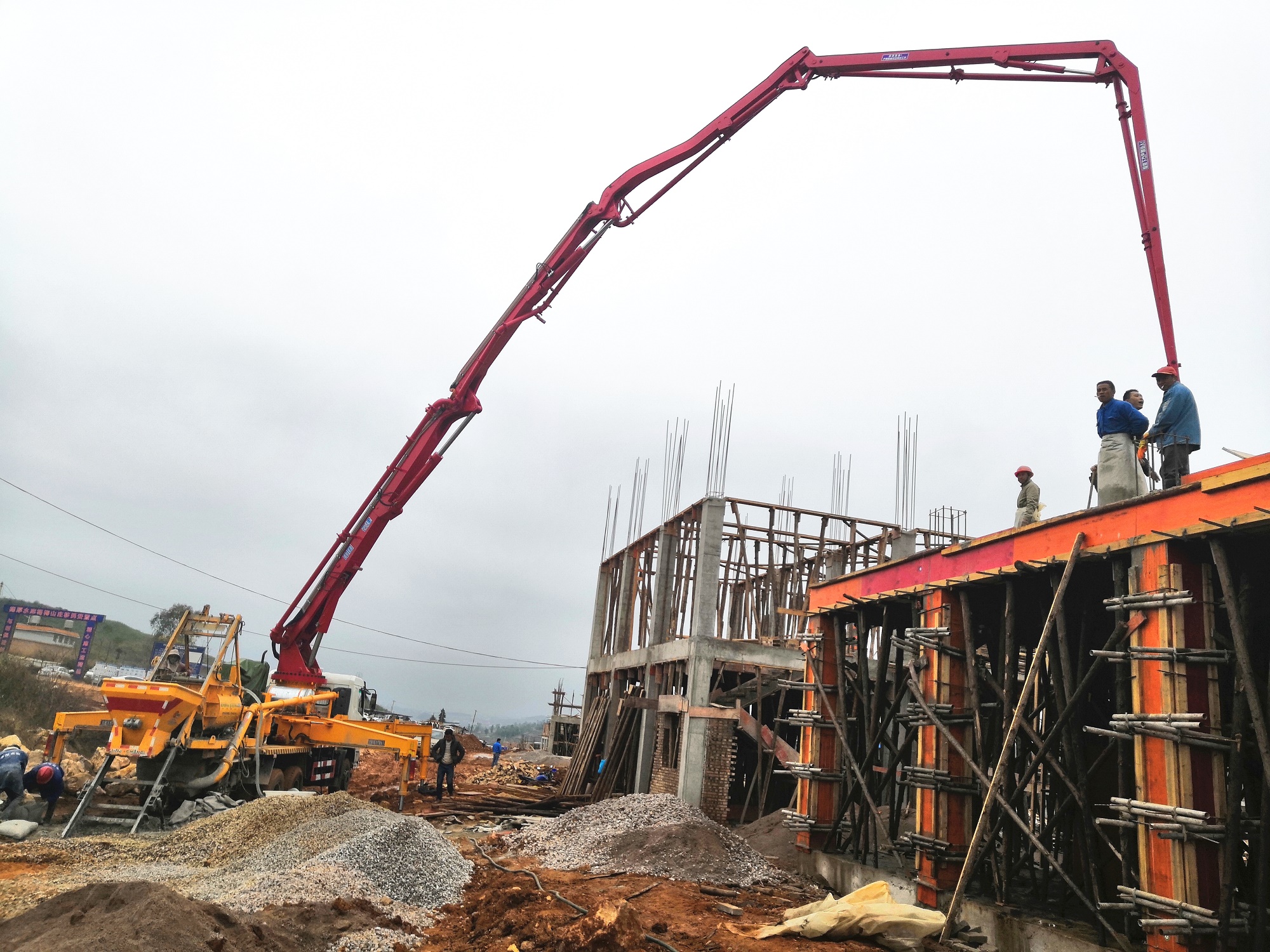

House construction

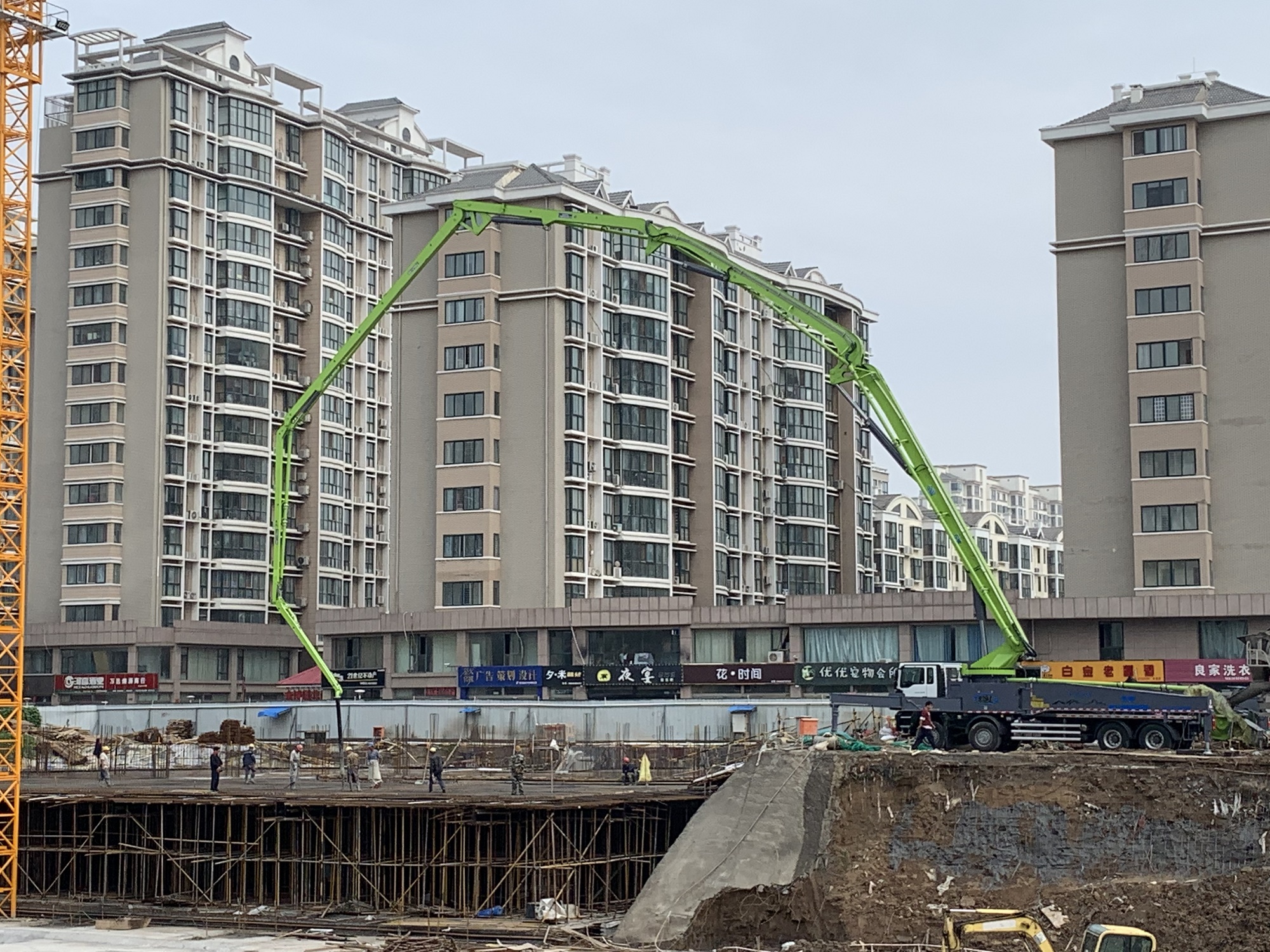

Shopping mall construction

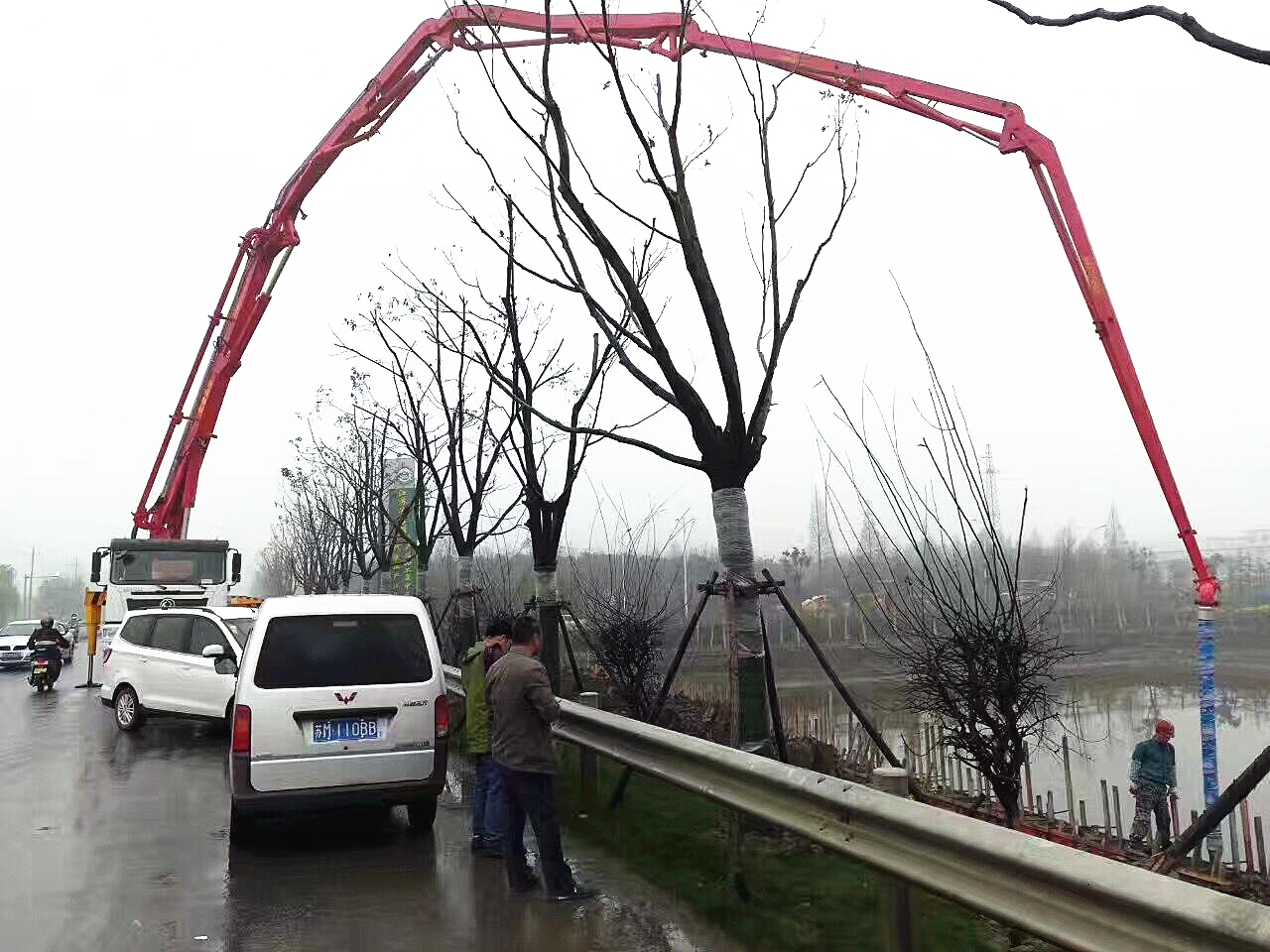

Bridge construction
