移动式混凝土搅拌站

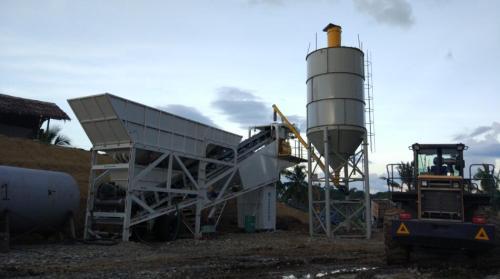

Stationary concrete batching plant is widely used for large and medium-sized construction work and infrastructure projects, such as commercial and residential properties, road construction, commercial concrete supply, etc. It is an ideal choice for the production of high-quality concrete with a large amount of demand.

According to the aggregate feeding method, the stationary concrete batching plant can be categorized into two types: Skip hoist type and belt conveyor type. The capacity of the Skip hoist type concrete batching plant can be 25/35/50/75 m3/h, and the capacity of belt conveyor type concrete batching plant can be 60/90/120/180/240 m3/h.

Type	HZS35	HZS50	HZS75
Nominal output/h	35m³/h	m³/h	m³/h
Aggregate storage bins charging	3*5m³	3*5m³	3*5m³
Aggregate weighing capacity	1500kg	2000kg	3000kg
Loading	Belt conveyor
搅拌机	1200/750L	1600/1000L	2400/1500L
Cement weighing capacity	400kg	600kg	1000kg
Water weighing capacity	200kg	250kg	400kg
Additive weighing capacity	40kg	40kg	40kg
Total power	52kw	60kw	82kw
Discharge height	3.8m
Air compressor	1m³/min
Control system	Full-automatic
Control room	Foldable

Taking construction technology to the next level is our mission – and that means making it cost-efficient, accurate, future-proof and connected. We are a market and technology pioneer in construction machinery. Our product include:

concrete mixer snd concrete batcher is the main components of the Concrete batching plant , used for mixing concrete.；

Tower cranes are used to lift heavy objects on construction sites；

Construction elevator is used for both manned and cargo;

concrete pump are used to transport concrete on site;

stabilized soil mixing plant is used to produce cement stabilizer for highway ;

The main purpose of the concrete mixing truck is to transport the concrete or mortar that has been mixed in the concrete mixer to the construction site

Screw conveyor is used for trsport cement from cement silo to mixer
