HOWO A7 6x4 371hp Concrete Mixer Truck
Description
产品描述
HOWO A7 6x4 371hp 混凝土搅拌运输车
Description:
Product Name: 371hp Concrete Mixer Truck
We manufacture varieties of concrete mixer trucks from 10cbm to 16cbm, which is used for construction and engineering. We devoted ourselves to trucks many years, covering most Africa and Asia countries. We are expecting become your long-term partner in China.
About Concrete mixer truck :
Drive Type: 4X2, 6X4, 8X4
LHD or RHD
Engine(hp): 266hp, 290hp, 336hp, 371hp
Transmission: HW19710,10 Forward And 2 Reverse
Tires:11.00R20,12.00R20,315/80R22.5
Cubic Meter: 10cbm, 12cbm, 16cbm
371hp Concrete Mixer Truck Specification:
|
型 |
CVZZ5317GJBN3267N1 howo a7 cement mixer truck |
|
发动机 |
D10.38 |
|
Cab |
A7-W Lengthen cab |
|
Transmission |
HW15710 or HW19710 transmission,10 forward and 2 reverse |
|
Steering |
ZF8098 Steering Gear Box |
|
Cubage (m3) |
12m3,14m3 |
|
Horsepower |
300 |
|
Maximum output |
279/2000 |
|
Bore x Stroke |
126x130 |
|
Valve |
4 |
|
Displacement |
9.726L |
|
Type |
6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection |
|
Emission standard |
Euro 3 |
|
Front Axle |
SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with disc brake.Option: drum brakes |
|
Rear Axles |
HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles,ratio:5.73 |
|
Tyres |
Rims:8.5-20,10 hole-steel;Tyres:12.00-20 diagonal tyre with 1 Spare tire.Option:12.00R20 radial tyre |
|
Oil Tank |
Square type-300L Aluminum alloy fuel tank |
|
Gross vehicle weight (GVW) |
31000 |
|
Front axle loading capacity |
2x9000 |
|
Rear axles loading capacity |
2x16000 |
|
Maximum driving speed (km/h) |
75 |

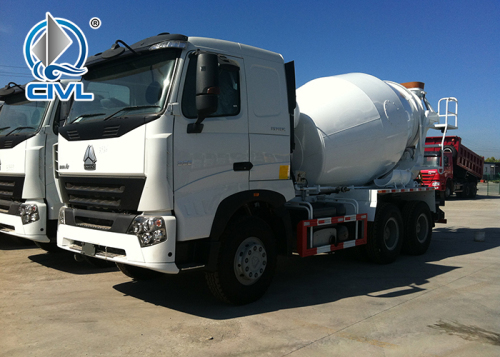

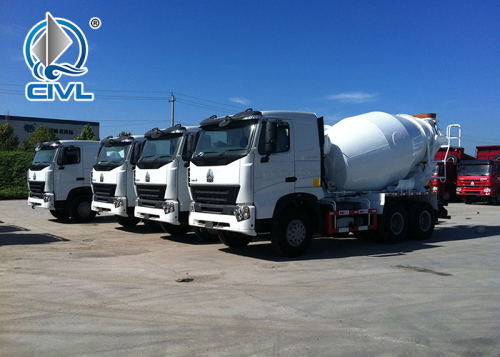

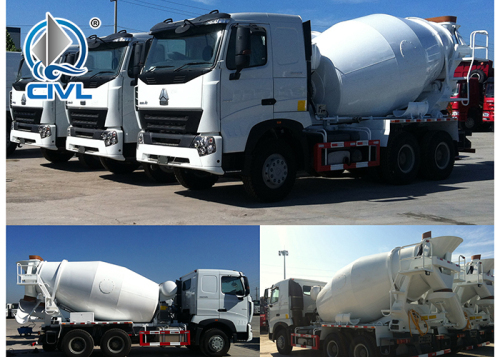

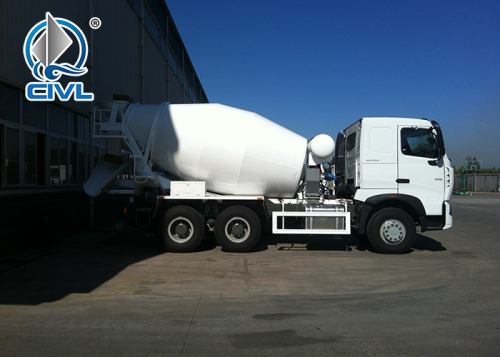

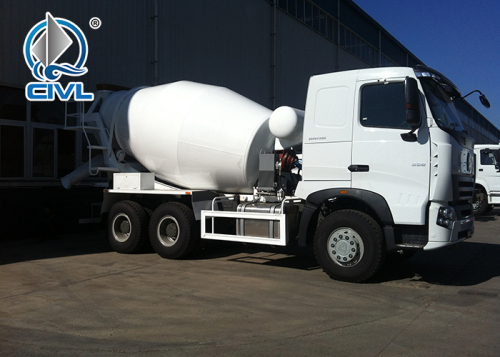

371hp Concrete Mixer Truck Details photo:
