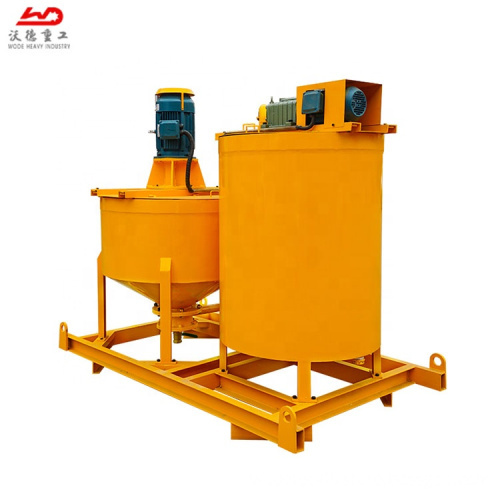

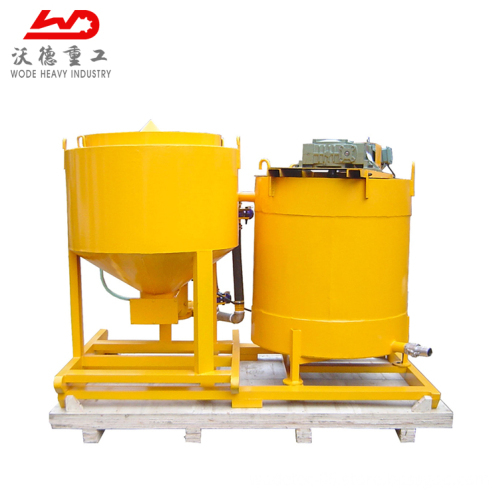

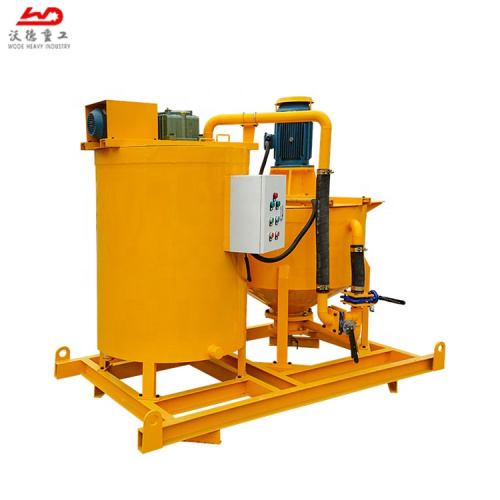

Grouting equipment cement grout mixer and agitator
WMA400-700E cement mixer & agitator for TBM grout plant tunnel is a combination of mixer and agitator, it is specially design for continuous cement mixing and grouting in ground/underground engineering. It can fast mix water, cement and additive, then the mixed slurry can be stored into a 700 liters agitator, thus the mixing work can continuously be done.
For the power, also there is diesel power for option
For the power, also there is diesel power for option
Technical Data
|
400L MIXER
|
|
|
|
Rated capacity
|
400 liter
|
|
|
Acceptable W/C ratio
|
≥0.5:1
|
|
|
Mixing time
|
3 min
|
|
|
Power
|
7.5kW
|
|
|
Weight
|
400 kgs
|
|
|
Overall Dimension
|
1500x1100x1500mm
|
|
|
700L AGITATOR
|
|
|
|
Rated capacity
|
700 liter
|
|
|
Rated Rev.
|
35rpm
|
|
|
Power
|
1.5kW
|
|
|
Weight
|
200 kgs
|
|
|
Overall Dimension
|
1300x1200x1350mm
|
|
Features of cement grout mixer:
1. One-man operation
2. Extremely fast mixing
3. No seals to wear out from grout
4. Simple grout transfer from mixer to agitator
1. One-man operation
2. Extremely fast mixing
3. No seals to wear out from grout
4. Simple grout transfer from mixer to agitator
Product Structure
Product Details
Application
WMA400-700E Adjustable cement grout mixer with an agitator can produce various types of grout, such as water, cement, bentonite and additive could be mixed in the 400L mixer machine, then the mixed slurry can be stored into 650 liters. WMA400-700E cement mixer & agitator is widely used during grouting projects, such as dam grouting, slope grouting, jet grouting, etc. A Grout mixer with an agitator machine could be also used for heavy construction: foundations, soil and building stabilization, tiebacks, soil and rock, and marine and underwater grouting projects. Grout mixer machine for sale is also used in mining and tunneling projects: tunnel lining, rock bolts, contact grouting, etc. Where the grouting liquid is needed, Wodetec will always help.
