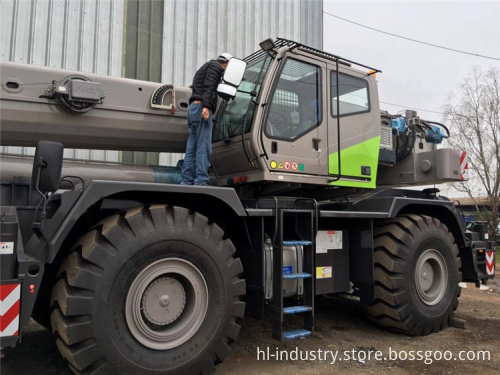

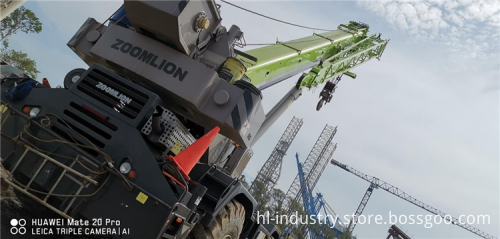

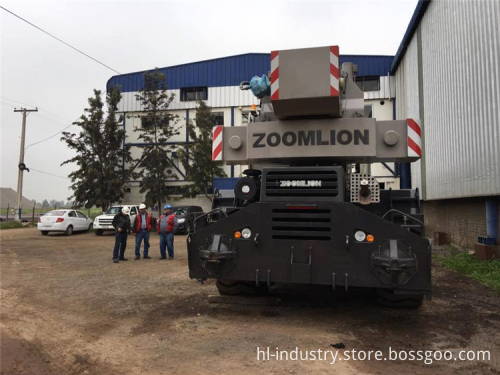

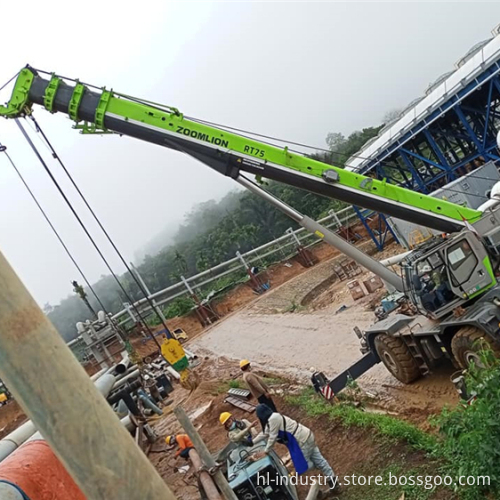

Promotion Price on 75 Ton Zoomlion Rough Terrain Crane (RT75) Model: A Versatile Mobile Crane for Heavy Lifting
Contact Now
Description
产品描述
1. Maneuverable and robust drive
• Four-wheel drive and four-wheel steer chassis;
• Fully hydraulic steering system;
• Variable steering modes, front-wheel steer,four-wheel steer and crab steer;short vehicle length and small turning radius provide the crane with maximum maneuverability and flexibility in narrow job sites
2. Excellent off-road capability
• Big ground clearance and departure / approach angle offer excellent off-road capability.
3. Strong gradeability
• electronically-controlled engine, automated transmission and steerable drive axlex provide reliable power output.
• Even in the condition of abrupt road resistance,the engine can also be functional.
• Four-wheel drive, hydraulic suspension and special tires optimize the vehicle' s drive performance to its maximum, suitable for any bad roads and job sites.
4. Pick-and-carry operations
• The rough terrain crane has the ability to pick and carry loads, thus improves the working efficiency greatly.
• The crane can also carry out "On tires" Lifts without extending the outrigger beams in narrow job sites.
• Superior pick-and-carry ability during short-distance transit can bring great convenience to the users.
5. Single cab design
• Single cab design with large skylight provides large field of view;
• Air-cushioned seat suits to all types of figures, which can release the driver' s or operator' s fatigue, thus improves the
working efficiency;
• The crane is fitted with air conditioning, suitable for all-weather work;
• Digital display and keyboard units,advanced data bus technology,error check and audible & acoustic alarm ensure the safety and
high efficiency of the operation.
• Four-wheel drive and four-wheel steer chassis;
• Fully hydraulic steering system;
• Variable steering modes, front-wheel steer,four-wheel steer and crab steer;short vehicle length and small turning radius provide the crane with maximum maneuverability and flexibility in narrow job sites
2. Excellent off-road capability
• Big ground clearance and departure / approach angle offer excellent off-road capability.
3. Strong gradeability
• electronically-controlled engine, automated transmission and steerable drive axlex provide reliable power output.
• Even in the condition of abrupt road resistance,the engine can also be functional.
• Four-wheel drive, hydraulic suspension and special tires optimize the vehicle' s drive performance to its maximum, suitable for any bad roads and job sites.
4. Pick-and-carry operations
• The rough terrain crane has the ability to pick and carry loads, thus improves the working efficiency greatly.
• The crane can also carry out "On tires" Lifts without extending the outrigger beams in narrow job sites.
• Superior pick-and-carry ability during short-distance transit can bring great convenience to the users.
5. Single cab design
• Single cab design with large skylight provides large field of view;
• Air-cushioned seat suits to all types of figures, which can release the driver' s or operator' s fatigue, thus improves the
working efficiency;
• The crane is fitted with air conditioning, suitable for all-weather work;
• Digital display and keyboard units,advanced data bus technology,error check and audible & acoustic alarm ensure the safety and
high efficiency of the operation.
|
Item
|
Unit
|
Value
|
|
|
Work performance
|
Max. rated lift capacity × work radius
|
kg.m
|
75000×3.0
|
|
|
Max. load moment of basic boom
|
kN.m
|
2814
|
|
|
Max. load moment of fully extended main boom
|
kN.m
|
1184
|
|
|
Max. lift height of fully extended main boom
|
m
|
41
|
|
|
Max. lift height of jib
|
m
|
56.8
|
|
Dimensions
|
Overall dimensions(L×W×H)
|
mm
|
14897×3395×3840
|
|
|
Outrigger spread (L×W)
|
mm
|
7380×1300
|
|
|
Main boom length (Fully retracted fully extended)
|
mm
|
12500-38500
|
|
|
Jib length (Jib section 1,jib sections 1+2)
|
mm
|
10000-170000
|
|
|
Boom angle
|
°
|
-81
|
|
|
Swing range
|
°
|
360°unlimited swing (Full range)
|
|
Work Speeds
|
Max. hoist rope speed (Main winch)
|
m/min
|
125
|
|
|
Min. boom extend time
|
s
|
110
|
|
|
Min. boom retract time
|
s
|
90
|
|
|
Min. boom derrick up time
|
s
|
80
|
|
|
Min. boom derrick down time
|
s
|
70
|
|
|
Swing speed
|
r/min
|
0-2
|
|
液压系统
|
Rated work pressure
|
MPa
|
29
|
|
|
额定工作油流量
|
升/分钟
|
320
|
|
|
液压油箱容量
|
L
|
1000
|
|
质量
|
整车质量
|
病历
|
52840
|
|
|
前桥载荷
|
病历
|
27760
|
|
|
后桥载荷
|
病历
|
25080
|
|
