5 Ton Truck Crane with Bucket Boom Small Crane

Product ID: 66676187

5 Ton Truck Crane with Bucket Boom Small Crane

Contact Now

Description

产品描述

Brief introduction

Santo crane, lift your dream.

Truck cranes are mounted on truck carriers which are used primarily for lifting material on the job site. This series products are designed for ease of use along with mobility and safety.

Highly praised for presenting high-grade quality truck mounted crane, we are a celebrated supplier in the market. We make sure the products we offer are as per national as well as international quality standards, reliable and worth every penny spent by buyer.

Safety devices

Santo crane, lift your dream.

Load indicator
Over-winding alarm
Anti-two-block device
Hook safety latch
Hydraulic safety valves, check valves and holding valves
Level gauge

Small truck crane with bucket boom 5 ton truck crane

Main parameters

Santo crane, lift your dream.

Max Lifting Capacity	2 ton, 3.2 ton, 5 ton, 6.3 ton, 8.0 ton, 10 ton 12 ton 16 ton
Max Lifting Moment	As per lifting capacity
Recommend Power	18KW-40 KW
Hydraulic System Flow	32L/min
Hydraulic System Pressure	20MPa
Oil Tank Capacity	45L-160L
Number of Sections	3, 4, 5, 6
Self Weight	2050-5500kg
Rotation Angle	360°

Small truck crane with bucket boom 5 ton truck crane

Advantage and features

Santo crane, lift your dream.

Safety

Bilateral can switch operation, easy observation lift, safer and more humane.

High quality hydraulic components, quality assurance, strong commonality, swap is convenient, safety operation.

With rotary impact device, It is can effectively protect the security of the vehicle.

High-efficiency

Straight arm hanging cylinder with built-in line technology, synchronous expansion, boom concise appearance, scale efficiency is high.

Integral lifting structure, hydraulic system stability, high lifting efficiency.

Dependable

Use at three floating bridge structure design, effectively reduce the additional stress of the chassis frame

Counterparts for the first time using dislocation leg structure, bearing capacity is strong, leg span is the largest

Match the whole machine adopts advanced research and development technology, reasonable structure, reliable in performance.

Stabilization

Using high strength steel, compact structure, light weight, small space for installation, mechanical performance is stable.

Hexagon crane jib structure, good to neutral, bending ability.

Industry for the first time by reduction gear turbine worm type slewing mechanism, the rotary stability.

Technical specifications of SQ6.3FCN model truck loader crane

Santo crane, lift your dream.

Crane strength rated capacities

Working radius(M)	Rated lifting capacity(kg)
Working radius(M)	4.4M Boom	7.3M Boom	10.2M Boom	13.1M Boom
2.0	6300
3.0	5200	4000
3.5	4100	3400	2800
4.0	3500	3000	2400
4.5		2700	2100	1800
5.0		2500	1900	1600
5.5		2200	1700	1500
6.0		2000	1500	1400
6.5		1800	1400	1300
7.0		1700	1300	1200
7.5			1200	1100
8.0			1100	1000
8.5			1000	900
9.0			900	800
9.5			800	700
10.0			700	600
11.0				500
12.0				400
13.0				300

NOTES FOR RATED LIFTING CAPACITIES :

The mass of hook (about 90 kg), slings and all other similarly used load handling devices must be added to the mass of the load.
The above numerical values of total rated loads are based on crane strength only.
The total rated loads based on stability may be lower than those in the above table depending on the loading conditions and the types of the chassis.

Detailed Images

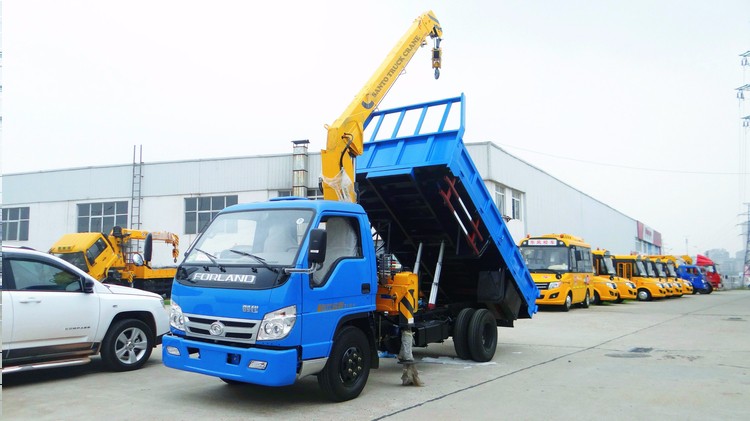

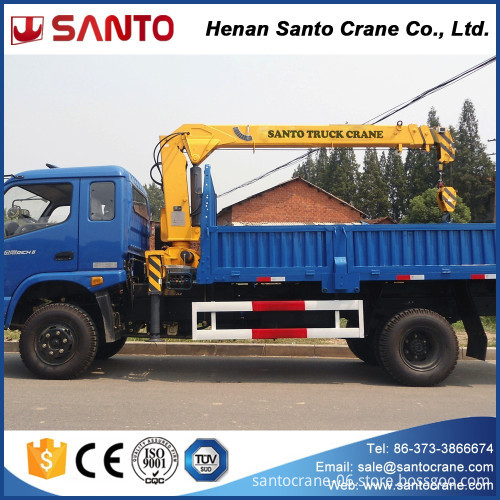

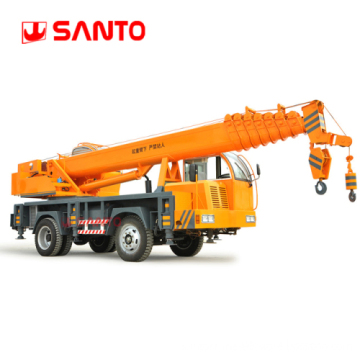

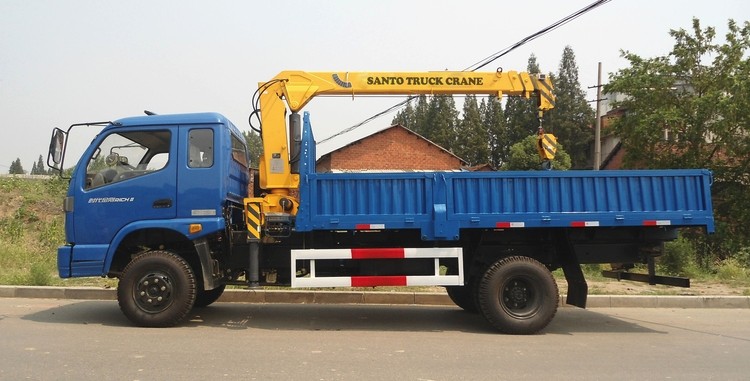

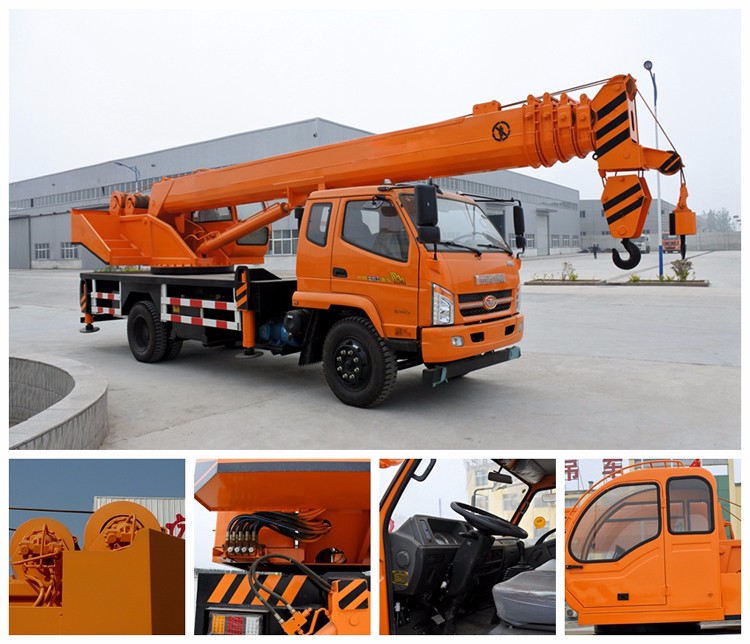

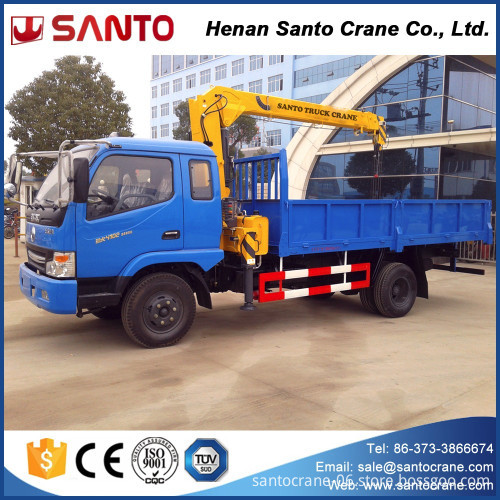

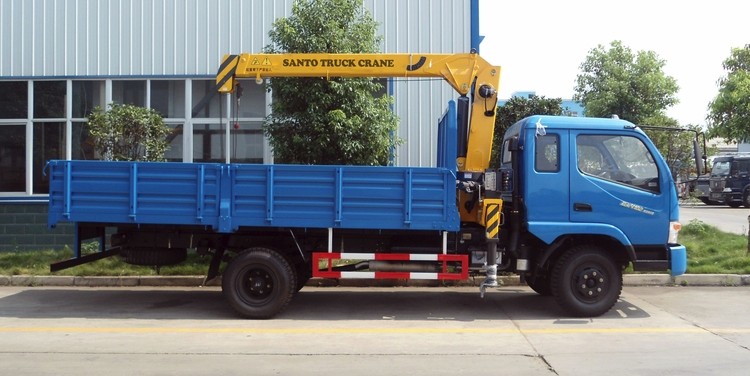

Truck crane detailed images
