Double Girder Gantry Crane for Lifting Steel Tubes
Description
产品描述
Ground Rail Traveling Box Type Double Girder Gantry Crane for lifting steel tube
MG type Ground Rail Traveling Box Type Double Girder Gantry Crane for lifting steel tube is mainly consisted of the skeleton structure, lifting and cross traveling mechanism, long traveling mechanism, cabin and electrical control system. The trolley can move horizontally on a pair of rails on the beam. The girder can be box or trussed type in according to your working environment situation.
Xinxiang is hometown of crane in China. Located in crane hometown Xinxiang, China modern crane co., ltd has more than 30 years' manufacturing experience. There are over tens engineers and over twenty technicians in our company, if you have any question or problem, we can solve it as soon as possible and give you best advice.
Modern MG Type Ground Rail Traveling Box Type Double Girder Gantry Crane for lifting steel tube can be used in open yard/outdoors/indoors for lifting materials, cargo, defective works etc. The crane is widely used home and abroad.
Operation method can be pendant control, remote control and operating cabin, clients can choose any according to their requirements.
Lifting capacity of Ground Rail Traveling Box Type Double Girder Gantry Crane for lifting steel tube is from 5 ton to 500 ton, which can meet different requirements of different clients.
Product Type: MG
Lifting Capacity: 5-500T
Span Length: 12-35M
Control Mode: Pendant, Remote Control and Cabin Control.
Features of Ground Rail Traveling Box Type Double Girder Gantry Crane for lifting steel tube
1. European optimized designing, light weight, small wheel load, space saving
2. Max. Safe working load can reach 500t
3. Flexible solution for all lifting needs
4. Excellent driving properties, frequency control, smoothly moving
Mechanical features of Ground Rail Traveling Box Type Double Girder Gantry Crane for lifting steel tube
1. Double welding box girder, DIN/FEM standard deflection
2. Steel tube legs, high strength, and small size
3. 10.9 class High tension bolts mounting between girder and end beams.
Ensure the whole machine structure strong and precise
4. Vertical gear motor of three-in-one driving, more safety and smaller space
5. Long travel high protection class IP55, F class, 40% ED
6. End carriage equipped with anti-friction bearings, crane buffer block, derailment protectors.

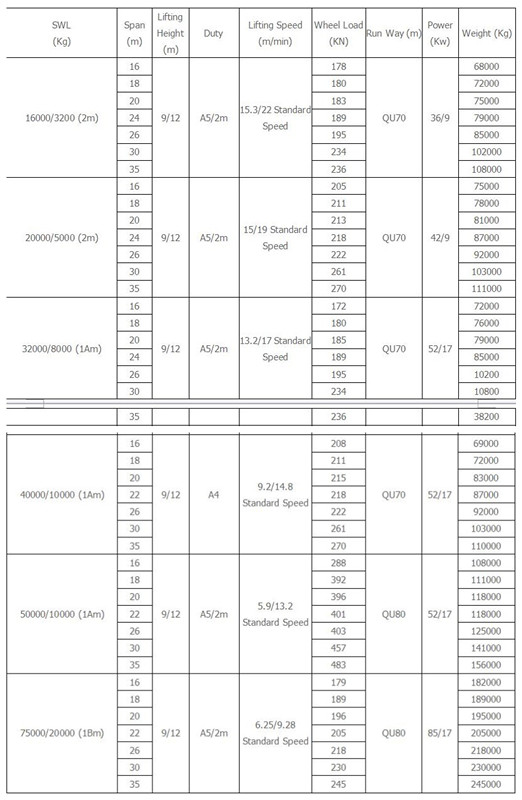

Technical parameters of Ground Rail Traveling Box Type Double Girder Gantry Crane for lifting steel tube

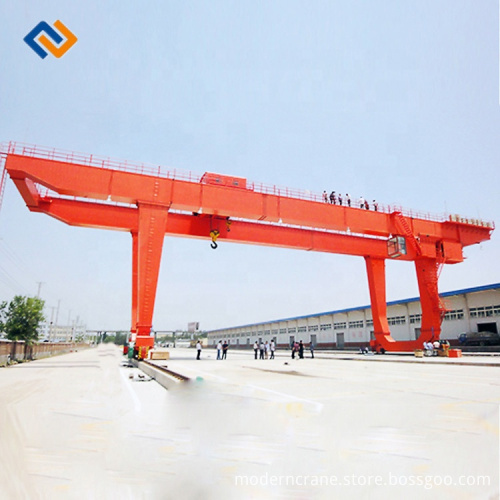

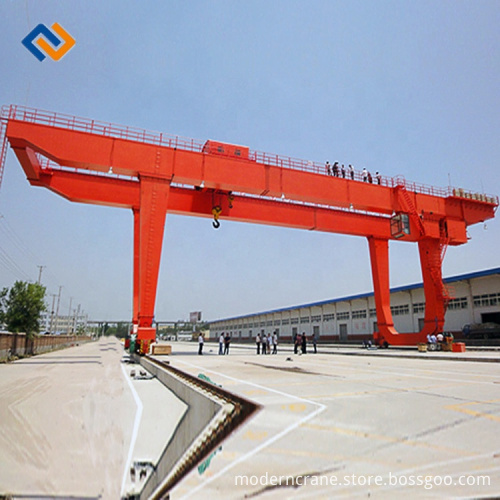

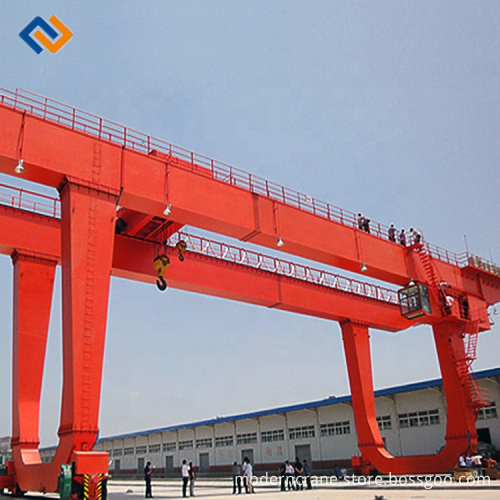

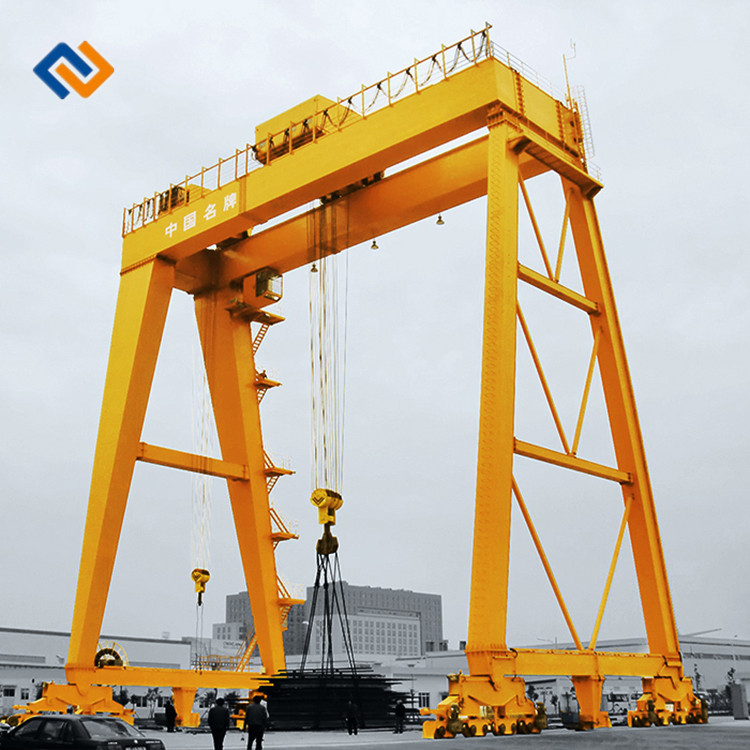

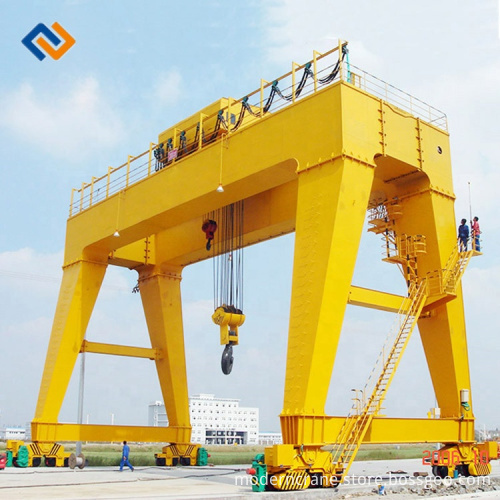

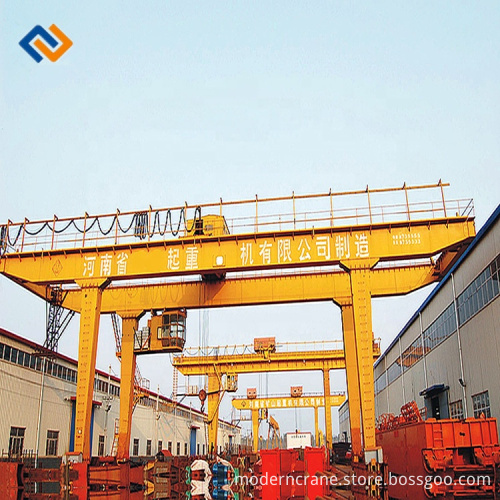

Pictures of Ground Rail Traveling Box Type Double Girder Gantry Crane for lifting steel tube
