Cheap Mini Hydraulic Excavator Machine

Cheap Mini Hydraulic Excavator Machine, also called Mini Hydraulic Excavators , Micro Excavator. It including 1 ton mini excavator,mini excavator 1ton to 6 tons,long arm excavator,wheel excavator...used in a orchard,farm, greenhouse, to break the road, rake the hay,grab the wood.
1 ton Mini Excavators Machine have the advantages of flexible and practical, high configuration, high performance, low oil consumption, beautiful appearance and wide application.

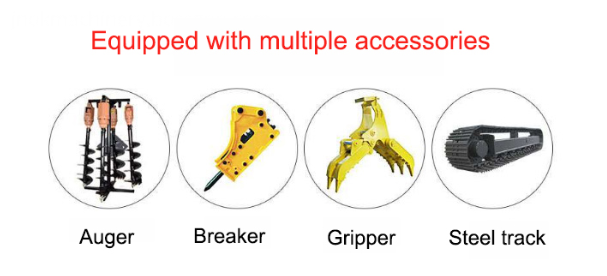

We also could supply excavator attachment tools including 20mm bucket,40 mm bucket, 60 mm bucket, Breaker hammer, Log grappler, Auger drilling, Ripper, Rake, Tool kit. We also could supply mini digger attachment tools as customer request.

Mini Hydraulic Excavators

Product pramaters

型	OK- 1 T	OK- 1.2T	OK- 1.8 T	OK- 2.2 T
Digging bucket capacity	0.02 CBM	0.02 CBM	0.06 CBM	0.08 CBM
Dimension	27709501500 mm	27709501500 mm	363510502320 mm	408212002128 mm
重量	1000 kg	1000 KG	1800 KG	2000 KG
Power	8.6 KW	16 KW	18 KW	18 KW
发动机	Diesel engine -Single cylinder	Diesel engine -double cylinder		Changcai ZN390Q
Wheel base	770 mm	770 mm	1150毫米	1150 mm
Length of track	1230 mm	1090mm	1632mm	1250 mmm
Width of track	180 mm	180mm	230mm	230mm
Plateform ground cleanrance	380 mm	380 mm	460 mm	460 mm
Max. Digging height	2490 mm	2490 mm	3200 mm	3714 mm
Max. Dumping height	1850	1850 mm	2385 mm	2488 mm
Max. Digging radius	2400 mm	2400 mm	3860 mm	4023 mm
Max. Digging depth	1400 mm	1400 mm	2150 mm	2150 mm
Max. Vertical digging depth	1320 mm	1320 mm	1950 mm	2000 mm
Min. Rotation radius	1190 mm	1190 mm	1125 mm	1200 mm
Tail turning radius	733 mm	733 mm	1125 mm	1200 mm
Max. Upgrade height of bulldozer blade	325 mm	325 mm	330 mm
Max. Digging depth of bulldozer blade	175 mm	175 mm	235 mm
Max. Travel speed	1.5km/h	1.5km/h	2 km/h	2 km/h
Working pressure	10MPA	10MPA	18MPA	18MPA
