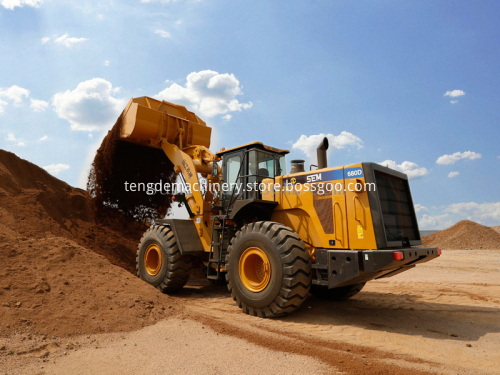

SEM 680D 8Ton Wheel Loader
Contact Now
Description
产品描述
Caterpillar 8 Ton Heavy Wheel Loader
Product Description
Machine Applications
- The sturdy design of the SEM 680D makes it the perfect machine for port cargo handling, mineral yards, steel mills and other high demand applications.
- In Quarry and Aggregate and Coal Mining applications the 680D can load more, move faster and burn less fuel.
Optimized Engine
- 232kW@1800rpm Perkins2206D , EURO III Emission Standard.
- Perkins verified electronically controlled fuel injection system mechanically driven (MEUI), provide consistent reliability and durability.
- The cylinder heads are all made of gray cast iron material thick wall, reduce noise and increase the stiffness of the integral all-steel piston.Forged connecting rod, high reliability.
Efficient Hydraulic System
- Single-handle pilot hydraulic control system with KD function, sensitive and efficient, and comfortable.
- Load-sensitive, bivariate converging hydraulic system for faster action times, more energy
- efficient, and more efficient traction.
- World Class hydraulic components ensure high reliability.
- Caterpillar technology integrated work valve with less leakage for simultaneous lifting and tipping.
Operator Station
- Premium operator station improves cab sealing and visibility.
- Sliding side window and AC with fresh air circulation provide operator comfort.
- Integrated relays and fuse panel. Single cabin harness connection plug provides easy service access.
- Optional monitoring system to improve the visibility of the operator, safer and more comfortable driving.
- Full hydraulic brake off function reduces brake overheating and extends brake component life.
Reliable Drivetrain
- The gearbox is equipped with electro-hydraulic control proportional valve, single clutch speed shifting, manual and automatic shifting are freely switching, and KD gear function selection, providing high-quality shifting experience and comfort planetary gear transmission, high power density and compact structure. Light weight and smooth transmission
- Caterpillar cast aluminum torque converter with free guide wheel for 5% or more efficiency
- Brake system performance is stable and long life.
Advanced Cooling System
- Caterpillar technology cooling system for more efficient and reliable heat dissipation.
- Continuous operation at 50 ° C ambient temperature.
- Shock pad mounts ensure reliability under severe applications.
Solid Structure
- Caterpillar technology construction, rugged and long lasting.

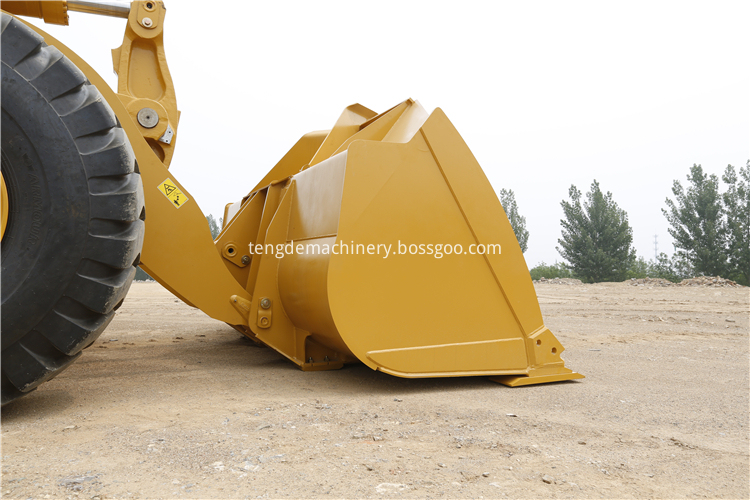

- High performance PS bucket, easy to insert material, 110% full rate.
Serviceability
- Torque convertor is isolated from transmission making it easy to service.
- The working device lubrication points are arranged centrally for easy maintenance.
- Hydraulic system and brake system with pressure tap for pressure detection.
- The water tank protection net can be opened for cleaning and cooling module.
- Optional automatic lubrication system for easy and reliable maintenance
Safety
- Caterpillar Production System (CPS) leveraged in manufacturing process.
- 3-point touching design provides convenient operator entering to cabin.
- Backup alarm and beacon ensure machine safety.
- Environment-friendly painting process.
- Optional monitoring system to improve the visibility of the hands behind the operation, driving safer and more comfortable.

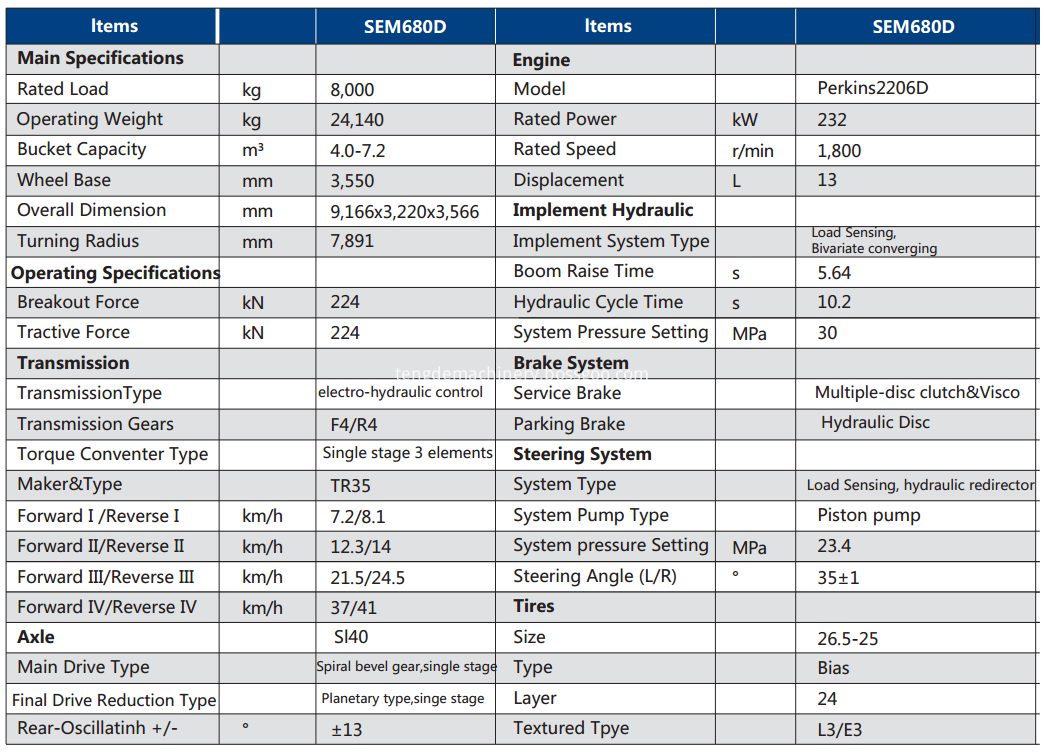

Product Overviews
